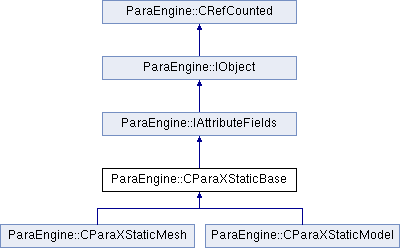

Inheritance diagram for ParaEngine::CParaXStaticBase:

Public Member Functions
	CParaXStaticBase (const char *strName=nullptr)

virtual int	InstallFields (CAttributeClass *pClass, bool bOverride)
	this class should be implemented if one wants to add new attribute. More...

	ATTRIBUTE_METHOD1 (CParaXStaticBase, DumpTextureUsage_s, const char **)

	ATTRIBUTE_METHOD1 (CParaXStaticBase, GetPolyCount_s, int *)

	ATTRIBUTE_METHOD1 (CParaXStaticBase, GetPhysicsCount_s, int *)

virtual int	GetPolyCount ()=0
	get polycount of this mesh object

virtual int	GetPhysicsCount ()=0
	get physics polycount of this mesh object

virtual const char *	DumpTextureUsage ()=0
	get texture usage such as the number of textures and their sizes. More...

virtual TextureEntity *	GetDefaultReplaceableTexture (int ReplaceableTextureID)=0
	get the default replaceable texture by its ID. More...

TextureEntity *	GetReplaceableTexture (int ReplaceableTextureID)
	get the current replaceable texture by its ID. More...

virtual bool	SetReplaceableTexture (int ReplaceableTextureID, TextureEntity *pTextureEntity)
	set the replaceable texture at the given index with a new texture. More...

virtual int	GetNextPhysicsGroupID (int nPhysicsGroup=-1)=0
	return the physics group id that is closest to nPhysicsGroup. More...

virtual TextureEntity *	LoadTextureByPath (const string &sFilePath, DWORD TextureType)
	build the texture entity. More...

HRESULT	Create (RenderDevicePtr pd3dDevice, const char *strFilename, bool bCheckSecondUV=false)

virtual HRESULT	Create (RenderDevicePtr pd3dDevice, void *buffer, DWORD nFileSize, bool bCheckSecondUV=false)=0

virtual HRESULT	Create (RenderDevicePtr pd3dDevice, XFile::Scene *pFileData)=0

virtual HRESULT	Destroy ()

virtual HRESULT	InitDeviceObjects ()=0

virtual HRESULT	DeleteDeviceObjects ()=0

virtual FLOAT	ComputeBoundingSphere (Vector3 vObjectCenter, FLOAT fObjectRadius)=0

virtual HRESULT	ComputeBoundingBox (Vector3 pMin, Vector3 pMax)=0

virtual HRESULT	ClonePhysicsMesh (DWORD pNumVertices, Vector3 ppVerts, DWORD pNumTriangles, WORD *ppIndices, int pnMeshPhysicsGroup=nullptr, int *pnTotalMeshGroupCount=nullptr)=0
	Get the physics mesh in terms of vertices and indices. More...

virtual MeshHeader &	GetMeshHeader (XFileParser *pFileParser=nullptr)=0
	get the mesh header. More...

virtual bool	GetMeshHeaderFromFile (CParaFile &myFile, XFileParser *pFileParser)=0

virtual HRESULT	Render (SceneState *pSceneState, RenderDevicePtr pd3dDevice, bool bDrawOpaqueSubsets=true, bool bDrawAlphaSubsets=true, float fAlphaFactor=1.0f)=0

virtual HRESULT	Render (SceneState pSceneState, CEffectFile pEffect, bool bDrawOpaqueSubsets=true, bool bDrawAlphaSubsets=true, float fAlphaFactor=1.0f, CParameterBlock *materialParams=nullptr)=0

int	GetNumReplaceableTextures ()
	get the total number of replaceable textures, which is the largest replaceable texture ID. More...

void	SetMeshFileData (void *pData, int nSize)
	set the mesh file data. More...

void	DeleteMeshFileData ()

int	GetXRefObjectsCount ()
	get the XRef Object in this model. More...

const ParaXRefObject *	GetXRefObjectsByIndex (int nIndex)
	Get XRef Objects By Index. More...

void	UseMeshMaterials (bool bFlag)

Public Member Functions inherited from ParaEngine::IAttributeFields
virtual int	GetAttributeClassID ()
	attribute class ID should be identical, unless one knows how overriding rules work. More...

virtual const char *	GetAttributeClassName ()
	a static string, describing the attribute class object's name

virtual const char *	GetAttributeClassDescription ()
	a static string, describing the attribute class object

virtual int	GetChildAttributeColumnCount ()
	we support multi-dimensional child object. More...

virtual int	GetChildAttributeObjectCount (int nColumnIndex=0)
	get the number of child objects (row count) in the given column. More...

virtual IAttributeFields *	GetChildAttributeObject (int nRowIndex, int nColumnIndex=0)

virtual IAttributeFields *	GetChildAttributeObject (const std::string &sName)
	get attribute by child object. More...

	ATTRIBUTE_METHOD1 (IAttributeFields, GetName_s, const char **)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetName_s, const char *)

	ATTRIBUTE_METHOD (IAttributeFields, PrintObject_s)

	ATTRIBUTE_METHOD (IAttributeFields, AddRef_s)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetRefCount_s, int *)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetTime_s, int)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetTime_s, int *)

	ATTRIBUTE_METHOD (IAttributeFields, Release_s)

virtual const std::string &	GetIdentifier ()

virtual void	SetIdentifier (const std::string &sID)

virtual bool	IsModified ()
	whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary. More...

virtual void	SetModified (bool bModified)
	set whether any field has been modified. More...

virtual bool	ValidateFields ()
	validate all fields and return true if validation passed. More...

virtual string	GetValidationMessage ()
	get the recent validation message due to the most recent call to ValidateFields()

virtual bool	ResetField (int nFieldID)
	Reset the field to its initial or default value. More...

virtual bool	InvokeEditor (int nFieldID, const std::string &sParameters)
	Invoke an (external) editor for a given field. More...

virtual bool	AddChildAttributeObject (IAttributeFields *pChild, int nRowIndex=-1, int nColumnIndex=0)
	add child object. More...

virtual void *	QueryObjectByName (const std::string &sObjectType)
	convert to object of a given type. More...

virtual void *	QueryObject (int nObjectType)
	convert to object of a given type. More...

virtual int	GetTime ()
	get the current local time in case it is animated in milli seconds frames. More...

virtual void	SetTime (int nTime)

virtual CDynamicAttributeField *	GetDynamicField (const std::string &sName)
	Get a dynamic field with a given name. More...

virtual CDynamicAttributeField *	GetDynamicField (int nIndex)
	Get a dynamic field with a given index. More...

virtual const char *	GetDynamicFieldNameByIndex (int nIndex)
	get field name by index

virtual int	GetDynamicFieldCount ()
	how many dynamic field this object currently have. More...

virtual int	SetDynamicField (const std::string &sName, const CVariable &value)
	set a dynamic field with a given name. More...

virtual int	AddDynamicField (const std::string &sName, ATTRIBUTE_FIELDTYPE dwType)
	add dynamic field and return field index

virtual void	RemoveAllDynamicFields ()
	remove all dynamic fields

virtual int	SaveDynamicFieldsToString (std::string &output)
	save only text dynamic fields to fieldname = value text strings. More...

virtual int	LoadDynamicFieldsFromString (const std::string &input)
	load only text dynamic fields from string More...

CAttributeClass *	GetAttributeClass ()
	get the main attribute class object. More...

void	PrintObject ()
	print the content of this object to a text file at temp/doc/[ClassName].txt. More...

Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...

virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...

virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...

virtual const IType *	GetType () const

virtual std::string	ToString () const

WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...

virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...

Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...

bool	delref () const
	decrease reference count of the object. More...

int	GetRefCount () const
	get the reference count

virtual int	Release ()

CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...

Static Public Member Functions
static XModelFileType	GetFileTypeByFilename (const std::string &sFilename)

Static Public Member Functions inherited from ParaEngine::IAttributeFields
static HRESULT	GetAttributeClassID_s (IAttributeFields cls, int p1)

static HRESULT	GetAttributeClassName_s (IAttributeFields cls, const char *p1)

static bool	OpenWithDefaultEditor (const char *sFilename, bool bWaitOnReturn=false)
	Open a given file with the default registered editor in the game engine. More...

Protected Member Functions
void	ClearFaceGroups ()
	clear all face groups. More...

Protected Member Functions inherited from ParaEngine::IAttributeFields
virtual CAttributeClass *	CreateAttributeClass ()
	initialize fields

virtual CDynamicAttributesSet *	GetDynamicAttributes (bool bCreateIfNotExist=false)

Protected Attributes
string	m_strName

MeshHeader	m_header

char *	m_pFileData
	the file data from which to load the mesh

int	m_pFileDataSize
	the file data size in bytes from which to load the mesh

vector< ParaXRefObject >	m_XRefObjects
	get a list of XRef objects

vector< CFaceGroup * >	m_faceGroups
	a list of face group

DWORD	m_dwNumMaterials

bool	m_bUseMaterials

vector< ref_ptr< TextureEntity > >	m_ReplaceableTextures

Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference

Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount

Additional Inherited Members
Public Types inherited from ParaEngine::IAttributeFields
typedef ParaEngine::weak_ptr< IObject, IAttributeFields >	WeakPtr_type

Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type

Member Function Documentation

§ ClearFaceGroups()

void ParaEngine::CParaXStaticBase::ClearFaceGroups ( )

protected

clear all face groups.

§ ClonePhysicsMesh()

virtual HRESULT ParaEngine::CParaXStaticBase::ClonePhysicsMesh	(	DWORD *	pNumVertices,
		Vector3 **	ppVerts,
		DWORD *	pNumTriangles,
		WORD **	ppIndices,
		int *	pnMeshPhysicsGroup = `nullptr`,
		int *	pnTotalMeshGroupCount = `nullptr`
	)

pure virtual

Get the physics mesh in terms of vertices and indices.

Parameters

pNumVertices	[out] number of vertices
ppVerts	[out] buffer contains all vertices. The caller needs to release the buffer using delete [] buffer.
pNumTriangles	[out] number of triangles, each triangle has three indices. Please note that if the mesh contains no physics faces, the pNumTriangles is 0. However pNumVertices might be positive.
ppIndices	[out] buffer contains all indices. The caller needs to release the buffer using delete [] buffer.
nMeshPhysicsGroup	[in\|out]: the mesh physics group to get. On return it will be assigned with the next mesh group.

Returns: S_OK, if succeed.

Implemented in ParaEngine::CParaXStaticModel, and ParaEngine::CParaXStaticMesh.

§ Create()

HRESULT ParaEngine::CParaXStaticBase::Create	(	RenderDevicePtr	pd3dDevice,
		const char *	strFilename,
		bool	bCheckSecondUV = `false`
	)

Parameters

bCheckSecondUV whether to check the second UV set. if there exist a second UV set, it will be created. 2008.1.25 by LXZ: this is a tricky workaround of D3DXLoadMeshFromXOf can only load a simple mesh from data node. If the mesh contains frames or second UV sets, the function will not work. So in such cases, I fall back to use the original D3DXLoadMeshFromXInMemory, which can handle frames and second UV sets.

§ DumpTextureUsage()

virtual const char* ParaEngine::CParaXStaticBase::DumpTextureUsage ( )

pure virtual

get texture usage such as the number of textures and their sizes.

Implemented in ParaEngine::CParaXStaticModel, and ParaEngine::CParaXStaticMesh.

§ GetDefaultReplaceableTexture()

virtual TextureEntity* ParaEngine::CParaXStaticBase::GetDefaultReplaceableTexture ( int ReplaceableTextureID )

pure virtual

get the default replaceable texture by its ID.

The default replaceable texture is the main texture exported from the 3dsmax exporter.

Parameters

ReplaceableTextureID usually [0-32) generally speaking, replaceable ID 0 is used for general purpose replaceable texture, ID 1 is for user defined. ID 2 is for custom skins.

Returns: this may return NULL, if replaceable texture is not set before or ID is invalid.

Implemented in ParaEngine::CParaXStaticModel, and ParaEngine::CParaXStaticMesh.

§ GetMeshHeader()

virtual MeshHeader& ParaEngine::CParaXStaticBase::GetMeshHeader ( XFileParser * pFileParser = nullptr )

pure virtual

get the mesh header.

and compute if not valid. one needs to check MeshHeader.m_bIsValid before using it. because if async loading is used, the mesh itself may not be ready when this function is called.

Implemented in ParaEngine::CParaXStaticModel, and ParaEngine::CParaXStaticMesh.

§ GetNextPhysicsGroupID()

virtual int ParaEngine::CParaXStaticBase::GetNextPhysicsGroupID ( int nPhysicsGroup = -1 )

pure virtual

return the physics group id that is closest to nPhysicsGroup.

or -1 if there is none.

Implemented in ParaEngine::CParaXStaticModel, and ParaEngine::CParaXStaticMesh.

§ GetNumReplaceableTextures()

int ParaEngine::CParaXStaticBase::GetNumReplaceableTextures ( )

get the total number of replaceable textures, which is the largest replaceable texture ID.

but it does not mean that all ID contains valid replaceable textures. This function can be used to quickly decide whether the model contains replaceable textures. Generally we allow 32 replaceable textures per model.

Returns: 0 may be returned if no replaceable texture is used by the model.

§ GetReplaceableTexture()

TextureEntity * ParaEngine::CParaXStaticBase::GetReplaceableTexture ( int ReplaceableTextureID )

get the current replaceable texture by its ID.

Parameters

ReplaceableTextureID usually [0-32) generally speaking, replaceable ID 0 is used for general purpose replaceable texture, ID 1 is for user defined. ID 2 is for custom skins.

Returns: this may return NULL, if replaceable texture is not set before or ID is invalid.

§ GetXRefObjectsByIndex()

const ParaXRefObject * ParaEngine::CParaXStaticBase::GetXRefObjectsByIndex ( int nIndex )

Get XRef Objects By Index.

§ GetXRefObjectsCount()

int ParaEngine::CParaXStaticBase::GetXRefObjectsCount ( )

inline

get the XRef Object in this model.

§ InstallFields()

int ParaEngine::CParaXStaticBase::InstallFields	(	CAttributeClass *	pClass,
		bool	bOverride
	)

virtual

this class should be implemented if one wants to add new attribute.

This function is always called internally.

Reimplemented from ParaEngine::IAttributeFields.

§ LoadTextureByPath()

TextureEntity * ParaEngine::CParaXStaticBase::LoadTextureByPath	(	const string &	sFilePath,
		DWORD	TextureType
	)

virtual

build the texture entity.

It will return NULL if the texture is not valid. if the texture contains no directory information. the mesh directory will be used to locate the texture. it will search for the current directory of the mesh file(m_strName)

Parameters

sFilePath	texture file path.
TextureType	see TextureEntity::_SurfaceType

§ SetMeshFileData()

void ParaEngine::CParaXStaticBase::SetMeshFileData	(	void *	pData,
		int	nSize
	)

set the mesh file data.

if this is set we will load the mesh from the memory data instead of open the mesh file. once the mesh has finished with the data, it will delete them using delete [] operator.

§ SetReplaceableTexture()

bool ParaEngine::CParaXStaticBase::SetReplaceableTexture	(	int	ReplaceableTextureID,
		TextureEntity *	pTextureEntity
	)

virtual

set the replaceable texture at the given index with a new texture.

This function is called frequently before an instace of the mesh object draws itself. because default instance of the mesh may use different replaceable texture set.

Parameters

ReplaceableTextureID	usually [0-32) generally speaking, replaceable ID 0 is used for general purpose replaceable texture, ID 1 is for user defined. ID 2 is for custom skins.
pTextureEntity	The reference account of the texture entity will be automatically increased by one.

Returns: true if succeed. if ReplaceableTextureID exceed the total number of replaceable textures, this function will return false.

The documentation for this class was generated from the following files:

Client/trunk/ParaEngineClient/3dengine/ParaXStaticBase.h
Client/trunk/ParaEngineClient/3dengine/ParaXStaticBase.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

§ ClearFaceGroups()

§ ClonePhysicsMesh()

§ Create()

§ DumpTextureUsage()

§ GetDefaultReplaceableTexture()

§ GetMeshHeader()

§ GetNextPhysicsGroupID()

§ GetNumReplaceableTextures()

§ GetReplaceableTexture()

§ GetXRefObjectsByIndex()

§ GetXRefObjectsCount()

§ InstallFields()

§ LoadTextureByPath()

§ SetMeshFileData()

§ SetReplaceableTexture()
