Base class of most Ubit objects (SEE DETAILS!). More...

#include <uobject.hpp>

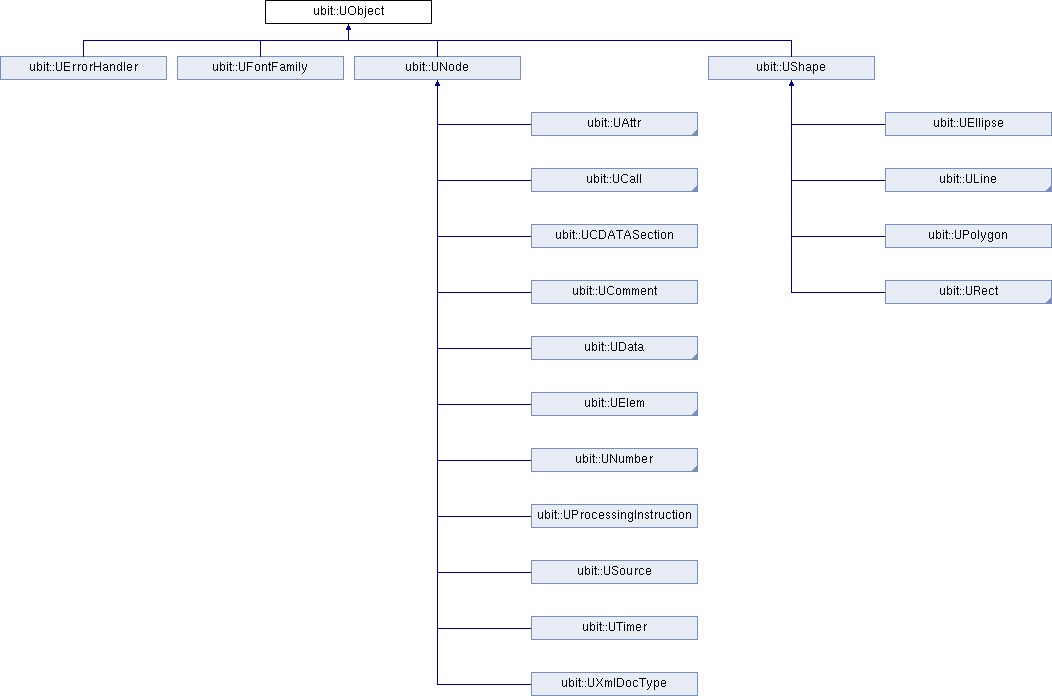

Inheritance diagram for ubit::UObject:

Classes
struct	MetaClass

struct	Modes
	[Impl] internal object modes. More...

struct	UConst

Public Types
typedef unsigned char	State

typedef short	PtrCount

Public Member Functions
	UObject (const UObject &)

UObject &	operator= (const UObject &)

virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...

const UStr &	getClassName () const
	returns getClass().getName().

virtual void	error (const char function_name, const char format,...) const
	prints out an error message. More...

virtual void	warning (const char function_name, const char format,...) const
	prints out a warning message: More...

bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...

bool	isConst () const
	checks whether the content of this object can be modified ( More...

UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...

bool	isAutoUpdate () const
	return current update policy: More...

UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.

UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.

virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

State	getState () const
	returns the current object state.

void	setState (State s)
	changes the object state.

PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.

bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...

bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).

bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).

virtual bool	hasSceneGraphParent () const

void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...

void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.

void	addPtr () const
	[Impl] a uptr is added to this object.

void	removePtr () const
	[Impl] a uptr is removed from this object.

Static Public Member Functions
static const char *	getVersion ()
	returns the version of the Ubit package.

static const UClass &	Class ()
	class method that returns the metaclass of this class. More...

static UStyle *	createStyle ()

Static Public Attributes
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...

Protected Attributes
PtrCount	ptr_count

Modes	omodes

State	ostate

Friends
class	UNode

class	UUpdateContext

class	UAppliImpl

class	USelection

class	UPtr

Detailed Description

Base class of most Ubit objects (SEE DETAILS!).

UObject is the base class for (almost) all Ubit objects. Its main subclasses are UNode, UAttr, UElem that play the same role as Node, Attribute and Element in a XML/DOM model and UBox and UWin that are the base classes for widgets and windows.

SUBCLASSING: UObject subclasses MUST invoke the UCLASS macro in the public section of their declaration:

  class UColor: public UAttr {
  public:
    UCLASS("UColor", UColor, new UColor)
    .....
 };

UCLASS redefines getClass() and Class() which return a metaclass that describes the corresponding Ubit class (see UClass). getClass() is an instance method, Class() a static method.

RECURSIVE DELETION: when a UObject instance is destroyed, its attributes and chidren (when applicable,
See also
UNode and UElem) are recursively deleted if they:

are NOT pointed by a UPtr SMART POINTER (see #3 below),
are NOT referenced by another (undeleted) UObject as a child or an atttribute.

Note that:

UPtr(s) should be preferred to ordinary C++ pointers and references as they may reference data that has been implicitely deleted
recursive destruction only apply to objects allocated in the heap (by using 'new' or a shortcut creator function such as ubox() or ubutton() that calls 'new')

UPtr SMART POINTERS provide automatic memory management. UObject(s) are automatically deleted when nothing reference them, i.e. when the last reference from a UPtr or anoher UObject is removed (as said above, this only apply to objects created in the heap)

Example:

   class MyClass : public UObject {
       ....
   };

   uptr<MyClass> p1 = new MyClass();   // p1 points to a new MyClass object
   uptr<MyClass> p2 = p1;              // p2 points to the same object

   p1 = null;   // (null = 0) does nothing because p2 also points to the object
   p2 = null;   // destroys the object as no other uptr<> points on it

See also: : UPtr, UObject, UClass

Member Function Documentation

§ checkConst()

bool UObject::checkConst ( ) const

[impl] produces an error if this object is logically constant (

See also: setConst()).

§ Class()

static const UClass& ubit::UObject::Class ( )

inlinestatic

class method that returns the metaclass of this class.

See also: getClass().

§ error()

void UObject::error	(	const char *	function_name,
		const char *	format,
			...
	)		const

virtual

prints out an error message.

this method displays an error message (on std::cerr by default) :

'function_name' = the name of the function where the error occured
'format' = a printf-like format
'...' = a variadic list of arguments that correspond to 'format'.
See also
also: warning() and UAppli::error().

Reimplemented in ubit::UErrorHandler.

§ getClass()

virtual const UClass& ubit::UObject::getClass ( ) const

inlinevirtual

instance method that returns the metaclass of this object.

Class() and getClass() return a metaclass (see UClass) that describes this class. Class() is a class method, while getClass() is an instance method.

WARNING: Class() and getClass() must be redefined by ALL Ubit classes. This can be done by invoking the UCLASS macro (see UNode) in the public section

Reimplemented in ubit::UDefaultBlockElement, ubit::UDefaultInlineElement, and ubit::UDefaultAttribute.

§ isAutoUpdate()

bool ubit::UObject::isAutoUpdate ( ) const

inline

return current update policy:

See also: setAutoUpdate().

§ isConst()

bool ubit::UObject::isConst ( ) const

inline

checks whether the content of this object can be modified (

See also: setConst()).

§ isDeletable()

bool ubit::UObject::isDeletable ( ) const

inline

checks if this object can be destroyed by 'delete'.

objects that were allocated in the heap or in static memory, or that are plain fields of other objects cannot be destroyed by using 'delete'.

§ operator new()

void * UObject::operator new ( size_t sz )

< [impl] returns true if there is at least one scene graph parent (redefined by UNode).

[impl] internal memory management.

§ setAutoUpdate()

UObject & UObject::setAutoUpdate ( bool state = true )

changes the update policy of this object when its is modified.

if 'state' is true, the object if automatically updated when modified

See also: UNode::setAutoUpdate() for more details.

§ setConst()

UObject & UObject::setConst ( )

specifies that the content of this object cannot be modified.

an attempt to modify the content of this object will then produce an error. Notes:

constness can't be changed once set.
this feature makes it possible to specify that an object is constant even if it is not declared 'const'. This makes it possible to have constant and non constant objects included in the same container. Constness is thus checked at run time instead of compilation time.
See also
also: UCONST.

§ warning()

void UObject::warning	(	const char *	function_name,
		const char *	format,
			...
	)		const

virtual

prints out a warning message:

See also: error().

Reimplemented in ubit::UErrorHandler.

Member Data Documentation

§ UCONST

UObject::UConst UObject::UCONST

static

UCONST can be given as an argument to some constructors to make the object constant.

an attempt to modify the value of this object will produce an error. Note that constness can't be changed once set.

See also: also: setConst().

The documentation for this class was generated from the following files:

src/ubit/uobject.hpp
src/ubit/uobject.cpp
