Base class of objects that can be added to the UBIT scene graph (SEE DETAILS!). More...

#include <unode.hpp>

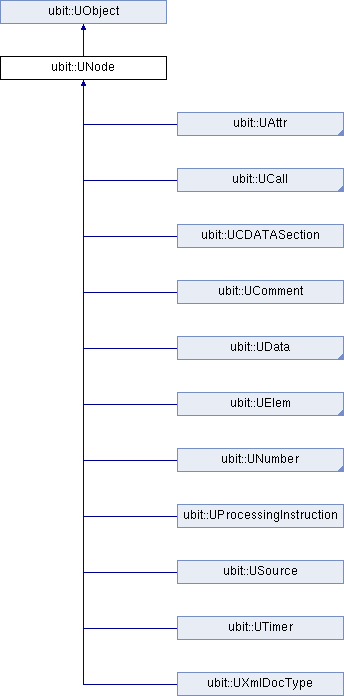

Inheritance diagram for ubit::UNode:

Public Types
enum	NodeType { ELEMENT_NODE = 1, ATTRIBUTE_NODE = 2, TEXT_NODE = 3, CDATA_SECTION_NODE = 4, ENTITY_REFERENCE_NODE = 5, ENTITY_NODE = 6, PROCESSING_INSTRUCTION_NODE = 7, COMMENT_NODE = 8, DOCUMENT_NODE = 9, DOCUMENT_TYPE_NODE = 10, DOCUMENT_FRAGMENT_NODE = 11, NOTATION_NODE = 12 }
	redefines Class() and getClass() methods ( More...

enum	DisplayType { WINLIST =-1, UNDISPLAYBLE =0, ATTRIBUTE, DATA, INLINE, BLOCK, BORDER, HARDWIN, SOFTWIN }
	Ubit display types.

Public Types inherited from ubit::UObject
typedef unsigned char	State

typedef short	PtrCount

Public Member Functions
virtual int	getNodeType () const
	returns the XML node type.

virtual const UStr &	getNodeName () const
	return the XML node name.

virtual UStr	getNodeValue () const
	return the XML node value.

virtual int	getDisplayType () const

virtual int	isDisplayable () const

virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual bool	isChildOf (const UElem &parent, bool indirect=true) const
	returns true if this object a child of 'parent'. More...

UParentIter	pbegin () const
	returns an iterator to the beginning of the list of direct parents. More...

UParentIter	pend () const
	returns an iterator to the end of the parent list ( More...

virtual UParents &	parents () const
	returns the list of direct parents ( More...

virtual UElem *	getParent (int pos=0) const
	returns the Nth direct parent. More...

virtual bool	hasSceneGraphParent () const

template<class CC >
CC *	findParent () const
	< this object has at least one parent in the scene graph. More...

virtual int	getBoxParents (std::vector< UBox *> &parvect) const
	retrieves direct and indirect parents that are boxes.

virtual UBox *	getParent (const UView *) const
	returns the direct or indirect parent that contains this view. More...

virtual UView *	getParentView (const UView *) const
	returns the direct or indirect parent's view that contains this view. More...

virtual UBox *	getParent (const UInputEvent &) const

virtual UView *	getParentView (const UInputEvent &) const

virtual void	removeFromParents (bool update_parents=true)
	[impl] removes this object from all direct parents. More...

virtual bool	fire (UEvent &) const
	fires callback functions that match this event.

virtual UNode &	removeAllAttrs (bool autodel=true)
	removes all attributes (if any, redefined by subclasses).

virtual void	update ()
	updates object graphics.

bool	isAutoUpdate () const
	return current update policy: see setAutoUpdate().

UNode &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

void	fireParents (const UCond &c, UNode *n) const

void	updateAutoParents (const UUpdate &m)

virtual void	addChangeCall (UCall &)

virtual UElem *	getSubGroup () const

void	_addAttr (const UChild &attribute)
	[impl] to be removed @.

UChildIter	_abegin () const
	[impl] to be removed @.

UChildIter	_aend () const
	[impl] to be removed @.

Public Member Functions inherited from ubit::UObject
	UObject (const UObject &)

UObject &	operator= (const UObject &)

virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...

const UStr &	getClassName () const
	returns getClass().getName().

virtual void	error (const char function_name, const char format,...) const
	prints out an error message. More...

virtual void	warning (const char function_name, const char format,...) const
	prints out a warning message: More...

bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...

bool	isConst () const
	checks whether the content of this object can be modified ( More...

UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...

bool	isAutoUpdate () const
	return current update policy: More...

UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.

UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.

virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

State	getState () const
	returns the current object state.

void	setState (State s)
	changes the object state.

PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.

bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...

bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).

bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).

void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...

void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.

void	addPtr () const
	[Impl] a uptr is added to this object.

void	removePtr () const
	[Impl] a uptr is removed from this object.

Protected Member Functions
	UNode ()
	constructor, can anly be called by subclasses because UNode is abstract.

virtual	~UNode ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...

virtual void	addingTo (UChild &, UElem &parent)
	called when this object is added to a parent.

virtual void	removingFrom (UChild &, UElem &parent)
	called when this object is removed from a parent (SEE DETAILS IF YOU REDEFINE THIS METHOD). More...

virtual void	destructs ()
	unlinks the object from its parents and destroys its children.

Protected Attributes
UParents	_parents

UChildren	_attributes

Protected Attributes inherited from ubit::UObject
PtrCount	ptr_count

Modes	omodes

State	ostate

Friends
class	UChild

class	UArgs

class	UParents

class	UElem

UChild	operator/ (const UCond &, UNode &)
	conditional expression for callback functions and conditionnal objects. More...

UChild	operator/ (const UCond &, UNode *)
	see operator/(const UCond&, UNode&).

Additional Inherited Members
Static Public Member Functions inherited from ubit::UObject
static const char *	getVersion ()
	returns the version of the Ubit package.

static const UClass &	Class ()
	class method that returns the metaclass of this class. More...

static UStyle *	createStyle ()

Static Public Attributes inherited from ubit::UObject
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...

Detailed Description

Base class of objects that can be added to the UBIT scene graph (SEE DETAILS!).

A Ubit scene graph can be seen as a XML document:

UNode corresponds to "Node", the base class of XML nodes in the DOM model
subclasses UAttr and UElem respectively correspond to "Atrribute" and "Element"
UBox, which derives from UElem, is the base class for widgets, and UWin for windows

UNode derives from UObject, the base class for (almost) all Ubit objects. See the UNode documentation for important info about:

subclassing and the UCLASS macro
recursive deletion
UPtr smart pointers

Member Enumeration Documentation

§ NodeType

enum ubit::UNode::NodeType

redefines Class() and getClass() methods (

See also: UNode). XML object types.

Constructor & Destructor Documentation

§ ~UNode()

virtual ubit::UNode::~UNode ( )

inlineprotectedvirtual

destructor, note that children are recursively destroyed except if pointed elsewhere (

See also: class UNode).

Member Function Documentation

§ findParent()

template<class CC >

CC* ubit::UNode::findParent ( ) const

inline

< this object has at least one parent in the scene graph.

objects can have non scene graph parents in some cases. Such parents are not taken into account for deciding whether objects can be automatically destructed. returns first the direct or indirect parent with that class.

§ getParent() [1/2]

virtual UElem* ubit::UNode::getParent ( int pos = 0 ) const

virtual

returns the Nth direct parent.

returns the first parent if 'pos' = 0 and the last parent if 'pos' = -1. returns null and issues an error message if 'pos' is out of range. Notes:

objects can have several parents
getParents() is more efficient for accessing multiple parents.

§ getParent() [2/2]

virtual UBox* ubit::UNode::getParent ( const UView * ) const

virtual

returns the direct or indirect parent that contains this view.

intermediate UElem parents are ignored (ie. traversed) by this function.

§ getParentView()

virtual UView* ubit::UNode::getParentView ( const UView * ) const

virtual

returns the direct or indirect parent's view that contains this view.

intermediate UElem parents are ignored (ie. traversed) by this function.

§ isChildOf()

bool UNode::isChildOf	(	const UElem &	parent,
		bool	indirect = `true`
	)		const

virtual

returns true if this object a child of 'parent'.

'indirect' specifies if indirect childhood is taken into account.

§ parents()

virtual UParents& ubit::UNode::parents ( ) const

inlinevirtual

returns the list of direct parents (

See also: pbegin()).

§ pbegin()

UParentIter ubit::UNode::pbegin ( ) const

inline

returns an iterator to the beginning of the list of direct parents.

UParentIter is a parent iterator. It is compatible with standard STL algorithms. This example prints the class name of the direct parents of an object :

        UNode* obj = ...;
        for (UParentIter p = obj->pbegin(); p != obj->pend(); ++p)
            cout << (*p)->getClassName() << endl;

See also: also: parents(), abegin(), aend().

§ pend()

UParentIter ubit::UNode::pend ( ) const

inline

returns an iterator to the end of the parent list (

See also: pbegin()).

§ removeFromParents()

void UNode::removeFromParents ( bool update_parents = true )

virtual

[impl] removes this object from all direct parents.

notes:

objects can have several parents!
this function is potentially dangerous: UElem::remove() methods should be prefered when possible.

§ removingFrom()

virtual void ubit::UNode::removingFrom	(	UChild &	,
		UElem &	parent
	)

inlineprotectedvirtual

called when this object is removed from a parent (SEE DETAILS IF YOU REDEFINE THIS METHOD).

!BEWARE: subclasses that redefine removingFrom() MUST HAVE A DESTRUCTOR that calls destructs().
DETAILS: this is because of a C++ subtletly: as polymorphism is deactivated in destructors, a redefined removingFrom() method won't be called except if destructs() - that calls removingFrom() - is called in the destructor of the class that redefines removingFrom()).

Reimplemented in ubit::UStr, ubit::UOrient, ubit::USizeControl, ubit::UTip, ubit::URadioSelect, ubit::UPosControl, ubit::UEdit, ubit::UChoice, ubit::UMenu, ubit::UDialog, ubit::UCursor, and ubit::UViewStyle.

§ setAutoUpdate()

UNode & UNode::setAutoUpdate ( bool state = true )

changes the update policy of this object when its is modified.

if 'state' is true, the object if automatically updated when modified (either by adding/removing children for UElem and subclasses, or by setting new values for UData, UStr, UAttr ...)
if 'state' is false, the update() function must be called explicitely to update the graphics. This can be useful in certain cases to avoid intermediate updates in order to to speed up rendition

Friends And Related Function Documentation

§ operator/

UChild operator/	(	const UCond &	,
		UNode &
	)

friend

conditional expression for callback functions and conditionnal objects.

example:

   struct Demo {
      void saveFile();
      void showMsg(const char*);
      ....
   };
   Demo* d = new Demo;
   // NB: ubutton(...) returns *new UButton(...)
   UBox& b = ubutton(" Save..." + UOn::action / ucall(d, &Demo::saveFile));
   ....
   b.addAttr(UOn::enter / ucall(d, "Saves the file", &Demo::showMsg)

See also: : addAttr(), UCall, UOn, UFlag for more details.

The documentation for this class was generated from the following files:

src/ubit/unode.hpp
src/ubit/unode.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

§ NodeType

Constructor & Destructor Documentation

§ ~UNode()

Member Function Documentation

§ findParent()

§ getParent() [1/2]

§ getParent() [2/2]

§ getParentView()

§ isChildOf()

§ parents()

§ pbegin()

§ pend()

§ removeFromParents()

§ removingFrom()

§ setAutoUpdate()

Friends And Related Function Documentation

§ operator/
