lightweight general purpose container. More...

#include <uelem.hpp>

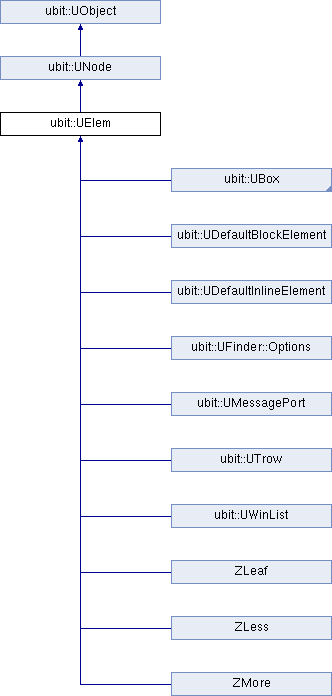

Inheritance diagram for ubit::UElem:

Classes
struct	Modes

Public Types
enum	{ REMOVE_FROM_PARENTS = -1 }

Public Types inherited from ubit::UNode
enum	NodeType { ELEMENT_NODE = 1, ATTRIBUTE_NODE = 2, TEXT_NODE = 3, CDATA_SECTION_NODE = 4, ENTITY_REFERENCE_NODE = 5, ENTITY_NODE = 6, PROCESSING_INSTRUCTION_NODE = 7, COMMENT_NODE = 8, DOCUMENT_NODE = 9, DOCUMENT_TYPE_NODE = 10, DOCUMENT_FRAGMENT_NODE = 11, NOTATION_NODE = 12 }
	redefines Class() and getClass() methods ( More...

enum	DisplayType { WINLIST =-1, UNDISPLAYBLE =0, ATTRIBUTE, DATA, INLINE, BLOCK, BORDER, HARDWIN, SOFTWIN }
	Ubit display types.

Public Types inherited from ubit::UObject
typedef unsigned char	State

typedef short	PtrCount

Public Member Functions
	UElem (UArgs node_arglist=UArgs::none)
	creates a new UElem; The argument can either be a single object pointer or reference, or a list of object pointers or references separated by + operators, example: More...

virtual	~UElem ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...

virtual void	destructs ()
	unlinks the object from its parents and destroys its children.

virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.

const UStyle &	getStyle (UUpdateContext *) const
	virtual function that returns the style of this object. More...

virtual int	getNodeType () const
	returns the XML node type.

virtual const UStr &	getNodeName () const
	return the XML node name (which is the class name).

virtual int	getDisplayType () const

virtual void	initNode (UDoc *context)
	initialises the XML context of this node.

UElem &	setAttr (UNode &attribute)
	adds or replaces this attribute in the ATTRIBUTE list. More...

UElem &	addAttr (const UArgs &attributes)
	adds one or several attributes (deriving from UAttr) to the ATTRIBUTE list. More...

UElem &	removeAttr (UNode &attribute, bool auto_delete=true)
	removes/deletes an attribute (and its descendants) from the ATTRIBUTE list. More...

UElem &	removeAllAttrs (bool auto_delete=true)
	removes/deletes all attributes (and their descendants) in the ATTRIBUTE list. More...

bool	getAttrValue (UStr &value, const UStr &attr_name) const
	retrieves the value of the attribute which class name is 'attr_name'. More...

UAttr *	getAttr (const UStr &attr_name) const
	returns the attribute node which class name is 'attr_name'. More...

template<class ATTR >
ATTR *	getAttr () const
	retrieves the attribute node that derives from the "ATTR" C++ class. More...

template<class ATTR >
ATTR &	obtainAttr ()
	retrieves or creates the element's attribute that derives from the "ATTR" C++ class. More...

virtual bool	isParentOf (const UNode &possible_child) const
	returns true if this object a direct or indirect parent of 'child'.

UElem &	add (const UArgs &children)
	adds one or several objects to the end of the CHILD list of this element. More...

UElem &	add (const UArgs &children, int position)
	adds one or several objects in the CHILD list before this position. More...

UElem &	add (const UArgs &children, UChildIter iterator)
	adds one or several objects in the CHILD list before this iterator. More...

virtual UElem &	addImpl (const UArgs &nodes, UChildIter pos, UChildren &in_list)

virtual bool	addImpl1 (const UChild &node, UChildIter pos, UChildren &in_list)

UElem &	remove (UNode &child, bool auto_delete=true)
	removes/deletes a child (and its descendants) from the CHILD list. More...

UElem &	remove (int pos, bool auto_delete=true)
	removes/deletes a child (and its descendants) at this position in the CHILD list. More...

UElem &	remove (UChildIter pos, bool auto_delete=true)
	removes/deletes a child (and its descendants) at this position in the CHILD list. More...

UElem &	removeAll (bool auto_delete=true)
	removes/deletes all children (and their descendants) in the CHILD list. More...

virtual UElem &	removeImpl (UChildIter begin, int N, bool autodel, UChildren &in_list)

virtual bool	removeImpl1 (UChildIter pos, int auto_delete, UChildren &in_list)

UChildren &	getChildren () const

int	getChildCount () const

UChildIter	child (int pos) const

UNode *	getChild (int pos) const
	returns an iterator pointing to the child at this position. More...

UChildIter	cbegin () const
	returns the child at this position. More...

UChildIter	cend () const
	returns a forward iterator pointing to the end of the child list ( More...

UChildReverseIter	crbegin () const
	returns a reverse iterator pointing to the beginning of the child list ( More...

UChildReverseIter	crend () const
	returns a reverse iterator pionting to the end of the child list ( More...

virtual UStr	retrieveText (bool recursive=true) const
	collates and returns the text that is enclosed in this object. More...

virtual void	retrieveText (UStr &string, bool recursive=true) const
	collates and returns the text that is enclosed in this object. More...

virtual bool	isShown () const
	returns true if this object is shown. More...

bool	isShowable () const
	returns true if this object can be shown. More...

void	setShowable (bool s) const
	synonym for show(bool).

virtual void	show (bool=true)
	shows/hides this object. More...

void	repaint ()
	indicates that this object will be repainted (when the main loop becomes idle).

void	update ()
	indicates that this object will be layed out and repainted (when the main loop becomes idle).

virtual void	update (const UUpdate &update_options, UDisp *=null)
	indicates that the layout and/or the paint of this object will be updated. More...

void	doUpdate ()

virtual void	doUpdate (const UUpdate &, UDisp *=null)
	updates the layout and/or the paint of this object right now. More...

UElem &	ignoreEvents (bool state=true)
	if arg is true, this element and (its children) ignore events. More...

UElem &	catchEvents (const UChild &condition_callback_expr)
	catches certain events before they reach the object's children. More...

UElem &	observeChildrenEvents (const UChild &condition_callback_expr)
	observe events that occur in children. More...

bool	isIgnoringEvents () const
	returns true if events are ignored by this object;

bool	hasCallback (long callback_id) const
	true if thie object has such a callback.

virtual bool	fire (UEvent &) const
	fires callback functions that match this event.

UElem &	enable (bool state=true)
	shortcut for setEnabled(bool state = true).

virtual UElem &	setEnabled (bool state=true, bool call_callbacks=true)
	specifies whether this object is enabled. More...

bool	isEnabled () const
	returns true if this object is currently enabled; More...

virtual UElem &	setSelected (bool state=true, bool call_callbacks=true)
	specifies whether this object is selected. More...

bool	isSelected () const

bool	isSelectable () const

UElem &	setSelectable (bool state=true)

bool	isArmed () const

bool	isArmable () const
	specifies whether this object can be armed. More...

UElem &	setArmable (bool state=true)

UElem &	setAutoRepeat (bool state=true)

bool	isAutoRepeat () const

bool	isCrossable () const

UElem &	setCrossable (bool state=true)

UElem &	setBrowsable (bool=true)

bool	isBrowsable () const

bool	isDragged () const

bool	isDraggable () const

UElem &	setDraggable (bool=true)

bool	isDroppable () const

UElem &	setDroppable (bool=true)

bool	isTextEditable () const

bool	isFloating () const

bool	isVertical () const

bool	isWidthResizable () const

bool	isHeightResizable () const

virtual bool	isSubWin () const

void	disableMenuClosing (bool s=true)
	this object and its children wont close menus when clicked if argument is true.

bool	isMenuClosingDisabled () const
	true if this object and its children do not close menus when clicked.

bool	isBrowsingGroup ()

virtual UChildren &	children () const

virtual UChildren &	attributes () const

UChildIter	abegin () const

UChildIter	aend () const

UObject::State	getInterState () const

void	setInterState (UObject::State)

virtual const UStr *	getTextSeparator () const
	returns the text separator used by retrieveText() for separating enclosed children

virtual void	deleteViewsInside (const std::vector< UView *> &parent_views)

virtual void	initView (UView *parent_view)

virtual void	initChildViews (UElem *)

virtual void	highlight (bool state)

virtual int	retrieveRelatedViews (std::vector< UView *> &collating_vector) const

UElem &	_setArmableAndSelectable (bool state)

virtual void	keyPressBehavior (UKeyEvent &)

virtual void	keyReleaseBehavior (UKeyEvent &)

virtual void	enterBehavior (UInputEvent &, bool is_browing)

virtual void	leaveBehavior (UInputEvent &, bool is_browing)

virtual void	armBehavior (UInputEvent &, bool is_browing)

virtual void	disarmBehavior (UInputEvent &, bool is_browing)

virtual void	actionBehavior (UInputEvent &)

Public Member Functions inherited from ubit::UNode
virtual UStr	getNodeValue () const
	return the XML node value.

virtual int	isDisplayable () const

virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual bool	isChildOf (const UElem &parent, bool indirect=true) const
	returns true if this object a child of 'parent'. More...

UParentIter	pbegin () const
	returns an iterator to the beginning of the list of direct parents. More...

UParentIter	pend () const
	returns an iterator to the end of the parent list ( More...

virtual UParents &	parents () const
	returns the list of direct parents ( More...

virtual UElem *	getParent (int pos=0) const
	returns the Nth direct parent. More...

virtual bool	hasSceneGraphParent () const

template<class CC >
CC *	findParent () const
	< this object has at least one parent in the scene graph. More...

virtual int	getBoxParents (std::vector< UBox *> &parvect) const
	retrieves direct and indirect parents that are boxes.

virtual UBox *	getParent (const UView *) const
	returns the direct or indirect parent that contains this view. More...

virtual UView *	getParentView (const UView *) const
	returns the direct or indirect parent's view that contains this view. More...

virtual UBox *	getParent (const UInputEvent &) const

virtual UView *	getParentView (const UInputEvent &) const

virtual void	removeFromParents (bool update_parents=true)
	[impl] removes this object from all direct parents. More...

bool	isAutoUpdate () const
	return current update policy: see setAutoUpdate().

UNode &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

void	fireParents (const UCond &c, UNode *n) const

void	updateAutoParents (const UUpdate &m)

virtual void	addChangeCall (UCall &)

virtual UElem *	getSubGroup () const

void	_addAttr (const UChild &attribute)
	[impl] to be removed @.

UChildIter	_abegin () const
	[impl] to be removed @.

UChildIter	_aend () const
	[impl] to be removed @.

Public Member Functions inherited from ubit::UObject
	UObject (const UObject &)

UObject &	operator= (const UObject &)

virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...

const UStr &	getClassName () const
	returns getClass().getName().

virtual void	error (const char function_name, const char format,...) const
	prints out an error message. More...

virtual void	warning (const char function_name, const char format,...) const
	prints out a warning message: More...

bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...

bool	isConst () const
	checks whether the content of this object can be modified ( More...

UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...

bool	isAutoUpdate () const
	return current update policy: More...

UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.

UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.

virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

State	getState () const
	returns the current object state.

void	setState (State s)
	changes the object state.

PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.

bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...

bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).

bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).

void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...

void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.

void	addPtr () const
	[Impl] a uptr is added to this object.

void	removePtr () const
	[Impl] a uptr is removed from this object.

Static Public Member Functions
static UStyle *	createStyle ()
	static function that returns the style of this class. More...

static void	closeWin (UInputEvent &, int status)
	closes the first window (UDialog, UMenu...) that contains this element. More...

Static Public Member Functions inherited from ubit::UObject
static const char *	getVersion ()
	returns the version of the Ubit package.

static const UClass &	Class ()
	class method that returns the metaclass of this class. More...

static UStyle *	createStyle ()

Protected Member Functions
virtual int	_getTextLength (bool recursive) const

virtual char *	_getTextData (char *ptr, bool recursive) const

Protected Member Functions inherited from ubit::UNode
	UNode ()
	constructor, can anly be called by subclasses because UNode is abstract.

virtual	~UNode ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...

virtual void	addingTo (UChild &, UElem &parent)
	called when this object is added to a parent.

virtual void	removingFrom (UChild &, UElem &parent)
	called when this object is removed from a parent (SEE DETAILS IF YOU REDEFINE THIS METHOD). More...

Protected Attributes
Modes	emodes

long	callback_mask

UChildren	_children

Protected Attributes inherited from ubit::UNode
UParents	_parents

UChildren	_attributes

Protected Attributes inherited from ubit::UObject
PtrCount	ptr_count

Modes	omodes

State	ostate

Friends
class	UNode

class	UEdit

class	UChildEventFlag

class	UPos

class	USize

class	UOrient

class	UCursor

class	UTip

class	UStr

class	UWin

class	UOn

class	UEventFlow

class	UViewStyle

class	UUpdateContext

class	UWinUpdateContext

Additional Inherited Members
Static Public Attributes inherited from ubit::UObject
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...

Detailed Description

lightweight general purpose container.

This class is a very lightweight and general container. In contrast with UBox (and its subclasses) UElem objects do not control UViews and do not manage screen rendering directly (they are just genuine containers)

IMPORTANT NOTE ON RECURSIVE DESTRUCTION AND SMART POINTERS: When a UElem is destroyed, its direct and indirect children are ALSO destroyed EXCEPT if they have other parents OR if they are pointed by a uptr<> Smart Pointer.

See also: class UNode for details.

Notes:

see UBox for examples showing how to add and manage children and attributes
objects can have several parents and they can be added several times to the same parent.
many methods are inherited from superclasses.

Constructor & Destructor Documentation

§ UElem()

ubit::UElem::UElem ( UArgs node_arglist = UArgs::none )

creates a new UElem; The argument can either be a single object pointer or reference, or a list of object pointers or references separated by + operators, example:

  UButton* b = new UButton(UPix::disquette + "Save" + ucall(obj, saveFunc));

See also: also the UElem() shortcut, that returns: *new UElem(arglist)

§ ~UElem()

UElem::~UElem ( )

virtual

destructor, note that children are recursively destroyed except if pointed elsewhere (

See also: class UNode).

Member Function Documentation

§ add() [1/3]

UElem& ubit::UElem::add ( const UArgs & children )

adds one or several objects to the end of the CHILD list of this element.

The argument can either be a single object pointer or reference, or a list of object pointers or references separated by + operators:

  UButton* b = new UButton();    // creates a UButton (that derives from UElem)
  b->add(UPix::disquette);       // adds a pixmap image to the button
  b->add("Save");                // adds a string that serves as a label
  b->add(ucall(obj, saveFunc));  // adds a callback function (See also
 UCall)

is equivalent to:
  UButton* b = new UButton();
  b->add(UPix::disquette + "Save" + ucall(obj, saveFunc));
 and also to:   UButton* b = new UButton(UPix::disquette + "Save" + ucall(obj, saveFunc));

Objects added to the CHILD list should derive from UElem (typically, widgets deriving from UBox, UWin), UData (viewable objects such as UStr, UIma) or UCall (callback objects). Certain attributes such as UColor, UFont, UHalign, UValign can also be added to the child list.

Character strings (e.g. "abcd") are implicitely converted to UStr objects, so
that add("abcd") is equivalent to: add( ustr("abcd") ).

For syntactical reasons, an argument list cannot solely contain pointers or strings
separated by + operators: one argument must then be dereferenced or appropriately
converted (exple: add(ustr("abcd") + "xyz") is correct, add("abcd" + "xyz") is not)

The addAttr() method works as add() excepts that it adds arguments to the
ATTRBITUTE list. Arguments should then derive from UAttr (attributes) or
UCall (callback aobjects).

Subclasses that require a specific behavior should not redefine this function
but addImpl(), that is called internally by all add functions

See also
also: add(const UArgs&, int pos), add(const UArgs&, UChildIter pos), addAttr(const UArgs&)

§ add() [2/3]

UElem& ubit::UElem::add	(	const UArgs &	children,
		int	position
	)

adds one or several objects in the CHILD list before this position.

See also: add(const UArgs& objects) for details: both functions work in the same way except that this function makes it possible to specify the position instead of adding to the end of the child list. 0 refers to the position before the first argument in the child list, special value -1 refers to the position after the last child.

§ add() [3/3]

UElem& ubit::UElem::add	(	const UArgs &	children,
		UChildIter	iterator
	)

adds one or several objects in the CHILD list before this iterator.

See also: add(const UArgs& objects) for details: both functions work in the same way except that this function makes it possible to specify the position (through an iterator,; UChildIter) instead of adding to the end of the child list.

§ addAttr()

UElem & UElem::addAttr ( const UArgs & attributes )

adds one or several attributes (deriving from UAttr) to the ATTRIBUTE list.

See also: add(const UArgs&) for details (both functions work in the same way).

§ addImpl1()

bool UElem::addImpl1	(	const UChild &	node,
		UChildIter	pos,
		UChildren &	in_list
	)

virtual

!!!!!! verifier pas deja dans la liste !!!

§ catchEvents()

UElem & UElem::catchEvents ( const UChild & condition_callback_expr )

catches certain events before they reach the object's children.

Events are not delivered to their normal targets, instead, they are catched by this element if it contains the target. The specified callback is then fired with this element as a "source" (

See also: UEvent::getSource()). If this callback calls the event's propagate() method, this event will then be sent to the normal target. This makes it possible to filter events and decide which of them can reach targets. Also, some some useful functions can be triggered before events reach their final targets and the events can be modified by settings UFlags or by modifiying the event coordinates.

3 categories of events can be currently catched:

UOn::mpress, UOn::mrelease & UOn::mdrag mouse events. As, these events are closely related, catching one of them will also catch the other 2 kinds.
UOn::mmove mouse events.
UOn::wheel events.

'condition_callback_expr' is a construct such as:

   UOn::mpress / ucall(obj, &Obj::foo)   // (obj type is Obj*)

The callback method (eg. 'foo') will be fired BEFORE this condition (eg. 'UOn::mpress') occurs in a direct and indirect child of this element.

To learn more about conditions

See also: classes UOn and UCond. To learn more about callback objects; class UCall.

§ cbegin()

UChildIter ubit::UElem::cbegin ( ) const

inline

returns the child at this position.

returns the last child if 'pos' = -1 / returns null if 'pos' is out of bounds

See also

also: UChildren find() functionsreturns a forward iterator pointing to the beginning of the CHILD list. UChildIter is a child iterator. It is compatible with standard STL algorithms. This example prints the children class names:

         UElem* obj = ...;
         for (UChildIter i = obj->cbegin(); i != obj->cend(); ++i)
             cout << (*i)->getClassName() << endl;

also: children(), cend(), crbegin(), crend(), abegin(), aend(), pbegin(), pend().

§ cend()

UChildIter ubit::UElem::cend ( ) const

inline

returns a forward iterator pointing to the end of the child list (

See also: cbegin()).

§ closeWin()

void UElem::closeWin	(	UInputEvent &	e,
		int	status
	)

static

closes the first window (UDialog, UMenu...) that contains this element.

See also: : UWin::close() and ucloseWin().

§ crbegin()

UChildReverseIter ubit::UElem::crbegin ( ) const

inline

returns a reverse iterator pointing to the beginning of the child list (

See also: cbegin()).

§ createStyle()

UStyle * UElem::createStyle ( )

static

static function that returns the style of this class.

this function MUST be redefined by subclasses if they use another UStyle.

§ crend()

UChildReverseIter ubit::UElem::crend ( ) const

inline

returns a reverse iterator pionting to the end of the child list (

See also: cbegin()).

§ doUpdate()

virtual void ubit::UElem::doUpdate	(	const UUpdate &	,
		UDisp *	= `null`
	)

virtual

updates the layout and/or the paint of this object right now.

this function is called when the main loop becomes idle for repainting the object. Usually, a client program should NOT call doUpdate() directly. Instead, it should call update() or update(const UUpdate&, UDisp*) that delay layout and repaint actions until the main loop becomes idle. This improves performance and makes double buffering possible.

Reimplemented in ubit::UWin, and ubit::UBox.

§ getAttr() [1/2]

UAttr* ubit::UElem::getAttr ( const UStr & attr_name ) const

returns the attribute node which class name is 'attr_name'.

null is returned if there is no such attribute in the element's ATTRIBUTE list. example: UColor* col = (UColor*) element.getAttr("UColor");

§ getAttr() [2/2]

template<class ATTR >

ATTR* ubit::UElem::getAttr ( ) const

inline

retrieves the attribute node that derives from the "ATTR" C++ class.

null is returned if there is no such attribute in the element's ATTRIBUTE list. example: UColor* col = element.getAttr<UColor>();

§ getAttrValue()

bool UElem::getAttrValue	(	UStr &	value,
		const UStr &	attr_name
	)		const

retrieves the value of the attribute which class name is 'attr_name'.

false is returned if there is no such attribute in the element's ATTRIBUTE list. true is returned otherwise and the attribute value is stored in the 'value' argument.

§ getChild()

UNode * UElem::getChild ( int pos ) const

returns an iterator pointing to the child at this position.

returns the last child if 'pos' = -1 / returns cend() if 'pos' is out of bounds

See also: also: UChildren find() functions

§ getStyle()

const UStyle & UElem::getStyle ( UUpdateContext * ctx ) const

virtual function that returns the style of this object.

this function calls createStyle() the first time it is called, then it always return the same UStyle object. In contrast with createStyle(), which that must be redefined for each subclass, there is no need to redefine getStyle().

§ ignoreEvents()

UElem & UElem::ignoreEvents ( bool state = true )

if arg is true, this element and (its children) ignore events.

events are then received by the parent(s) of this element

§ isArmable()

bool ubit::UElem::isArmable ( ) const

inline

specifies whether this object can be armed.

an armable widget behaves as a button (but its appearance depends on its UStyle). A widget can be made armable by calling its setArmable() methode

§ isEnabled()

bool UElem::isEnabled ( ) const

returns true if this object is currently enabled;

See also: setEnabled().

§ isShowable()

bool ubit::UElem::isShowable ( ) const

inline

returns true if this object can be shown.

isShowable() == true means that this object will be shown if its parents can also be shown. Note: this function has the same meaning as isVisible() in Java. : isShown(), UElem::show()

§ isShown()

bool UElem::isShown ( ) const

virtual

returns true if this object is shown.

isShown() returns true if this object is "showable" (see isShowable()) and all its parents are also "showable". Note that "shown" objects are not always visible on the screen as they may be hidden or clipped by other objects such as scroll panes.

See also: : isShowable(), UElem::show()

Reimplemented in ubit::UWin.

§ observeChildrenEvents()

UElem & UElem::observeChildrenEvents ( const UChild & condition_callback_expr )

observe events that occur in children.

'condition_callback_expr' is a construct such as:

   UOn::action / ucall(obj, &Obj::foo)   // (obj type is Obj*)

The callback method (eg. 'foo') will be fired AFTER this condition (eg. 'UOn::action') occurs in a direct and indirect child of this element.

To learn more about conditions

See also: classes UOn and UCond. To learn more about callback objects; class UCall.

§ obtainAttr()

template<class ATTR >

ATTR& ubit::UElem::obtainAttr ( )

inline

retrieves or creates the element's attribute that derives from the "ATTR" C++ class.

if there is no such attribute in the element's ATTRIBUTE list, it is created and added to the ATTRIBUTE list. example: UColor& col = element.getAttr<UColor>();

§ remove() [1/3]

UElem& ubit::UElem::remove	(	UNode &	child,
		bool	auto_delete = `true`
	)

removes/deletes a child (and its descendants) from the CHILD list.

This function removes the first occurence of 'child' from the child list. Moreover, 'child' and its children are DESTROYED if 'auto_delete' is true, they were created by 'new' and they are not referenced elsewhere by a widget or a UPtr smart pointer (

See also: UNode).

The same child can appear SEVERAL times in the child list, in which case it is never deleted (the first occurence is just removed from the list)

Subclasses that require a specific behavior should not redefine this function but removeImpl(), that is called internally by all remove functions

§ remove() [2/3]

UElem& ubit::UElem::remove	(	int	pos,
		bool	auto_delete = `true`
	)

removes/deletes a child (and its descendants) at this position in the CHILD list.

'pos' must be a valid position (positions start from 0, -1 indicates the last child)

See also: : remove(UNode&, bool) for important details on removal vs. deletion.

§ remove() [3/3]

UElem& ubit::UElem::remove	(	UChildIter	pos,
		bool	auto_delete = `true`
	)

removes/deletes a child (and its descendants) at this position in the CHILD list.

'pos' must be an iterator pointing to the child that must be removed or deleted.

See also: : remove(UNode&, bool).

§ removeAll()

UElem & UElem::removeAll ( bool auto_delete = true )

removes/deletes all children (and their descendants) in the CHILD list.

See also: : remove(UNode&, bool).

§ removeAllAttrs()

UElem & UElem::removeAllAttrs ( bool auto_delete = true )

virtual

removes/deletes all attributes (and their descendants) in the ATTRIBUTE list.

See also: : remove(UNode&, bool) for details (both functions work in the same way). NOTE that the removed attributes are destroyed if they were created by 'new' and are not referenced elsewhere by a widget or a UPtr smart pointer (; UNode)

Reimplemented from ubit::UNode.

§ removeAttr()

UElem & UElem::removeAttr	(	UNode &	attribute,
		bool	auto_delete = `true`
	)

removes/deletes an attribute (and its descendants) from the ATTRIBUTE list.

See also: : remove(UNode&, bool) for details (both functions work in the same way). NOTE that the removed attribute object is destroyed if it was created by 'new' and is not referenced elsewhere by a widget or a UPtr smart pointer (; UNode)

§ retrieveText() [1/2]

virtual UStr ubit::UElem::retrieveText ( bool recursive = true ) const

virtual

collates and returns the text that is enclosed in this object.

'recursive' means that the text included in descendants is also collated.

§ retrieveText() [2/2]

virtual void ubit::UElem::retrieveText	(	UStr &	string,
		bool	recursive = `true`
	)		const

virtual

collates and returns the text that is enclosed in this object.

'recursive' means that the text included in descendants is also collated.

§ setAttr()

UElem & UElem::setAttr ( UNode & attribute )

adds or replaces this attribute in the ATTRIBUTE list.

NOTE that the previous attribute object is destroyed if it was created by 'new' and is not referenced elsewhere by a widget or a UPtr smart pointer (

See also: UNode)

§ setEnabled()

UElem & UElem::setEnabled	(	bool	state = `true`,
		bool	call_callbacks = `true`
	)

virtual

specifies whether this object is enabled.

enabled means: sensible to high-level events such as UOn::action, UOn::arm, UOn::disarm...
calls related callbacks if 'call_callbacks' is true
See also
: isEnabled(), enable(), disable().

§ setSelected()

UElem & UElem::setSelected	(	bool	state = `true`,
		bool	call_callbacks = `true`
	)

virtual

specifies whether this object is selected.

fires related callbacks if 'call_callbacks' is true

Reimplemented in ubit::UCheckbox.

§ show()

void UElem::show ( bool state = true )

virtual

shows/hides this object.

See also: also: isShown(), isShowable(), update()

Reimplemented in ubit::UAlertbox, ubit::UWin, ubit::UFrame, ubit::UPiemenu, ubit::UMenu, and ubit::UDialog.

§ update()

virtual void ubit::UElem::update	(	const UUpdate &	update_options,
		UDisp *	= `null`
	)

virtual

indicates that the layout and/or the paint of this object will be updated.

this will be done when the main loop becomes idle.

the first argument specify what must be updated and misc options (see UUpdate)
the second argument is only taken into account by redefinitions of this function
See also
also: repaint(), update(), show().

Reimplemented in ubit::UWin, and ubit::UBox.

The documentation for this class was generated from the following files:

src/ubit/uelem.hpp
src/ubit/uelem.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ UElem()

§ ~UElem()

Member Function Documentation

§ add() [1/3]

§ add() [2/3]

§ add() [3/3]

§ addAttr()

§ addImpl1()

§ catchEvents()

§ cbegin()

§ cend()

§ closeWin()

§ crbegin()

§ createStyle()

§ crend()

§ doUpdate()

§ getAttr() [1/2]

§ getAttr() [2/2]

§ getAttrValue()

§ getChild()

§ getStyle()

§ ignoreEvents()

§ isArmable()

§ isEnabled()

§ isShowable()

§ isShown()

§ observeChildrenEvents()

§ obtainAttr()

§ remove() [1/3]

§ remove() [2/3]

§ remove() [3/3]

§ removeAll()

§ removeAllAttrs()

§ removeAttr()

§ retrieveText() [1/2]

§ retrieveText() [2/2]

§ setAttr()

§ setEnabled()

§ setSelected()

§ show()

§ update()
