Base class for attributes. More...

#include <uattr.hpp>

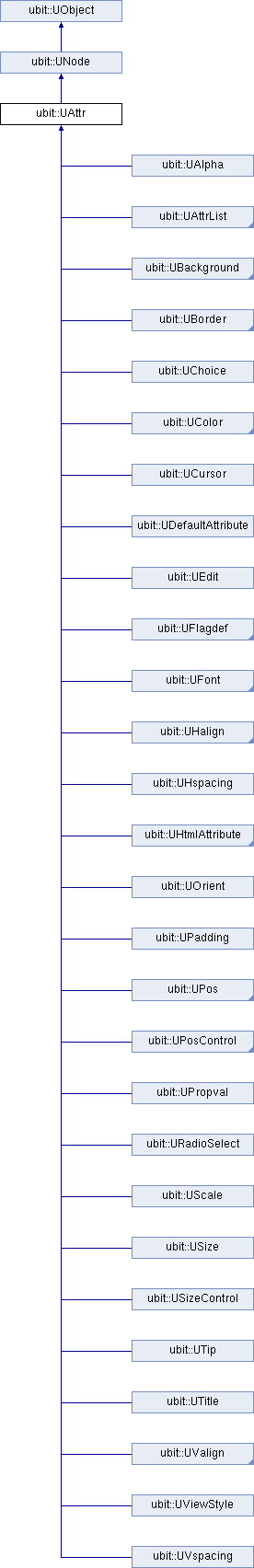

Inheritance diagram for ubit::UAttr:

Public Member Functions
	UAttr (UConst)

virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual int	getDisplayType () const

virtual int	getNodeType () const
	returns the XML node type.

virtual const UStr &	getNodeName () const
	returns the name of this attribute (calls getName()).

virtual UStr	getNodeValue () const
	returns the value of this attribute (calls getValue()).

virtual const UStr &	getName () const
	returns the name of this attribute.

virtual bool	getValue (UStr &value) const
	gets the value of this attribute. More...

virtual void	setValue (const UStr &value)
	changes the value of this attribute does nothing if not applicable for a given subclass.

virtual void	initNode (UDoc , UElem parent)
	called when the document is created.

virtual UAttr &	onChange (UCall &)
	adds a callback that is fired when the value of the property is modified. More...

UAttr &	setConst ()

virtual void	update ()
	updates parents graphics.

virtual void	changed (bool update=true)
	[impl] called when object's content is changed. More...

virtual void	putProp (UUpdateContext *, UElem &)
	[impl] changes corresponding value in the UUpdateContext

Public Member Functions inherited from ubit::UNode
virtual int	isDisplayable () const

virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual bool	isChildOf (const UElem &parent, bool indirect=true) const
	returns true if this object a child of 'parent'. More...

UParentIter	pbegin () const
	returns an iterator to the beginning of the list of direct parents. More...

UParentIter	pend () const
	returns an iterator to the end of the parent list ( More...

virtual UParents &	parents () const
	returns the list of direct parents ( More...

virtual UElem *	getParent (int pos=0) const
	returns the Nth direct parent. More...

virtual bool	hasSceneGraphParent () const

template<class CC >
CC *	findParent () const
	< this object has at least one parent in the scene graph. More...

virtual int	getBoxParents (std::vector< UBox *> &parvect) const
	retrieves direct and indirect parents that are boxes.

virtual UBox *	getParent (const UView *) const
	returns the direct or indirect parent that contains this view. More...

virtual UView *	getParentView (const UView *) const
	returns the direct or indirect parent's view that contains this view. More...

virtual UBox *	getParent (const UInputEvent &) const

virtual UView *	getParentView (const UInputEvent &) const

virtual void	removeFromParents (bool update_parents=true)
	[impl] removes this object from all direct parents. More...

virtual bool	fire (UEvent &) const
	fires callback functions that match this event.

virtual UNode &	removeAllAttrs (bool autodel=true)
	removes all attributes (if any, redefined by subclasses).

bool	isAutoUpdate () const
	return current update policy: see setAutoUpdate().

UNode &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

void	fireParents (const UCond &c, UNode *n) const

void	updateAutoParents (const UUpdate &m)

virtual void	addChangeCall (UCall &)

virtual UElem *	getSubGroup () const

void	_addAttr (const UChild &attribute)
	[impl] to be removed @.

UChildIter	_abegin () const
	[impl] to be removed @.

UChildIter	_aend () const
	[impl] to be removed @.

Public Member Functions inherited from ubit::UObject
	UObject (const UObject &)

UObject &	operator= (const UObject &)

virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...

const UStr &	getClassName () const
	returns getClass().getName().

virtual void	error (const char function_name, const char format,...) const
	prints out an error message. More...

virtual void	warning (const char function_name, const char format,...) const
	prints out a warning message: More...

bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...

bool	isConst () const
	checks whether the content of this object can be modified ( More...

UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...

bool	isAutoUpdate () const
	return current update policy: More...

UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.

UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.

virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

State	getState () const
	returns the current object state.

void	setState (State s)
	changes the object state.

PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.

bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...

bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).

bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).

void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...

void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.

void	addPtr () const
	[Impl] a uptr is added to this object.

void	removePtr () const
	[Impl] a uptr is removed from this object.

Friends
class	UBox

Additional Inherited Members
Public Types inherited from ubit::UNode
enum	NodeType { ELEMENT_NODE = 1, ATTRIBUTE_NODE = 2, TEXT_NODE = 3, CDATA_SECTION_NODE = 4, ENTITY_REFERENCE_NODE = 5, ENTITY_NODE = 6, PROCESSING_INSTRUCTION_NODE = 7, COMMENT_NODE = 8, DOCUMENT_NODE = 9, DOCUMENT_TYPE_NODE = 10, DOCUMENT_FRAGMENT_NODE = 11, NOTATION_NODE = 12 }
	redefines Class() and getClass() methods ( More...

enum	DisplayType { WINLIST =-1, UNDISPLAYBLE =0, ATTRIBUTE, DATA, INLINE, BLOCK, BORDER, HARDWIN, SOFTWIN }
	Ubit display types.

Public Types inherited from ubit::UObject
typedef unsigned char	State

typedef short	PtrCount

Static Public Member Functions inherited from ubit::UObject
static const char *	getVersion ()
	returns the version of the Ubit package.

static const UClass &	Class ()
	class method that returns the metaclass of this class. More...

static UStyle *	createStyle ()

Static Public Attributes inherited from ubit::UObject
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...

Protected Member Functions inherited from ubit::UNode
	UNode ()
	constructor, can anly be called by subclasses because UNode is abstract.

virtual	~UNode ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...

virtual void	addingTo (UChild &, UElem &parent)
	called when this object is added to a parent.

virtual void	removingFrom (UChild &, UElem &parent)
	called when this object is removed from a parent (SEE DETAILS IF YOU REDEFINE THIS METHOD). More...

virtual void	destructs ()
	unlinks the object from its parents and destroys its children.

Protected Attributes inherited from ubit::UNode
UParents	_parents

UChildren	_attributes

Protected Attributes inherited from ubit::UObject
PtrCount	ptr_count

Modes	omodes

State	ostate

Detailed Description

Base class for attributes.

attributes specify the layout, the geometry, the color, the font... of elements that derive from UBox (some attributes also apply on UElem elements, as explained in the doc of these properties).

they can be added to the attribute list of one or several containers by using UElem::addAttr(). They can also be inserted in the beginning of their child list, before any viewable child (that is to say a child that derive from UElem or UData). Certains properties (mainly UFont and UColor) can be inserted anywhere in the child list and take effect of the following children.

attributes update their parents automatically when they are modified. All parents that share the same property are thus automatically synchronized.

attributes can have callback functions that are fired when their value is changed (see an example below). Property parents can also be notified when attribute values are modified by using the UOn::propChange condition (see below).

Example:

   class Demo {
   public:
      void colorCB(UColor* c);
      void boxCB(UEvent& e);
      ....
   };

   Demo* d = new Demo();

   UColor& color = ucolor(255, 0, 0);  // shorcut for: *new UColor(...)

   // d->colorCB(&color) will be called when the color is changed
   color.onChange(ucall(d, &color, &Demo::colorCB));

   UBox& btn = ubutton("Click Me");    // shorcut for: *new UButton(...)

   btn.addAttr(color);                 // adds color to the attribute list

   // the content of UColor::blue (which is a predefined value) is copied
   // into the content of the color object (note that color is not a pointer
   // but a reference)

   color = UColor::blue;               // fires colorCB

Alternatively, we could insert color at the beginning of the child list:

   UBox& btn = ubutton(color + "Click Me");
   // btn.addAttr(color); useless: color is in the child list!

Finally,

   UBox& btn = ubutton(color + "Click Me"
                       + UOn::propChange / ucall(d, &Demo::boxCB));

will call d->boxCB(event) when the value of any property of btn is changed. In this case, color is the only property, and boxCB is fired when color is modified. The UEvent& argument of boxCB() makes it possible to retrieve the color property as follows:

   void Demo::boxCB(UEvent& e) {
     UColor* c = null;
     if (e.getTarget()) c = dynamic_cast<UColor*>(e.getTarget());
     ....
  }

Note that we could have use the same technique to retrieve the color property in colorCB(), instead of giving color as an argument to this function

See also: also: the UCall doc, that explains how to use ucall() expressions

Member Function Documentation

§ changed()

void UAttr::changed ( bool update = true )

virtual

[impl] called when object's content is changed.

This function updates graphics (if 'update' is true) then fires parents' UOn::propChange callbacks

Reimplemented in ubit::URadioSelect, and ubit::UChoice.

§ getValue()

bool UAttr::getValue ( UStr & value ) const

virtual

gets the value of this attribute.

return false if this attribute has no value. Stores it in argument 'value' otherwise,

Reimplemented in ubit::UHtmlValign, ubit::UHtmlAlign, ubit::UHtmlFontSize, ubit::UHtmlFontFace, ubit::UHtmlBorder, ubit::UHtmlBgcolor, ubit::UHtmlColor, ubit::UHtmlStyle, and ubit::UHtmlAttribute.

§ onChange()

UAttr & UAttr::onChange ( UCall & c )

virtual

adds a callback that is fired when the value of the property is modified.

See also: an example in the UAttr doc.

The documentation for this class was generated from the following files:

src/ubit/uattr.hpp
src/ubit/uattr.cpp
