This class reads a formatted MC Config file. More...

#include <FileConfigReader.h>

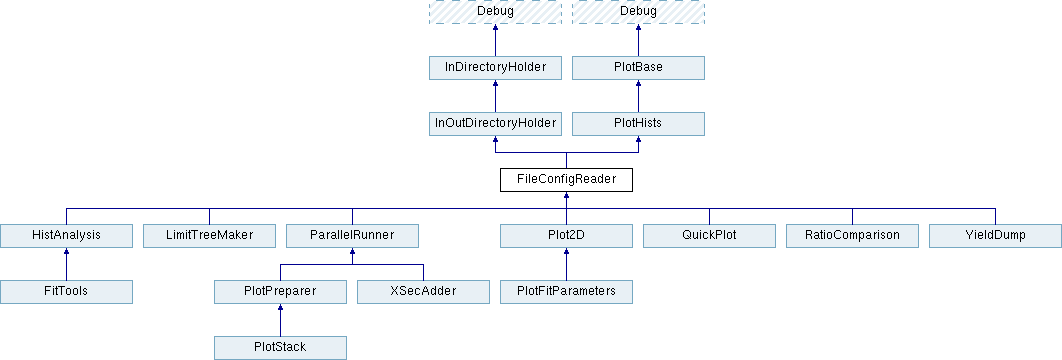

Inheritance diagram for FileConfigReader:

Public Types
enum	FileType { kBackground = 0, kSignal, kData }
	Differentiates between background, signal MC and data. More...

enum	SearchBy { kLimitName = 0, kLegendEntry }
	Determines how to match to return files. More...

Public Types inherited from Debug
enum	DebugLevel { eQuiet = 0, eError, eInfo, eDebug }
	Different possible debug levels. More...

Public Types inherited from PlotBase
enum	LegendX { kLeft = 0, kRight }
	Used for horizontal position of legend. More...

enum	LegendY { kUpper = 0, kLower }
	Used for vertical position of legend. More...

Public Member Functions
	FileConfigReader ()

virtual	~FileConfigReader ()

void	AddDataFile (TString fileName)
	Add a data file. More...

void	AddFile (TString treeName, TString fileName, Double_t XSec, TString entry="", Int_t colorstyle=0)
	This is the default MC File adder. More...

void	AddFile (TString treeName, TString fileName, Double_t XSec, TString entry, Int_t colorstyle, FileType type)
	Default File adder with FileType changing. More...

void	AddFile (TString fileName, Double_t XSec, TString entry, Int_t colorstyle)
	This is for when you don't care about limit trees and are adding by hand. More...

void	AddFile (TString fileName, Double_t XSec, TString entry, Int_t colorstyle, FileType type)
	For when you don't care about limit trees and are adding by hand with type changing. More...

FileType	GetFileType ()
	Get the FileType of the current file. More...

void	LoadFitResult (const char *fit_result)
	Loads the fit result into memory for this stacks to make. More...

void	NameTreesAfterLimits (FileType type=kBackground)
	Use this function to replace the Legend Entries of the FileInfo with the Limit Tree Names. More...

void	ReadMCConfig (TString config, TString fileDir="")
	Reads an MC configuration file. More...

void	ReadMCConfig (TString config, FileType type, TString fileDir="")
	Reads an MC configuration while changing the FileType. More...

void	ResetAllConfig ()
	Resets the information from the config files being held for all types. More...

void	ResetConfig (FileType type=kBackground)
	Resets the information from the for one type. More...

std::vector< TString >	ReturnFileNames (FileType type=kBackground, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Returns a vector of file names that have been read from the configs. More...

TChain *	ReturnTChain (TString treeName="events", FileType type=kBackground, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Returns a TChain of files that match the FileType and name for the LimitTreeMaker. More...

std::set< TString >	ReturnTreeNames (FileType type=kBackground)
	Returns a vector of limit tree names that have been read from the configs. More...

void	ScaleBackgrounds (TString entry, Double_t scale, SearchBy search=kLimitName, FileType type=kBackground)
	Scales the cross section of the matching MC samples by a factor of 1.0 + scale, destroying the old cross section in the process. More...

void	SetAllHistName (TString name)
	Set the all histogram and luminosity for normalization. More...

void	SetDataEntry (TString entry)
	Set the legend entry for data. More...

void	SetDataExpression (TString expr)
	Use this to set a different expression for data from MC. More...

void	SetDataTreeName (TString name)
	Set the tree name for data. More...

void	SetDataWeight (TCut weight)
	The multipliers for Data can be set separately. More...

void	SetDataWeight (const char *weight)
	The multipliers for Data can be set separately. More...

void	SetFileType (FileType type)
	Set the FileType of the next config file read. More...

void	SetKeepAllFiles (Bool_t keep)
	Allows reader to avoid skipping when reading in exception configs. More...

void	SetLegendColor (TString entry, Int_t color, FileType type=kBackground)
	Sets the FileInfo with the matching Legend Names to the new colors. More...

void	SetLuminosity (Double_t lum)
	Set the Luminosity in inverse pb. More...

void	SetMCWeight (TCut weight)
	The multipliers for MC can be set separately. More...

void	SetMCWeight (const char *weight)
	The multipliers for MC can be set separately. More...

void	SetTreeName (TString name)
	Set the tree of the files you are trying to plot. More...

Public Member Functions inherited from InOutDirectoryHolder
	InOutDirectoryHolder ()

virtual	~InOutDirectoryHolder ()

TString	GetOutDirectory () const

void	SetInputOutputMap (TString input, TString output)
	Adds a mapping from input to output file name. More...

void	SetOutDirectory (TString dir)
	Sets the output directory where the files will be written, and adds a "/" if needed. More...

void	SetOverwriteFiles (Bool_t overwrite)
	Sets whether or not to overwrite files. More...

Public Member Functions inherited from InDirectoryHolder
	InDirectoryHolder ()

virtual	~InDirectoryHolder ()

TString	GetInDirectory () const

void	SetInDirectory (TString dir)
	Sets the input directory where the MCFiles will be searched for, and adds a "/" if needed. More...

Public Member Functions inherited from Debug
	Debug ()

virtual	~Debug ()

DebugLevel	GetDebugLevel ()
	Gets the verbosity for a class. More...

template<typename T , typename... V>
void	Message (DebugLevel level, T message, V... more)
	Sends a message if the verbosity level is appropriate. More...

void	Message (DebugLevel level)

void	SetDebugLevel (DebugLevel level)
	Sets the verbosity for a class. More...

Public Member Functions inherited from PlotHists
	PlotHists ()

virtual	~PlotHists ()

void	AddUncertainty (UInt_t index, TString FileName, TString HistName, Int_t startBin=1, Int_t endBin=0)
	Add uncertainty factors to some index of histograms about to be made. More...

virtual void	MakeCanvas (TString FileBase, Int_t NumXBins, Double_t *XBins, TString XLabel, TString YLabel, Bool_t logY=false)
	Alternatively, we can set values in PlotBase and then just give the binning. More...

virtual void	MakeCanvas (TString FileBase, Int_t NumXBins, Double_t MinX, Double_t MaxX, TString XLabel, TString YLabel, Bool_t logY=false)

void	MakeCanvas (TString FileBase, std::vector< TH1D *> theHists, TString XLabel, TString YLabel, Bool_t logY=false)
	Simplest of Canvas makers with just histograms as arugments, allowing for user manipulation of histograms. More...

std::vector< TH1D * >	MakeHists (Int_t NumXBins, Double_t *XBins)
	This just return vectors of histograms for other uses. More...

std::vector< TH1D * >	MakeHists (Int_t NumXBins, Double_t MinX, Double_t MaxX)

void	SetEventsPer (Double_t per)
	We can set events per some value of x so that our legend entry is not wrong and variable binning doesn't look stupid. More...

void	SetNormalizedHists (Bool_t b)
	We can set normalization to match a particular other hist (or just 1) More...

void	SetNormalizeTo (Int_t to)
	Set index of which histogram to normalize to. More...

void	SetUncertaintySquared (TString expr)
	Add uncertainty factors through branch expressions instead of a histogram. More...

Public Member Functions inherited from PlotBase
	PlotBase ()

virtual	~PlotBase ()

void	AddCutLine (Double_t loc, bool is_vert=true)
	Adds a dotted line in order to show cuts. More...

void	AddExpr (TString expr)
	Set an x expression for a single line. More...

void	AddLegendEntry (TString LegendEntry, Color_t ColorEntry)
	Set entry and color for each line. This uses the default line width and style. More...

void	AddLegendEntry (TString LegendEntry, Color_t ColorEntry, Int_t LineWidth, Int_t LineStyle)
	Set entry, color, width, and style for each line. More...

void	AddLine (TTree *tree, TCut cut, TString expr)
	This function adds a tree pointer, cut, and expression used for generating a line in the plot. More...

void	AddLine (TTree tree, const char cut, TString expr)
	This function adds a tree pointer, cut, and expression used for generating a line in the plot. More...

void	AddRatioLine (Int_t line)
	Add a line to show in the ratio plot. More...

void	AddSystematicBranch (TString branch)
	Add branches that contain independent systematic uncertainties to show in the plots. More...

void	AddTree (TTree *tree)
	Set a tree for a single line. More...

void	AddTreeExpr (TTree *tree, TString expr)
	Set a tree and expression concurrently for each line. Best used when a default weight is set. More...

void	AddTreeWeight (TTree *tree, TCut cut)
	Set a tree and weight concurrently for each line. Best used when a default expression is set. More...

void	AddTreeWeight (TTree tree, const char cut)
	Set a tree and weight concurrently for each line. Best used when a default expression is set. More...

void	AddWeight (TCut cut)
	Set a weight for a single line. More...

void	AddWeight (const char *cut)
	Set a weight for a single line. More...

void	AddWeightExpr (TCut cut, TString expr)
	Set a weight and expression concurrently for each line. Best used when a default tree is set. More...

void	AddWeightExpr (const char *cut, TString expr)
	Set a weight and expression concurrently for each line. Best used when a default tree is set. More...

TCut	GetDefaultWeight () const
	Get the default weight. More...

void	OnlyPDF ()
	Call this before plotting to only write plots to .pdf files. More...

void	OnlyPNG ()
	Call this before plotting to only write plots to .png files. More...

void	ResetCutLines ()
	Resets the number of cut lines to plot. More...

void	ResetExpr ()
	Reset the list of expressions used to makes lines. More...

void	ResetLegend ()
	Resets the legend entries for each line. More...

void	ResetSystematics ()
	Reset list of branches that contain systematics. More...

void	ResetTree ()
	Reset the list of trees used to makes lines. More...

void	ResetWeight ()
	Reset the list of weights used to makes lines. More...

void	SetAxisMinMax (Float_t min, Float_t max)
	Forces the minimum and maximum values of the Y-axis in the plot. More...

void	SetAxisTitleOffset (Float_t offset)
	Sets the offset of the Y-axis title as a ratio of the default offset. More...

void	SetCanvasName (TString name)
	Sets the name of the canvas created by PlotBase. More...

void	SetCanvasSize (Int_t width, Int_t height)
	Sets the size of the output canvas. More...

void	SetCMSLabel (TString type)
	Set the type of CMS label for the plot. More...

void	SetCutLineStyle (Color_t color, Int_t width, Int_t style)
	Sets the style for the cut lines. More...

void	SetDataIndex (Int_t data)
	Set one of the lines to be plotted as data. More...

void	SetDefaultCut (const char *cut)

void	SetDefaultExpr (TString expr)
	Set the default expression to be plotted on the x-axis for each line in the plot. More...

void	SetDefaultLineStyle (Int_t style)
	Set the default line style. More...

void	SetDefaultLineWidth (Int_t width)
	Set the default line width. More...

void	SetDefaultTree (TTree *tree)
	Set the default tree pointer for each line in the plot. More...

void	SetDefaultWeight (TCut cut)
	Set the default weight for each line in the plot. More...

void	SetDefaultWeight (const char *cut)
	Set the default weight for each line in the plot. More...

void	SetDrawFirst (Int_t first)
	Force a line to draw first on the plot, if desired. More...

void	SetDrawOpts (TString options)
	Set additional drawing options to force all lines to have. More...

void	SetFontSize (Float_t fontSize)
	Sets the fontsize of the axis labels. More...

void	SetIncludeErrorBars (Bool_t include)
	Set this to true to feature error bars in the plots. More...

void	SetLeftMargin (float left)

void	SetLegendBorderSize (Int_t size)
	Set the legend border size. More...

void	SetLegendFill (Bool_t fill)
	If true, the legend will be filled with a solid background. More...

void	SetLegendLimits (Double_t lim1, Double_t lim2, Double_t lim3, Double_t lim4)
	Set the legend location manually. More...

void	SetLegendLocation (LegendY yLoc, LegendX xLoc, Double_t xWidth=0.3, Double_t yWidth=0.2)
	Set the legend location using LegendY and LegendX enums. More...

void	SetLumiLabel (TString lumi)
	Set the luminosity label. More...

void	SetLumiLabel (Float_t lumi)
	Set the luminosity lable with a float in fb. More...

void	SetLumiLabelFormat (TString format)
	Set the luminosity format. More...

void	SetMakeRatio (Bool_t ratio)
	If true, a ratio pad will be drawn underneath. More...

void	SetRatioDivisions (Int_t divisions, Bool_t optimize=true)
	Sets the divisions of the ratio y axis. More...

void	SetRatioGrid (Int_t grid)
	Set horizontal dotted lines on the ratio pad. More...

void	SetRatioIndex (Int_t ratio)
	Set which line will be '1' in the ratio plot. More...

void	SetRatioMinMax (Float_t min, Float_t max)
	Force the minimum and maximum values of the ratio pad. More...

void	SetRatioTitle (TString title)
	Set the y axis label of the ratio pad. More...

void	SetTreeList (std::vector< TTree *> treelist)
	Can store multiple trees at once for plots. Each tree plots its own line. More...

Protected Member Functions
void	CloseFiles ()
	Closes the files that are open. More...

std::vector< FileInfo * > *	GetFileInfo (FileType type)
	Return a pointer to a proper vector of FileInfo. More...

TH1D *	GetHist (std::vector< TH1D *> HistList)
	Draw a single histogram using the default expression and a file list. More...

TH1D *	GetHist (Int_t NumXBins, Double_t *XBins, std::vector< TString > FileList, FileType type)
	Draw a single histogram using the default expression and a file list. More...

TH1D *	GetHist (Int_t NumXBins, Double_t *XBins, FileType type, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Draw a single histogram using the default expression and file configuration. More...

std::vector< TH1D * >	GetHistList (Int_t NumXBins, Double_t *XBins, std::vector< TString > FileList, FileType type)
	Draws histograms for using the default expression and a file list. More...

std::vector< TH1D * >	GetHistList (Int_t NumXBins, Double_t *XBins, FileType type, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Draws histograms for using the default expression and file configuration. More...

void	OpenFiles (std::vector< TString > fileNames)
	Opens the files in a vector. More...

void	SetMultiplyLumi (Bool_t doMultiply)
	Allows reader to avoid skipping when reading in exception configs. More...

Protected Member Functions inherited from InOutDirectoryHolder
TString	AddOutDir (TString FileName) const
	A helper function that prepends the output directory to a filename. More...

Protected Member Functions inherited from InDirectoryHolder
TString	AddInDir (TString FileName)
	A helper function that prepends the input directory to a filename. More...

Protected Member Functions inherited from Debug
void	DisplayFunc (const char *func)
	Sends the name of the function during debuggin. More...

Protected Member Functions inherited from PlotBase
template<class T >
void	BaseCanvas (TString FileBase, std::vector< T *> theLines, TString XLabel, TString YLabel, Bool_t logY=false, Bool_t logX=false)
	This is the powerhouse of all the plotting tools. Everything happens here. More...

void	ConvertToArray (Int_t NumXBins, Double_t MinX, Double_t MaxX, Double_t *XBins)
	Takes number of bins, min and max, and dumps it into an already allocated array. More...

TString	TempHistName ()
	Get a temporary name for a histogram. More...

Protected Attributes
TString	fAllHistName = "htotal"
	The all histogram name used ingenerating cross section weights. More...

TString	fDataEntry = "Data"
	The legend entry for data. More...

std::vector< FileInfo * >	fDataFileInfo
	Vector of data FileInfo objects. More...

TString	fDataTreeName = "data"
	The base name of the data in a limit tree. More...

TCut	fDataWeight = ""
	Separate Data weights if needed. More...

Double_t	fLuminosity = 2000.0
	The Luminosity in inverse pb. More...

std::vector< FileInfo * >	fMCFileInfo
	Vector of background FileInfo objects. More...

TCut	fMCWeight = ""
	Separate MC weights if needed. More...

std::vector< FileInfo * >	fSignalFileInfo
	Vector of signal FileInfo objects. More...

TString	fTreeName = "events"
	Stores name of tree from file. More...

Protected Attributes inherited from PlotHists
Double_t	fEventsPer = 0
	Histogram normalized to events per units of X axis. More...

Protected Attributes inherited from PlotBase
Bool_t	bC = true
	If true, BaseCanvas will create a .C macro. More...

Bool_t	bPDF = true
	If true, BaseCanvas will create a .pdf file. More...

Bool_t	bPNG = true
	If true, BaseCanvas will create a .png file. More...

Float_t	fAxisMax = 0.0
	Maximum value of the y-axis. More...

Float_t	fAxisMin = 0.0
	Minimum value of the y-axis. More...

Int_t	fDataIndex = -1
	Index in the plotter of the data line. More...

TCut	fDefaultCut = ""
	Default cut if needed. More...

TString	fDefaultExpr = ""
	Default resolution expression if needed. More...

TTree *	fDefaultTree = NULL
	Default Tree if needed. More...

Bool_t	fIncludeErrorBars = true
	Option to include error bars. More...

std::vector< TCut >	fInCuts
	Holds the cuts for the trees if needed. More...

std::vector< TString >	fInExpr
	Holds multiple resolution expressions if needed. More...

std::vector< TTree * >	fInTrees
	Holds all the trees for each line if needed. More...

Int_t	fLegendBorderSize = 0
	Border size of legend. More...

std::vector< TString >	fLegendEntries
	Number of legend entries should match number of lines. More...

Bool_t	fMakeRatio = false
	Bool to make a ratio plot on bottom of image. More...

Bool_t	fOptimDivisions

UInt_t	fPlotCounter = 0
	This is used so that making scratch plots does not overlap. More...

Int_t	fRatioDivisions

Int_t	fRatioGrid

Int_t	fRatioIndex = -1
	Pick which line to set as 1 in ratio plot. More...

std::vector< Int_t >	fRatioLines
	Vector of line indices to show up in the ratio pad. More...

Float_t	fRatioMax = 0.0
	Maximum of the ratio pad. More...

Float_t	fRatioMin = 0.0
	Minimum of the ratio pad. More...

TString	fRatioTitle
	Label of the ratio pad. More...

std::vector< TString >	fSystematicBranches
	Vector of branches to apply as systematic uncertainties. More...

Double_t	l1 = 0.6
	First X value of legend location. More...

Double_t	l2 = 0.7
	First Y value of legend location. More...

Double_t	l3 = 0.9
	Second X value of legend location. More...

Double_t	l4 = 0.9
	Second Y value of legend location. More...

Private Attributes
std::vector< std::vector< TFile * > >	fAllFiles
	Vector of all open files. More...

TString	fDataExpression = ""
	Holds an alternative expression to plot data in. More...

std::vector< TObject * >	fDeleteThese
	Vector of object pointers to free memory at the end. More...

std::vector< TFile * >	fFiles
	Vector of active files. More...

FileType	fFileType = kBackground
	Type of files in the next config. More...

std::map< TString, double >	fFitResult
	Holds the fit results. More...

std::vector< TH1D * >	fHists
	Vector of histograms to use. More...

Bool_t	fKeepAllFiles = false
	Keeps FileInfo stored usually deleted by exception configs. More...

Bool_t	fMultiplyLumi = true
	Returns XSecWeight with luminosity multiplied. More...

Detailed Description

This class reads a formatted MC Config file.

Definition at line 36 of file FileConfigReader.h.

Member Enumeration Documentation

§ FileType

enum FileConfigReader::FileType

Differentiates between background, signal MC and data.

Enumerator
kBackground	Specifies the standard model background files.
kSignal	The signals in the analysis.
kData	Real data from the detector.

Definition at line 43 of file FileConfigReader.h.

§ SearchBy

enum FileConfigReader::SearchBy

Determines how to match to return files.

Enumerator
kLimitName	Match the LimitTree entry.
kLegendEntry	Match the legend entry.

Definition at line 58 of file FileConfigReader.h.

Constructor & Destructor Documentation

§ FileConfigReader()

FileConfigReader::FileConfigReader ( )

Definition at line 205 of file FileConfigReader.h.

§ ~FileConfigReader()

FileConfigReader::~FileConfigReader ( )

virtual

Definition at line 209 of file FileConfigReader.h.

References CloseFiles(), and ResetAllConfig().

Member Function Documentation

§ AddDataFile()

void FileConfigReader::AddDataFile ( TString fileName )

Add a data file.

Definition at line 325 of file FileConfigReader.h.

References AddFile(), fDataEntry, fDataTreeName, fFileType, kData, and SetFileType().

§ AddFile() [1/4]

void FileConfigReader::AddFile	(	TString	treeName,
		TString	fileName,
		Double_t	XSec,
		TString	entry = `""`,
		Int_t	colorstyle = `0`
	)

This is the default MC File adder.

Definition at line 334 of file FileConfigReader.h.

References InDirectoryHolder::AddInDir(), Debug::DisplayFunc(), Debug::eError, fAllHistName, fDataFileInfo, fFileType, fLuminosity, fMCFileInfo, fMultiplyLumi, fSignalFileInfo, FileInfo::fXSecWeight, kBackground, kData, kSignal, and Debug::Message().

Referenced by AddDataFile(), AddFile(), and ReadMCConfig().

§ AddFile() [2/4]

void FileConfigReader::AddFile	(	TString	treeName,
		TString	fileName,
		Double_t	XSec,
		TString	entry,
		Int_t	colorstyle,
		FileType	type
	)

inline

Default File adder with FileType changing.

Definition at line 90 of file FileConfigReader.h.

References AddFile(), and SetFileType().

§ AddFile() [3/4]

void FileConfigReader::AddFile	(	TString	fileName,
		Double_t	XSec,
		TString	entry,
		Int_t	colorstyle
	)

inline

This is for when you don't care about limit trees and are adding by hand.

Definition at line 94 of file FileConfigReader.h.

References AddFile().

§ AddFile() [4/4]

void FileConfigReader::AddFile	(	TString	fileName,
		Double_t	XSec,
		TString	entry,
		Int_t	colorstyle,
		FileType	type
	)

inline

For when you don't care about limit trees and are adding by hand with type changing.

Definition at line 97 of file FileConfigReader.h.

References AddFile(), and SetFileType().

§ CloseFiles()

void FileConfigReader::CloseFiles ( )

protected

Closes the files that are open.

Definition at line 731 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, fAllFiles, fFiles, PlotBase::fInTrees, and Debug::Message().

Referenced by PlotStack::MakeCanvas(), RatioComparison::MakeCompare(), HistAnalysis::MakeReweightHist(), and ~FileConfigReader().

§ GetFileInfo()

std::vector< FileInfo * > * FileConfigReader::GetFileInfo ( FileType type )

protected

Return a pointer to a proper vector of FileInfo.

Definition at line 243 of file FileConfigReader.h.

References Debug::eError, fDataFileInfo, fMCFileInfo, fSignalFileInfo, kBackground, kData, kSignal, and Debug::Message().

Referenced by PlotStack::MergeHistograms(), NameTreesAfterLimits(), ResetConfig(), ReturnFileNames(), ReturnTreeNames(), ParallelRunner::RunThreads(), ScaleBackgrounds(), and SetLegendColor().

§ GetFileType()

FileType FileConfigReader::GetFileType ( )

inline

Get the FileType of the current file.

Definition at line 114 of file FileConfigReader.h.

References fFileType.

§ GetHist() [1/3]

TH1D * FileConfigReader::GetHist ( std::vector< TH1D *> HistList )

protected

Draw a single histogram using the default expression and a file list.

Definition at line 650 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, Debug::eError, and Debug::Message().

Referenced by YieldDump::DumpYieldFiles(), GetHist(), QuickPlot::MakeCanvas(), RatioComparison::MakeCompare(), and HistAnalysis::MakeReweightHist().

§ GetHist() [2/3]

TH1D * FileConfigReader::GetHist	(	Int_t	NumXBins,
		Double_t *	XBins,
		std::vector< TString >	FileList,
		FileType	type
	)

protected

Draw a single histogram using the default expression and a file list.

Definition at line 675 of file FileConfigReader.h.

References Debug::DisplayFunc(), GetHist(), and GetHistList().

§ GetHist() [3/3]

TH1D * FileConfigReader::GetHist	(	Int_t	NumXBins,
		Double_t *	XBins,
		FileType	type,
		TString	matchName = `""`,
		SearchBy	search = `kLimitName`,
		Bool_t	match = `true`
	)

protected

Draw a single histogram using the default expression and file configuration.

Definition at line 683 of file FileConfigReader.h.

References Debug::DisplayFunc(), GetHist(), and GetHistList().

§ GetHistList() [1/2]

std::vector< TH1D * > FileConfigReader::GetHistList	(	Int_t	NumXBins,
		Double_t *	XBins,
		std::vector< TString >	FileList,
		FileType	type
	)

protected

Draws histograms for using the default expression and a file list.

Definition at line 553 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, fDataExpression, fDataWeight, PlotBase::fDefaultCut, PlotBase::fDefaultExpr, fFitResult, fMCFileInfo, fMCWeight, fSignalFileInfo, PlotBase::fSystematicBranches, fTreeName, kBackground, kData, kSignal, PlotHists::MakeHists(), Debug::Message(), OpenFiles(), PlotBase::SetDefaultExpr(), PlotBase::SetDefaultWeight(), and PlotHists::SetUncertaintySquared().

Referenced by PlotPreparer::AddEnvelopeWeight(), GetHist(), and GetHistList().

§ GetHistList() [2/2]

std::vector< TH1D * > FileConfigReader::GetHistList	(	Int_t	NumXBins,
		Double_t *	XBins,
		FileType	type,
		TString	matchName = `""`,
		SearchBy	search = `kLimitName`,
		Bool_t	match = `true`
	)

protected

Draws histograms for using the default expression and file configuration.

Definition at line 638 of file FileConfigReader.h.

References Debug::DisplayFunc(), GetHistList(), and ReturnFileNames().

§ LoadFitResult()

void FileConfigReader::LoadFitResult ( const char * fit_result )

Loads the fit result into memory for this stacks to make.

Definition at line 793 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, fFitResult, and Debug::Message().

Referenced by SetDataExpression().

§ NameTreesAfterLimits()

void FileConfigReader::NameTreesAfterLimits ( FileType type = kBackground )

Use this function to replace the Legend Entries of the FileInfo with the Limit Tree Names.

Note that this destroys the known Legend Entries. You should also call FileConfigReader::SetLegendColor for each entry that you want to ensure consistency between your plots.

Definition at line 750 of file FileConfigReader.h.

References GetFileInfo().

Referenced by SetDataExpression().

§ OpenFiles()

void FileConfigReader::OpenFiles ( std::vector< TString > fileNames )

protected

Opens the files in a vector.

Definition at line 692 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, Debug::eError, fAllFiles, fFiles, PlotBase::fInTrees, fTreeName, and Debug::Message().

Referenced by GetHistList().

§ ReadMCConfig() [1/2]

void FileConfigReader::ReadMCConfig	(	TString	config,
		TString	fileDir = `""`
	)

Reads an MC configuration file.

Reads in a configuration file assuming it has the format descrbed in Formatting MC Configs.

Contents of this MC file is stored in one of two vectors FileInfo pointers.

Definition at line 370 of file FileConfigReader.h.

References AddFile(), InDirectoryHolder::AddInDir(), Debug::DisplayFunc(), Debug::eDebug, Debug::eInfo, fFileType, fKeepAllFiles, fMCFileInfo, fSignalFileInfo, InDirectoryHolder::GetInDirectory(), kSignal, Debug::Message(), and InDirectoryHolder::SetInDirectory().

Referenced by ReadMCConfig().

§ ReadMCConfig() [2/2]

void FileConfigReader::ReadMCConfig	(	TString	config,
		FileType	type,
		TString	fileDir = `""`
	)

inline

Reads an MC configuration while changing the FileType.

Definition at line 117 of file FileConfigReader.h.

References ReadMCConfig(), and SetFileType().

§ ResetAllConfig()

void FileConfigReader::ResetAllConfig ( )

Resets the information from the config files being held for all types.

Definition at line 229 of file FileConfigReader.h.

References Debug::DisplayFunc(), fDeleteThese, kBackground, kData, kSignal, and ResetConfig().

Referenced by ~FileConfigReader().

§ ResetConfig()

void FileConfigReader::ResetConfig ( FileType type = kBackground )

Resets the information from the for one type.

Definition at line 217 of file FileConfigReader.h.

References Debug::DisplayFunc(), and GetFileInfo().

Referenced by ResetAllConfig().

§ ReturnFileNames()

std::vector< TString > FileConfigReader::ReturnFileNames	(	FileType	type = `kBackground`,
		TString	matchName = `""`,
		SearchBy	search = `kLimitName`,
		Bool_t	match = `true`
	)

Returns a vector of file names that have been read from the configs.

Definition at line 279 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, GetFileInfo(), kLegendEntry, kLimitName, and Debug::Message().

Referenced by GetHistList(), and ReturnTChain().

§ ReturnTChain()

TChain * FileConfigReader::ReturnTChain	(	TString	treeName = `"events"`,
		FileType	type = `kBackground`,
		TString	matchName = `""`,
		SearchBy	search = `kLimitName`,
		Bool_t	match = `true`
	)

Returns a TChain of files that match the FileType and name for the LimitTreeMaker.

Definition at line 312 of file FileConfigReader.h.

References fDeleteThese, and ReturnFileNames().

§ ReturnTreeNames()

std::set< TString > FileConfigReader::ReturnTreeNames ( FileType type = kBackground )

Returns a vector of limit tree names that have been read from the configs.

Definition at line 266 of file FileConfigReader.h.

References GetFileInfo().

Referenced by YieldDump::DumpYieldFiles().

§ ScaleBackgrounds()

void FileConfigReader::ScaleBackgrounds	(	TString	entry,
		Double_t	scale,
		SearchBy	search = `kLimitName`,
		FileType	type = `kBackground`
	)

Scales the cross section of the matching MC samples by a factor of 1.0 + scale, destroying the old cross section in the process.

Definition at line 770 of file FileConfigReader.h.

References Debug::DisplayFunc(), Debug::eDebug, GetFileInfo(), kLimitName, and Debug::Message().

Referenced by SetDataExpression().

§ SetAllHistName()

void FileConfigReader::SetAllHistName ( TString name )

inline

Set the all histogram and luminosity for normalization.

Definition at line 107 of file FileConfigReader.h.

References fAllHistName.

§ SetDataEntry()

void FileConfigReader::SetDataEntry ( TString entry )

inline

Set the legend entry for data.

Definition at line 104 of file FileConfigReader.h.

References fDataEntry.

§ SetDataExpression()

void FileConfigReader::SetDataExpression ( TString expr )

inline

Use this to set a different expression for data from MC.

Definition at line 123 of file FileConfigReader.h.

References fDataExpression, kBackground, kLimitName, LoadFitResult(), NameTreesAfterLimits(), ScaleBackgrounds(), and SetLegendColor().

§ SetDataTreeName()

void FileConfigReader::SetDataTreeName ( TString name )

inline

Set the tree name for data.

Definition at line 102 of file FileConfigReader.h.

References fDataTreeName.

§ SetDataWeight() [1/2]

void FileConfigReader::SetDataWeight ( TCut weight )

inline

The multipliers for Data can be set separately.

Definition at line 81 of file FileConfigReader.h.

References fDataWeight.

Referenced by YieldDump::DumpYieldFiles().

§ SetDataWeight() [2/2]

void FileConfigReader::SetDataWeight ( const char * weight )

inline

The multipliers for Data can be set separately.

Definition at line 83 of file FileConfigReader.h.

References SetDataWeight().

Referenced by SetDataWeight().

§ SetFileType()

void FileConfigReader::SetFileType ( FileType type )

inline

Set the FileType of the next config file read.

Definition at line 112 of file FileConfigReader.h.

References fFileType.

Referenced by AddDataFile(), AddFile(), and ReadMCConfig().

§ SetKeepAllFiles()

void FileConfigReader::SetKeepAllFiles ( Bool_t keep )

inline

Allows reader to avoid skipping when reading in exception configs.

Definition at line 143 of file FileConfigReader.h.

References fKeepAllFiles.

§ SetLegendColor()

void FileConfigReader::SetLegendColor	(	TString	entry,
		Int_t	color,
		FileType	type = `kBackground`
	)

Sets the FileInfo with the matching Legend Names to the new colors.

Definition at line 759 of file FileConfigReader.h.

References GetFileInfo().

Referenced by SetDataExpression().

§ SetLuminosity()

void FileConfigReader::SetLuminosity ( Double_t lum )

inline

Set the Luminosity in inverse pb.

Definition at line 109 of file FileConfigReader.h.

References fLuminosity.

§ SetMCWeight() [1/2]

void FileConfigReader::SetMCWeight ( TCut weight )

inline

The multipliers for MC can be set separately.

Definition at line 85 of file FileConfigReader.h.

References fMCWeight.

Referenced by YieldDump::DumpYieldFiles().

§ SetMCWeight() [2/2]

void FileConfigReader::SetMCWeight ( const char * weight )

inline

The multipliers for MC can be set separately.

Definition at line 87 of file FileConfigReader.h.

References SetMCWeight().

Referenced by SetMCWeight().

§ SetMultiplyLumi()

void FileConfigReader::SetMultiplyLumi ( Bool_t doMultiply )

inlineprotected

Allows reader to avoid skipping when reading in exception configs.

Definition at line 178 of file FileConfigReader.h.

References fMultiplyLumi.

Referenced by HistAnalysis::HistAnalysis().

§ SetTreeName()

void FileConfigReader::SetTreeName ( TString name )

inline

Set the tree of the files you are trying to plot.

Definition at line 120 of file FileConfigReader.h.

References fTreeName.

Member Data Documentation

§ fAllFiles

std::vector<std::vector<TFile*> > FileConfigReader::fAllFiles

private

Vector of all open files.

Definition at line 192 of file FileConfigReader.h.

Referenced by CloseFiles(), and OpenFiles().

§ fAllHistName

TString FileConfigReader::fAllHistName = "htotal"

protected

The all histogram name used ingenerating cross section weights.

Definition at line 149 of file FileConfigReader.h.

Referenced by AddFile(), LimitTreeMaker::MakeTrees(), and SetAllHistName().

§ fDataEntry

TString FileConfigReader::fDataEntry = "Data"

protected

The legend entry for data.

Definition at line 148 of file FileConfigReader.h.

Referenced by AddDataFile(), and SetDataEntry().

§ fDataExpression

TString FileConfigReader::fDataExpression = ""

private

Holds an alternative expression to plot data in.

Definition at line 194 of file FileConfigReader.h.

Referenced by GetHistList(), and SetDataExpression().

§ fDataFileInfo

std::vector<FileInfo*> FileConfigReader::fDataFileInfo

protected

Vector of data FileInfo objects.

Definition at line 150 of file FileConfigReader.h.

Referenced by AddFile(), GetFileInfo(), and LimitTreeMaker::MakeTrees().

§ fDataTreeName

TString FileConfigReader::fDataTreeName = "data"

protected

The base name of the data in a limit tree.

Definition at line 147 of file FileConfigReader.h.

Referenced by AddDataFile(), and SetDataTreeName().

§ fDataWeight

TCut FileConfigReader::fDataWeight = ""

protected

Separate Data weights if needed.

Definition at line 180 of file FileConfigReader.h.

Referenced by GetHistList(), and SetDataWeight().

§ fDeleteThese

std::vector<TObject*> FileConfigReader::fDeleteThese

private

Vector of object pointers to free memory at the end.

Definition at line 189 of file FileConfigReader.h.

Referenced by ResetAllConfig(), and ReturnTChain().

§ fFiles

std::vector<TFile*> FileConfigReader::fFiles

private

Vector of active files.

Definition at line 190 of file FileConfigReader.h.

Referenced by CloseFiles(), and OpenFiles().

§ fFileType

FileType FileConfigReader::fFileType = kBackground

private

Type of files in the next config.

Definition at line 186 of file FileConfigReader.h.

Referenced by AddDataFile(), AddFile(), GetFileType(), ReadMCConfig(), and SetFileType().

§ fFitResult

std::map<TString, double> FileConfigReader::fFitResult

private

Holds the fit results.

Definition at line 196 of file FileConfigReader.h.

Referenced by GetHistList(), and LoadFitResult().

§ fHists

std::vector<TH1D*> FileConfigReader::fHists

private

Vector of histograms to use.

Definition at line 191 of file FileConfigReader.h.

§ fKeepAllFiles

Bool_t FileConfigReader::fKeepAllFiles = false

private

Keeps FileInfo stored usually deleted by exception configs.

Definition at line 187 of file FileConfigReader.h.

Referenced by ReadMCConfig(), and SetKeepAllFiles().

§ fLuminosity

Double_t FileConfigReader::fLuminosity = 2000.0

protected

The Luminosity in inverse pb.

Definition at line 146 of file FileConfigReader.h.

Referenced by AddFile(), PlotStack::MakeCanvas(), LimitTreeMaker::MakeTrees(), and SetLuminosity().

§ fMCFileInfo

std::vector<FileInfo*> FileConfigReader::fMCFileInfo

protected

Vector of background FileInfo objects.

Definition at line 151 of file FileConfigReader.h.

Referenced by AddFile(), GetFileInfo(), GetHistList(), LimitTreeMaker::MakeTrees(), and ReadMCConfig().

§ fMCWeight

TCut FileConfigReader::fMCWeight = ""

protected

Separate MC weights if needed.

Definition at line 181 of file FileConfigReader.h.

Referenced by GetHistList(), and SetMCWeight().

§ fMultiplyLumi

Bool_t FileConfigReader::fMultiplyLumi = true

private

Returns XSecWeight with luminosity multiplied.

Definition at line 188 of file FileConfigReader.h.

Referenced by AddFile(), and SetMultiplyLumi().

§ fSignalFileInfo

std::vector<FileInfo*> FileConfigReader::fSignalFileInfo

protected

Vector of signal FileInfo objects.

Definition at line 152 of file FileConfigReader.h.

Referenced by AddFile(), GetFileInfo(), GetHistList(), PlotStack::MakeCanvas(), LimitTreeMaker::MakeTrees(), and ReadMCConfig().

§ fTreeName

TString FileConfigReader::fTreeName = "events"

protected

Stores name of tree from file.

Definition at line 183 of file FileConfigReader.h.

Referenced by GetHistList(), PlotStack::MergeHistograms(), OpenFiles(), and SetTreeName().

The documentation for this class was generated from the following file:

FileConfigReader.h

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Enumeration Documentation

§ FileType

§ SearchBy

Constructor & Destructor Documentation

§ FileConfigReader()

§ ~FileConfigReader()

Member Function Documentation

§ AddDataFile()

§ AddFile() [1/4]

§ AddFile() [2/4]

§ AddFile() [3/4]

§ AddFile() [4/4]

§ CloseFiles()

§ GetFileInfo()

§ GetFileType()

§ GetHist() [1/3]

§ GetHist() [2/3]

§ GetHist() [3/3]

§ GetHistList() [1/2]

§ GetHistList() [2/2]

§ LoadFitResult()

§ NameTreesAfterLimits()

§ OpenFiles()

§ ReadMCConfig() [1/2]

§ ReadMCConfig() [2/2]

§ ResetAllConfig()

§ ResetConfig()

§ ReturnFileNames()

§ ReturnTChain()

§ ReturnTreeNames()

§ ScaleBackgrounds()

§ SetAllHistName()

§ SetDataEntry()

§ SetDataExpression()

§ SetDataTreeName()

§ SetDataWeight() [1/2]

§ SetDataWeight() [2/2]

§ SetFileType()

§ SetKeepAllFiles()

§ SetLegendColor()

§ SetLuminosity()

§ SetMCWeight() [1/2]

§ SetMCWeight() [2/2]

§ SetMultiplyLumi()

§ SetTreeName()

Member Data Documentation

§ fAllFiles

§ fAllHistName

§ fDataEntry

§ fDataExpression

§ fDataFileInfo

§ fDataTreeName

§ fDataWeight

§ fDeleteThese

§ fFiles

§ fFileType

§ fFitResult

§ fHists

§ fKeepAllFiles

§ fLuminosity

§ fMCFileInfo

§ fMCWeight

§ fMultiplyLumi

§ fSignalFileInfo

§ fTreeName
