Class used for making stack plots. More...

#include <PlotStack.h>

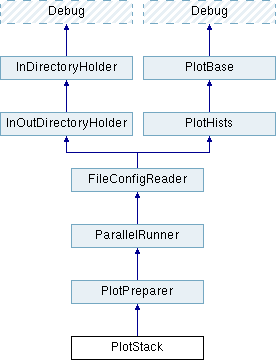

Inheritance diagram for PlotStack:

Public Member Functions
	PlotStack ()

virtual	~PlotStack ()

PlotStack *	Copy ()
	Copy this PlotStack for parallelization. More...

void	InsertTemplate (TString fileName, TString histName, TString LegendEntry)
	Insert a histogram from file into the stack plot. More...

void	MakeCanvas (TString FileBase, Int_t NumXBins, Double_t *XBins, TString XLabel, TString YLabel="", Bool_t logY=false)
	Choose the binning of your plots and make then. More...

void	MakeCanvas (TString FileBase, Int_t NumXBins, Double_t MinX, Double_t MaxX, TString XLabel, TString YLabel="", Bool_t logY=false)
	Binning with fixed width. More...

void	MakeCanvas (TString FileBase, TString XLabel, TString YLabel="", Bool_t logY=false)
	Make plots with the PlotPreparer. More...

std::vector< HistHolder * >	MergeHistograms (FileType type, std::vector< TH1D *> hists)
	Merge a vector of histograms into a vector of HistHolders. More...

void	SetAddSignal (Bool_t add)
	Use this to set whether the signal sits on top or not. More...

void	SetDebug (Bool_t debug)
	This dumps out some raw values for you to check yields. More...

void	SetDumpFileName (TString dumpName)
	Set the name of a .root file to dump the separate histograms used in the plots. More...

void	SetForceTop (TString force)
	Sets the legend entry that will be on the top of the stack. More...

void	SetHistSuff (TString suff)
	Set the suffix of dumped histograms. More...

void	SetIgnoreInLinear (Double_t ignore)
	Set the minimum fraction of backgrounds that are not plotted or mentioned in linear scale. More...

void	SetMinLegendFrac (Double_t frac)
	Set the minimum fraction of background that shows up on the plot's legend separately. More...

void	SetOthersColor (Color_t color)
	Set the color of the "Others" legend entry. More...

void	SetPostFitFile (TString file_name, TString region)
	Use this to get a post-fit line. More...

void	SetSortBackground (Bool_t doSort)
	Use this to change the automatic sorting of backgrounds based on yields. More...

void	SetSortSignal (Bool_t doSort)
	Use this to change the automatic sorting of signals based on yields. More...

void	SetStackLineWidth (Int_t width)
	Set the line width of the stack plots. More...

Public Member Functions inherited from PlotPreparer
virtual	~PlotPreparer ()

void	AddEnvelopeWeight (TString weight, Int_t index=1)

void	AddHist (TString FileBase, Int_t NumXBins, Double_t *XBins, TString dataExpr, TString mcExpr, TString cut, TString dataWeight, TString mcWeight)
	Add a histogram to plot. More...

void	AddHist (TString FileBase, Int_t NumXBins, Double_t MinX, Double_t MaxX, TString dataExpr, TString mcExpr, TString cut, TString dataWeight, TString mcWeight)
	Add a histogram to plot. More...

void	StartEnvelope (Bool_t is_up)
	Start tracking branches for a given envelope. More...

Public Member Functions inherited from ParallelRunner
void	SetNumThreads (UInt_t nthreads)
	Set the number of cores to use in the plotting. More...

Public Member Functions inherited from FileConfigReader
	FileConfigReader ()

virtual	~FileConfigReader ()

void	AddDataFile (TString fileName)
	Add a data file. More...

void	AddFile (TString treeName, TString fileName, Double_t XSec, TString entry="", Int_t colorstyle=0)
	This is the default MC File adder. More...

void	AddFile (TString treeName, TString fileName, Double_t XSec, TString entry, Int_t colorstyle, FileType type)
	Default File adder with FileType changing. More...

void	AddFile (TString fileName, Double_t XSec, TString entry, Int_t colorstyle)
	This is for when you don't care about limit trees and are adding by hand. More...

void	AddFile (TString fileName, Double_t XSec, TString entry, Int_t colorstyle, FileType type)
	For when you don't care about limit trees and are adding by hand with type changing. More...

FileType	GetFileType ()
	Get the FileType of the current file. More...

void	LoadFitResult (const char *fit_result)
	Loads the fit result into memory for this stacks to make. More...

void	NameTreesAfterLimits (FileType type=kBackground)
	Use this function to replace the Legend Entries of the FileInfo with the Limit Tree Names. More...

void	ReadMCConfig (TString config, TString fileDir="")
	Reads an MC configuration file. More...

void	ReadMCConfig (TString config, FileType type, TString fileDir="")
	Reads an MC configuration while changing the FileType. More...

void	ResetAllConfig ()
	Resets the information from the config files being held for all types. More...

void	ResetConfig (FileType type=kBackground)
	Resets the information from the for one type. More...

std::vector< TString >	ReturnFileNames (FileType type=kBackground, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Returns a vector of file names that have been read from the configs. More...

TChain *	ReturnTChain (TString treeName="events", FileType type=kBackground, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Returns a TChain of files that match the FileType and name for the LimitTreeMaker. More...

std::set< TString >	ReturnTreeNames (FileType type=kBackground)
	Returns a vector of limit tree names that have been read from the configs. More...

void	ScaleBackgrounds (TString entry, Double_t scale, SearchBy search=kLimitName, FileType type=kBackground)
	Scales the cross section of the matching MC samples by a factor of 1.0 + scale, destroying the old cross section in the process. More...

void	SetAllHistName (TString name)
	Set the all histogram and luminosity for normalization. More...

void	SetDataEntry (TString entry)
	Set the legend entry for data. More...

void	SetDataExpression (TString expr)
	Use this to set a different expression for data from MC. More...

void	SetDataTreeName (TString name)
	Set the tree name for data. More...

void	SetDataWeight (TCut weight)
	The multipliers for Data can be set separately. More...

void	SetDataWeight (const char *weight)
	The multipliers for Data can be set separately. More...

void	SetFileType (FileType type)
	Set the FileType of the next config file read. More...

void	SetKeepAllFiles (Bool_t keep)
	Allows reader to avoid skipping when reading in exception configs. More...

void	SetLegendColor (TString entry, Int_t color, FileType type=kBackground)
	Sets the FileInfo with the matching Legend Names to the new colors. More...

void	SetLuminosity (Double_t lum)
	Set the Luminosity in inverse pb. More...

void	SetMCWeight (TCut weight)
	The multipliers for MC can be set separately. More...

void	SetMCWeight (const char *weight)
	The multipliers for MC can be set separately. More...

void	SetTreeName (TString name)
	Set the tree of the files you are trying to plot. More...

Public Member Functions inherited from InOutDirectoryHolder
	InOutDirectoryHolder ()

virtual	~InOutDirectoryHolder ()

TString	GetOutDirectory () const

void	SetInputOutputMap (TString input, TString output)
	Adds a mapping from input to output file name. More...

void	SetOutDirectory (TString dir)
	Sets the output directory where the files will be written, and adds a "/" if needed. More...

void	SetOverwriteFiles (Bool_t overwrite)
	Sets whether or not to overwrite files. More...

Public Member Functions inherited from InDirectoryHolder
	InDirectoryHolder ()

virtual	~InDirectoryHolder ()

TString	GetInDirectory () const

void	SetInDirectory (TString dir)
	Sets the input directory where the MCFiles will be searched for, and adds a "/" if needed. More...

Public Member Functions inherited from Debug
	Debug ()

virtual	~Debug ()

DebugLevel	GetDebugLevel ()
	Gets the verbosity for a class. More...

template<typename T , typename... V>
void	Message (DebugLevel level, T message, V... more)
	Sends a message if the verbosity level is appropriate. More...

void	Message (DebugLevel level)

void	SetDebugLevel (DebugLevel level)
	Sets the verbosity for a class. More...

Public Member Functions inherited from PlotHists
	PlotHists ()

virtual	~PlotHists ()

void	AddUncertainty (UInt_t index, TString FileName, TString HistName, Int_t startBin=1, Int_t endBin=0)
	Add uncertainty factors to some index of histograms about to be made. More...

void	MakeCanvas (TString FileBase, std::vector< TH1D *> theHists, TString XLabel, TString YLabel, Bool_t logY=false)
	Simplest of Canvas makers with just histograms as arugments, allowing for user manipulation of histograms. More...

std::vector< TH1D * >	MakeHists (Int_t NumXBins, Double_t *XBins)
	This just return vectors of histograms for other uses. More...

std::vector< TH1D * >	MakeHists (Int_t NumXBins, Double_t MinX, Double_t MaxX)

void	SetEventsPer (Double_t per)
	We can set events per some value of x so that our legend entry is not wrong and variable binning doesn't look stupid. More...

void	SetNormalizedHists (Bool_t b)
	We can set normalization to match a particular other hist (or just 1) More...

void	SetNormalizeTo (Int_t to)
	Set index of which histogram to normalize to. More...

void	SetUncertaintySquared (TString expr)
	Add uncertainty factors through branch expressions instead of a histogram. More...

Public Member Functions inherited from PlotBase
	PlotBase ()

virtual	~PlotBase ()

void	AddCutLine (Double_t loc, bool is_vert=true)
	Adds a dotted line in order to show cuts. More...

void	AddExpr (TString expr)
	Set an x expression for a single line. More...

void	AddLegendEntry (TString LegendEntry, Color_t ColorEntry)
	Set entry and color for each line. This uses the default line width and style. More...

void	AddLegendEntry (TString LegendEntry, Color_t ColorEntry, Int_t LineWidth, Int_t LineStyle)
	Set entry, color, width, and style for each line. More...

void	AddLine (TTree *tree, TCut cut, TString expr)
	This function adds a tree pointer, cut, and expression used for generating a line in the plot. More...

void	AddLine (TTree tree, const char cut, TString expr)
	This function adds a tree pointer, cut, and expression used for generating a line in the plot. More...

void	AddRatioLine (Int_t line)
	Add a line to show in the ratio plot. More...

void	AddSystematicBranch (TString branch)
	Add branches that contain independent systematic uncertainties to show in the plots. More...

void	AddTree (TTree *tree)
	Set a tree for a single line. More...

void	AddTreeExpr (TTree *tree, TString expr)
	Set a tree and expression concurrently for each line. Best used when a default weight is set. More...

void	AddTreeWeight (TTree *tree, TCut cut)
	Set a tree and weight concurrently for each line. Best used when a default expression is set. More...

void	AddTreeWeight (TTree tree, const char cut)
	Set a tree and weight concurrently for each line. Best used when a default expression is set. More...

void	AddWeight (TCut cut)
	Set a weight for a single line. More...

void	AddWeight (const char *cut)
	Set a weight for a single line. More...

void	AddWeightExpr (TCut cut, TString expr)
	Set a weight and expression concurrently for each line. Best used when a default tree is set. More...

void	AddWeightExpr (const char *cut, TString expr)
	Set a weight and expression concurrently for each line. Best used when a default tree is set. More...

TCut	GetDefaultWeight () const
	Get the default weight. More...

void	OnlyPDF ()
	Call this before plotting to only write plots to .pdf files. More...

void	OnlyPNG ()
	Call this before plotting to only write plots to .png files. More...

void	ResetCutLines ()
	Resets the number of cut lines to plot. More...

void	ResetExpr ()
	Reset the list of expressions used to makes lines. More...

void	ResetLegend ()
	Resets the legend entries for each line. More...

void	ResetSystematics ()
	Reset list of branches that contain systematics. More...

void	ResetTree ()
	Reset the list of trees used to makes lines. More...

void	ResetWeight ()
	Reset the list of weights used to makes lines. More...

void	SetAxisMinMax (Float_t min, Float_t max)
	Forces the minimum and maximum values of the Y-axis in the plot. More...

void	SetAxisTitleOffset (Float_t offset)
	Sets the offset of the Y-axis title as a ratio of the default offset. More...

void	SetCanvasName (TString name)
	Sets the name of the canvas created by PlotBase. More...

void	SetCanvasSize (Int_t width, Int_t height)
	Sets the size of the output canvas. More...

void	SetCMSLabel (TString type)
	Set the type of CMS label for the plot. More...

void	SetCutLineStyle (Color_t color, Int_t width, Int_t style)
	Sets the style for the cut lines. More...

void	SetDataIndex (Int_t data)
	Set one of the lines to be plotted as data. More...

void	SetDefaultCut (const char *cut)

void	SetDefaultExpr (TString expr)
	Set the default expression to be plotted on the x-axis for each line in the plot. More...

void	SetDefaultLineStyle (Int_t style)
	Set the default line style. More...

void	SetDefaultLineWidth (Int_t width)
	Set the default line width. More...

void	SetDefaultTree (TTree *tree)
	Set the default tree pointer for each line in the plot. More...

void	SetDefaultWeight (TCut cut)
	Set the default weight for each line in the plot. More...

void	SetDefaultWeight (const char *cut)
	Set the default weight for each line in the plot. More...

void	SetDrawFirst (Int_t first)
	Force a line to draw first on the plot, if desired. More...

void	SetDrawOpts (TString options)
	Set additional drawing options to force all lines to have. More...

void	SetFontSize (Float_t fontSize)
	Sets the fontsize of the axis labels. More...

void	SetIncludeErrorBars (Bool_t include)
	Set this to true to feature error bars in the plots. More...

void	SetLeftMargin (float left)

void	SetLegendBorderSize (Int_t size)
	Set the legend border size. More...

void	SetLegendFill (Bool_t fill)
	If true, the legend will be filled with a solid background. More...

void	SetLegendLimits (Double_t lim1, Double_t lim2, Double_t lim3, Double_t lim4)
	Set the legend location manually. More...

void	SetLegendLocation (LegendY yLoc, LegendX xLoc, Double_t xWidth=0.3, Double_t yWidth=0.2)
	Set the legend location using LegendY and LegendX enums. More...

void	SetLumiLabel (TString lumi)
	Set the luminosity label. More...

void	SetLumiLabel (Float_t lumi)
	Set the luminosity lable with a float in fb. More...

void	SetLumiLabelFormat (TString format)
	Set the luminosity format. More...

void	SetMakeRatio (Bool_t ratio)
	If true, a ratio pad will be drawn underneath. More...

void	SetRatioDivisions (Int_t divisions, Bool_t optimize=true)
	Sets the divisions of the ratio y axis. More...

void	SetRatioGrid (Int_t grid)
	Set horizontal dotted lines on the ratio pad. More...

void	SetRatioIndex (Int_t ratio)
	Set which line will be '1' in the ratio plot. More...

void	SetRatioMinMax (Float_t min, Float_t max)
	Force the minimum and maximum values of the ratio pad. More...

void	SetRatioTitle (TString title)
	Set the y axis label of the ratio pad. More...

void	SetTreeList (std::vector< TTree *> treelist)
	Can store multiple trees at once for plots. Each tree plots its own line. More...

Private Member Functions
void	MakeCanvas (TString FileBase, std::vector< TH1D > DataHists, std::vector< TH1D > MCHists, std::vector< TH1D *> SignalHists, TString XLabel, TString YLabel, Bool_t logY)
	Makes the canvas from histogram vectors. All other MakeCanvas pass through here. More...

Private Attributes
Bool_t	fAddSignal = true
	Bool to determine where the signal sits. More...

Bool_t	fDebug = false
	Dumps yield tests. More...

TString	fDumpRootName = ""
	File where each histogram in stack is dumped. More...

TString	fForceTop = ""
	A legend entry that is on the top of backgrounds. More...

TString	fHistSuff = ""

Double_t	fIgnoreInLinear = 0.0
	If background less than this, do not draw in linear-scale plot. More...

Double_t	fMinLegendFrac = 0.0
	If a background contributes less than this, it's grouped in others. More...

Color_t	fOthersColor = 0
	Color of the "Others" legend entry. More...

TString	fPostFitFile = ""
	Holds the location of post-fit plots. More...

TString	fRegion = ""
	Holds the region for post-fit plots. More...

Bool_t	fSortBackground = true
	Bool to sort the backgrounds. More...

Bool_t	fSortSignal = true
	Bool to sort the signals. More...

Int_t	fStackLineWidth = 1
	Line width of the histograms. More...

std::vector< TString >	fTemplateEntries
	Holds legend entries of the templates. More...

std::vector< TString >	fTemplateFiles
	Holds file name of the templates. More...

std::vector< TString >	fTemplateHists
	Holds histogram name of the templates. More...

Additional Inherited Members
Public Types inherited from FileConfigReader
enum	FileType { kBackground = 0, kSignal, kData }
	Differentiates between background, signal MC and data. More...

enum	SearchBy { kLimitName = 0, kLegendEntry }
	Determines how to match to return files. More...

Public Types inherited from Debug
enum	DebugLevel { eQuiet = 0, eError, eInfo, eDebug }
	Different possible debug levels. More...

Public Types inherited from PlotBase
enum	LegendX { kLeft = 0, kRight }
	Used for horizontal position of legend. More...

enum	LegendY { kUpper = 0, kLower }
	Used for vertical position of legend. More...

Protected Member Functions inherited from PlotPreparer
std::vector< TH1D * >	GetHistList (TString FileBase, FileType type)
	Get the HistList for a given file name, and type. More...

Protected Member Functions inherited from ParallelRunner
void	RunThreads ()
	Run over all of the filled FileInfos. More...

Protected Member Functions inherited from FileConfigReader
void	CloseFiles ()
	Closes the files that are open. More...

std::vector< FileInfo * > *	GetFileInfo (FileType type)
	Return a pointer to a proper vector of FileInfo. More...

TH1D *	GetHist (std::vector< TH1D *> HistList)
	Draw a single histogram using the default expression and a file list. More...

TH1D *	GetHist (Int_t NumXBins, Double_t *XBins, std::vector< TString > FileList, FileType type)
	Draw a single histogram using the default expression and a file list. More...

TH1D *	GetHist (Int_t NumXBins, Double_t *XBins, FileType type, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Draw a single histogram using the default expression and file configuration. More...

std::vector< TH1D * >	GetHistList (Int_t NumXBins, Double_t *XBins, std::vector< TString > FileList, FileType type)
	Draws histograms for using the default expression and a file list. More...

std::vector< TH1D * >	GetHistList (Int_t NumXBins, Double_t *XBins, FileType type, TString matchName="", SearchBy search=kLimitName, Bool_t match=true)
	Draws histograms for using the default expression and file configuration. More...

void	OpenFiles (std::vector< TString > fileNames)
	Opens the files in a vector. More...

void	SetMultiplyLumi (Bool_t doMultiply)
	Allows reader to avoid skipping when reading in exception configs. More...

Protected Member Functions inherited from InOutDirectoryHolder
TString	AddOutDir (TString FileName) const
	A helper function that prepends the output directory to a filename. More...

Protected Member Functions inherited from InDirectoryHolder
TString	AddInDir (TString FileName)
	A helper function that prepends the input directory to a filename. More...

Protected Member Functions inherited from Debug
void	DisplayFunc (const char *func)
	Sends the name of the function during debuggin. More...

Protected Member Functions inherited from PlotBase
template<class T >
void	BaseCanvas (TString FileBase, std::vector< T *> theLines, TString XLabel, TString YLabel, Bool_t logY=false, Bool_t logX=false)
	This is the powerhouse of all the plotting tools. Everything happens here. More...

void	ConvertToArray (Int_t NumXBins, Double_t MinX, Double_t MaxX, Double_t *XBins)
	Takes number of bins, min and max, and dumps it into an already allocated array. More...

TString	TempHistName ()
	Get a temporary name for a histogram. More...

Protected Attributes inherited from PlotPreparer
bool	fPrepared {false}
	A flag indicating whether or not the plots have been prepared by this class. More...

Protected Attributes inherited from FileConfigReader
TString	fAllHistName = "htotal"
	The all histogram name used ingenerating cross section weights. More...

TString	fDataEntry = "Data"
	The legend entry for data. More...

std::vector< FileInfo * >	fDataFileInfo
	Vector of data FileInfo objects. More...

TString	fDataTreeName = "data"
	The base name of the data in a limit tree. More...

TCut	fDataWeight = ""
	Separate Data weights if needed. More...

Double_t	fLuminosity = 2000.0
	The Luminosity in inverse pb. More...

std::vector< FileInfo * >	fMCFileInfo
	Vector of background FileInfo objects. More...

TCut	fMCWeight = ""
	Separate MC weights if needed. More...

std::vector< FileInfo * >	fSignalFileInfo
	Vector of signal FileInfo objects. More...

TString	fTreeName = "events"
	Stores name of tree from file. More...

Protected Attributes inherited from PlotHists
Double_t	fEventsPer = 0
	Histogram normalized to events per units of X axis. More...

Protected Attributes inherited from PlotBase
Bool_t	bC = true
	If true, BaseCanvas will create a .C macro. More...

Bool_t	bPDF = true
	If true, BaseCanvas will create a .pdf file. More...

Bool_t	bPNG = true
	If true, BaseCanvas will create a .png file. More...

Float_t	fAxisMax = 0.0
	Maximum value of the y-axis. More...

Float_t	fAxisMin = 0.0
	Minimum value of the y-axis. More...

Int_t	fDataIndex = -1
	Index in the plotter of the data line. More...

TCut	fDefaultCut = ""
	Default cut if needed. More...

TString	fDefaultExpr = ""
	Default resolution expression if needed. More...

TTree *	fDefaultTree = NULL
	Default Tree if needed. More...

Bool_t	fIncludeErrorBars = true
	Option to include error bars. More...

std::vector< TCut >	fInCuts
	Holds the cuts for the trees if needed. More...

std::vector< TString >	fInExpr
	Holds multiple resolution expressions if needed. More...

std::vector< TTree * >	fInTrees
	Holds all the trees for each line if needed. More...

Int_t	fLegendBorderSize = 0
	Border size of legend. More...

std::vector< TString >	fLegendEntries
	Number of legend entries should match number of lines. More...

Bool_t	fMakeRatio = false
	Bool to make a ratio plot on bottom of image. More...

Bool_t	fOptimDivisions

UInt_t	fPlotCounter = 0
	This is used so that making scratch plots does not overlap. More...

Int_t	fRatioDivisions

Int_t	fRatioGrid

Int_t	fRatioIndex = -1
	Pick which line to set as 1 in ratio plot. More...

std::vector< Int_t >	fRatioLines
	Vector of line indices to show up in the ratio pad. More...

Float_t	fRatioMax = 0.0
	Maximum of the ratio pad. More...

Float_t	fRatioMin = 0.0
	Minimum of the ratio pad. More...

TString	fRatioTitle
	Label of the ratio pad. More...

std::vector< TString >	fSystematicBranches
	Vector of branches to apply as systematic uncertainties. More...

Double_t	l1 = 0.6
	First X value of legend location. More...

Double_t	l2 = 0.7
	First Y value of legend location. More...

Double_t	l3 = 0.9
	Second X value of legend location. More...

Double_t	l4 = 0.9
	Second Y value of legend location. More...

Detailed Description

Class used for making stack plots.

Most easy way to use this class is through CrombieTools.PlotTools.PlotStack convenience functions and using an MC Configuration. Many appearance flags must be set through this class's methods though.

Definition at line 24 of file PlotStack.h.

Constructor & Destructor Documentation

§ PlotStack()

PlotStack::PlotStack ( )

Referenced by Copy().

§ ~PlotStack()

PlotStack::~PlotStack ( )

virtual

Definition at line 36 of file PlotStack.cc.

Member Function Documentation

§ Copy()

PlotStack * PlotStack::Copy ( )

Copy this PlotStack for parallelization.

Definition at line 446 of file PlotStack.cc.

References PlotStack().

§ InsertTemplate()

void PlotStack::InsertTemplate	(	TString	fileName,
		TString	histName,
		TString	LegendEntry
	)

inline

Insert a histogram from file into the stack plot.

Most histograms in the stack plot are created from TTree::Draw() functions acting on trees. It is also possible to just insert a histogram generated by someone else into the stack plot.

Parameters

fileName	is the name of the file containing the histogram.
histName	is the name of the TH1 inside the file.
LegendEntry	is the entry in the legend. It does not require underscores for spaces like in the MC Configurations.

Definition at line 79 of file PlotStack.h.

References fTemplateEntries, fTemplateFiles, and fTemplateHists.

§ MakeCanvas() [1/4]

void PlotStack::MakeCanvas	(	TString	FileBase,
		Int_t	NumXBins,
		Double_t *	XBins,
		TString	XLabel,
		TString	YLabel = `""`,
		Bool_t	logY = `false`
	)

virtual

Choose the binning of your plots and make then.

Reimplemented from PlotHists.

Definition at line 111 of file PlotStack.cc.

References Debug::eDebug, FileConfigReader::fSignalFileInfo, PlotPreparer::GetHistList(), FileConfigReader::kBackground, FileConfigReader::kData, FileConfigReader::kSignal, Debug::Message(), and PlotBase::SetIncludeErrorBars().

Referenced by MakeCanvas().

§ MakeCanvas() [2/4]

void PlotStack::MakeCanvas	(	TString	FileBase,
		Int_t	NumXBins,
		Double_t	MinX,
		Double_t	MaxX,
		TString	XLabel,
		TString	YLabel = `""`,
		Bool_t	logY = `false`
	)

virtual

Binning with fixed width.

Reimplemented from PlotHists.

Definition at line 94 of file PlotStack.cc.

References PlotBase::ConvertToArray(), PlotHists::fEventsPer, MakeCanvas(), and PlotHists::SetEventsPer().

§ MakeCanvas() [3/4]

void PlotStack::MakeCanvas	(	TString	FileBase,
		TString	XLabel,
		TString	YLabel = `""`,
		Bool_t	logY = `false`
	)

Make plots with the PlotPreparer.

Definition at line 129 of file PlotStack.cc.

References Debug::eDebug, Debug::eError, FileConfigReader::fSignalFileInfo, PlotPreparer::GetHistList(), FileConfigReader::kBackground, FileConfigReader::kData, FileConfigReader::kSignal, MakeCanvas(), Debug::Message(), and PlotBase::SetIncludeErrorBars().

§ MakeCanvas() [4/4]

void PlotStack::MakeCanvas	(	TString	FileBase,
		std::vector< TH1D *>	DataHists,
		std::vector< TH1D *>	MCHists,
		std::vector< TH1D *>	SignalHists,
		TString	XLabel,
		TString	YLabel,
		Bool_t	logY
	)

private

Makes the canvas from histogram vectors. All other MakeCanvas pass through here.

Definition at line 151 of file PlotStack.cc.

References PlotBase::AddLegendEntry(), InOutDirectoryHolder::AddOutDir(), PlotBase::AddRatioLine(), PlotBase::BaseCanvas(), FileConfigReader::CloseFiles(), Debug::DisplayFunc(), Debug::eDebug, Debug::eError, Debug::eInfo, fAddSignal, PlotBase::fDataIndex, PlotBase::fDefaultCut, PlotBase::fDefaultExpr, fDumpRootName, PlotHists::fEventsPer, fHistSuff, fIgnoreInLinear, FileConfigReader::fLuminosity, PlotBase::fMakeRatio, fMinLegendFrac, fOthersColor, fPostFitFile, PlotPreparer::fPrepared, PlotBase::fRatioLines, fRegion, FileConfigReader::fSignalFileInfo, fSortBackground, fSortSignal, fStackLineWidth, fTemplateEntries, fTemplateFiles, fTemplateHists, FileConfigReader::kBackground, FileConfigReader::kSignal, MergeHistograms(), Debug::Message(), PlotBase::ResetLegend(), PlotBase::SetDataIndex(), PlotBase::SetLegendFill(), PlotBase::SetLumiLabel(), PlotBase::SetRatioIndex(), CrombieTools.PlotTools.PlotUtils::SetZeroError, SortHistHolders(), and PlotBase::TempHistName().

§ MergeHistograms()

std::vector< HistHolder * > PlotStack::MergeHistograms	(	FileType	type,
		std::vector< TH1D *>	hists
	)

Merge a vector of histograms into a vector of HistHolders.

Definition at line 41 of file PlotStack.cc.

References Debug::DisplayFunc(), Debug::eDebug, Debug::eError, fForceTop, FileConfigReader::fTreeName, FileConfigReader::GetFileInfo(), FileConfigReader::kSignal, and Debug::Message().

Referenced by MakeCanvas().

§ SetAddSignal()

void PlotStack::SetAddSignal ( Bool_t add )

inline

Use this to set whether the signal sits on top or not.

Definition at line 91 of file PlotStack.h.

References fAddSignal.

§ SetDebug()

void PlotStack::SetDebug ( Bool_t debug )

inline

This dumps out some raw values for you to check yields.

Definition at line 63 of file PlotStack.h.

References crombie::Debug::debug, and fDebug.

§ SetDumpFileName()

void PlotStack::SetDumpFileName ( TString dumpName )

inline

Set the name of a .root file to dump the separate histograms used in the plots.

Definition at line 65 of file PlotStack.h.

References fDumpRootName.

§ SetForceTop()

void PlotStack::SetForceTop ( TString force )

inline

Sets the legend entry that will be on the top of the stack.

Parameters

force should match a legend entry. It should have spaces instead of underscores if matching an entry in an [MC Configuration](formatmc).

Definition at line 52 of file PlotStack.h.

References fForceTop.

§ SetHistSuff()

void PlotStack::SetHistSuff ( TString suff )

inline

Set the suffix of dumped histograms.

Definition at line 68 of file PlotStack.h.

References fHistSuff.

§ SetIgnoreInLinear()

void PlotStack::SetIgnoreInLinear ( Double_t ignore )

inline

Set the minimum fraction of backgrounds that are not plotted or mentioned in linear scale.

Definition at line 56 of file PlotStack.h.

References fIgnoreInLinear.

§ SetMinLegendFrac()

void PlotStack::SetMinLegendFrac ( Double_t frac )

inline

Set the minimum fraction of background that shows up on the plot's legend separately.

Definition at line 54 of file PlotStack.h.

References fMinLegendFrac.

§ SetOthersColor()

void PlotStack::SetOthersColor ( Color_t color )

inline

Set the color of the "Others" legend entry.

Definition at line 58 of file PlotStack.h.

References fOthersColor.

§ SetPostFitFile()

void PlotStack::SetPostFitFile	(	TString	file_name,
		TString	region
	)

inline

Use this to get a post-fit line.

Definition at line 94 of file PlotStack.h.

References fPostFitFile, and fRegion.

§ SetSortBackground()

void PlotStack::SetSortBackground ( Bool_t doSort )

inline

Use this to change the automatic sorting of backgrounds based on yields.

Definition at line 85 of file PlotStack.h.

References fSortBackground.

§ SetSortSignal()

void PlotStack::SetSortSignal ( Bool_t doSort )

inline

Use this to change the automatic sorting of signals based on yields.

Definition at line 88 of file PlotStack.h.

References fSortSignal.

§ SetStackLineWidth()

void PlotStack::SetStackLineWidth ( Int_t width )

inline

Set the line width of the stack plots.

Definition at line 60 of file PlotStack.h.

References fStackLineWidth.

Member Data Documentation

§ fAddSignal

Bool_t PlotStack::fAddSignal = true

private

Bool to determine where the signal sits.

Definition at line 113 of file PlotStack.h.

Referenced by MakeCanvas(), and SetAddSignal().

§ fDebug

Bool_t PlotStack::fDebug = false

private

Dumps yield tests.

Definition at line 108 of file PlotStack.h.

Referenced by SetDebug().

§ fDumpRootName

TString PlotStack::fDumpRootName = ""

private

File where each histogram in stack is dumped.

Definition at line 109 of file PlotStack.h.

Referenced by MakeCanvas(), and SetDumpFileName().

§ fForceTop

TString PlotStack::fForceTop = ""

private

A legend entry that is on the top of backgrounds.

Definition at line 98 of file PlotStack.h.

Referenced by MergeHistograms(), and SetForceTop().

§ fHistSuff

TString PlotStack::fHistSuff = ""

private

Definition at line 110 of file PlotStack.h.

Referenced by MakeCanvas(), and SetHistSuff().

§ fIgnoreInLinear

Double_t PlotStack::fIgnoreInLinear = 0.0

private

If background less than this, do not draw in linear-scale plot.

Definition at line 100 of file PlotStack.h.

Referenced by MakeCanvas(), and SetIgnoreInLinear().

§ fMinLegendFrac

Double_t PlotStack::fMinLegendFrac = 0.0

private

If a background contributes less than this, it's grouped in others.

Definition at line 99 of file PlotStack.h.

Referenced by MakeCanvas(), and SetMinLegendFrac().

§ fOthersColor

Color_t PlotStack::fOthersColor = 0

private

Color of the "Others" legend entry.

Definition at line 102 of file PlotStack.h.

Referenced by MakeCanvas(), and SetOthersColor().

§ fPostFitFile

TString PlotStack::fPostFitFile = ""

private

Holds the location of post-fit plots.

Definition at line 114 of file PlotStack.h.

Referenced by MakeCanvas(), and SetPostFitFile().

§ fRegion

TString PlotStack::fRegion = ""

private

Holds the region for post-fit plots.

Definition at line 115 of file PlotStack.h.

Referenced by MakeCanvas(), and SetPostFitFile().

§ fSortBackground

Bool_t PlotStack::fSortBackground = true

private

Bool to sort the backgrounds.

Definition at line 111 of file PlotStack.h.

Referenced by MakeCanvas(), and SetSortBackground().

§ fSortSignal

Bool_t PlotStack::fSortSignal = true

private

Bool to sort the signals.

Definition at line 112 of file PlotStack.h.

Referenced by MakeCanvas(), and SetSortSignal().

§ fStackLineWidth

Int_t PlotStack::fStackLineWidth = 1

private

Line width of the histograms.

Definition at line 101 of file PlotStack.h.

Referenced by MakeCanvas(), and SetStackLineWidth().

§ fTemplateEntries

std::vector<TString> PlotStack::fTemplateEntries

private

Holds legend entries of the templates.

Definition at line 106 of file PlotStack.h.

Referenced by InsertTemplate(), and MakeCanvas().

§ fTemplateFiles

std::vector<TString> PlotStack::fTemplateFiles

private

Holds file name of the templates.

Definition at line 104 of file PlotStack.h.

Referenced by InsertTemplate(), and MakeCanvas().

§ fTemplateHists

std::vector<TString> PlotStack::fTemplateHists

private

Holds histogram name of the templates.

Definition at line 105 of file PlotStack.h.

Referenced by InsertTemplate(), and MakeCanvas().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ PlotStack()

§ ~PlotStack()

Member Function Documentation

§ Copy()

§ InsertTemplate()

§ MakeCanvas() [1/4]

§ MakeCanvas() [2/4]

§ MakeCanvas() [3/4]

§ MakeCanvas() [4/4]

§ MergeHistograms()

§ SetAddSignal()

§ SetDebug()

§ SetDumpFileName()

§ SetForceTop()

§ SetHistSuff()

§ SetIgnoreInLinear()

§ SetMinLegendFrac()

§ SetOthersColor()

§ SetPostFitFile()

§ SetSortBackground()

§ SetSortSignal()

§ SetStackLineWidth()

Member Data Documentation

§ fAddSignal

§ fDebug

§ fDumpRootName

§ fForceTop

§ fHistSuff

§ fIgnoreInLinear

§ fMinLegendFrac

§ fOthersColor

§ fPostFitFile

§ fRegion

§ fSortBackground

§ fSortSignal

§ fStackLineWidth

§ fTemplateEntries

§ fTemplateFiles

§ fTemplateHists
