xtd::forms::about_dialog Class Referencefinal

#include <about_dialog.h>

Definition

Represents a dialog box that displays about dialog.

Namespace
xtd::forms
Library
xtd.forms

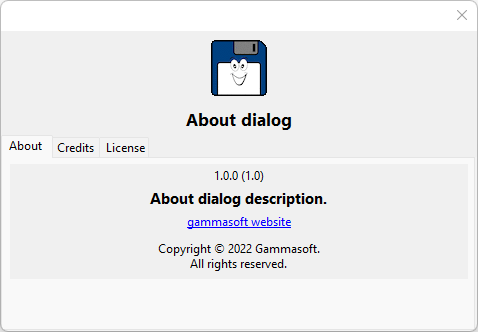

Appearance
Windows macOS Gnome
Light
Dark
Examples
The following code example demonstrate the use of about_dialog dialog.
#include <xtd/xtd>
#include "../resources/gammasoft_64x64.xpm"
using namespace xtd;
using namespace xtd::forms;
class form1 : public form {
public:
form1() {
text("About dialog example");
controls().push_back(button1);
button1.location({10, 10});
button1.text("About...");
button1.click += [&] {
about_dialog.icon(xtd::drawing::bitmap(gammasoft_64x64_xpm));
about_dialog.name("About dialog");
about_dialog.version("1.0");
about_dialog.long_version("1.0.0");
about_dialog.description("About dialog description.");
about_dialog.copyright("Copyright (c) 2021 Gammasoft.\nAll rights reserved.");
about_dialog.website("https://gammasoft71.wixsite.com/gammasoft");
about_dialog.website_label("gammasoft website");
about_dialog.authors({"Gammasoft", "Contributors"});
about_dialog.documenters({"Gammasoft"});
about_dialog.translators({"Gammasoft", "Contributors"});
about_dialog.artists({"Gammasoft"});
about_dialog.license("MIT License\n"
"\n"
"Copyright (c) 2021 Gammasoft.\n"
"\n"
"Permission is hereby granted, free of charge, to any person obtaining\n"
"a copy of this software and associated documentation files (the\n"
"\"Software\"), to deal in the Software without restriction, including\n"
"without limitation the rights to use, copy, modify, merge, publish,\n"
"distribute, sublicense, and/or sell copies of the Software, and to\n"
"permit persons to whom the Software is furnished to do so, subject\n"
"to the following conditions:\n"
"\n"
"The above copyright notice and this permission notice shall be\n"
"included in all copies or substantial portions of the Software.\n"
"\n"
"THE SOFTWARE IS PROVIDED \"AS IS\", WITHOUT WARRANTY OF\n"
"ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO\n"
"THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A\n"
"PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT\n"
"SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR\n"
"ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN\n"
"ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,\n"
"OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE\n"
"OR OTHER DEALINGS IN THE SOFTWARE.\n");
about_dialog.show();
};
}
private:
};
int main() {
application::run(form1());
}
Examples
The following code example demonstrates the use of about_dialog dialog with dialog_styledialog_style to system.
#include <xtd/xtd>
#include "../resources/gammasoft_64x64.xpm"
using namespace xtd;
using namespace xtd::forms;
class form1 : public form {
public:
form1() {
text("About dialog system example");
controls().push_back(button1);
button1.location({10, 10});
button1.text("About...");
button1.click += [&] {
about_dialog about_dialog;
about_dialog.icon(xtd::drawing::bitmap(gammasoft_64x64_xpm));
about_dialog.name("About dialog system");
about_dialog.version("1.0");
about_dialog.long_version("1.0.0");
about_dialog.description("About dialog description.");
about_dialog.copyright("Copyright (c) 2021 Gammasoft.\nAll rights reserved.");
about_dialog.website("https://gammasoft71.wixsite.com/gammasoft");
about_dialog.website_label("gammasoft website");
about_dialog.authors({"Gammasoft", "Contributors"});
about_dialog.documenters({"Gammasoft"});
about_dialog.translators({"Gammasoft", "Contributors"});
about_dialog.artists({"Gammasoft"});
about_dialog.license("MIT License\n"
"\n"
"Copyright (c) 2021 Gammasoft.\n"
"\n"
"Permission is hereby granted, free of charge, to any person obtaining\n"
"a copy of this software and associated documentation files (the\n"
"\"Software\"), to deal in the Software without restriction, including\n"
"without limitation the rights to use, copy, modify, merge, publish,\n"
"distribute, sublicense, and/or sell copies of the Software, and to\n"
"permit persons to whom the Software is furnished to do so, subject\n"
"to the following conditions:\n"
"\n"
"The above copyright notice and this permission notice shall be\n"
"included in all copies or substantial portions of the Software.\n"
"\n"
"THE SOFTWARE IS PROVIDED \"AS IS\", WITHOUT WARRANTY OF\n"
"ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO\n"
"THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A\n"
"PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT\n"
"SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR\n"
"ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN\n"
"ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,\n"
"OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE\n"
"OR OTHER DEALINGS IN THE SOFTWARE.\n");
about_dialog.show(*this);
};
}
private:
};
int main() {
application::run(form1());
}
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

Public Types

using artist_collection = xtd::forms::layout::arranged_element_collection< xtd::ustring >
 Represents a artist collection. More...

using author_collection = xtd::forms::layout::arranged_element_collection< xtd::ustring >
 Represents a author collection. More...

using documenter_collection = xtd::forms::layout::arranged_element_collection< xtd::ustring >
 Represents a documenter collection. More...

using translator_collection = xtd::forms::layout::arranged_element_collection< xtd::ustring >
 Represents a translator collection. More...


Public Member Functions

 about_dialog ()=default
 Initializes a new instance of the about_dialog class. More...

const artist_collectionartists () const
 Gets the artists array. More...

artist_collectionartists ()
 Gets the artists array. More...

about_dialogartists (const artist_collection &artists)
 Sets the artists array. More...

const author_collectionauthors () const
 Gets the authors array. More...

author_collectionauthors ()
 Gets the authors array. More...

about_dialogauthors (const author_collection &authors)
 Sets the authors array. More...

xtd::ustring copyright () const
 Gets the product copyright. More...

about_dialogcopyright (const xtd::ustring &copyright)
 Sets the product description. More...

xtd::ustring description () const
 Gets the product description. More...

about_dialogdescription (const xtd::ustring &description)
 Sets the product description. More...

xtd::forms::dialog_style dialog_style () const
 Gets the dialog style. More...

about_dialogdialog_style (xtd::forms::dialog_style dialog_style)
 Sets the dialog style. More...

const documenter_collectiondocumenters () const
 Gets the documentation writers array. More...

documenter_collectiondocumenters ()
 Gets the artists array. More...

about_dialogdocumenters (const documenter_collection &documenters)
 Sets the documenters array. More...

xtd::drawing::icon icon () const
 Gets the product icon. More...

about_dialogicon (const xtd::drawing::icon &icon)
 Sets the product icon. More...

about_dialogicon (const xtd::drawing::image &image)
 Sets the product icon. More...

about_dialogicon (const xtd::drawing::bitmap &bitmap)
 Sets the product icon. More...

xtd::ustring license () const
 Gets the product license. More...

about_dialoglicense (const xtd::ustring &license)
 Sets the product license. More...

xtd::ustring long_version () const
 Gets the product long version. More...

about_dialoglong_version (const xtd::ustring &long_version)
 Sets the product long version. More...

xtd::ustring name () const
 Gets the product name. More...

about_dialogname (const xtd::ustring &name)
 Sets the product name. More...

void reset ()
 Resets all properties to empty string. More...

void show ()
 Runs about dialog box. More...

void show (const iwin32_window &owner)
 Runs about dialog box. More...

const translator_collectiontranslators () const
 Gets the translators array. More...

translator_collectiontranslators ()
 Gets the translators array. More...

about_dialogtranslators (const translator_collection &translators)
 Sets the translators array. More...

xtd::ustring version () const
 Gets the product version. More...

about_dialogversion (const xtd::ustring &version)
 Sets the product version. More...

xtd::ustring website () const
 Gets the product website. More...

about_dialogwebsite (const xtd::ustring &website)
 Sets the product website. More...

xtd::ustring website_label () const
 Gets the product website label. More...

about_dialogwebsite_label (const xtd::ustring &website_label)
 Sets the product website label. More...

- Public Member Functions inherited from xtd::object
 object ()=default
 Create a new instance of the ultimate base class object. More...

virtual bool equals (const object &obj) const noexcept
 Determines whether the specified object is equal to the current object. More...

virtual size_t get_hash_code () const noexcept
 Serves as a hash function for a particular type. More...

template<typename object_t >
std::unique_ptr< object_t > memberwise_clone () const
 Gets the type of the current instance. More...

virtual xtd::ustring to_string () const noexcept
 Returns a std::string that represents the current object. More...


Additional Inherited Members

- Static Public Member Functions inherited from xtd::object
static bool equals (const object &object_a, const object &object_b) noexcept
 Determines whether the specified object instances are considered equal. More...

static bool reference_equals (const object &object_a, const object &object_b) noexcept
 Determines whether the specified object instances are the same instance. More...

- Protected Member Functions inherited from xtd::forms::component
 component ()=default
 Initialises a new instance of the component class. More...

virtual bool can_raise_events () const
 Gets a value indicating whether the component can raise an event. More...

bool design_mode () const
 Gets a value that indicates whether the component is currently in design mode. More...


Member Typedef Documentation

◆ artist_collection

Represents a artist collection.

◆ author_collection

Represents a author collection.

◆ documenter_collection

Represents a documenter collection.

◆ translator_collection

Represents a translator collection.

Constructor & Destructor Documentation

◆ about_dialog()

xtd::forms::about_dialog::about_dialog ( )
default

Initializes a new instance of the about_dialog class.

Member Function Documentation

◆ artists() [1/3]

const artist_collection& xtd::forms::about_dialog::artists ( ) const
inline

Gets the artists array.

Returns
The artists array.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ artists() [2/3]

artist_collection& xtd::forms::about_dialog::artists ( )
inline

Gets the artists array.

Returns
The artists array.

◆ artists() [3/3]

about_dialog& xtd::forms::about_dialog::artists ( const artist_collection artists)
inline

Sets the artists array.

Parameters
artistsThe artists array.
Returns
Current about_dialog instance.

◆ authors() [1/3]

const author_collection& xtd::forms::about_dialog::authors ( ) const
inline

Gets the authors array.

Returns
The author array.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ authors() [2/3]

author_collection& xtd::forms::about_dialog::authors ( )
inline

Gets the authors array.

Returns
The authors array.

◆ authors() [3/3]

about_dialog& xtd::forms::about_dialog::authors ( const author_collection authors)
inline

Sets the authors array.

Parameters
authorsThe authors array.
Returns
Current about_dialog instance.

◆ copyright() [1/2]

xtd::ustring xtd::forms::about_dialog::copyright ( ) const
inline

Gets the product copyright.

Returns
The product copyright.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ copyright() [2/2]

about_dialog& xtd::forms::about_dialog::copyright ( const xtd::ustring copyright)
inline

Sets the product description.

Parameters
copyrightThe description copyright.
Returns
Current about_dialog instance.

◆ description() [1/2]

xtd::ustring xtd::forms::about_dialog::description ( ) const
inline

Gets the product description.

Returns
The product description.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ description() [2/2]

about_dialog& xtd::forms::about_dialog::description ( const xtd::ustring description)
inline

Sets the product description.

Parameters
descriptionThe product description.
Returns
Current about_dialog instance.

◆ dialog_style() [1/2]

xtd::forms::dialog_style xtd::forms::about_dialog::dialog_style ( ) const
inline

Gets the dialog style.

Returns
One of the xtd::forms::dialog_style values. The default value is xtd::forms::dialog_style::standard.
Examples:
about_dialog_system.cpp.

◆ dialog_style() [2/2]

about_dialog& xtd::forms::about_dialog::dialog_style ( xtd::forms::dialog_style  dialog_style)
inline

Sets the dialog style.

Parameters
dialog_styleOne of the xtd::forms::dialog_style values. The default value is xtd::forms::dialog_style::standard.
Returns
Current about_dialog instance.

◆ documenters() [1/3]

const documenter_collection& xtd::forms::about_dialog::documenters ( ) const
inline

Gets the documentation writers array.

Returns
The documentation writers array.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ documenters() [2/3]

documenter_collection& xtd::forms::about_dialog::documenters ( )
inline

Gets the artists array.

Returns
The artists array.

◆ documenters() [3/3]

about_dialog& xtd::forms::about_dialog::documenters ( const documenter_collection documenters)
inline

Sets the documenters array.

Parameters
documentersThe documenters array.
Returns
Current about_dialog instance.

◆ icon() [1/4]

xtd::drawing::icon xtd::forms::about_dialog::icon ( ) const
inline

Gets the product icon.

Returns
The product icon.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ icon() [2/4]

about_dialog& xtd::forms::about_dialog::icon ( const xtd::drawing::icon icon)
inline

Sets the product icon.

Parameters
iconThe product icon.
Returns
Current about_dialog instance.

◆ icon() [3/4]

about_dialog& xtd::forms::about_dialog::icon ( const xtd::drawing::image image)
inline

Sets the product icon.

Parameters
imageThe product icon.
Returns
Current about_dialog instance.

◆ icon() [4/4]

about_dialog& xtd::forms::about_dialog::icon ( const xtd::drawing::bitmap bitmap)
inline

Sets the product icon.

Parameters
bitmapThe product icon.
Returns
Current about_dialog instance.

◆ license() [1/2]

xtd::ustring xtd::forms::about_dialog::license ( ) const
inline

Gets the product license.

Returns
The product license.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ license() [2/2]

about_dialog& xtd::forms::about_dialog::license ( const xtd::ustring license)
inline

Sets the product license.

Parameters
nameThe product license.
Returns
Current about_dialog instance.

◆ long_version() [1/2]

xtd::ustring xtd::forms::about_dialog::long_version ( ) const
inline

Gets the product long version.

Returns
The product long version.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ long_version() [2/2]

about_dialog& xtd::forms::about_dialog::long_version ( const xtd::ustring long_version)
inline

Sets the product long version.

Parameters
versionThe version version.
Returns
Current about_dialog instance.

◆ name() [1/2]

xtd::ustring xtd::forms::about_dialog::name ( ) const
inline

Gets the product name.

Returns
The product name.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ name() [2/2]

about_dialog& xtd::forms::about_dialog::name ( const xtd::ustring name)
inline

Sets the product name.

Parameters
nameThe product name.
Returns
Current about_dialog instance.

◆ reset()

void xtd::forms::about_dialog::reset ( )

Resets all properties to empty string.

◆ show() [1/2]

void xtd::forms::about_dialog::show ( )

Runs about dialog box.

Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ show() [2/2]

void xtd::forms::about_dialog::show ( const iwin32_window owner)

Runs about dialog box.

◆ translators() [1/3]

const translator_collection& xtd::forms::about_dialog::translators ( ) const
inline

Gets the translators array.

Returns
The translators array.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ translators() [2/3]

translator_collection& xtd::forms::about_dialog::translators ( )
inline

Gets the translators array.

Returns
The translators array.

◆ translators() [3/3]

about_dialog& xtd::forms::about_dialog::translators ( const translator_collection translators)
inline

Sets the translators array.

Parameters
translatorsThe translators array.
Returns
Current about_dialog instance.

◆ version() [1/2]

xtd::ustring xtd::forms::about_dialog::version ( ) const
inline

Gets the product version.

Returns
The product version.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ version() [2/2]

about_dialog& xtd::forms::about_dialog::version ( const xtd::ustring version)
inline

Sets the product version.

Parameters
versionThe version version.
Returns
Current about_dialog instance.

◆ website() [1/2]

xtd::ustring xtd::forms::about_dialog::website ( ) const
inline

Gets the product website.

Returns
The website.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ website() [2/2]

about_dialog& xtd::forms::about_dialog::website ( const xtd::ustring website)
inline

Sets the product website.

Parameters
websiteThe product website.
Returns
Current about_dialog instance.

◆ website_label() [1/2]

xtd::ustring xtd::forms::about_dialog::website_label ( ) const
inline

Gets the product website label.

Returns
The product website label.
Examples:
about_dialog.cpp, and about_dialog_system.cpp.

◆ website_label() [2/2]

about_dialog& xtd::forms::about_dialog::website_label ( const xtd::ustring website_label)
inline

Sets the product website label.

Parameters
website_labelThe product website label.
Returns
Current about_dialog instance.

The documentation for this class was generated from the following file:
