Uniform load over 2D beam elements. More...

#include <Beam2dUniformLoad.h>

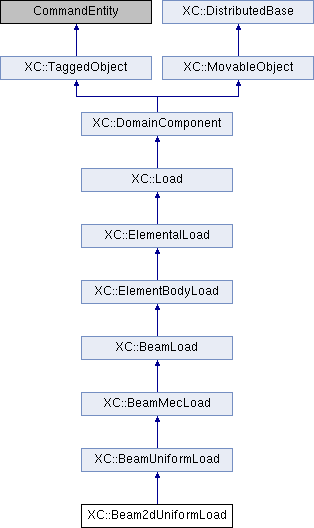

Inheritance diagram for XC::Beam2dUniformLoad:

Public Member Functions
	Beam2dUniformLoad (int tag, double wTrans, double wAxial, const ID &theElementTags)

	Beam2dUniformLoad (int tag)

const double &	WTrans (void) const

const double &	WAxial (void) const

const Vector &	getData (int &type, const double &loadFactor) const

size_t	getForceVectorDimension (void) const
	Return the dimension of the force vector.

size_t	getMomentVectorDimension (void) const
	Return the dimension of the vector moment.

virtual Vector	getLocalForce (void) const
	Returns force expressed in local coordinates.

virtual Vector	getLocalMoment (void) const
	Returns moment expressed in local coordinates.

const Matrix &	getLocalForces (void) const
	Returns distributed force vectors (one for each element) expressed in local coordinates.

const Matrix &	getLocalMoments (void) const
	Returns distributed force moments (one for each element) expressed in local coordinates.

const Matrix &	getAppliedSectionForces (const double &L, const XC::Matrix &xi, const double &loadFactor) const
	Applied section forces due to element uniform load.

void	addReactionsInBasicSystem (const double &, const double &, FVector &) const
	Returns the consistent load vector (see page 108 libro Eugenio Oñate). More...

void	addFixedEndForcesInBasicSystem (const double &, const double &, FVector &) const
	Returns the consistent load vector (see page 108 libro Eugenio Oñate). More...

void	addElasticDeformations (const double &L, const CrossSectionProperties2d &ctes_scc, const double &lpI, const double &lpJ, const double &loadFactor, FVector &v0)

int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::BeamUniformLoad
	BeamUniformLoad (int tag, int classTag, double wTrans, double wAxial, const ID &theElementTags)
	Constructor.

	BeamUniformLoad (int tag, int classTag)
	Constructor.

	BeamUniformLoad (int classTag)
	Constructor.

std::string	Categoria (void) const

const Matrix &	getDistributedLocalForces (void) const
	Returns distributed force vectors (one for each element) expressed in element local coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getDistributedLocalMoments (void) const
	Returns distributed moments (one for each element) expressed in element local coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getDistributedGlobalForces (void) const
	Returns distributed force vectors (one for each element) expressed in global coordinates. Is simply a convenience function that makes the distributedness more explicit.

const Matrix &	getDistributedGlobalMoments (void) const
	Returns distributed moments (one for each element) expressed in global coordinates. Is simply a convenience function that makes the distributedness more explicit.

virtual SlidingVectorsSystem3d	getResultant (const Pos3d &p=Pos3d(), bool initialGeometry=true) const
	brief Returns load resultant (force and moment integration over the elements).

Public Member Functions inherited from XC::BeamMecLoad
	BeamMecLoad (int tag, int classTag, const double &Trans, const double &Axial, const ID &theElementTags)

	BeamMecLoad (int tag, int classTag)

double	getTransComponent (void) const

double	getAxialComponent (void) const

void	setTransComponent (const double &t)

void	setAxialComponent (const double &a)

void	addElasticDeformations (const double &L, const CrossSectionProperties3d &ctes_scc, const double &lpI, const double &lpJ, const double &loadFactor, FVector &v0)

void	addElasticDeformations (const double &L, const CrossSectionProperties2d &ctes_scc, const double &lpI, const double &lpJ, const double &loadFactor, FVector &v0)

virtual const Matrix &	getGlobalVectors (const Matrix &) const

virtual const Matrix &	getGlobalForces (void) const
	Returns punctual/distributed force vectors (one for each element) expressed in global coordinates.

virtual const Matrix &	getGlobalMoments (void) const
	Returns punctual/distributed moment vectors (one for each element) expressed in global coordinates.

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::BeamLoad
	BeamLoad (int tag, int classTag, const ID &theElementTags)

	BeamLoad (int tag, int classTag)

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::ElementBodyLoad
	ElementBodyLoad (int tag, int classTag, const ID &theElementTags)

	ElementBodyLoad (int tag, int classTag)

	ElementBodyLoad (int classTag)

virtual void	setDomain (Domain *theDomain)
	Sets the pointer to the domain. More...

virtual void	applyLoad (double loadfactor)
	The load object is to add `loadFactor` times the load to the corresponding residual value at its associated element(s) or node(s). More...

virtual int	removeElement (int tag)
	Removes the element from those affected by the load. More...

void	Print (std::ostream &s, int flag=0) const
	Print stuff.

Public Member Functions inherited from XC::ElementalLoad
	ElementalLoad (int tag=0, int classTag=0)
	Constructor. More...

	ElementalLoad (int tag, int classTag, const ID &)
	Constructor. More...

int	numElements (void) const
	Return the number of loaded elements.

int	setElementTags (const ID &theEleTags)
	Sets the identifiers of the loaded elements.

virtual const ID &	getElementTags (void) const
	Return the identifiers of the loaded elements.

virtual const Vector &	getSensitivityData (const int &gradIndex) const

Public Member Functions inherited from XC::Load
	Load (int tag, int classTag)
	Constructor. More...

virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the identifier of the pattern to which the load belongs.

virtual int	getLoadPatternTag (void) const
	Return the identifier of the pattern to which the load belongs. More...

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.

void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

virtual void	Print (std::ostream &, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Additional Inherited Members
Protected Member Functions inherited from XC::BeamMecLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementBodyLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementalLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Load
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes inherited from XC::BeamMecLoad
double	Trans
	Transverse load.

double	Axial
	Axial load.

Protected Attributes inherited from XC::ElementalLoad
ID	elemTags
	Tags of loaded elements.

Detailed Description

Uniform load over 2D beam elements.

Member Function Documentation

§ addFixedEndForcesInBasicSystem()

void XC::Beam2dUniformLoad::addFixedEndForcesInBasicSystem	(	const double &	L,
		const double &	loadFactor,
		FVector &	q0
	)		const

virtual

Returns the consistent load vector (see page 108 libro Eugenio Oñate).

Parameters

L	Length of the element edge.
loadFactor	Load factor.
q0	??.

Reimplemented from XC::BeamMecLoad.

§ addReactionsInBasicSystem()

void XC::Beam2dUniformLoad::addReactionsInBasicSystem	(	const double &	L,
		const double &	loadFactor,
		FVector &	p0
	)		const
