Mechanical loads (forces) over beam elements. More...

#include <BeamMecLoad.h>

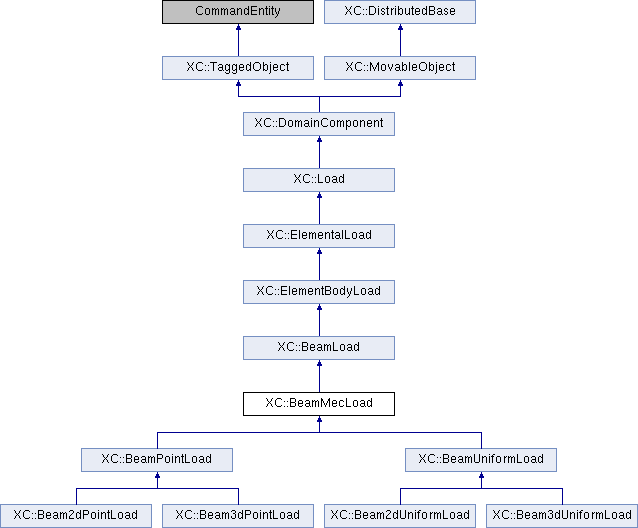

Inheritance diagram for XC::BeamMecLoad:

Public Member Functions
	BeamMecLoad (int tag, int classTag, const double &Trans, const double &Axial, const ID &theElementTags)

	BeamMecLoad (int tag, int classTag)

double	getTransComponent (void) const

double	getAxialComponent (void) const

void	setTransComponent (const double &t)

void	setAxialComponent (const double &a)

virtual const Matrix &	getAppliedSectionForces (const double &L, const Matrix &xi, const double &loadFactor) const
	Returns applied section forces due to this load (called in element's addLoad method).

virtual void	addReactionsInBasicSystem (const double &, const double &, FVector &) const
	Adds the load al consistent load vector (see page 108 libro Eugenio Oñate). More...

virtual void	addFixedEndForcesInBasicSystem (const double &, const double &, FVector &) const
	?? More...

void	addElasticDeformations (const double &L, const CrossSectionProperties3d &ctes_scc, const double &lpI, const double &lpJ, const double &loadFactor, FVector &v0)

void	addElasticDeformations (const double &L, const CrossSectionProperties2d &ctes_scc, const double &lpI, const double &lpJ, const double &loadFactor, FVector &v0)

virtual size_t	getForceVectorDimension (void) const
	Return the dimension of the force vector.

virtual size_t	getMomentVectorDimension (void) const
	Return the dimension of the moment vector.

virtual Vector	getLocalForce (void) const
	Returns force expressed in local coordinates.

virtual Vector	getLocalMoment (void) const
	Returns moment expressed in local coordinates.

virtual const Matrix &	getLocalForces (void) const
	Returns punctual/distributed force vectors (one for each element) expressed in local coordinates.

virtual const Matrix &	getLocalMoments (void) const
	Returns puntual/distributed force moments (one for each element) expressed in local coordinates.

virtual const Matrix &	getGlobalVectors (const Matrix &) const

virtual const Matrix &	getGlobalForces (void) const
	Returns punctual/distributed force vectors (one for each element) expressed in global coordinates.

virtual const Matrix &	getGlobalMoments (void) const
	Returns punctual/distributed moment vectors (one for each element) expressed in global coordinates.

virtual SlidingVectorsSystem3d	getResultant (const Pos3d &p=Pos3d(), bool initialGeometry=true) const
	brief Returns load resultant (force and moment integration over the elements).

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::BeamLoad
	BeamLoad (int tag, int classTag, const ID &theElementTags)

	BeamLoad (int tag, int classTag)

virtual std::string	Categoria (void) const

void	Print (std::ostream &s, int flag=0) const

Public Member Functions inherited from XC::ElementBodyLoad
	ElementBodyLoad (int tag, int classTag, const ID &theElementTags)

	ElementBodyLoad (int tag, int classTag)

	ElementBodyLoad (int classTag)

virtual void	setDomain (Domain *theDomain)
	Sets the pointer to the domain. More...

virtual void	applyLoad (double loadfactor)
	The load object is to add `loadFactor` times the load to the corresponding residual value at its associated element(s) or node(s). More...

virtual int	removeElement (int tag)
	Removes the element from those affected by the load. More...

void	Print (std::ostream &s, int flag=0) const
	Print stuff.

Public Member Functions inherited from XC::ElementalLoad
	ElementalLoad (int tag=0, int classTag=0)
	Constructor. More...

	ElementalLoad (int tag, int classTag, const ID &)
	Constructor. More...

int	numElements (void) const
	Return the number of loaded elements.

int	setElementTags (const ID &theEleTags)
	Sets the identifiers of the loaded elements.

virtual const ID &	getElementTags (void) const
	Return the identifiers of the loaded elements.

virtual const Vector &	getData (int &type, const double &loadFactor) const =0

virtual const Vector &	getSensitivityData (const int &gradIndex) const

Public Member Functions inherited from XC::Load
	Load (int tag, int classTag)
	Constructor. More...

virtual void	setLoadPatternTag (int loadPaternTag)
	Sets the identifier of the pattern to which the load belongs.

virtual int	getLoadPatternTag (void) const
	Return the identifier of the pattern to which the load belongs. More...

Public Member Functions inherited from XC::DomainComponent
	~DomainComponent (void)
	Destructor.

size_t	getIdx (void) const
	Returns the index of the object (to be used in VTK arrays).

virtual Domain *	getDomain (void) const
	Returns a pointer to the enclosing domain. More...

const Preprocessor *	getPreprocessor (void) const
	Returns (if possible) a pointer to the preprocessor.

Preprocessor *	getPreprocessor (void)
	Return (if possible) a pointer to the preprocessor.

void	set_index (const size_t &i)
	Set the index for the object (see numera in Set). More...

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

virtual TaggedObject *	getCopy (void) const
	Virtual constructor.

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

virtual void	Print (std::ostream &, int flag=0)
	Print stuff.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	sendSelf (CommParameters &cp)=0
	Send the object. More...

virtual int	recvSelf (const CommParameters &cp)=0
	Receive the object. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementBodyLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElementalLoad
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::Load
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::DomainComponent
	DomainComponent (int tag, int classTag)
	Constructor. More...

int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel being passed as parameter.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Protected Attributes
double	Trans
	Transverse load.

double	Axial
	Axial load.

Protected Attributes inherited from XC::ElementalLoad
ID	elemTags
	Tags of loaded elements.

Detailed Description

Mechanical loads (forces) over beam elements.

Member Function Documentation

§ addFixedEndForcesInBasicSystem()

void XC::BeamMecLoad::addFixedEndForcesInBasicSystem	(	const double &	L,
		const double &	loadFactor,
		FVector &
	)		const

virtual

??

Parameters

L	Length of the element.
loadFactor	Load factor.
q0	??

Reimplemented in XC::Beam3dUniformLoad, XC::Beam3dPointLoad, XC::Beam2dPointLoad, and XC::Beam2dUniformLoad.

§ addReactionsInBasicSystem()

void XC::BeamMecLoad::addReactionsInBasicSystem	(	const double &	,
		const double &	,
		FVector &
	)		const

virtual

Adds the load al consistent load vector (see page 108 libro Eugenio Oñate).

Parameters

L	Length of the element.
loadFactor	Load factor.
p0	element load vector.

Reimplemented in XC::Beam3dUniformLoad, XC::Beam3dPointLoad, XC::Beam2dPointLoad, and XC::Beam2dUniformLoad.

The documentation for this class was generated from the following files:

src/domain/load/beam_loads/BeamMecLoad.h
src/domain/load/beam_loads/BeamMecLoad.cc
