Solution algorithm for domain decomposition analysis. More...

#include <DomainDecompAlgo.h>

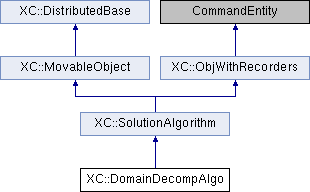

Inheritance diagram for XC::DomainDecompAlgo:

Public Member Functions
int	solveCurrentStep (void)
	Solve current step. More...

int	sendSelf (CommParameters &)
	Send the object. More...

int	recvSelf (const CommParameters &)
	Receive the object. More...

Public Member Functions inherited from XC::SolutionAlgorithm
virtual int	domainChanged (void)
	Perform the appropiate modifications as a result of a change in the domain. More...

virtual AnalysisModel *	getAnalysisModelPtr (void)
	Return a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Return a const pointer to the analysis model.

virtual Integrator *	getIntegratorPtr (void)
	Return a pointer to the integrator.

virtual const Integrator *	getIntegratorPtr (void) const
	Return a const pointer to the integrator.

virtual LinearSOE *	getLinearSOEPtr (void)
	Return a pointer to the linear system of equations.

virtual const LinearSOE *	getLinearSOEPtr (void) const
	Return a const pointer to the linear system of equations.

virtual EigenSOE *	getEigenSOEPtr (void)
	Return a pointer to the eigen system of equations.

virtual const EigenSOE *	getEigenSOEPtr (void) const
	Return a const pointer to the eigen system of equations.

virtual const DomainSolver *	getDomainSolverPtr (void) const
	Return a const pointer to the DomainSolver.

virtual DomainSolver *	getDomainSolverPtr (void)
	Return a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomainPtr (void) const
	Return a const pointer to the subdomain.

virtual Subdomain *	getSubdomainPtr (void)
	Return a pointer to the subdomain.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Public Member Functions inherited from XC::ObjWithRecorders
	ObjWithRecorders (CommandEntity owr, DataOutputHandler::map_output_handlers oh=nullptr)

virtual	~ObjWithRecorders (void)
	Destructor.

Recorder *	newRecorder (const std::string &, DataOutputHandler *oh=nullptr)
	Read a Recorder object from file.

virtual int	addRecorder (Recorder &theRecorder)
	Adds a recorder. More...

recorder_iterator	recorder_begin (void)

const_recorder_iterator	recorder_begin (void) const

recorder_iterator	recorder_end (void)

const_recorder_iterator	recorder_end (void) const

virtual int	record (int track, double timeStamp=0.0)
	To invoke {record(cTag, timeStamp)} on any Recorder objects which have been added. More...

void	restart (void)
	To invoke {restart()} on any Recorder objects which have been added. More...

virtual int	removeRecorders (void)
	Remove the recorders.

void	setLinks (Domain *dom)
	Asigna el domain a los recorders.

void	SetOutputHandlers (DataOutputHandler::map_output_handlers *oh)
	Set the outputhandlers container.

Protected Member Functions
	DomainDecompAlgo (AnalysisAggregation *)
	Constructor. More...

SolutionAlgorithm *	getCopy (void) const

Protected Member Functions inherited from XC::SolutionAlgorithm
AnalysisAggregation *	getAnalysisAggregation (void)
	Return a pointer to the solution method which owns this object.

const AnalysisAggregation *	getAnalysisAggregation (void) const
	Return a pointer to the solution method which owns this object.

virtual Domain *	get_domain_ptr (void)
	Return a pointer to the domain.

int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	SolutionAlgorithm (AnalysisAggregation *, int classTag)
	Constructor.

Protected Member Functions inherited from XC::ObjWithRecorders
int	sendData (CommParameters &cp)

int	recvData (const CommParameters &cp)

size_t	getNumRecorders (void) const
	Returns the number of recorders already defined.

Friends
class	FEM_ObjectBroker

class	AnalysisAggregation

Additional Inherited Members
Public Types inherited from XC::ObjWithRecorders
typedef std::list< Recorder * >	lista_recorders

typedef lista_recorders::iterator	recorder_iterator

typedef lista_recorders::const_iterator	const_recorder_iterator

Detailed Description

Solution algorithm for domain decomposition analysis.

The DomainDecompAlgo class is the SolutionAlgorithm subclass used in a DomainDecompAnalysis. The class is responsible for updating the DOF_Group responses given the current solution to the interface problem.

Constructor & Destructor Documentation

§ DomainDecompAlgo()

XC::DomainDecompAlgo::DomainDecompAlgo ( AnalysisAggregation * owr )

protected

Constructor.

Parameters

owr	object owner.

Member Function Documentation

§ recvSelf()

int XC::DomainDecompAlgo::recvSelf ( const CommParameters & cp )

virtual

Receive the object.

Each object has to receive the data needed to be able to recreate itself in the new process after it has been sent through cp. If the object is an aggregation containing other objects, new objects of the correct type can be constructed using #theBroker. To return 0 if successful or a -1 if not.

Implements XC::MovableObject.

§ sendSelf()

int XC::DomainDecompAlgo::sendSelf ( CommParameters & cp )

virtual

Send the object.

Each object has to send the data needed to be able to reproduce that object in a remote process. The object uses the methods provided by cp object to send the data to another channel at the remote actor, the address of the channel is set before this method is called. An object of similar type at the remote actor is invoked with a receiveSelf() to receive the data. Returns 0 if successful (successful in that the data got to the channel), or a - if no data was sent.

Implements XC::MovableObject.

§ solveCurrentStep()

int XC::DomainDecompAlgo::solveCurrentStep ( void )

Solve current step.

This is a method which will set the external dof response in X of the system of equation. The responses set will be those X in the higher level SOE object corresponding to the subdomain. It performs the following: {tabbing} while \= while \= + theSubdomain- \(>\)getLastExternalSysResponse(); theSolver- \(>\)setComputedXext(extResponse); theSolver- \(>\)solveXint(); theIntegrator- \(>\)update(theSOE- \(>\)getX()); {tabbing} Returns \(0\). WILL CHANGE TO CHECK THAT THOSE METHODS INVOKED ALL RETURN \(0\) OTHERWISE PRINT WARNING AND RETURN NEGATIVE.

The documentation for this class was generated from the following files:

src/solution/analysis/algorithm/domainDecompAlgo/DomainDecompAlgo.h
src/solution/analysis/algorithm/domainDecompAlgo/DomainDecompAlgo.cpp
