Elastic section for membrane/plate materials. More...

#include <ElasticMembranePlateSection.h>

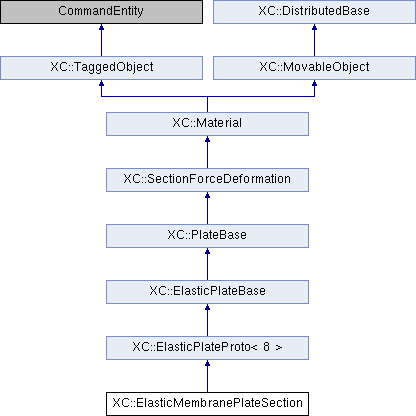

Inheritance diagram for XC::ElasticMembranePlateSection:

Public Member Functions
	ElasticMembranePlateSection (void)
	Constructor.

	ElasticMembranePlateSection (int tag)
	Constructor.

	ElasticMembranePlateSection (int tag, double E, double nu, double h=1.0, double rho=0.0)
	Constructor.

SectionForceDeformation *	getCopy (void) const
	Make a clone of this material.

const ResponseId &	getType (void) const
	Returns the abels of the DOFs for which the elements adds stiffness. More...

const Vector &	getStressResultant (void) const
	Return the cross-section stress resultant.

const Matrix &	getSectionTangent (void) const
	Return the tangent stiffness matrix.

const Matrix &	getInitialTangent (void) const
	Return the initial tangent stiffness matrix.

void	Print (std::ostream &s, int flag)
	Print stuff.

double	getRho (void) const
	Density per unit area.

void	setRho (const double &)
	Asigns density per unit area.

int	sendSelf (CommParameters &)
	Send the object itself through the communicator argument.

int	recvSelf (const CommParameters &)
	Receive the object itself through the communicator argument.

Public Member Functions inherited from XC::ElasticPlateProto< 8 >
	ElasticPlateProto (int tag, int classTag)

	ElasticPlateProto (int classTag)

	ElasticPlateProto (int tag, int classTag, double E, double nu, double h)

int	getOrder (void) const
	Return the number of response quantities provided by the section.

int	setInitialSectionDeformation (const Vector &strain)

int	setTrialSectionDeformation (const Vector &strain_from_element)
	Set the value of the trial section deformation vector, \(esec\) to be {def}. More...

void	zeroInitialSectionDeformation (void)

const Vector &	getInitialSectionDeformation (void) const

const Vector &	getSectionDeformation (void) const
	Return the trial section deformation vector, \(esec\).

int	revertToStart (void)
	revert to start

Public Member Functions inherited from XC::ElasticPlateBase
	ElasticPlateBase (int tag, int classTag)
	Constructor.

	ElasticPlateBase (int classTag)
	Null constructor.

	ElasticPlateBase (int tag, int classTag, double E, double nu, double h)
	Constructor.

int	commitState (void)
	swap history variables

int	revertToLastCommit (void)
	revert to last saved state

double	getE (void) const

void	setE (const double &d)

double	getnu (void) const

void	setnu (const double &d)

double	membraneModulus (void) const

double	shearModulus (void) const

double	bendingModulus (void) const

Public Member Functions inherited from XC::PlateBase
	PlateBase (int tag, int classTag)
	Constructor.

	PlateBase (int classTag)
	null constructor

	PlateBase (int tag, int classTag, double h)
	full constructor

double	getStrain (const double &y, const double &z) const
	Returns strain at position being passed as parameter.

double	getH (void) const

void	setH (const double &d)

Public Member Functions inherited from XC::SectionForceDeformation
	SectionForceDeformation (int tag, int classTag, MaterialHandler *mat_ldr=nullptr)
	Constructor. More...

	SectionForceDeformation (const SectionForceDeformation &)
	Copy constructor.

SectionForceDeformation &	operator= (const SectionForceDeformation &)
	Assignment operator.

virtual	~SectionForceDeformation (void)
	Destructor.

MaterialHandler *	getMaterialHandler (void)

virtual int	addInitialSectionDeformation (const Vector &)
	Adds to the generalized strains vector inicial el being passed as parameter. More...

void	setInitialGeneralizedStrain (const Vector &iS)

const Vector &	getInitialGeneralizedStrain (void) const

double	getSectionDeformation (const int &) const
	Returns 'defID' component of the generalized strain vector.

double	getSectionDeformationByName (const std::string &) const
	Returns section's trial deformation component by its name.

double	getStressResultant (const int &) const
	Returns 'defID' component of the generalized stress vector.

double	getStressResultantByName (const std::string &) const
	Returns the esfuerzos de la placa.

virtual const Matrix &	getSectionFlexibility (void) const
	Returns the tangent flexibility matrix of the section. More...

virtual const Matrix &	getInitialFlexibility (void) const
	Returns the initial flexibility matrix of the section.

const Vector &	getGeneralizedStress (void) const

virtual const Vector &	getGeneralizedStrain (void) const

std::string	getTypeString (void) const
	Comma separated internal forces names to with the section contributes with stiffness.

virtual Response *	setResponse (const std::vector< std::string > &argv, Information &info)
	Returns the respuesta of the section.

virtual int	getResponse (int responseID, Information &info)
	Returns section response.

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual const Vector &	getStressResultantSensitivity (int gradNumber, bool conditional)

virtual const Vector &	getSectionDeformationSensitivity (int gradNumber)

virtual const Matrix &	getSectionTangentSensitivity (int gradNumber)

virtual double	getRhoSensitivity (int gradNumber)

virtual int	commitSensitivity (const Vector &sectionDeformationGradient, int gradNumber, int numGrads)

Public Member Functions inherited from XC::Material
	Material (int tag, int classTag)
	Constructor. More...

const MaterialHandler *	getMaterialHandler (void) const
	Returns (if possible) a pointer to the material handler (owner).

MaterialHandler *	getMaterialHandler (void)
	Returs a pointer to the material handler (if possible).

std::string	getName (void) const
	Returns the name of the material.

virtual int	setVariable (const std::string &argv)

virtual int	getVariable (int variableID, double &info)

virtual void	update (void)
	Update state variables for the material according to the new values of the parameters. More...

virtual void	addInitialGeneralizedStrain (const Vector &)
	Increments generalized strain. More...

virtual void	zeroInitialGeneralizedStrain (void)
	zeroes initial generalized strain

Public Member Functions inherited from XC::TaggedObject
	TaggedObject (int tag, CommandEntity *owr=nullptr)
	Constructor. More...

void	assignTag (int newTag)
	Set tag (to be called from Python interface).

int	getTag (void) const
	Returns the tag associated with the object.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags of the class members. More...

int	sendData (CommParameters &)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElasticPlateProto< 8 >
int	sendData (CommParameters &)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::ElasticPlateBase
int	sendData (CommParameters &cp)
	Send data through the channel being passed as parameter.

int	recvData (const CommParameters &cp)
	Receive data through the channel being passed as parameter.

Protected Member Functions inherited from XC::SectionForceDeformation
int	sendData (CommParameters &cp)
	Send object members through the channel defined in cp.

int	recvData (const CommParameters &cp)
	Receives object members through the channel defined in cp.

Protected Member Functions inherited from XC::TaggedObject
void	setTag (int newTag)
	Set tag. More...

Additional Inherited Members
Protected Attributes inherited from XC::ElasticPlateProto< 8 >
Vector	trialStrain

Vector	initialStrain

Protected Attributes inherited from XC::ElasticPlateBase
double	E
	elastic modulus

double	nu
	poisson ratio

Protected Attributes inherited from XC::PlateBase
double	h
	plate thickness

Protected Attributes inherited from XC::SectionForceDeformation
Matrix *	fDefault
	Default flexibility matrix.

MaterialHandler *	material_handler
	Material definition handler (search,...).

Static Protected Attributes inherited from XC::ElasticPlateProto< 8 >
static Vector	stress

static Matrix	tangent

Static Protected Attributes inherited from XC::ElasticPlateBase
static const double	five6 = 5.0/6.0

Detailed Description

Elastic section for membrane/plate materials.

Member Function Documentation

§ getDbTagData()

XC::DbTagData & XC::ElasticMembranePlateSection::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags of the class members.

Reimplemented from XC::DistributedBase.

§ getType()

const XC::ResponseId & XC::ElasticMembranePlateSection::getType ( void ) const

virtual

Returns the abels of the DOFs for which the elements adds stiffness.

Implements XC::SectionForceDeformation.

The documentation for this class was generated from the following files:

src/material/section/plate_section/ElasticMembranePlateSection.h
src/material/section/plate_section/ElasticMembranePlateSection.cpp
