#include <Face.h>

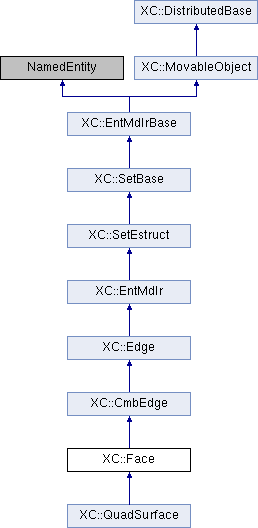

Inheritance diagram for XC::Face:

Public Member Functions
	Face (void)
	Constructor.

	Face (Preprocessor *m, const size_t &ndivI=4, const size_t &ndivJ=4)
	Constructor. More...

	Face (const std::string &nombre, Preprocessor *m, const size_t &ndivI=4, const size_t &ndivJ=4)
	Constructor. More...

virtual unsigned short int	GetDimension (void) const
	Returns the dimension of the object.

void	update_topology (void)
	Updates topology.

size_t	NDivI (void) const

virtual void	SetNDivI (const size_t &ndi)
	Sets the number of divisions for direction I.

size_t	NDivJ (void) const

virtual void	SetNDivJ (const size_t &ndj)
	Sets the number of divisions for direction J.

virtual void	ConciliaNDivIJ (void)=0

size_t	getNumberOfVertices (void) const
	Returns the number of vertices.

virtual const Pnt *	getVertex (const size_t &i) const
	Returns the i-th vertex.

Polyline3d	getContour (void) const
	Returns the contour of the face as a 3D polyline.

const std::set< const Body * > &	getConnectedBodies (void) const
	Return the bodies that touch this surface (neighbors).

size_t	CommonEdge (const Face &otra) const
	Returns the index of the edge in common with the surface being passed as parameter (if it exists). More...

int	SenseOfEdge (const Edge *l, const Face &otra) const
	Returns: More...

bool	isConnectedTo (const Body &b) const
	Returns true if the lines touches the body (neighbor).

virtual bool	checkNDivs (void) const =0

virtual Node *	getNode (const size_t &i1, const size_t &j, const size_t &k)
	Returns a pointer to node which indices are being passed as parameters. More...

virtual const Node *	getNode (const size_t &i, const size_t &j, const size_t &k) const
	Returns a pointer to node which indices are being passed as parameters. More...

virtual Node *	getNode (const size_t &i, const size_t &j)
	Returns a pointer to node which indices are is being passed as parameter.

virtual const Node *	getNode (const size_t &i, const size_t &j) const
	Returns a pointer to node which indices are is being passed as parameter.

std::set< SetBase * >	get_sets (void) const
	Returns the sets that contains this surface.

void	add_to_sets (std::set< SetBase *> &)
	Appends the surface to each of the sets being passed as parameter.

int	getVtkCellType (void) const
	Interfaz con VTK.

Public Member Functions inherited from XC::CmbEdge
	CmbEdge (void)
	Constructor.

	CmbEdge (Preprocessor *m, const size_t &nd=4)
	Constructor.

	CmbEdge (const std::string &nombre, Preprocessor *m, const size_t &nd)
	Constructor. More...

virtual SetEstruct *	getCopy (void) const
	Virtual constructor.

virtual void	insert (Edge *l)
	Inserts the line which pointer is being passed as parameter.

void	insert (const size_t &i)
	Inserts (if found) the line which index is being passed as parameter.

Edge *	newLine (Pnt , Pnt )
	Creates a new line between the points being passed as parameters and inserts it on the edge set set. More...

Edge *	newLine (Pnt , Pnt , Pnt *)
	Creates a new circle arc between the points being passed as parameters and put it in the edge set. More...

void	addPoints (const ID &)
	Creates and inserts the the edges that link the points from the indexes being passed as parameter. More...

void	addLines (const ID &)
	Creates and inserts the edges from the indexes being passed as parameter. More...

size_t	NDiv (void) const
	Return the number of divisions for the whole object.

void	SetNDiv (const size_t &nd)
	Sets the number of divisions for the whole object. More...

size_t	getNumberOfEdges (void) const
	Return the number of edges.

std::deque< Side > &	getSides (void)

void	reverse (void)

bool	In (const GeomObj3d &, const double &tol=0.0) const
	Returns true if this object lies inside the geometric object. More...

bool	Out (const GeomObj3d &, const double &tol=0.0) const
	Returns true if this object lies outside the geometric object. More...

double	getLength (void) const
	Return the length of the line.

Pos3d	getCentroid (void) const
	Return the centroid of the line.

const Pnt *	P1 (void) const
	Returns a constant pointer to start point.

const Pnt *	P2 (void) const
	Returns a constant pointer to end point.

size_t	IndiceEdge (const Edge *l) const
	Searchs the line l from those of this compound line.

const Side *	getSide (const size_t &i) const
	Returns a lado of the line compuesta.

Side *	getSide (const size_t &i)
	Returns a lado of the line compuesta.

const Side *	getSideByPoints (const Pnt , const Pnt ) const
	Return the side which extremes are the points being passed as parameters. More...

Side *	getSideByPoints (const Pnt , const Pnt )
	Return the side which extremes are the points being passed as parameters. More...

const Side *	getSideByPoints (const size_t &, const size_t &) const
	Return the side which extremes are the points being passed as parameters. More...

Side *	getSideByPoints (const size_t &, const size_t &)
	Return the edge that has its vertices at the points being passed as parameters. More...

std::deque< Edge * >	GetEdges (void)
	Return the deque of lines that define the edges.

virtual void	SetVertice (const size_t &, Pnt *)
	Sets the i-th vertex.

virtual ID	getKPoints (void) const
	Returns object k-points.

Polyline3d	getPolyline (void) const
	Returns a polyline representation of the object.

BND3d	Bnd (void) const
	Returns object BND.

void	genMesh (meshing_dir dm)
	Creates the mesh.

Public Member Functions inherited from XC::Edge
	Edge (Preprocessor *m, const size_t &nd=4)
	Constructor. More...

	Edge (const std::string &nombre="", Preprocessor *m=nullptr, const size_t &nd=4)
	Constructor. More...

bool	In (const GeomObj3d &, const double &tol=0.0) const
	Returns true if the line lies inside the geometric object. More...

bool	Out (const GeomObj3d &, const double &tol=0.0) const
	Returns true if the line lies outside the geometric object. More...

bool	ExtremosEn (const Pnt , const Pnt ) const
	Returns true if the points passed as parameters are the ends of the edge. More...

std::vector< int >	getIndicesVertices (void) const
	Return indices of the vertices.

void	SetElemSize (const double &sz)
	Compute the number of divisions necessary to get the element size passed as parameter. More...

std::set< const XC::Edge * >	getHomologousSides (const std::set< const XC::Edge *> &) const
	Return the homologous sides to that passed as a parameter.

const std::set< const Face * > &	getConnectedSurfaces (void) const
	Return the surfaces that touch the line.

const std::string &	getConnectedSurfacesNames (void) const
	Return the surface names that touch the line. More...

bool	isConnectedTo (const Face &s) const
	Return true if the line touches the surface (neighbor).

bool	isConnectedTo (const Body &b) const
	Return true if the line touches the body.

bool	Extremo (const Pnt &) const
	Return true if it is an end point of the line.

virtual void	create_nodes (void)
	Create nodes on objects.

virtual Pos3dArray	get_nodes_pos (void) const
	Return a matrix of positions along the line.

Node *	getNodeForward (const size_t &i)
	Returns the node whose ordinal index is passed as parameter, starting from the beginning. More...

const Node *	getNodeForward (const size_t &i) const
	Return the node whose ordinal index is passed as parameter, starting from the beginning. More...

Node *	getNodeReverse (const size_t &i)
	Return the node whose ordinal index is passed as parameter, starting from the end. More...

const Node *	getNodeReverse (const size_t &i) const
	Return the node whose ordinal index is passed as parameter, starting from the end. More...

Node *	getFirstNode (void)
	Return the first node of the line.

const Node *	getFirstNode (void) const
	Return the first node of the line.

Node *	getLastNode (void)
	Return the last node of the line.

const Node *	getLastNode (void) const
	Return the last node of the line.

std::vector< int >	getTagsNodesForward (void) const
	Return the IDs of the nodes in forward order.

std::vector< int >	getTagsNodesReverse (void) const
	Return the IDs of the nodes in reverse order.

Pos3dArray	getNodePosForward (void) const
	Return the positions of the nodes in forward order.

Pos3dArray	getNodePosReverse (void) const
	Return the positions of the nodes in reverse order.

void	add_to_sets (std::set< SetBase *> &)
	Add the «edge» to the sets passed as parameters.

virtual const Vector &	getTang (const double &) const
	Return a vector tangent to the line in point at parameter s.

void	divide (void)
	Create points along the line.

Public Member Functions inherited from XC::EntMdlr
	EntMdlr (Preprocessor *m, const size_t &i=0)
	Constructor.

	EntMdlr (const std::string &nombre="", const size_t &i=0, Preprocessor *m=nullptr)
	Constructor. More...

	EntMdlr (const EntMdlr &)
	Copy constructor.

EntMdlr &	operator= (const EntMdlr &)
	Assignment operator.

virtual void	set_index (const size_t &i)
	Assigns the objects index for its use in VTK arrays(see numera in Set). More...

size_t	getIdx (void) const
	Returns the index of the object for it use in VTK arrays.

bool	hasNodes (void) const

virtual size_t	getNumNodeLayers (void) const

virtual size_t	getNumNodeRows (void) const

virtual size_t	getNumNodeColumns (void) const

virtual size_t	getNumElementLayers (void) const

virtual size_t	getNumElementRows (void) const

virtual size_t	getNumElementColumns (void) const

Node *	getNearestNode (const Pos3d &p)
	Return the node closest to the point being passed as parameter.

const Node *	getNearestNode (const Pos3d &p) const
	Return the node closest to the point being passed as parameter.

ID	getNodeIndices (const Node *) const
	Return the indexes of the node being passed as parameter.

virtual Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1)
	Returns a pointer to the element which indexes are being passed as paremeters. More...

virtual const Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
	Returns a pointer to the element which indices are being passed as paremeters. More...

Node *	findNode (const int &tag)
	Returns a pointer to the node cuyo identifier is being passed as parameter.

const Node *	findNode (const int &tag) const
	Returns a pointer to the node cuyo identifier is being passed as parameter.

Element *	findElement (const int &)
	Returns a pointer to the element identified by the tag being passed as parameter. More...

const Element *	findElement (const int &) const
	Returns a pointer to the element identified by the tag being passed as parameter. More...

Element *	getNearestElement (const Pos3d &p)
	Return the element closest to the point being passed as parameter.

const Element *	getNearestElement (const Pos3d &p) const
	Return the element closest to the point being passed as parameter.

NodePtrArray3d &	getTtzNodes (void)

const NodePtrArray3d &	getTtzNodes (void) const

ElemPtrArray3d &	getTtzElements (void)

const ElemPtrArray3d &	getTtzElements (void) const

IRowSet	getVarRefIRow (size_t f=1, size_t c=1, const std::string &nmb="tmp")

IRowSet	getVarRefIRow (const RangoIndice &layer_range, size_t f, size_t c, const std::string &nmb="tmp")

IRowSet	getVarRefIRow (const Array3dRange &rango, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (size_t layer=1, size_t c=1, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (size_t layer, const RangoIndice &row_range, size_t c, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (const Array3dRange &rango, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (size_t layer=1, size_t f=1, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (size_t layer, size_t f, const RangoIndice &column_range, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (const Array3dRange &rango, const std::string &nmb="tmp")

void	fix (const SFreedom_Constraint &)
	Fixes the nodes of the set.

void	setGenMesh (bool m)
	Returns true if the points begins or ends in the line.

const bool &	getGenMesh (void) const
	Returns true if the points begins or ends in the line.

virtual double	getSquaredDistanceTo (const Pos3d &pt) const
	Return the squared distance to the position being passed as parameter. More...

virtual double	getDistanceTo (const Pos3d &pt) const
	Return the distance to the position being passed as parameter.

Vector	getSimpsonWeights (const std::string &, const std::string &, const size_t &f=1, const size_t &c=1, const size_t &n=10) const
	Return Simpson's weights.

void	BorraPtrNodElem (void)
	Clears pointer to nodes and elements.

virtual	~EntMdlr (void)
	Destructor.

Public Member Functions inherited from XC::SetEstruct
	SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

	SetEstruct (const SetEstruct &)
	Copy constructor.

SetEstruct &	operator= (const SetEstruct &)
	Assignment operator.

size_t	getNumberOfNodes (void) const

size_t	getNumberOfElements (void) const

bool	In (const Node *) const
	Returns true if the node belongs to the set.

bool	In (const Element *) const
	Returns true if the element belongs to the set.

bool	isIRow (void) const
	Returns true if only the I index varies.

bool	isJRow (void) const
	Returns true if only the J index varies.

bool	isKRow (void) const
	Returns true if only the K index varies.

bool	isIConstantLayer (void) const
	Returns true if only J and K indices varies.

bool	isJConstantLayer (void) const
	Returns true if only J and K indices varies.

bool	isKConstantLayer (void) const
	Returns true if only I and J indices varies.

size_t	Dimension (void) const
	Return the dimension of the range (0,1,2 or 3). More...

std::string	getStrType (void) const
	Returns the set type i_row, j_row, k_row, constantILayer,...

Node *	getNodeI (const size_t &i)

Node *	getNodeIJ (const size_t &i, const size_t &j)

Node *	getNodeIJK (const size_t &i, const size_t &j, const size_t &k)

Element *	getElementI (const size_t &i)

Element *	getElementIJ (const size_t &i, const size_t &j)

Element *	getElementIJK (const size_t &i, const size_t &j, const size_t &k)

std::set< int >	getNodeTags (void) const
	Returns the tags of the nodes.

boost::python::list	getNodes (void)

std::set< int >	getElementTags (void) const
	Returns the tags of the elements.

boost::python::list	getElements (void)

ElementEdges	getElementEdges (void)
	Returns the element edges with both end nodes belong to the nodes of the set. More...

Public Member Functions inherited from XC::SetBase
	SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

void	setColorComponents (const double &, const double &, const double &)
	Set the color of the object (red,green,blue) as integers from 0 to 255. More...

void	setColor (const Vector &)
	Set the color of the object [red,green,blue] as integers from 0 to 255. More...

const Vector &	getColor (void) const
	Return the color of the object [red,green,blue] as integers from 0 to 255. More...

const ID &	getIdNodeTags (void) const
	Returns the tags of the nodes en un vector de enteros.

const ID &	getIdElementTags (void) const
	Returns the tags of the elements en un vector de enteros.

virtual bool	In (const Pnt *) const
	Returns true if the point belongs to the set.

virtual bool	In (const Edge *) const
	Returns true if the edge belongs to the set.

virtual bool	In (const Face *) const
	Returns true if the surface belongs to the set.

virtual bool	In (const Body *) const
	Returns true if the body belongs to the set.

virtual bool	In (const UniformGrid *) const
	Returns true if the «uniform grid» belongs to the set.

void	resetTributaries (void) const
	Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements. More...

void	computeTributaryLengths (bool initialGeometry=true) const
	Computes the tributary lengths that correspond to each node of the element set. More...

void	computeTributaryAreas (bool initialGeometry=true) const
	Computes the tributary areas that correspond to each node of the element set. More...

void	computeTributaryVolumes (bool initialGeometry=true) const
	Computes the tributary volumes that correspond to each node of the element set. More...

Public Member Functions inherited from XC::EntMdlrBase
	EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

EntMdlrBase &	operator+= (const EntMdlrBase &)
	+= operator.

EntMdlrBase &	operator-= (const EntMdlrBase &)
	-= operator.

EntMdlrBase &	operator*= (const EntMdlrBase &)
	*= operator (intersection).

const Preprocessor *	getPreprocessor (void) const
	Return a pointer to the object preprocessor.

Preprocessor *	getPreprocessor (void)
	Return a pointer to the object preprocessor.

size_t	GetTag (void) const
	Return the object identifier in the model (tag).

Pnt *	BuscaPnt (const size_t &)
	Return a pointer to the point identified by the tag being passed as parameter. More...

const Pnt *	BuscaPnt (const size_t &) const
	Return a const pointer to the point identified by the tag being passed as parameter. More...

Edge *	BuscaEdge (const size_t &)
	Return a pointer to the edge identified by the tag being passed as parameter. More...

const Edge *	BuscaEdge (const size_t &) const
	Return a pointer to the edge identified by the tag being passed as parameter. More...

Face *	BuscaFace (const size_t &)
	Return a pointer to the face identified by the tag being passed as parameter. More...

const Face *	BuscaFace (const size_t &) const
	Returns a pointer to the face identified by the tag being passed as parameter. More...

virtual int	sendSelf (CommParameters &)
	Send objects through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receive objects through the channel being passed as parameter.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
virtual const Edge *	get_lado_homologo (const Edge *l) const =0

Protected Member Functions inherited from XC::CmbEdge
Pos3dArray	get_positions (void) const
	Return positions along the object.

Side *	first_line (void)
	Returns a pointer to the first lado.

const Side *	first_line (void) const
	Returns a pointer to the first lado.

Side *	last_line (void)
	Returns a pointer to the last edge.

const Side *	last_line (void) const
	Returns a pointer to the last edge.

const Pnt *	first_point (void) const
	Returns a pointer to the first point.

const Pnt *	last_point (void) const
	Returns a pointer to the last point.

void	create_line_nodes (void)
	Triggers node creation on the edges.

void	line_meshing (meshing_dir dm)
	Triggers meshing of lines.

Pnt *	P1 (void)
	Return a pointer to the edge's start point.

Pnt *	P2 (void)
	Return a pointer to the edge's start point.

void	close (void)
	Close the line.

Protected Member Functions inherited from XC::Edge
void	insert_surf (Face *s)
	Insert a surface in contact with the line (neighbour). More...

void	create_nodes_en_extremos (void)
	Create the nodes for both end points of the edge.

Protected Member Functions inherited from XC::EntMdlr
void	create_nodes (const Pos3dArray3d &)
	Creates nodes at the positions being passed as parameters.

Node *	create_node (const Pos3d &pos, size_t i=1, size_t j=1, size_t k=1)
	Creates a node at the position being passed as parameter.

bool	create_elements (meshing_dir dm)
	Creates elements on the nodes created in create_nodes. More...

Pnt *	create_point (const Pos3d &)
	Creates a point at the position being passed as parameter.

void	create_points (const Pos3dArray &)
	Creates points at the positions being passed as parameters.

SetEstruct *	create_row_set (const Array3dRange &, const std::string &)
	Creates a set that corresponds to a row of nodes and elements.

void	clearAll (void)
	Clears object contents.

Protected Member Functions inherited from XC::SetEstruct
void	add_elements (const ElemPtrArray3d &)
	Adds to the model the elements being passed as parameters.

NodePtrSet	getNodePtrSet (void)
	Returns the pointers to the set nodes.

Protected Member Functions inherited from XC::EntMdlrBase
bool	check_preprocessor (void) const
	Check for preprocessor.

int	sendIdsEtiquetas (const int &, const int &, CommParameters &)
	Send labels through the channel being passed as parameter.

int	recvIdsEtiquetas (const int &, const int &, const CommParameters &)
	Receive labels through the channel being passed as parameter.

int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive members through the channel being passed as parameter.

Protected Attributes
size_t	ndivj

Protected Attributes inherited from XC::CmbEdge
std::deque< Side >	lines
	Lines that compose the object.

Protected Attributes inherited from XC::EntMdlr
NodePtrArray3d	ttzNodes

ElemPtrArray3d	ttzElements

Protected Attributes inherited from XC::EntMdlrBase
LabelContainer	labels
	Label container.

Friends
class	Edge

class	Body

Detailed Description

Surface.

Constructor & Destructor Documentation

§ Face() [1/2]

XC::Face::Face	(	Preprocessor *	m,
		const size_t &	ndivI = `4`,
		const size_t &	ndivJ = `4`
	)

Constructor.

Parameters

ndivI	number of divisions for direction I.
ndivJ	number of divisions for direction J.

§ Face() [2/2]

XC::Face::Face	(	const std::string &	nombre,
		Preprocessor *	m,
		const size_t &	ndivI = `4`,
		const size_t &	ndivJ = `4`
	)

Constructor.

Parameters

nombre	Object identifier.
m	Pointer to preprocessor.
ndivI	number of divisions for direction I.
ndivJ	number of divisions for direction J.

Member Function Documentation

§ CommonEdge()

size_t XC::Face::CommonEdge ( const Face & otra ) const

Returns the index of the edge in common with the surface being passed as parameter (if it exists).

§ getNode() [1/2]

XC::Node * XC::Face::getNode	(	const size_t &	i,
		const size_t &	j,
		const size_t &	k
	)

virtual

Returns a pointer to node which indices are being passed as parameters.

Parameters

i	index of the layer.
j	index of the row.
k	index of the column.

Reimplemented from XC::Edge.

§ getNode() [2/2]

const XC::Node * XC::Face::getNode	(	const size_t &	i,
		const size_t &	j,
		const size_t &	k
	)		const

virtual

Returns a pointer to node which indices are being passed as parameters.

Parameters

i	index of the layer.
j	index of the row.
k	index of the column.

Reimplemented from XC::Edge.

§ SenseOfEdge()

int XC::Face::SenseOfEdge	(	const Edge *	l,
		const Face &	otra
	)		const

Returns:

1 if the line belongs to both surfaces and the orientation is the same.
-1 if the line belongs to both surfaces and the orientation is the opposite.
0 line doesn't belongs to both surfaces.

The documentation for this class was generated from the following files:

src/preprocessor/multi_block_topology/entities/Face.h
src/preprocessor/multi_block_topology/entities/Face.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

§ Face() [1/2]

§ Face() [2/2]

Member Function Documentation

§ CommonEdge()

§ getNode() [1/2]

§ getNode() [2/2]

§ SenseOfEdge()
