Uniform mesh. More...

#include <UniformGrid.h>

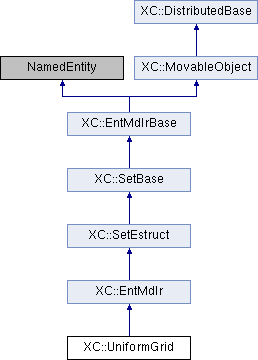

Inheritance diagram for XC::UniformGrid:

Public Member Functions
	UniformGrid (Preprocessor *m, const size_t &i=0)
	Constructor.

	UniformGrid (const std::string &nombre="", Preprocessor *m=nullptr, const size_t &i=0)
	Constructor. More...

SetEstruct *	getCopy (void) const
	Virtual constructor.

virtual unsigned short int	GetDimension (void) const
	Returns mesh dimension (1,2 or 3).

void	setOrg (const Pos3d &p)

const Pos3d &	getOrg (void) const

void	setLx (const double &l)

double	getLx (void) const

void	setLy (const double &l)

double	getLy (void) const

void	setLz (const double &l)

double	getLz (void) const

void	setNDivX (const size_t &l)

size_t	getNDivX (void) const

void	setNDivY (const size_t &l)

size_t	getNDivY (void) const

void	setNDivZ (const size_t &l)

size_t	getNDivZ (void) const

virtual BND3d	Bnd (void) const
	Returns mesh BND.

Pos3d	GetCentro (void) const
	Returns mesh centroid.

std::set< SetBase * >	get_sets (void) const
	Returns the sets to which this object belongs.

void	add_to_sets (std::set< SetBase *> &)
	Adds the uniform grid to the set being passed as parameter.

virtual void	genMesh (meshing_dir dm)
	Triggers mesh creation.

Public Member Functions inherited from XC::EntMdlr
	EntMdlr (Preprocessor *m, const size_t &i=0)
	Constructor.

	EntMdlr (const std::string &nombre="", const size_t &i=0, Preprocessor *m=nullptr)
	Constructor. More...

	EntMdlr (const EntMdlr &)
	Copy constructor.

EntMdlr &	operator= (const EntMdlr &)
	Assignment operator.

virtual void	set_index (const size_t &i)
	Assigns the objects index for its use in VTK arrays(see numera in Set). More...

size_t	getIdx (void) const
	Returns the index of the object for it use in VTK arrays.

virtual bool	In (const GeomObj3d &, const double &tol=0.0) const
	Returns true if the object lies inside the geometric object. More...

virtual bool	Out (const GeomObj3d &, const double &tol=0.0) const
	Returns true if the object lies outside the geometric object. More...

bool	hasNodes (void) const

virtual size_t	getNumNodeLayers (void) const

virtual size_t	getNumNodeRows (void) const

virtual size_t	getNumNodeColumns (void) const

virtual size_t	getNumElementLayers (void) const

virtual size_t	getNumElementRows (void) const

virtual size_t	getNumElementColumns (void) const

virtual Node *	getNode (const size_t &i=1, const size_t &j=1, const size_t &k=1)
	Returns a pointer to the node which indexes are being passed as parameters. More...

virtual const Node *	getNode (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
	Returns a pointer to the node which indexes are being passed as parameters. More...

Node *	getNearestNode (const Pos3d &p)
	Return the node closest to the point being passed as parameter.

const Node *	getNearestNode (const Pos3d &p) const
	Return the node closest to the point being passed as parameter.

ID	getNodeIndices (const Node *) const
	Return the indexes of the node being passed as parameter.

virtual Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1)
	Returns a pointer to the element which indexes are being passed as paremeters. More...

virtual const Element *	getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const
	Returns a pointer to the element which indices are being passed as paremeters. More...

Node *	findNode (const int &tag)
	Returns a pointer to the node cuyo identifier is being passed as parameter.

const Node *	findNode (const int &tag) const
	Returns a pointer to the node cuyo identifier is being passed as parameter.

Element *	findElement (const int &)
	Returns a pointer to the element identified by the tag being passed as parameter. More...

const Element *	findElement (const int &) const
	Returns a pointer to the element identified by the tag being passed as parameter. More...

Element *	getNearestElement (const Pos3d &p)
	Return the element closest to the point being passed as parameter.

const Element *	getNearestElement (const Pos3d &p) const
	Return the element closest to the point being passed as parameter.

NodePtrArray3d &	getTtzNodes (void)

const NodePtrArray3d &	getTtzNodes (void) const

ElemPtrArray3d &	getTtzElements (void)

const ElemPtrArray3d &	getTtzElements (void) const

IRowSet	getVarRefIRow (size_t f=1, size_t c=1, const std::string &nmb="tmp")

IRowSet	getVarRefIRow (const RangoIndice &layer_range, size_t f, size_t c, const std::string &nmb="tmp")

IRowSet	getVarRefIRow (const Array3dRange &rango, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (size_t layer=1, size_t c=1, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (size_t layer, const RangoIndice &row_range, size_t c, const std::string &nmb="tmp")

JRowSet	getVarRefJRow (const Array3dRange &rango, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (size_t layer=1, size_t f=1, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (size_t layer, size_t f, const RangoIndice &column_range, const std::string &nmb="tmp")

KRowSet	getVarRefKRow (const Array3dRange &rango, const std::string &nmb="tmp")

void	fix (const SFreedom_Constraint &)
	Fixes the nodes of the set.

virtual int	getVtkCellType (void) const
	Interfaz con VTK.

void	setGenMesh (bool m)
	Returns true if the points begins or ends in the line.

const bool &	getGenMesh (void) const
	Returns true if the points begins or ends in the line.

virtual double	getSquaredDistanceTo (const Pos3d &pt) const
	Return the squared distance to the position being passed as parameter. More...

virtual double	getDistanceTo (const Pos3d &pt) const
	Return the distance to the position being passed as parameter.

Vector	getSimpsonWeights (const std::string &, const std::string &, const size_t &f=1, const size_t &c=1, const size_t &n=10) const
	Return Simpson's weights.

void	BorraPtrNodElem (void)
	Clears pointer to nodes and elements.

virtual Pos3d	getCentroid (void) const
	Return the centroid of the object.

virtual	~EntMdlr (void)
	Destructor.

Public Member Functions inherited from XC::SetEstruct
	SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

	SetEstruct (const SetEstruct &)
	Copy constructor.

SetEstruct &	operator= (const SetEstruct &)
	Assignment operator.

size_t	getNumberOfNodes (void) const

size_t	getNumberOfElements (void) const

bool	In (const Node *) const
	Returns true if the node belongs to the set.

bool	In (const Element *) const
	Returns true if the element belongs to the set.

bool	isIRow (void) const
	Returns true if only the I index varies.

bool	isJRow (void) const
	Returns true if only the J index varies.

bool	isKRow (void) const
	Returns true if only the K index varies.

bool	isIConstantLayer (void) const
	Returns true if only J and K indices varies.

bool	isJConstantLayer (void) const
	Returns true if only J and K indices varies.

bool	isKConstantLayer (void) const
	Returns true if only I and J indices varies.

size_t	Dimension (void) const
	Return the dimension of the range (0,1,2 or 3). More...

std::string	getStrType (void) const
	Returns the set type i_row, j_row, k_row, constantILayer,...

Node *	getNodeI (const size_t &i)

Node *	getNodeIJ (const size_t &i, const size_t &j)

Node *	getNodeIJK (const size_t &i, const size_t &j, const size_t &k)

Element *	getElementI (const size_t &i)

Element *	getElementIJ (const size_t &i, const size_t &j)

Element *	getElementIJK (const size_t &i, const size_t &j, const size_t &k)

std::set< int >	getNodeTags (void) const
	Returns the tags of the nodes.

boost::python::list	getNodes (void)

std::set< int >	getElementTags (void) const
	Returns the tags of the elements.

boost::python::list	getElements (void)

ElementEdges	getElementEdges (void)
	Returns the element edges with both end nodes belong to the nodes of the set. More...

Public Member Functions inherited from XC::SetBase
	SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

void	setColorComponents (const double &, const double &, const double &)
	Set the color of the object (red,green,blue) as integers from 0 to 255. More...

void	setColor (const Vector &)
	Set the color of the object [red,green,blue] as integers from 0 to 255. More...

const Vector &	getColor (void) const
	Return the color of the object [red,green,blue] as integers from 0 to 255. More...

const ID &	getIdNodeTags (void) const
	Returns the tags of the nodes en un vector de enteros.

const ID &	getIdElementTags (void) const
	Returns the tags of the elements en un vector de enteros.

virtual bool	In (const Pnt *) const
	Returns true if the point belongs to the set.

virtual bool	In (const Edge *) const
	Returns true if the edge belongs to the set.

virtual bool	In (const Face *) const
	Returns true if the surface belongs to the set.

virtual bool	In (const Body *) const
	Returns true if the body belongs to the set.

virtual bool	In (const UniformGrid *) const
	Returns true if the «uniform grid» belongs to the set.

void	resetTributaries (void) const
	Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements. More...

void	computeTributaryLengths (bool initialGeometry=true) const
	Computes the tributary lengths that correspond to each node of the element set. More...

void	computeTributaryAreas (bool initialGeometry=true) const
	Computes the tributary areas that correspond to each node of the element set. More...

void	computeTributaryVolumes (bool initialGeometry=true) const
	Computes the tributary volumes that correspond to each node of the element set. More...

Public Member Functions inherited from XC::EntMdlrBase
	EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr)
	Constructor.

EntMdlrBase &	operator+= (const EntMdlrBase &)
	+= operator.

EntMdlrBase &	operator-= (const EntMdlrBase &)
	-= operator.

EntMdlrBase &	operator*= (const EntMdlrBase &)
	*= operator (intersection).

const Preprocessor *	getPreprocessor (void) const
	Return a pointer to the object preprocessor.

Preprocessor *	getPreprocessor (void)
	Return a pointer to the object preprocessor.

size_t	GetTag (void) const
	Return the object identifier in the model (tag).

Pnt *	BuscaPnt (const size_t &)
	Return a pointer to the point identified by the tag being passed as parameter. More...

const Pnt *	BuscaPnt (const size_t &) const
	Return a const pointer to the point identified by the tag being passed as parameter. More...

Edge *	BuscaEdge (const size_t &)
	Return a pointer to the edge identified by the tag being passed as parameter. More...

const Edge *	BuscaEdge (const size_t &) const
	Return a pointer to the edge identified by the tag being passed as parameter. More...

Face *	BuscaFace (const size_t &)
	Return a pointer to the face identified by the tag being passed as parameter. More...

const Face *	BuscaFace (const size_t &) const
	Returns a pointer to the face identified by the tag being passed as parameter. More...

virtual int	sendSelf (CommParameters &)
	Send objects through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receive objects through the channel being passed as parameter.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	update_topology (void)
	Number of divisions on z axis.

void	create_nodes (void)
	Creates mesh nodes.

Protected Member Functions inherited from XC::EntMdlr
void	create_nodes (const Pos3dArray3d &)
	Creates nodes at the positions being passed as parameters.

Node *	create_node (const Pos3d &pos, size_t i=1, size_t j=1, size_t k=1)
	Creates a node at the position being passed as parameter.

bool	create_elements (meshing_dir dm)
	Creates elements on the nodes created in create_nodes. More...

Pnt *	create_point (const Pos3d &)
	Creates a point at the position being passed as parameter.

void	create_points (const Pos3dArray &)
	Creates points at the positions being passed as parameters.

SetEstruct *	create_row_set (const Array3dRange &, const std::string &)
	Creates a set that corresponds to a row of nodes and elements.

void	clearAll (void)
	Clears object contents.

Protected Member Functions inherited from XC::SetEstruct
void	add_elements (const ElemPtrArray3d &)
	Adds to the model the elements being passed as parameters.

NodePtrSet	getNodePtrSet (void)
	Returns the pointers to the set nodes.

Protected Member Functions inherited from XC::EntMdlrBase
bool	check_preprocessor (void) const
	Check for preprocessor.

int	sendIdsEtiquetas (const int &, const int &, CommParameters &)
	Send labels through the channel being passed as parameter.

int	recvIdsEtiquetas (const int &, const int &, const CommParameters &)
	Receive labels through the channel being passed as parameter.

int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receive members through the channel being passed as parameter.

Additional Inherited Members
Protected Attributes inherited from XC::EntMdlr
NodePtrArray3d	ttzNodes

ElemPtrArray3d	ttzElements

Protected Attributes inherited from XC::EntMdlrBase
LabelContainer	labels
	Label container.

Detailed Description

Uniform mesh.

Uniform node distributionn on x, y and z.

Constructor & Destructor Documentation

§ UniformGrid()

XC::UniformGrid::UniformGrid	(	const std::string &	nombre = `""`,
		Preprocessor *	m = `nullptr`,
		const size_t &	i = `0`
	)

Constructor.

Parameters

nombre	Object identifier.
m	Pointer to preprocessor.
i	index for VTK routines.

The documentation for this class was generated from the following files:

src/preprocessor/multi_block_topology/entities/UniformGrid.h
src/preprocessor/multi_block_topology/entities/UniformGrid.cc

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ UniformGrid()
