Uses the tangent stiffness matrix on each iteration until convergence is achieved. More...

#include <NewtonRaphson.h>

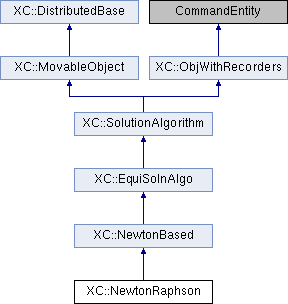

Inheritance diagram for XC::NewtonRaphson:

Public Member Functions
int	solveCurrentStep (void)
	Performs the Newton-Raphson iteration algorithm. More...

void	Print (std::ostream &s, int flag=0)
	Sends the string 'NewtonRaphson' to the stream if `flag` equals \(0\).

Public Member Functions inherited from XC::NewtonBased
virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

Public Member Functions inherited from XC::EquiSolnAlgo
virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test.

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns a pointer to the incremental integrator.

Public Member Functions inherited from XC::SolutionAlgorithm
virtual int	domainChanged (void)
	Perform the appropiate modifications as a result of a change in the domain. More...

virtual AnalysisModel *	getAnalysisModelPtr (void)
	Return a pointer to the analysis model.

virtual const AnalysisModel *	getAnalysisModelPtr (void) const
	Return a const pointer to the analysis model.

virtual Integrator *	getIntegratorPtr (void)
	Return a pointer to the integrator.

virtual const Integrator *	getIntegratorPtr (void) const
	Return a const pointer to the integrator.

virtual LinearSOE *	getLinearSOEPtr (void)
	Return a pointer to the linear system of equations.

virtual const LinearSOE *	getLinearSOEPtr (void) const
	Return a const pointer to the linear system of equations.

virtual EigenSOE *	getEigenSOEPtr (void)
	Return a pointer to the eigen system of equations.

virtual const EigenSOE *	getEigenSOEPtr (void) const
	Return a const pointer to the eigen system of equations.

virtual const DomainSolver *	getDomainSolverPtr (void) const
	Return a const pointer to the DomainSolver.

virtual DomainSolver *	getDomainSolverPtr (void)
	Return a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomainPtr (void) const
	Return a const pointer to the subdomain.

virtual Subdomain *	getSubdomainPtr (void)
	Return a pointer to the subdomain.

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Public Member Functions inherited from XC::ObjWithRecorders
	ObjWithRecorders (CommandEntity owr, DataOutputHandler::map_output_handlers oh=nullptr)

virtual	~ObjWithRecorders (void)
	Destructor.

Recorder *	newRecorder (const std::string &, DataOutputHandler *oh=nullptr)
	Read a Recorder object from file.

virtual int	addRecorder (Recorder &theRecorder)
	Adds a recorder. More...

recorder_iterator	recorder_begin (void)

const_recorder_iterator	recorder_begin (void) const

recorder_iterator	recorder_end (void)

const_recorder_iterator	recorder_end (void) const

virtual int	record (int track, double timeStamp=0.0)
	To invoke {record(cTag, timeStamp)} on any Recorder objects which have been added. More...

void	restart (void)
	To invoke {restart()} on any Recorder objects which have been added. More...

virtual int	removeRecorders (void)
	Remove the recorders.

void	setLinks (Domain *dom)
	Asigna el domain a los recorders.

void	SetOutputHandlers (DataOutputHandler::map_output_handlers *oh)
	Set the outputhandlers container.

Protected Member Functions
	NewtonRaphson (AnalysisAggregation *, int tangent=CURRENT_TANGENT)
	Constructor. More...

virtual SolutionAlgorithm *	getCopy (void) const

Protected Member Functions inherited from XC::NewtonBased
int	sendData (CommParameters &)
	Send object members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives object members through the channel being passed as parameter.

	NewtonBased (AnalysisAggregation *, int classTag, int tangent=CURRENT_TANGENT)
	Constructor.

Protected Member Functions inherited from XC::EquiSolnAlgo
	EquiSolnAlgo (AnalysisAggregation *, int clasTag)
	Constructor. More...

Protected Member Functions inherited from XC::SolutionAlgorithm
AnalysisAggregation *	getAnalysisAggregation (void)
	Return a pointer to the solution method which owns this object.

const AnalysisAggregation *	getAnalysisAggregation (void) const
	Return a pointer to the solution method which owns this object.

virtual Domain *	get_domain_ptr (void)
	Return a pointer to the domain.

int	sendData (CommParameters &)
	Send object members through the channel passed as parameter.

int	recvData (const CommParameters &)
	Receive object members through the channel passed as parameter.

	SolutionAlgorithm (AnalysisAggregation *, int classTag)
	Constructor.

Protected Member Functions inherited from XC::ObjWithRecorders
int	sendData (CommParameters &cp)

int	recvData (const CommParameters &cp)

size_t	getNumRecorders (void) const
	Returns the number of recorders already defined.

Friends
class	AnalysisAggregation

class	FEM_ObjectBroker

Additional Inherited Members
Public Types inherited from XC::ObjWithRecorders
typedef std::list< Recorder * >	lista_recorders

typedef lista_recorders::iterator	recorder_iterator

typedef lista_recorders::const_iterator	const_recorder_iterator

Protected Attributes inherited from XC::NewtonBased
int	tangent

Detailed Description

Uses the tangent stiffness matrix on each iteration until convergence is achieved.

The NewtonRaphson class is an algorithmic class which obtains a solution to a non-linear system using the Newton-Raphson iteration scheme. The iteration scheme is based on a Taylor expansion of the non-linear system of equations \(R(U) = 0\) about an approximate solution \(U^{(i)}\): {equation} R(U) = R(U^{(i)}) + [ {{ R}{ U} }_{U^{(i)}}] ( U - U^{(i)} ) {equation}

which can be expressed as: {equation} K^{(i)} U^{(i)} = R(U^{(i)}) {equation} which is solved for \(\Delta U^{(i)}\) to give approximation for \(U^{(i+1)} = U^{(i)} + \Delta U^{(i)}\). To start the iteration \(U^{(1)} = U_{trial}\), i.e. the current trial response quantities are chosen as initial response quantities. To stop the iteration, a test must be performed to see if convergence has been achieved at each iteration. Each NewtonRaphson object is associated with a ConvergenceTest object. It is this object which determines if convergence has been achieved.

Constructor & Destructor Documentation

§ NewtonRaphson()

XC::NewtonRaphson::NewtonRaphson	(	AnalysisAggregation *	owr,
		int	theTangentToUse = `CURRENT_TANGENT`
	)

protected

Constructor.

Parameters

AnalysisAggregation object the object which is used to acces the object that compound the analysis and that, at the end of each iteration, are used to determine if convergence has been obtained.

Member Function Documentation

§ solveCurrentStep()

int XC::NewtonRaphson::solveCurrentStep ( void )

virtual

Performs the Newton-Raphson iteration algorithm.

When invoked the object first sets itself as the EquiSolnAlgo object that the ConvergenceTest is testing and then it performs the Newton-Raphson iteration algorithm: {tabbing} while \= + while \= theTest- \(>\)start() theIntegrator- \(>\)formUnbalance(); do + theIntegrator- \(>\)formTangent(); theSOE- \(>\)solveX(); theIntegrator- \(>\)update(theSOE- \(>\)getX()); theIntegrator- \(>\)formUnbalance(); - {tabbing}

The method returns a 0 if successful, otherwise a negative number is returned; a \(-1\) if error during formTangent(), a \(-2\) if error during formUnbalance(), a \(-3\) if error during {solve()}, and a \(-4\) if error during update(). If an error occurs in any of the above operations the method stops at that routine, none of the subsequent operations are invoked. A \(-5\) is returned if any one of the links has not been setup. NOTE it is up to ConvergenceTest to ensure an infinite loop situation is not encountered.

Implements XC::EquiSolnAlgo.

The documentation for this class was generated from the following files:

src/solution/analysis/algorithm/equiSolnAlgo/NewtonRaphson.h
src/solution/analysis/algorithm/equiSolnAlgo/NewtonRaphson.cpp
