Set of objects in a row. More...
#include <RowSet.h>

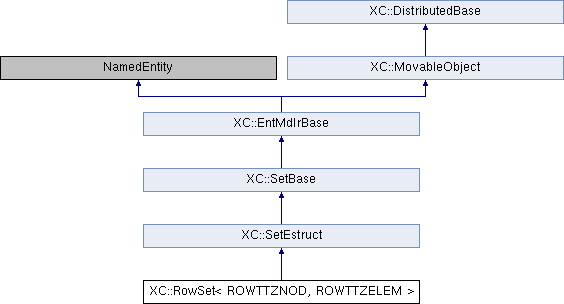

Inheritance diagram for XC::RowSet< ROWTTZNOD, ROWTTZELEM >:
Public Member Functions | |
| RowSet (const ROWTTZNOD &fn, const ROWTTZELEM &fe, const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| RowSet (const RowSet &) | |
| RowSet & | operator= (const RowSet &) |
| Assignment operator. | |
| virtual SetEstruct * | getCopy (void) const |
| Virtual constructor. | |
| reference_nod | Node (const size_t &i) |
| const reference_nod | Node (const size_t &i) const |
| reference_elem | Element (const size_t &i) |
| const reference_elem | Element (const size_t &i) const |
| Array3dRange | NodeRange (void) const |
| Array3dRange | ElementRange (void) const |
| virtual size_t | getNumNodeLayers (void) const |
| virtual size_t | getNumNodeRows (void) const |
| virtual size_t | getNumNodeColumns (void) const |
| virtual size_t | getNumElementLayers (void) const |
| virtual size_t | getNumElementRows (void) const |
| virtual size_t | getNumElementColumns (void) const |
| virtual XC::Node * | getNode (const size_t &i=1, const size_t &j=1, const size_t &k=1) |
| virtual const XC::Node * | getNode (const size_t &i=1, const size_t &j=1, const size_t &k=1) const |
| virtual XC::Element * | getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) |
| virtual const XC::Element * | getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const |
 Public Member Functions inherited from XC::SetEstruct | |
| SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| SetEstruct (const SetEstruct &) | |
| Copy constructor. | |
| SetEstruct & | operator= (const SetEstruct &) |
| Assignment operator. | |
| size_t | getNumberOfNodes (void) const |
| size_t | getNumberOfElements (void) const |
| bool | In (const Node *) const |
| Returns true if the node belongs to the set. | |
| bool | In (const Element *) const |
| Returns true if the element belongs to the set. | |
| bool | isIRow (void) const |
| Returns true if only the I index varies. | |
| bool | isJRow (void) const |
| Returns true if only the J index varies. | |
| bool | isKRow (void) const |
| Returns true if only the K index varies. | |
| bool | isIConstantLayer (void) const |
| Returns true if only J and K indices varies. | |
| bool | isJConstantLayer (void) const |
| Returns true if only J and K indices varies. | |
| bool | isKConstantLayer (void) const |
| Returns true if only I and J indices varies. | |
| size_t | Dimension (void) const |
| Return the dimension of the range (0,1,2 or 3). More... | |
| std::string | getStrType (void) const |
| Returns the set type i_row, j_row, k_row, constantILayer,... | |
| Node * | getNodeI (const size_t &i) |
| Node * | getNodeIJ (const size_t &i, const size_t &j) |
| Node * | getNodeIJK (const size_t &i, const size_t &j, const size_t &k) |
| Element * | getElementI (const size_t &i) |
| Element * | getElementIJ (const size_t &i, const size_t &j) |
| Element * | getElementIJK (const size_t &i, const size_t &j, const size_t &k) |
| std::set< int > | getNodeTags (void) const |
| Returns the tags of the nodes. | |
| boost::python::list | getNodes (void) |
| std::set< int > | getElementTags (void) const |
| Returns the tags of the elements. | |
| boost::python::list | getElements (void) |
| ElementEdges | getElementEdges (void) |
| Returns the element edges with both end nodes belong to the nodes of the set. More... | |
| Public Member Functions inherited from XC::SetBase | |
| SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| void | setColorComponents (const double &, const double &, const double &) |
| Set the color of the object (red,green,blue) as integers from 0 to 255. More... | |
| void | setColor (const Vector &) |
| Set the color of the object [red,green,blue] as integers from 0 to 255. More... | |
| const Vector & | getColor (void) const |
| Return the color of the object [red,green,blue] as integers from 0 to 255. More... | |
| virtual void | genMesh (meshing_dir dm) |
| Generates a finite element mesh from the set components. | |
| virtual void | fix (const SFreedom_Constraint &) |
| Impone desplazamiento nulo for all the nodes of this set. | |
| const ID & | getIdNodeTags (void) const |
| Returns the tags of the nodes en un vector de enteros. | |
| const ID & | getIdElementTags (void) const |
| Returns the tags of the elements en un vector de enteros. | |
| virtual bool | In (const Pnt *) const |
| Returns true if the point belongs to the set. | |
| virtual bool | In (const Edge *) const |
| Returns true if the edge belongs to the set. | |
| virtual bool | In (const Face *) const |
| Returns true if the surface belongs to the set. | |
| virtual bool | In (const Body *) const |
| Returns true if the body belongs to the set. | |
| virtual bool | In (const UniformGrid *) const |
| Returns true if the «uniform grid» belongs to the set. | |
| void | resetTributaries (void) const |
| Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements. More... | |
| void | computeTributaryLengths (bool initialGeometry=true) const |
| Computes the tributary lengths that correspond to each node of the element set. More... | |
| void | computeTributaryAreas (bool initialGeometry=true) const |
| Computes the tributary areas that correspond to each node of the element set. More... | |
| void | computeTributaryVolumes (bool initialGeometry=true) const |
| Computes the tributary volumes that correspond to each node of the element set. More... | |
| Public Member Functions inherited from XC::EntMdlrBase | |
| EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| EntMdlrBase & | operator+= (const EntMdlrBase &) |
| += operator. | |
| EntMdlrBase & | operator-= (const EntMdlrBase &) |
| -= operator. | |
| EntMdlrBase & | operator*= (const EntMdlrBase &) |
| *= operator (intersection). | |
| const Preprocessor * | getPreprocessor (void) const |
| Return a pointer to the object preprocessor. | |
| Preprocessor * | getPreprocessor (void) |
| Return a pointer to the object preprocessor. | |
| size_t | GetTag (void) const |
| Return the object identifier in the model (tag). | |
| Pnt * | BuscaPnt (const size_t &) |
| Return a pointer to the point identified by the tag being passed as parameter. More... | |
| const Pnt * | BuscaPnt (const size_t &) const |
| Return a const pointer to the point identified by the tag being passed as parameter. More... | |
| Edge * | BuscaEdge (const size_t &) |
| Return a pointer to the edge identified by the tag being passed as parameter. More... | |
| const Edge * | BuscaEdge (const size_t &) const |
| Return a pointer to the edge identified by the tag being passed as parameter. More... | |
| Face * | BuscaFace (const size_t &) |
| Return a pointer to the face identified by the tag being passed as parameter. More... | |
| const Face * | BuscaFace (const size_t &) const |
| Returns a pointer to the face identified by the tag being passed as parameter. More... | |
| virtual int | sendSelf (CommParameters &) |
| Send objects through the channel being passed as parameter. | |
| virtual int | recvSelf (const CommParameters &) |
| Receive objects through the channel being passed as parameter. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Additional Inherited Members | |
| Protected Member Functions inherited from XC::SetEstruct | |
| void | add_elements (const ElemPtrArray3d &) |
| Adds to the model the elements being passed as parameters. | |
| NodePtrSet | getNodePtrSet (void) |
| Returns the pointers to the set nodes. | |
| Protected Member Functions inherited from XC::EntMdlrBase | |
| bool | check_preprocessor (void) const |
| Check for preprocessor. | |
| int | sendIdsEtiquetas (const int &, const int &, CommParameters &) |
| Send labels through the channel being passed as parameter. | |
| int | recvIdsEtiquetas (const int &, const int &, const CommParameters &) |
| Receive labels through the channel being passed as parameter. | |
| int | sendData (CommParameters &) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive members through the channel being passed as parameter. | |
| Protected Attributes inherited from XC::EntMdlrBase | |
| LabelContainer | labels |
| Label container. | |
Detailed Description
template<class ROWTTZNOD, class ROWTTZELEM>
class XC::RowSet< ROWTTZNOD, ROWTTZELEM >
Set of objects in a row.
A RowSet object contains 0 or more:
- Nodes.
- Elements. that correspond to a row_[ijk] of an EntMdlr object.
The documentation for this class was generated from the following file:
- src/preprocessor/set_mgmt/RowSet.h
