Object set. More...

#include <SetEntities.h>

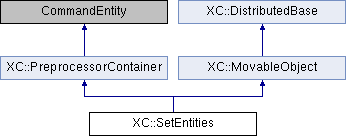

Inheritance diagram for XC::SetEntities:

Public Types
typedef DqPtrsEntities< Pnt >	lst_ptr_points
	Point set.

typedef lst_ptr_points::iterator	pnt_iterator
	point set iterator.

typedef lst_ptr_points::const_iterator	pnt_const_iterator
	point set const iterator.

typedef DqPtrsEntities< Edge >	lst_line_pointers
	Line set.

typedef lst_line_pointers::iterator	lin_iterator
	Line set iterator.

typedef lst_line_pointers::const_iterator	lin_const_iterator
	Line set const iterator.

typedef DqPtrsEntities< Face >	lst_surface_ptrs
	surface set.

typedef lst_surface_ptrs::iterator	sup_iterator
	surface set iterator.

typedef lst_surface_ptrs::const_iterator	sup_const_iterator
	surface set const iterator.

typedef DqPtrsEntities< Body >	lst_ptr_cuerpos
	body set.

typedef DqPtrsEntities< UniformGrid >	lst_ptr_uniform_grids
	Unifrom grid set.

Public Member Functions
	SetEntities (Preprocessor *preprocessor=nullptr)
	Constructor.

	SetEntities (const SetEntities &)
	Copy constructor.

SetEntities &	operator= (const SetEntities &)
	Assignment operator.

void	clear (void)
	Clears the set.

virtual const lst_ptr_points &	getPoints (void) const
	Returns a const reference to the point container.

virtual lst_ptr_points &	getPoints (void)
	Return a reference to the the point container.

void	setPoints (const lst_ptr_points &pts)
	Assigns the points set.

void	sel_points_lista (const ID &)
	Select the points identified by the tags in the parameter. More...

bool	In (const Pnt *) const
	Returns true if the point belongs to the set.

SetEntities	pickPointsInside (const GeomObj3d &, const double &tol=0.0) const
	Return a new set that contains the points that lie insiof the geometric object. More...

virtual const lst_line_pointers &	getLines (void) const
	Return a const reference to the line container.

virtual lst_line_pointers &	getLines (void)
	Return a reference to the line container.

void	setLines (const lst_line_pointers &lns)
	Assigns the edge set.

void	sel_lines_list (const ID &)
	Select the lines identified by the tags in the parameter. More...

bool	In (const Edge *) const
	Returns true if the edge belongs to the set.

SetEntities	pickLinesInside (const GeomObj3d &, const double &tol=0.0) const
	Return a new set that contains the lines that lie insiof the geometric object. More...

virtual const lst_surface_ptrs &	getSurfaces (void) const
	Returns a const reference to the surface container.

virtual lst_surface_ptrs &	getSurfaces (void)
	Returns a reference to the surface container.

void	setSurfaces (const lst_surface_ptrs &sfs)
	Assigns the surface set.

void	sel_surfaces_lst (const ID &)
	Selects the surfaces with the identifiers being passed as parameter.

bool	In (const Face *) const
	Returns true if the surface belongs to the set.

SetEntities	pickSurfacesInside (const GeomObj3d &, const double &tol=0.0) const
	Return a new set that contains the surfaces that lie insiof the geometric object. More...

virtual const lst_ptr_cuerpos &	getBodies (void) const
	Return a const reference to the body container.

virtual lst_ptr_cuerpos &	getBodies (void)
	Return a reference to the body container.

void	setBodies (const lst_ptr_cuerpos &bds)
	Assigns the bodies set.

bool	In (const Body *) const
	Returns true if the body belongs to the set.

SetEntities	pickBodiesInside (const GeomObj3d &, const double &tol=0.0) const
	Return a new set that contains the bodies that lie insiof the geometric object. More...

virtual const lst_ptr_uniform_grids &	getUniformGrids (void) const
	Return a const reference to the UniformGrids container.

virtual lst_ptr_uniform_grids &	getUniformGrids (void)
	Return a reference to the UniformGrids container.

bool	In (const UniformGrid *) const
	Returns true if the «uniform grid» belongs to the set.

BND3d	Bnd (void) const
	Return the nodes current position boundary.

SetEntities	pickEntitiesInside (const GeomObj3d &, const double &tol=0.0) const
	Return a new set that contains the bodies that lie insiof the geometric object. More...

void	fillUpwards (const SetMeshComp &)
	Appends to this set the objects that make reference to one or more of the objects that already make part of the set. More...

void	fillDownwards (SetMeshComp &)
	Appends to the set being passed as parameter the elements that intervene on the definition of those entities that are already in the set. More...

void	Transforma (const TrfGeom &trf)
	Applies the transformation to the elements of the set.

void	Transforma (const size_t &indice_trf)
	Aplica to the set the transformation with the index being passed as parameter.

void	genMesh (const std::string &, meshing_dir dm)
	Triggers mesh generation from set components. More...

virtual int	sendSelf (CommParameters &)
	Sends object through the channel being passed as parameter.

virtual int	recvSelf (const CommParameters &)
	Receives object through the channel being passed as parameter.

SetEntities &	operator+= (const SetEntities &)
	Addition assignment operator. More...

SetEntities &	operator-= (const SetEntities &)
	-= operator.

SetEntities &	operator*= (const SetEntities &)
	*= operator (intersection).

SetEntities	operator+ (const SetEntities &) const
	Addition (union) operator. More...

SetEntities	operator- (const SetEntities &) const
	Difference operator. More...

SetEntities	operator* (const SetEntities &) const
	Intersection operator. More...

	~SetEntities (void)
	Destructor.

Public Member Functions inherited from XC::PreprocessorContainer
	PreprocessorContainer (Preprocessor *owr)
	Default constructor.

const Domain *	getDomain (void) const
	Returns the domain.

Domain *	getDomain (void)
	Returns the domain.

Preprocessor *	getPreprocessor (void)
	Returns a pointer to the object preprocessor.

const Preprocessor *	getPreprocessor (void) const
	Returns a pointer to the object preprocessor.

void	checkPreprocessor (void)

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
void	clearAll (void)
	Clears all the objects of the set.

void	copy_lists (const SetEntities &)
	Copy the object lists of the set s. More...

SetEntities	create_copy (const std::string &, const Vector3d &v)
	Creates a copy of the entities of the set and put them in another set with the name is being passed as parameter. More...

void	extend_lists (const SetEntities &)
	Extend this set with the objects of the set being passed as parameter. More...

void	substract_lists (const SetEntities &)
	Removes from this set the objects that belongs also to the argument. More...

void	intersect_lists (const SetEntities &)
	Removes from this set the objects that belongs also to the argument. More...

DbTagData &	getDbTagData (void) const
	Returns a vector to store the dbTags of the class members. More...

int	sendData (CommParameters &)
	Send members through the channel being passed as parameter.

int	recvData (const CommParameters &)
	Receives members through the channel being passed as parameter.

void	point_meshing (meshing_dir dm)
	Create nodes and, where appropriate, elements on set points.

void	line_meshing (meshing_dir dm)
	Create nodes and, where appropriate, elements on set lines.

void	surface_meshing (meshing_dir dm)
	Create nodes and, where appropriate, elements on surfaces.

void	body_meshing (meshing_dir dm)
	Create nodes and, where appropriate, elements on set bodies.

void	uniform_grid_meshing (meshing_dir dm)
	Creates nodes and, eventually, elements on the points of the set.

void	mueve (const Vector3d &)
	Moves the objects of the set.

Protected Attributes
lst_ptr_points	points
	point set.

lst_line_pointers	lines
	line set.

lst_surface_ptrs	surfaces
	surface set.

lst_ptr_cuerpos	bodies
	body set.

lst_ptr_uniform_grids	uniform_grids

Friends
class	Set
	Uniform mesh set.

Detailed Description

Object set.

A set object contains 0 or more:

Nodes.
Finite elements.
Points.
Lines.
Surfaces.
Bodies.
Uniform meshes.

Member Function Documentation

§ copy_lists()

void XC::SetEntities::copy_lists ( const SetEntities & other )

protected

Copy the object lists of the set s.

Append to this object the lists of objects from the argument.

§ create_copy()

XC::SetEntities XC::SetEntities::create_copy	(	const std::string &	name,
		const Vector3d &	v = `Vector3d()`
	)

protected

Creates a copy of the entities of the set and put them in another set with the name is being passed as parameter.

The coordinates of the new points will be obtained by adding to the original coordinates those of the vector being passed as parameter.

§ extend_lists()

void XC::SetEntities::extend_lists ( const SetEntities & other )

protected

Extend this set with the objects of the set being passed as parameter.

§ fillDownwards()

void XC::SetEntities::fillDownwards ( SetMeshComp & mc )

Appends to the set being passed as parameter the elements that intervene on the definition of those entities that are already in the set.

§ fillUpwards()

void XC::SetEntities::fillUpwards ( const SetMeshComp & mc )

Appends to this set the objects that make reference to one or more of the objects that already make part of the set.

§ genMesh()

void XC::SetEntities::genMesh	(	const std::string &	setName,
		meshing_dir	dm
	)

Triggers mesh generation from set components.

Parameters

dm	Meshing direction.

§ getDbTagData()

XC::DbTagData & XC::SetEntities::getDbTagData ( void ) const

protectedvirtual

Returns a vector to store the dbTags of the class members.

Reimplemented from XC::DistributedBase.

§ intersect_lists()

void XC::SetEntities::intersect_lists ( const SetEntities & other )

protected

Removes from this set the objects that belongs also to the argument.

§ operator*()

XC::SetEntities XC::SetEntities::operator* ( const SetEntities & b ) const

Intersection operator.

Return the set intersection.

§ operator+()

XC::SetEntities XC::SetEntities::operator+ ( const SetEntities & b ) const

Addition (union) operator.

Extend the lists of the first set with the objects from the argument.

§ operator+=()

XC::SetEntities & XC::SetEntities::operator+= ( const SetEntities & other )

Addition assignment operator.

Extend the lists with the objects from the argument.

§ operator-()

XC::SetEntities XC::SetEntities::operator- ( const SetEntities & b ) const

Difference operator.

Removes the objects that belong also to the argument.

§ pickBodiesInside()

XC::SetEntities XC::SetEntities::pickBodiesInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)		const

Return a new set that contains the bodies that lie insiof the geometric object.

Parameters

geomObj	geometric object that must contain the nodes.
tol	tolerance for "In" function.

§ pickEntitiesInside()

XC::SetEntities XC::SetEntities::pickEntitiesInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)		const

Return a new set that contains the bodies that lie insiof the geometric object.

Parameters

geomObj	geometric object that must contain the nodes.
tol	tolerance for "In" function.

§ pickLinesInside()

XC::SetEntities XC::SetEntities::pickLinesInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)		const

Return a new set that contains the lines that lie insiof the geometric object.

Parameters

geomObj	geometric object that must contain the nodes.
tol	tolerance for "In" function.

§ pickPointsInside()

XC::SetEntities XC::SetEntities::pickPointsInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)		const

Return a new set that contains the points that lie insiof the geometric object.

Parameters

geomObj	geometric object that must contain the nodes.
tol	tolerance for "In" function.

§ pickSurfacesInside()

XC::SetEntities XC::SetEntities::pickSurfacesInside	(	const GeomObj3d &	geomObj,
		const double &	tol = `0.0`
	)		const

Return a new set that contains the surfaces that lie insiof the geometric object.

Parameters

geomObj	geometric object that must contain the nodes.
tol	tolerance for "In" function.

§ sel_lines_list()

void XC::SetEntities::sel_lines_list ( const ID & tags )

Select the lines identified by the tags in the parameter.

Parameters

tags	identifiers of the points to select.

§ sel_points_lista()

void XC::SetEntities::sel_points_lista ( const ID & tags )

Select the points identified by the tags in the parameter.

Parameters

tags	identifiers of the points to select.

§ substract_lists()

void XC::SetEntities::substract_lists ( const SetEntities & other )

protected

Removes from this set the objects that belongs also to the argument.

The documentation for this class was generated from the following files:

src/preprocessor/set_mgmt/SetEntities.h
src/preprocessor/set_mgmt/SetEntities.cc

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Function Documentation

§ copy_lists()

§ create_copy()

§ extend_lists()

§ fillDownwards()

§ fillUpwards()

§ genMesh()

§ getDbTagData()

§ intersect_lists()

§ operator*()

§ operator+()

§ operator+=()

§ operator-()

§ pickBodiesInside()

§ pickEntitiesInside()

§ pickLinesInside()

§ pickPointsInside()

§ pickSurfacesInside()

§ sel_lines_list()

§ sel_points_lista()

§ substract_lists()
