#include <ComponentManager.h>

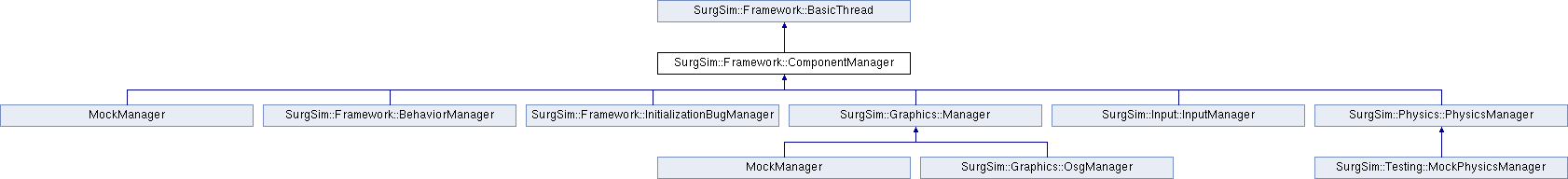

Inheritance diagram for SurgSim::Framework::ComponentManager:

Public Member Functions
	ComponentManager (const std::string &name="Unknown Component Manager")

bool	enqueueAddComponent (const std::shared_ptr< Component > &component)
	Queues a component to be added later. More...

bool	enqueueRemoveComponent (const std::shared_ptr< Component > &component)
	Queues a component to be removed. More...


std::shared_ptr< Runtime >	getRuntime () const

void	setRuntime (std::shared_ptr< Runtime > val)

Public Member Functions inherited from SurgSim::Framework::BasicThread
	BasicThread (const std::string &name="Unknown Thread")

virtual	~BasicThread () noexcept(false)
	C++11 introduced noexcept.

void	start (std::shared_ptr< Barrier > startupBarrier=nullptr, bool isSynchronous=false)
	Live cycle functions, public implementation. More...

void	stop ()
	Stopping the execution, blocks until the running thread has actually stopped,. More...

void	setIdle (bool isIdle)
	Set/Unset the thread in an idle state (doUpdate() called or not in the update() method) More...

bool	isIdle ()
	Query if this thread is in idle state or not. More...

bool	isInitialized ()
	Query if this object is initialized. More...

bool	isRunning () const
	Query if this object is running. More...

void	operator() ()
	This is what boost::thread executes on thread creation.

boost::thread &	getThread ()

std::string	getName () const

void	setRate (double val)
	Set the update rate of the thread. More...

bool	setSynchronous (bool val)
	Sets the thread to synchronized execution in concert with the startup barrier, the startup barrier has to exist for this call to succeed. More...

bool	isSynchronous ()
	Query if this object is synchronized. More...

double	getCpuTime () const

size_t	getUpdateCount () const

void	resetCpuTimeAndUpdateCount ()
	Reset the cpu time and the update count to 0.

bool	ignoresExceptions () const

void	setIgnoreExceptions (bool val)

Protected Member Functions
template<class T >
std::shared_ptr< T >	tryAddComponent (std::shared_ptr< SurgSim::Framework::Component > component, std::vector< std::shared_ptr< T >> *container)
	Template version of the addComponent method. More...

template<class T >
bool	tryRemoveComponent (std::shared_ptr< SurgSim::Framework::Component > component, std::vector< std::shared_ptr< T >> *container)
	Template version of the removeComponent method. More...

void	processComponents ()
	Processes all the components that are scheduled for addition or removal, this needs to be called inside the doUpdate() function. More...

void	processBehaviors (const double dt)
	Processes behaviors This needs to be called inside doUpdate() function in each 'sub' manager. More...

virtual int	getType () const =0
	Returns the type of Manager.

void	copyScheduledComponents (std::vector< std::shared_ptr< Component >> inflightAdditions, std::vector< std::shared_ptr< Component >> inflightRemovals, std::vector< std::shared_ptr< SceneElement >> *inflightElements)
	Helper, blocks access to the additions and removal queue and copies the components from there to the intermediate inflight queues, after this call, the incoming queues will be empty. More...

std::shared_ptr< SurgSim::Framework::Logger >	getLogger () const
	Returns this manager's logger.

void	doBeforeStop () override
	Prepares the thread for its execution to be stopped. More...

template<class T >
void	retireComponents (const std::vector< std::shared_ptr< T >> &container)

Protected Member Functions inherited from SurgSim::Framework::BasicThread
bool	initialize ()
	Trigger the initialization of this object, this will be called before all other threads doStartup() are called. More...

bool	startUp ()
	Trigger the startup of this object, this will be called after all other threads doInit() was called the thread will only enter the run loop triggering upated() if all threads doInit() and doStartup() returned true. More...

bool	waitForBarrier (bool success)

Protected Attributes
boost::mutex	m_componentMutex
	Blocks protects addition and removal queues.

std::vector< std::shared_ptr< SurgSim::Framework::Behavior > >	m_behaviors
	Collection of behaviors.


std::vector< std::shared_ptr< Component > >	m_componentAdditions

std::vector< std::shared_ptr< Component > >	m_componentRemovals

std::vector< std::shared_ptr< SceneElement > >	m_elementCache

Protected Attributes inherited from SurgSim::Framework::BasicThread
Timer	m_timer
	Timer to measure the actual time taken to doUpdate.

std::shared_ptr< SurgSim::Framework::Logger >	m_logger
	Logger for this thread.

Detailed Description

Base Component Manager class.

Component Managers manage a collection of components. The runtime will present each new component to the manager, and it is up to the manger to decide whether to handle a component of a given type or not. Adding and removing components is thread-safe, when the [add|remove]Component call is made, the component is added to an intermediary data structure, each ComponentManager implementation must call processComponents() to trigger the actual addition and removal. Each ComponentManager subclass needs to implement doAddComponent() and doRemoveComponent() to the actual addition and removal of components. ComponentManager implements a custom executeInitialization() method that lets the runtime schedule initialization of components that exist at the start of the simulation

Member Function Documentation

§ copyScheduledComponents()

void SurgSim::Framework::ComponentManager::copyScheduledComponents	(	std::vector< std::shared_ptr< Component >> *	inflightAdditions,
		std::vector< std::shared_ptr< Component >> *	inflightRemovals,
		std::vector< std::shared_ptr< SceneElement >> *	inflightElements
	)

protected

Helper, blocks access to the additions and removal queue and copies the components from there to the intermediate inflight queues, after this call, the incoming queues will be empty.

§ doBeforeStop()

void SurgSim::Framework::ComponentManager::doBeforeStop ( )

overrideprotectedvirtual

Prepares the thread for its execution to be stopped.

Note: Called from this thread before joined

Reimplemented from SurgSim::Framework::BasicThread.

Reimplemented in SurgSim::Graphics::Manager, and SurgSim::Physics::PhysicsManager.

§ enqueueAddComponent()

bool SurgSim::Framework::ComponentManager::enqueueAddComponent ( const std::shared_ptr< Component > & component )

Queues a component to be added later.

Parameters

component The component to be added.

Returns: true if the component was scheduled for addition, this does not indicate that the component will actually be added to this manager

§ enqueueRemoveComponent()

bool SurgSim::Framework::ComponentManager::enqueueRemoveComponent ( const std::shared_ptr< Component > & component )

Queues a component to be removed.

Parameters

component The component to be removed.

Returns: true if the component was scheduled for removal, this does not indicate that the component will actually be removed from this manager

§ getRuntime()

std::shared_ptr< Runtime > SurgSim::Framework::ComponentManager::getRuntime ( ) const

Runtime accessors

§ processBehaviors()

void SurgSim::Framework::ComponentManager::processBehaviors ( const double dt )

protected

Processes behaviors This needs to be called inside doUpdate() function in each 'sub' manager.

§ processComponents()

void SurgSim::Framework::ComponentManager::processComponents ( )

protected

Processes all the components that are scheduled for addition or removal, this needs to be called inside the doUpdate() function.

§ tryAddComponent()

template<class T >

std::shared_ptr< T > SurgSim::Framework::ComponentManager::tryAddComponent	(	std::shared_ptr< SurgSim::Framework::Component >	component,
		std::vector< std::shared_ptr< T >> *	container
	)

protected

Template version of the addComponent method.

Executes the add component operation.

Template Parameters

T	Specific type of the component that is being added.

Parameters

	component	The component that needs to be added.
[in,out]	container	If non-null, the container that should receive the component if of the correct type.

Returns: the correctly cast component pointer if successful and the component did not already exist in the container

Template Parameters

T	Type of the component to be added.

Parameters

	component	The component that is being added.
[in,out]	container	The container that the component is being added to.

Returns: The correctly cast component if it is of type T and does not exist in the container yet, nullptr otherwise.

§ tryRemoveComponent()

template<class T >

bool SurgSim::Framework::ComponentManager::tryRemoveComponent	(	std::shared_ptr< SurgSim::Framework::Component >	component,
		std::vector< std::shared_ptr< T >> *	container
	)

protected

Template version of the removeComponent method.

Template Parameters

T	Specific type of the component that is being removed.

Parameters

	component	The component that needs to be removed.
[in,out]	container	If non-null, the container, from which the component should be removed.

Returns: true if the component exists in the container or the component did not cast to T, otherwise.

Member Data Documentation

§ m_componentAdditions

std::vector<std::shared_ptr<Component> > SurgSim::Framework::ComponentManager::m_componentAdditions

protected

Data structures Contain components scheduled to be added/removed

The documentation for this class was generated from the following files:

SurgSim/Framework/ComponentManager.h
SurgSim/Framework/ComponentManager-inl.h
SurgSim/Framework/ComponentManager.cpp
