SceneElement is the basic part of a scene, it is a container of components. More...

#include <SceneElement.h>

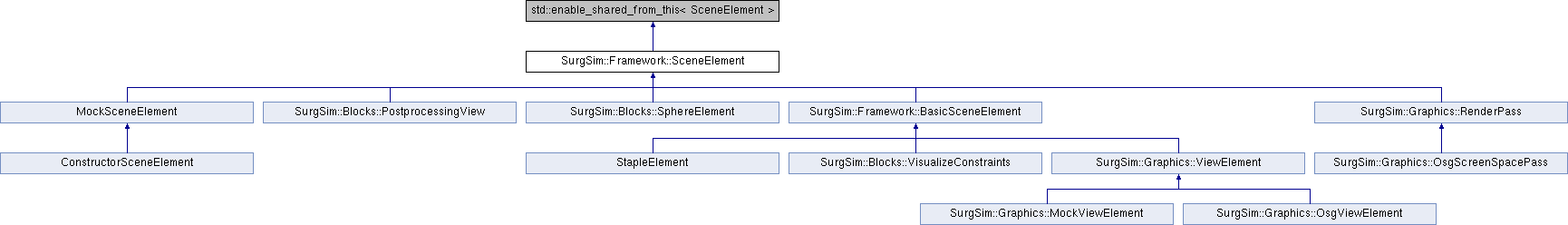

Inheritance diagram for SurgSim::Framework::SceneElement:

Public Member Functions
	SceneElement (const std::string &name)
	Constructor. More...

virtual	~SceneElement ()
	Destructor.

virtual std::string	getClassName () const

bool	addComponent (std::shared_ptr< Component > component)
	Adds a component, calls initialize() on the component, if SceneElement::isInitialized() is true. More...

bool	removeComponent (std::shared_ptr< Component > component)
	Removes a given component. More...

bool	removeComponent (const std::string &name)
	Removes the component described by name. More...

void	removeComponents ()
	Removes all components.

std::shared_ptr< Component >	getComponent (const std::string &name) const
	Gets the component identified by name. More...

std::vector< std::shared_ptr< Component > >	getComponents () const
	Gets all the components of this SceneElement. More...

template<class T >
std::vector< std::shared_ptr< T > >	getComponents () const
	Template version of getComponents method to get all the components with type T. More...

template<class T >
T	getValue (const std::string &component, const std::string &property) const
	Retrieves the property value from a component. More...

boost::any	getValue (const std::string &component, const std::string &property) const
	Retrieves the property value from a component. More...

template<class T >
bool	getValue (const std::string &component, const std::string &property, T *value) const
	Retrieves the property value from a component, and convertis it to the type of the output parameter. More...

void	setValue (const std::string &component, const std::string &property, const boost::any &value)
	Sets the property value of a component. More...

void	addToGroup (const std::string &group)
	Add this scene element to the given group. More...

void	removeFromGroup (const std::string &group)
	Remove this scene element from the given group. More...

void	setGroups (const std::vector< std::string > &groups)
	Set the groups of this scene element. More...

std::vector< std::string >	getGroups () const

bool	inGroup (const std::string &name)
	Test whether this SceneElement is in a specific group. More...

bool	initialize ()
	Executes the initialize operation. More...

std::string	getName () const
	Return the name of this SceneElement. More...

void	setPose (const SurgSim::Math::RigidTransform3d &pose)
	Set the pose of this SceneElement. More...

const SurgSim::Math::RigidTransform3d &	getPose () const
	Get the pose of this SceneElement. More...

std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent that controls the pose all Representations in this SceneElement. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the Scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the Scene. More...

void	setRuntime (std::weak_ptr< Runtime > runtime)
	Sets the Runtime. More...

std::shared_ptr< Runtime >	getRuntime ()
	Gets the runtime. More...

bool	isInitialized () const
	Return if this SceneElement is initialized. More...

void	setActive (bool val)
	Set this SceneElement's status (active/inactive) More...

bool	isActive () const

std::shared_ptr< SceneElement >	getSharedPtr ()
	Gets a shared pointer to this SceneElement. More...

virtual YAML::Node	encode (bool standalone) const
	Convert to a YAML::Node. More...

virtual bool	decode (const YAML::Node &node)
	Pull data from a YAML::Node. More...

Detailed Description

SceneElement is the basic part of a scene, it is a container of components.

When a SceneElement is added to a Scene, the Scene will call initialize() on the SceneElement, which in turn will call initialize() on all its components. If a component is added to a SceneElement after the SceneElement was initialized, the component will be initialized immediately.

Note: A SceneElement needs to be created as a shared_ptr.

Constructor & Destructor Documentation

§ SceneElement()

SurgSim::Framework::SceneElement::SceneElement ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of this SceneElement

Member Function Documentation

§ addComponent()

bool SurgSim::Framework::SceneElement::addComponent ( std::shared_ptr< Component > component )

Adds a component, calls initialize() on the component, if SceneElement::isInitialized() is true.

Parameters

component The component.

Returns: true if it succeeds, false if it fails.

§ addToGroup()

void SurgSim::Framework::SceneElement::addToGroup ( const std::string & group )

Add this scene element to the given group.

Parameters

group name of the group

§ decode()

bool SurgSim::Framework::SceneElement::decode ( const YAML::Node & node )

virtual

Pull data from a YAML::Node.

Exceptions

SurgSim::Framework::AssertionFailure if the SceneElement is already initialized

Parameters

node	the node to decode.

Returns: true if the decoding succeeded and the node was formatted correctly, false otherwise

§ encode()

YAML::Node SurgSim::Framework::SceneElement::encode ( bool standalone ) const

virtual

Convert to a YAML::Node.

Parameters

standalone when true, all the components will be represented as full component, when false they will be represented as references

Returns: A node with all the public data of this instance

§ getClassName()

std::string SurgSim::Framework::SceneElement::getClassName ( ) const

virtual

Returns: the class name for this class

§ getComponent()

std::shared_ptr< Component > SurgSim::Framework::SceneElement::getComponent ( const std::string & name ) const

Gets the component identified by name.

Parameters

name The name.

Returns: The component or nullptr if the component cannot be found.

§ getComponents() [1/2]

std::vector< std::shared_ptr< Component > > SurgSim::Framework::SceneElement::getComponents ( ) const

Gets all the components of this SceneElement.

Returns: The components.

§ getComponents() [2/2]

template<class T >

std::vector< std::shared_ptr< T > > SurgSim::Framework::SceneElement::getComponents ( ) const

Template version of getComponents method to get all the components with type T.

Implementation of getComponents method to get all the components with type T.

Returns: The type T components

§ getGroups()

std::vector< std::string > SurgSim::Framework::SceneElement::getGroups ( ) const

Returns: all the groups of this scene element

§ getName()

std::string SurgSim::Framework::SceneElement::getName ( ) const

Return the name of this SceneElement.

Returns: The name.

§ getPose()

const SurgSim::Math::RigidTransform3d & SurgSim::Framework::SceneElement::getPose ( ) const

Get the pose of this SceneElement.

Returns: the pose

§ getPoseComponent()

std::shared_ptr< PoseComponent > SurgSim::Framework::SceneElement::getPoseComponent ( )

Get the PoseComponent that controls the pose all Representations in this SceneElement.

Returns: the PoseComponent

§ getRuntime()

std::shared_ptr< Runtime > SurgSim::Framework::SceneElement::getRuntime ( )

Gets the runtime.

Returns: The runtime.

§ getScene()

std::shared_ptr< Scene > SurgSim::Framework::SceneElement::getScene ( )

Gets the Scene.

Returns: The scene.

§ getSharedPtr()

std::shared_ptr< SceneElement > SurgSim::Framework::SceneElement::getSharedPtr ( )

Gets a shared pointer to this SceneElement.

Returns: The shared pointer.

§ getValue() [1/3]

template<class T >

T SurgSim::Framework::SceneElement::getValue	(	const std::string &	component,
		const std::string &	property
	)		const

Retrieves the property value from a component.

Exceptions

SurgSim::Framework::AssertionFailure If the conversion fails or the property cannot be found.

Template Parameters

T	The requested type for the property.

Parameters

component	The name of the component.
property	The name of the property.

Returns: The value of the property if found.

§ getValue() [2/3]

boost::any SurgSim::Framework::SceneElement::getValue	(	const std::string &	component,
		const std::string &	property
	)		const

Retrieves the property value from a component.

Exceptions

SurgSim::Framework::AssertionFailure if the property cannot be found

Parameters

component	The name of the component.
property	The name of the property.

Returns: The value of the property if found.

§ getValue() [3/3]

template<class T >

bool SurgSim::Framework::SceneElement::getValue	(	const std::string &	component,
		const std::string &	property,
		T *	value
	)		const

Retrieves the property value from a component, and convertis it to the type of the output parameter.

This does not throw.

Template Parameters

T	the type of the property

Parameters

	component	The name of the component.
	property	The name of the property.
[out]	value	If non-null, will receive the value of the given property.

Returns: true if value != nullptr and the property is found.

§ inGroup()

bool SurgSim::Framework::SceneElement::inGroup ( const std::string & name )

Test whether this SceneElement is in a specific group.

Parameters

name	group to test

Returns: true if the SceneElement is in group name

§ initialize()

bool SurgSim::Framework::SceneElement::initialize ( )

Executes the initialize operation.

Returns: true if it succeeds, false if it fails.

§ isActive()

bool SurgSim::Framework::SceneElement::isActive ( ) const

Returns: True if this SceneElement is active; Otherwise, false.

§ isInitialized()

bool SurgSim::Framework::SceneElement::isInitialized ( ) const

Return if this SceneElement is initialized.

Returns: True if this SceneElement is initialized; Otherwise, false.

§ removeComponent() [1/2]

bool SurgSim::Framework::SceneElement::removeComponent ( std::shared_ptr< Component > component )

Removes a given component.

Parameters

component The component.

Returns: true if it succeeds, false if it fails or the component cannot be found.

§ removeComponent() [2/2]

bool SurgSim::Framework::SceneElement::removeComponent ( const std::string & name )

Removes the component described by name.

Parameters

name The name.

Returns: true if it succeeds, false if it fails or the component cannot be found.

§ removeFromGroup()

void SurgSim::Framework::SceneElement::removeFromGroup ( const std::string & group )

Remove this scene element from the given group.

Parameters

group name of the group

§ setActive()

void SurgSim::Framework::SceneElement::setActive ( bool val )

Set this SceneElement's status (active/inactive)

Note: Set 'inactive' on an active SceneElement will cause all the components it contains to not be processed.; Set 'active' on an inactive SceneElement will cause all the components it contains which are active; to be processed again.; Inactive components will not be processed no matter the SceneElement is active or inactive.

Parameters

val	True to set the SceneElement active, false to set inactive.

§ setGroups()

void SurgSim::Framework::SceneElement::setGroups ( const std::vector< std::string > & groups )

Set the groups of this scene element.

Parameters

groups all the groups that this scene element should be in

§ setPose()

void SurgSim::Framework::SceneElement::setPose ( const SurgSim::Math::RigidTransform3d & pose )

Set the pose of this SceneElement.

Parameters

pose The pose

§ setRuntime()

void SurgSim::Framework::SceneElement::setRuntime ( std::weak_ptr< Runtime > runtime )

Sets the Runtime.

Parameters

runtime Pointer to the runtime.

§ setScene()

void SurgSim::Framework::SceneElement::setScene ( std::weak_ptr< Scene > scene )

Sets the Scene.

Parameters

scene Pointer to the scene.

§ setValue()

void SurgSim::Framework::SceneElement::setValue	(	const std::string &	component,
		const std::string &	property,
		const boost::any &	value
	)

Sets the property value of a component.

Exceptions

SurgSim::Framework::AssertionFailure If the property cannot be found.

Parameters

component	The name of the component.
property	The name of the property.
value	The value that it should be set to.

The documentation for this class was generated from the following files:

SurgSim/Framework/SceneElement.h
SurgSim/Framework/SceneElement-inl.h
SurgSim/Framework/SceneElement.cpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

§ SceneElement()

Member Function Documentation

§ addComponent()

§ addToGroup()

§ decode()

§ encode()

§ getClassName()

§ getComponent()

§ getComponents() [1/2]

§ getComponents() [2/2]

§ getGroups()

§ getName()

§ getPose()

§ getPoseComponent()

§ getRuntime()

§ getScene()

§ getSharedPtr()

§ getValue() [1/3]

§ getValue() [2/3]

§ getValue() [3/3]

§ inGroup()

§ initialize()

§ isActive()

§ isInitialized()

§ removeComponent() [1/2]

§ removeComponent() [2/2]

§ removeFromGroup()

§ setActive()

§ setGroups()

§ setPose()

§ setRuntime()

§ setScene()

§ setValue()
