Component is the main interface class to pass information to the system managers each will decide whether to handle a component of a given type or not. More...

#include <Component.h>

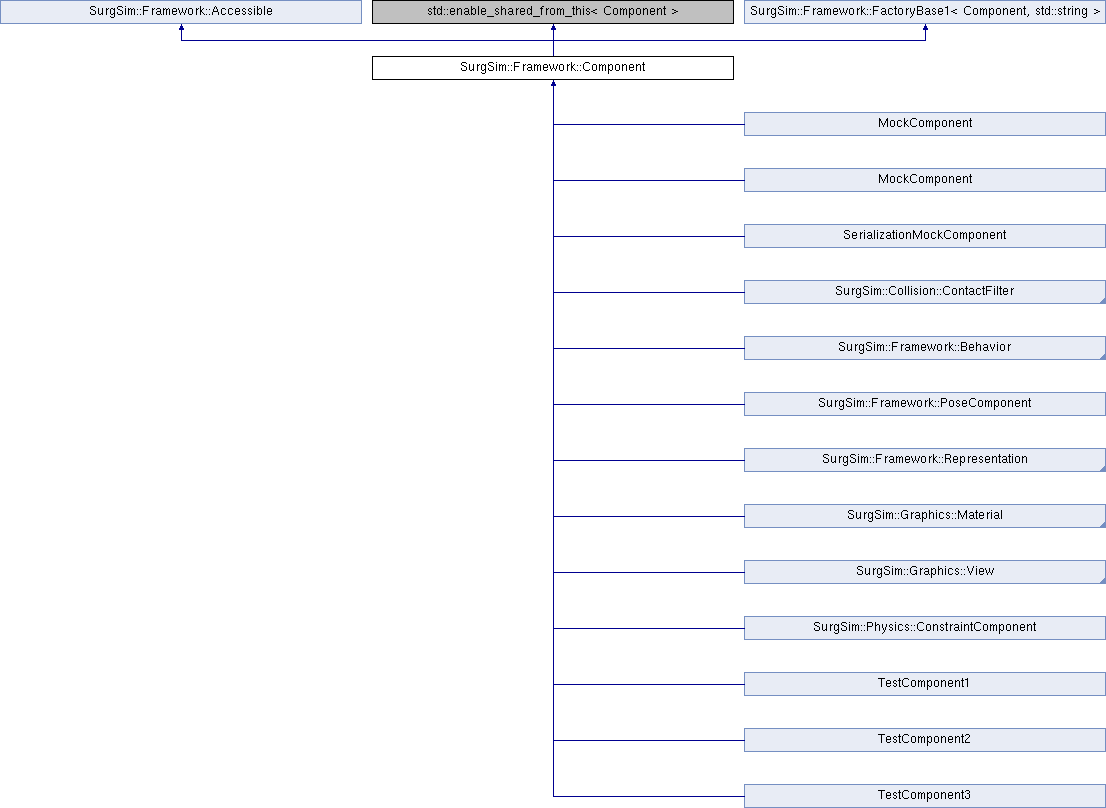

Inheritance diagram for SurgSim::Framework::Component:

Public Member Functions
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual bool	doInitialize ()=0
	Interface to be implemented by derived classes. More...

virtual bool	doWakeUp ()=0
	Interface to be implemented by derived classes. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Detailed Description

Component is the main interface class to pass information to the system managers each will decide whether to handle a component of a given type or not.

Components will get initialized by having doInit(), and doWakeUp() called in succession, all components together will have doInit() called before any component will recieve doWakeUp()

Constructor & Destructor Documentation

§ Component()

SurgSim::Framework::Component::Component ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of the component

Member Function Documentation

§ doInitialize()

virtual bool SurgSim::Framework::Component::doInitialize ( )

pure virtual

Interface to be implemented by derived classes.

Returns: True if component is initialized successfully; otherwise, false.

§ doWakeUp()

virtual bool SurgSim::Framework::Component::doWakeUp ( )

pure virtual

Interface to be implemented by derived classes.

Returns: True if component is woken up successfully; otherwise, false.

Implemented in SurgSim::Physics::VirtualToolCoupler, MockBehavior, SurgSim::Graphics::OsgView, SurgSim::Physics::DeformableRepresentation, MockComponent, TestComponent3, SurgSim::Graphics::Representation, SurgSim::Physics::RigidRepresentationBase, StaplerBehavior, PrintoutBehavior, SurgSim::Graphics::OsgMaterial, SurgSim::Framework::SamplingMetricBase, SurgSim::Blocks::KeyboardTogglesComponentBehavior, SurgSim::Graphics::PaintBehavior, SurgSim::Physics::Fem3DRepresentation, TestComponent2, SurgSim::Blocks::DriveElementFromInputBehavior, SurgSim::Blocks::VisualizeContactsBehavior, SurgSim::Blocks::KeyboardCallbackBehavior, SurgSim::Blocks::TransferPhysicsToVerticesBehavior, SurgSim::Blocks::CompoundShapeToGraphics, SurgSim::Input::OutputComponent, SurgSim::Input::InputComponent, SurgSim::Blocks::KnotIdentificationBehavior, MockComponent, SurgSim::Framework::MockReceiver, SurgSim::Graphics::OsgCurveRepresentation, SurgSim::Physics::ConstraintComponent, SurgSim::EditDebug::VisualDebugBehavior, SurgSim::Collision::ElementContactFilter, TestComponent1, SurgSim::Blocks::AddRandomSphereBehavior, SurgSim::Physics::RigidCollisionRepresentation, SurgSim::Blocks::KeyBehavior, SurgSim::Blocks::SingleKeyBehavior, AddSphereFromInputBehavior, and SerializationMockComponent.

§ getClassName()

std::string SurgSim::Framework::Component::getClassName ( ) const

virtual

The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE.

Note: Use the SURGSIM_CLASSNAME macro in derived classes.

Returns: The fully namespace qualified name of this class.

Reimplemented in TestComponent3, TestComponent2, and TestComponent1.

§ getFullName()

std::string SurgSim::Framework::Component::getFullName ( ) const

Gets a string containing the name of the Component and (if it has one) its SceneElement.

Returns: Name of Component and SceneElement.

§ getName()

std::string SurgSim::Framework::Component::getName ( ) const

Gets component name.

Returns: Name of this component.

§ getPoseComponent() [1/2]

std::shared_ptr< PoseComponent > SurgSim::Framework::Component::getPoseComponent ( )

protectedvirtual

Get the PoseComponent for this component.

Returns: The PoseComponent

Reimplemented in SurgSim::Framework::PoseComponent.

§ getPoseComponent() [2/2]

std::shared_ptr< const PoseComponent > SurgSim::Framework::Component::getPoseComponent ( ) const

protectedvirtual

Get the PoseComponent for this component, constant access.

Returns: The PoseComponent

Reimplemented in SurgSim::Framework::PoseComponent.

§ getRuntime()

std::shared_ptr< Runtime > SurgSim::Framework::Component::getRuntime ( ) const

Get the runtime which contains this component.

Returns: The runtime which contains this component.

§ getScene()

std::shared_ptr< Scene > SurgSim::Framework::Component::getScene ( )

Gets the scene.

Returns: The scene for this component

§ getSceneElement() [1/2]

std::shared_ptr< SceneElement > SurgSim::Framework::Component::getSceneElement ( )

Gets the scene element.

Returns: The scene element for this component.

§ getSceneElement() [2/2]

std::shared_ptr< const SceneElement > SurgSim::Framework::Component::getSceneElement ( ) const

Gets the scene element, constant version.

Returns: The scene element for this component.

§ getSharedPtr()

std::shared_ptr< Component > SurgSim::Framework::Component::getSharedPtr ( )

Gets a shared pointer to this component.

Returns: The shared pointer.

§ initialize()

bool SurgSim::Framework::Component::initialize ( const std::weak_ptr< Runtime > & runtime )

Initialize this component, this needs to be called before wakeUp() can be called.

This will be done automatically by the Scene hierarchy, either in SceneElement::addComponent(), if SceneElement has already been added to the Scene, or through Scene::addSceneElement() on all Components on the SceneElement.

Parameters

runtime The runtime which contains this component.

Returns: True if this component is initialized successfully; otherwise, false.

§ isActive()

bool SurgSim::Framework::Component::isActive ( ) const

Returns: True if this component is active and its SceneElement (if any) is also active; Otherwise, false.

§ isAwake()

bool SurgSim::Framework::Component::isAwake ( ) const

Returns: True if this component is awake; otherwise, false.

§ isInitialized()

bool SurgSim::Framework::Component::isInitialized ( ) const

Returns: True if this component is initialized; otherwise, false.

§ isLocalActive()

bool SurgSim::Framework::Component::isLocalActive ( ) const

Returns: True if this component is active Otherwise, false.

§ retire()

void SurgSim::Framework::Component::retire ( )

Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component.

This gives the component a chance to get rid of all shared objects

§ setLocalActive()

void SurgSim::Framework::Component::setLocalActive ( bool val )

virtual

Set the component's active state.

Parameters

val	If true component is active, inactive if false.

Reimplemented in SurgSim::Physics::VirtualToolCoupler, and SurgSim::Graphics::OsgCamera.

§ setName()

void SurgSim::Framework::Component::setName ( const std::string & name )

Sets the name of component.

Parameters

name	The name of this component.

§ setScene()

void SurgSim::Framework::Component::setScene ( std::weak_ptr< Scene > scene )

Sets the scene.

Parameters

scene The scene for this component

§ setSceneElement()

void SurgSim::Framework::Component::setSceneElement ( std::weak_ptr< SceneElement > sceneElement )

Sets the scene element.

Parameters

sceneElement The scene element for this component.

§ wakeUp()

bool SurgSim::Framework::Component::wakeUp ( )

Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component.

Returns: True if this component is woken up successfully; otherwise, false.

The documentation for this class was generated from the following files:

SurgSim/Framework/Component.h
SurgSim/Framework/Component.cpp
