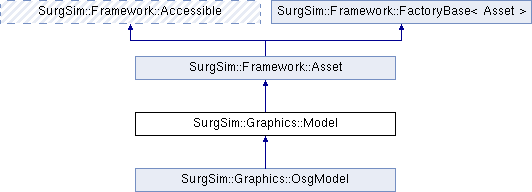

Inheritance diagram for SurgSim::Graphics::Model:
Additional Inherited Members | |
 Public Types inherited from SurgSim::Framework::Accessible | |
| typedef std::function< boost::any(void)> | GetterType |
| typedef std::function< void(boost::any)> | SetterType |
| typedef std::function< YAML::Node(void)> | EncoderType |
| typedef std::function< void(const YAML::Node *)> | DecoderType |
| Public Types inherited from SurgSim::Framework::FactoryBase< Asset > | |
| typedef ObjectFactory< Asset > | FactoryType |
| Public Member Functions inherited from SurgSim::Framework::Asset | |
| Asset () | |
| Constructor. | |
| Asset (const Asset &rhs) | |
| Copy Constructor. | |
| virtual | ~Asset () |
| Destructor. | |
| void | load (const std::string &fileName, const SurgSim::Framework::ApplicationData &data) |
| Load a file with given name using 'data' as look up path(s). More... | |
| void | load (const std::string &fileName) |
| Overloaded function using SurgSim::Framework::Runtime::getApplicationData() as look up path(s). More... | |
| std::string | getFileName () const |
| Return the name of file loaded by this class. More... | |
| virtual std::string | getClassName () const =0 |
| Support serialization with a classname. More... | |
| Public Member Functions inherited from SurgSim::Framework::Accessible | |
| Accessible () | |
| Default Constructor. | |
| ~Accessible () | |
| Destructor. | |
| template<class T > | |
| T | getValue (const std::string &name) const |
| Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More... | |
| boost::any | getValue (const std::string &name) const |
| Retrieves the value with the name by executing the getter if it is found. More... | |
| template<class T > | |
| bool | getValue (const std::string &name, T *value) const |
| Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More... | |
| void | setValue (const std::string &name, const boost::any &value) |
| Sets a value of a property that has setter. More... | |
| bool | isReadable (const std::string &name) const |
| Check whether a property is readable. More... | |
| bool | isWriteable (const std::string &name) const |
| Check whether a property is writable. More... | |
| void | setGetter (const std::string &name, GetterType func) |
| Sets a getter for a given property. More... | |
| void | setSetter (const std::string &name, SetterType func) |
| Sets a setter for a given property. More... | |
| void | setAccessors (const std::string &name, GetterType getter, SetterType setter) |
| Sets the accessors getter and setter in one function. More... | |
| void | removeAccessors (const std::string &name) |
| Removes all the accessors (getter and setter) for a given property. More... | |
| void | forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty) |
| Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More... | |
| void | setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder) |
| Sets the functions used to convert data from and to a YAML::Node. More... | |
| void | setDecoder (const std::string &name, DecoderType decoder) |
| Sets the functions used to convert data from a YAML::Node. More... | |
| YAML::Node | encode () const |
| Encode this Accessible to a YAML::Node. More... | |
| void | decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >()) |
| Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More... | |
| std::vector< std::string > | getProperties () |
| template<> | |
| boost::any | getValue (const std::string &name) const |
| Static Public Member Functions inherited from SurgSim::Framework::FactoryBase< Asset > | |
| static FactoryType & | getFactory () |
| Protected Member Functions inherited from SurgSim::Framework::Asset | |
| virtual bool | doLoad (const std::string &filePath)=0 |
| Derived classes will overwrite this method to do actual loading. More... | |
The documentation for this class was generated from the following file:
- SurgSim/Graphics/Model.h
