This class is used to facilitate file loading. More...

#include <Asset.h>

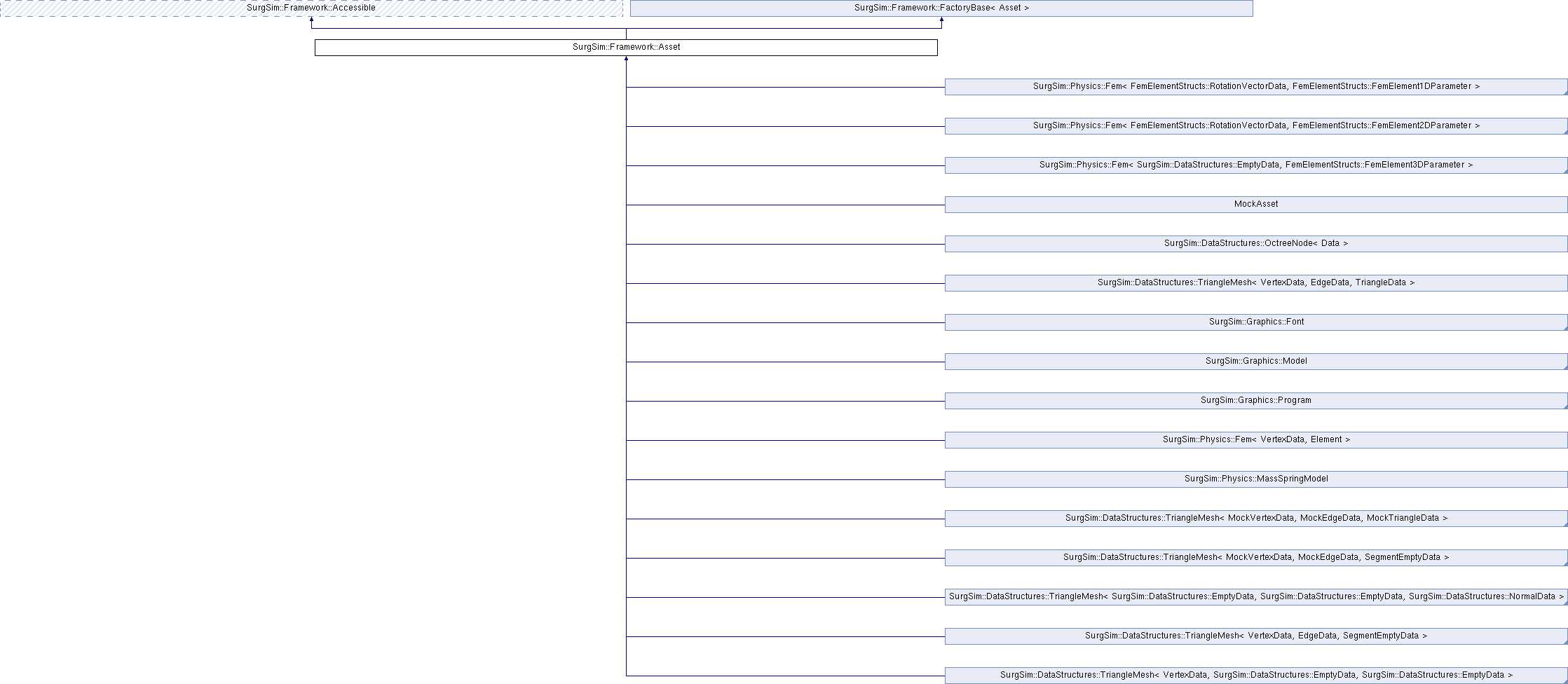

Inheritance diagram for SurgSim::Framework::Asset:

Public Member Functions
	Asset ()
	Constructor.

	Asset (const Asset &rhs)
	Copy Constructor.

virtual	~Asset ()
	Destructor.

void	load (const std::string &fileName, const SurgSim::Framework::ApplicationData &data)
	Load a file with given name using 'data' as look up path(s). More...

void	load (const std::string &fileName)
	Overloaded function using SurgSim::Framework::Runtime::getApplicationData() as look up path(s). More...

std::string	getFileName () const
	Return the name of file loaded by this class. More...

virtual std::string	getClassName () const =0
	Support serialization with a classname. More...

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
virtual bool	doLoad (const std::string &filePath)=0
	Derived classes will overwrite this method to do actual loading. More...

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase< Asset >
typedef ObjectFactory< Asset >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase< Asset >
static FactoryType &	getFactory ()

Detailed Description

This class is used to facilitate file loading.

It uses the static ApplicationData in SurgSim::Framework::Runtime to load file. Classes not in SurgSim::Framework::Component hierarchy should inherit this class in order to load a file. Components that take assets as parameters should, in addition to their general set<Asset>() and get<Asset>() functions, implement a helper function load<Asset>(), that creates and loads the specified asset. Additionally, a special YAML parameter (<Asset>FileName) should be implemented, that can be used to specify the asset, without having to specify the whole asset in serialized form.

Member Function Documentation

§ doLoad()

virtual bool SurgSim::Framework::Asset::doLoad ( const std::string & filePath )

protectedpure virtual

Derived classes will overwrite this method to do actual loading.

Note: This method is not required to do any check on the validity or the existence of the file.

Parameters

filePath Absolute path to the file.

Returns: True if loading is successful; Otherwise, false.

§ getClassName()

virtual std::string SurgSim::Framework::Asset::getClassName ( ) const

pure virtual

Support serialization with a classname.

Returns: the name of this class

§ getFileName()

std::string SurgSim::Framework::Asset::getFileName ( ) const

Return the name of file loaded by this class.

Returns: Name of the file loaded by this class.

§ load() [1/2]

void SurgSim::Framework::Asset::load	(	const std::string &	fileName,
		const SurgSim::Framework::ApplicationData &	data
	)

Load a file with given name using 'data' as look up path(s).

If 'fileName' is not empty and the file is found, this method calls 'doLoad()' to load the file. Assertions will fail if 'fileName' is empty or file is not found or file loading is unsuccessful.

Note: As a side effect, the name of the file will be recorded in; Asset::m_fileName and can be retrieved by Asset::getFileName().

Parameters

fileName	Name of the file to be loaded.
data	ApplicationData which provides the runtime look up path(s).

§ load() [2/2]

void SurgSim::Framework::Asset::load ( const std::string & fileName )

Overloaded function using SurgSim::Framework::Runtime::getApplicationData() as look up path(s).

Parameters

fileName Name of the file to be loaded.

The documentation for this class was generated from the following files:

SurgSim/Framework/Asset.h
SurgSim/Framework/Asset.cpp
