SolverBase is the base abstract class for all Solvers to derive from. It provides state tracking, smoothing parameters and implementation, automatic solver system integration, and update order. Solvers may be used without a link, as long as UpdateLinkedTransform is false. More...

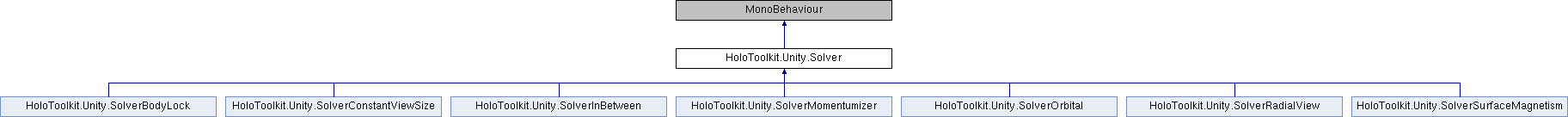

Inheritance diagram for HoloToolkit.Unity.Solver:

Public Member Functions
abstract void	SolverUpdate ()

void	SolverUpdateEntry ()
	Tracks lifetime of the solver, disabling it when expired, and finally runs the orientation update logic More...

virtual void	SnapTo (Vector3 position, Quaternion rotation)
	SnapTo may be used to bypass smoothing to a certain position if the object is teleported or spawned More...

virtual void	SnapGoalTo (Vector3 position, Quaternion rotation)
	SnapGoalTo only sets the goal orientation. Not really useful. More...

virtual void	AddOffset (Vector3 offset)

void	UpdateWorkingToGoal ()
	Updates the Working orientation (which may be the object, or the shared orientation) to the goal, with smoothing accounted for More...

void	UpdateWorkingPosToGoal ()
	Updates only the working position to goal with smoothing More...

void	UpdateWorkingRotToGoal ()
	Updates only the working rotation to goal with smoothing More...

void	UpdateWorkingScaleToGoal ()
	Updates only the working scale to goal with smoothing More...

Static Public Member Functions
static Vector3	SmoothTo (Vector3 source, Vector3 goal, float deltaTime, float lerpTime)
	Lerps Vector3 source to goal, handles lerpTime of 0 More...

static Quaternion	SmoothTo (Quaternion source, Quaternion goal, float deltaTime, float lerpTime)
	Slerps Quaternion source to goal, handles lerpTime of 0 More...

Public Attributes
bool	UpdateLinkedTransform = false

float	MoveLerpTime = 0.1f

float	RotateLerpTime = 0.1f

float	ScaleLerpTime = 0

bool	MaintainScale = true

Vector3	GoalPosition

Quaternion	GoalRotation

Vector3	GoalScale

bool	Smoothing = true

float	Lifetime = 0

Protected Member Functions
virtual void	Awake ()

virtual void	OnEnable ()
	Typically when a solver becomes enabled, it should update its internal state to the system, in case it was disabled far away More...

void	UpdateTransformToGoal ()
	Updates all object orientations to the goal orientation for this solver, with smoothing accounted for (smoothing may be off) More...

Protected Attributes
SolverHandler	solverHandler

Properties
Vector3	WorkingPos `[get, set]`
	WorkingPos automatically uses the shared position if the solver is set to use the 'linked transform'. UpdateLinkedTransform may be set to false, and a solver will automatically update the object directly, and not inherit work done by other solvers to the shared position More...

Quaternion	WorkingRot `[get, set]`
	Rotation version of WorkingPos More...

Vector3	WorkingScale `[get, set]`
	Scale version of WorkingPos More...

Detailed Description

SolverBase is the base abstract class for all Solvers to derive from. It provides state tracking, smoothing parameters and implementation, automatic solver system integration, and update order. Solvers may be used without a link, as long as UpdateLinkedTransform is false.

Definition at line 15 of file Solver.cs.

Member Function Documentation

§ AddOffset()

virtual void HoloToolkit.Unity.Solver.AddOffset ( Vector3 offset )

virtual

Definition at line 125 of file Solver.cs.

§ Awake()

virtual void HoloToolkit.Unity.Solver.Awake ( )

protectedvirtual

Definition at line 53 of file Solver.cs.

§ OnEnable()

virtual void HoloToolkit.Unity.Solver.OnEnable ( )

protectedvirtual

Typically when a solver becomes enabled, it should update its internal state to the system, in case it was disabled far away

Reimplemented in HoloToolkit.Unity.SolverMomentumizer.

Definition at line 69 of file Solver.cs.

§ SmoothTo() [1/2]

static Vector3 HoloToolkit.Unity.Solver.SmoothTo	(	Vector3	source,
		Vector3	goal,
		float	deltaTime,
		float	lerpTime
	)

static

Lerps Vector3 source to goal, handles lerpTime of 0

Parameters

source
goal
deltaTime
lerpTime

Returns

Definition at line 230 of file Solver.cs.

§ SmoothTo() [2/2]

static Quaternion HoloToolkit.Unity.Solver.SmoothTo	(	Quaternion	source,
		Quaternion	goal,
		float	deltaTime,
		float	lerpTime
	)

static

Slerps Quaternion source to goal, handles lerpTime of 0

Parameters

source
goal
deltaTime
lerpTime

Returns

Definition at line 243 of file Solver.cs.

§ SnapGoalTo()

virtual void HoloToolkit.Unity.Solver.SnapGoalTo	(	Vector3	position,
		Quaternion	rotation
	)

virtual

SnapGoalTo only sets the goal orientation. Not really useful.

Parameters

position
rotation

Definition at line 119 of file Solver.cs.

§ SnapTo()

virtual void HoloToolkit.Unity.Solver.SnapTo	(	Vector3	position,
		Quaternion	rotation
	)

virtual

SnapTo may be used to bypass smoothing to a certain position if the object is teleported or spawned

Parameters

position
rotation

Reimplemented in HoloToolkit.Unity.SolverMomentumizer.

Definition at line 106 of file Solver.cs.

§ SolverUpdate()

abstract void HoloToolkit.Unity.Solver.SolverUpdate ( )

pure virtual

Implemented in HoloToolkit.Unity.SolverSurfaceMagnetism, HoloToolkit.Unity.SolverConstantViewSize, HoloToolkit.Unity.SolverOrbital, HoloToolkit.Unity.SolverRadialView, HoloToolkit.Unity.SolverInBetween, HoloToolkit.Unity.SolverBodyLock, and HoloToolkit.Unity.SolverMomentumizer.

§ SolverUpdateEntry()

void HoloToolkit.Unity.Solver.SolverUpdateEntry ( )

Tracks lifetime of the solver, disabling it when expired, and finally runs the orientation update logic

Definition at line 89 of file Solver.cs.

§ UpdateTransformToGoal()

void HoloToolkit.Unity.Solver.UpdateTransformToGoal ( )

protected

Updates all object orientations to the goal orientation for this solver, with smoothing accounted for (smoothing may be off)

Definition at line 251 of file Solver.cs.

§ UpdateWorkingPosToGoal()

void HoloToolkit.Unity.Solver.UpdateWorkingPosToGoal ( )

Updates only the working position to goal with smoothing

Definition at line 299 of file Solver.cs.

§ UpdateWorkingRotToGoal()

void HoloToolkit.Unity.Solver.UpdateWorkingRotToGoal ( )

Updates only the working rotation to goal with smoothing

Definition at line 314 of file Solver.cs.

§ UpdateWorkingScaleToGoal()

void HoloToolkit.Unity.Solver.UpdateWorkingScaleToGoal ( )

Updates only the working scale to goal with smoothing

Definition at line 329 of file Solver.cs.

§ UpdateWorkingToGoal()

void HoloToolkit.Unity.Solver.UpdateWorkingToGoal ( )

Updates the Working orientation (which may be the object, or the shared orientation) to the goal, with smoothing accounted for

Definition at line 279 of file Solver.cs.

Member Data Documentation

§ GoalPosition

Vector3 HoloToolkit.Unity.Solver.GoalPosition

Definition at line 33 of file Solver.cs.

§ GoalRotation

Quaternion HoloToolkit.Unity.Solver.GoalRotation

Definition at line 36 of file Solver.cs.

§ GoalScale

Vector3 HoloToolkit.Unity.Solver.GoalScale

Definition at line 39 of file Solver.cs.

§ Lifetime

float HoloToolkit.Unity.Solver.Lifetime = 0

Definition at line 45 of file Solver.cs.

§ MaintainScale

bool HoloToolkit.Unity.Solver.MaintainScale = true

Definition at line 29 of file Solver.cs.

§ MoveLerpTime

float HoloToolkit.Unity.Solver.MoveLerpTime = 0.1f

Definition at line 22 of file Solver.cs.

§ RotateLerpTime

float HoloToolkit.Unity.Solver.RotateLerpTime = 0.1f

Definition at line 24 of file Solver.cs.

§ ScaleLerpTime

float HoloToolkit.Unity.Solver.ScaleLerpTime = 0

Definition at line 26 of file Solver.cs.

§ Smoothing

bool HoloToolkit.Unity.Solver.Smoothing = true

Definition at line 42 of file Solver.cs.

§ solverHandler

SolverHandler HoloToolkit.Unity.Solver.solverHandler

protected

Definition at line 49 of file Solver.cs.

§ UpdateLinkedTransform

bool HoloToolkit.Unity.Solver.UpdateLinkedTransform = false

Definition at line 19 of file Solver.cs.

Property Documentation

§ WorkingPos

Vector3 HoloToolkit.Unity.Solver.WorkingPos

getset

WorkingPos automatically uses the shared position if the solver is set to use the 'linked transform'. UpdateLinkedTransform may be set to false, and a solver will automatically update the object directly, and not inherit work done by other solvers to the shared position

Definition at line 136 of file Solver.cs.

§ WorkingRot

Quaternion HoloToolkit.Unity.Solver.WorkingRot

getset

Rotation version of WorkingPos

Definition at line 166 of file Solver.cs.

§ WorkingScale

Vector3 HoloToolkit.Unity.Solver.WorkingScale

getset

Scale version of WorkingPos

Definition at line 196 of file Solver.cs.

The documentation for this class was generated from the following file:

Assets/HoloToolkit/Utilities/Scripts/Solvers/Solver.cs
