ParaEngine::CViewCullingObject Class Reference

It is used for object-level view culling. More...

#include <ViewCullingObject.h>

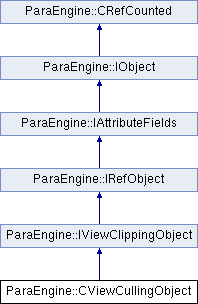

Inheritance diagram for ParaEngine::CViewCullingObject:

Public Member Functions
virtual CBaseObject::_SceneObjectType	GetType ()
virtual float	GetDepth ()
	get object depth: z axis
virtual float	GetWidth ()
	get object width: x axis
virtual FLOAT	GetHeight ()
	get object height y axis: only for object that has a Height property, usually is height of the bounding box
virtual void	SetRadius (FLOAT fRadius)
	Set the object shape to Sphere and sphere parameters. More...
virtual FLOAT	GetRadius ()
virtual DVector3	GetPosition ()
	get object position in the world space. More...
virtual void	SetAABB (const Vector3 *vMin, const Vector3 *vMax)
	Set AABB information. More...
virtual void	GetOBB (CShapeOBB *obb)
	get the oriented bounding box in world space. More...
virtual void	GetAABB (CShapeAABB *aabb)
virtual void	SetTransform (Matrix4 *pLocalTransform, const DVector3 &pGlobalPos, float *pRotation)
	Set a local transform matrix, a global position and a facing value, according to which the object will be transformed on demand, so that the transformed object can be used for efficient object-level view culling in ParaEngine. More...
virtual void	GetRenderVertices (Vector3 *pVertices, int *nNumber)
	this function is called by the game engine for rough object level clipped. More...
virtual Matrix4 *	GetWorldTransform (Matrix4 &pOut, int nRenderNumber=0)
	get world transform
Public Member Functions inherited from ParaEngine::IViewClippingObject
virtual ObjectShape	GetObjectShape ()
	get the object shape
virtual void	SetObjectShape (ObjectShape shape)
	set the object shape
virtual void	SetBoundingBox (float fOBB_X, float fOBB_Y, float fOBB_Z, float fFacing)
	Set the object shape to box and bounding box parameters if fFacing is 0, it is a axis aligned bounding box (AABB). More...
virtual void	GetBoundingBox (float *fOBB_X, float *fOBB_Y, float *fOBB_Z, float *fFacing)
virtual void	SetBoundRect (float fWidth, float fHeight, float fFacing)
	Set the object shape to rect (a plane) and rect parameters if fFacing is 0, it is a axis aligned bounding box (AABB). More...
virtual void	GetBoundRect (float *fWidth, float *fHeight, float *fFacing)
virtual void	GetVertices (Vector3 *pVertices, int *nNumber)
	get all the vertices which can represent the object's shape. More...
virtual void	GetVerticesWithOrigin (const Vector3 *vOrigin, Vector3 *pVertices, int *nNumber)
virtual void	SetPosition (const DVector3 &v)
	set the object position. More...
virtual void	Rotate (float x, float y, float z)
	Rotate the object.This only takes effects on objects having 3D orientation, such as static mesh and physics mesh. More...
virtual void	SetRotation (const Quaternion &quat)
	set rotation using a quaternion. More...
virtual void	GetRotation (Quaternion *quat)
	get rotation using a quaternion
virtual void	SetScaling (float s)
	set the scale of the object. More...
virtual float	GetScaling ()
	get the scaling. More...
virtual Vector3	GetRenderOffset ()
	get the offset(translation) of the object used for rendering. More...
virtual DVector3	GetObjectCenter ()
	get the center of the object in world space
virtual void	SetObjectCenter (const DVector3 &v)
	set the center of the object in world space
virtual void	GetFacing3D (Vector3 *pV)
	get object facing: only for object that has a facing property like biped, not bound facing
float	GetFacing ()
	same as GetYaw and SetYaw get object facing: only for object that has a facing property like biped, not bound facing The object is facing the positive x axis, if facing is 0.
void	SetFacing (float fFacing)
virtual float	GetYaw ()
	get object Yaw: is facing the positive x axis, if yaw is 0.
virtual void	SetYaw (float fFacing)
virtual float	GetPitch ()
	get object pitch: is facing the positive x axis, if yaw is 0.
virtual void	SetPitch (float fFacing)
virtual float	GetRoll ()
	get object roll: is facing the positive x axis, if yaw is 0.
virtual void	SetRoll (float fFacing)
virtual void	SetHeight (float fHeight)
virtual void	SetWidth (float fWidth)
virtual void	SetDepth (float fDepth)
virtual Vector3	GetNormal ()
virtual void	SetNormal (const Vector3 &pNorm)
virtual Vector3	GetLocalAABBCenter ()
virtual void	SetTransform (Matrix4 *pWorldTransform)
virtual Matrix4 *	GetRenderMatrix (Matrix4 &out, int nRenderNumber=0)
	return the world matrix of the object for rendering More...
virtual bool	TestCollisionSphere (const Vector3 *pvCenter, float radius, BYTE nMethod=1)
	– collision detection More...
virtual bool	TestCollisionSphere (CBaseCamera *pCamera, float fFarPlaneDistance)
	assume that the object is a sphere, it will return false if the sphere is completely out of the 6 frustum planes of the camera More...
virtual bool	TestShadowSweptSphere (CBaseCamera *pCamera, const Vector3 *pvDirection)
	assume that the object is a sphere, it will return false if the swept sphere along the given direction is completely out of the 6 frustum planes of the camera this function is usually used to test whether we need to render this object as shadow caster, where pvDirection is the current sun direction.
virtual bool	TestCollision (CBaseCamera *pCamera)
	check if the object's original shape can be seen via a camera. More...
virtual bool	TestCollisionObject (IViewClippingObject *pObj)
	desc: test if the object collide with this object in the world view. More...
virtual bool	TestCollisionRay (const Vector3 &vPickRayOrig, const Vector3 &vPickRayDir, float *fDistance)
	Desc: Check the ray intersection with the object input:vPickRayOrig,vPickRayDir: mouse ray params output: fDistance: the distance between the eye and the intersection point. More...
virtual float	GetSphereCollisionDepth (Vector3 *pvCenter, float radius, bool bSolveDepth=false)
	desc: this is similar to TestCollisionSphere, but does more than that. More...
virtual float	GetObjectCollisionDepth (IViewClippingObject *pObj)
	desc: test if the circle in the y=0 plane collide with this object in the world view Note: radius can be zero. More...
virtual float	GetObjectToPointDistance (const Vector3 *pPoint)
	get the distance from the object's surface to a given point. More...
virtual void	DrawBoundingBox (SceneState *sceneState, DWORD color)
	debugging only: draw bounding box
virtual void	DrawOcclusionObject (SceneState *sceneState)
	draw the occlusion object More...
virtual void	DebugDraw (IBatchedElementDraw *pDebugDraw)
	this function is called whenever debugging drawing is enabled. More...
Public Member Functions inherited from ParaEngine::IRefObject
virtual const std::string &	GetIdentifier ()
	get the name or identifier. More...
virtual void	SetIdentifier (const std::string &sID)
int	GetNameW (std::u16string &out)
	gets the unicode name
const std::string &	GetName ()
	alias name for GetIdentifier
IRefObject *	GetRefObjectByName (const char *sName)
RefListItem *	GetRefObjectByTag (int nTag)
	get the first reference object by its tag
bool	HasReferences ()
RefResult	AddReference (IRefObject *maker, int nTag=0)
	add a new reference. More...
RefResult	DeleteReference (IRefObject *ref)
	delete a reference. More...
RefResult	DeleteAllRefs ()
	Deletes all references of this object. More...
int	DeleteAllRefsByTag (int nTag=0)
	Deletes all references whose tag is nTag of this object. More...
RefList &	GetRefList ()
	get the ref list
int	GetRefObjNum ()
	get the total number of references
RefListItem *	GetRefObject (int nIndex)
	get the referenced object at the given index. More...
virtual void	OnRefAdded (IRefObject *rm, int nTag=0)
	This is called after another object added this object to its reference list. More...
virtual void	OnRefDeleted (IRefObject *rm)
	This is called after another object deleted this object from its reference list. More...
Public Member Functions inherited from ParaEngine::IAttributeFields
virtual int	GetAttributeClassID ()
	attribute class ID should be identical, unless one knows how overriding rules work. More...
virtual const char *	GetAttributeClassName ()
	a static string, describing the attribute class object's name
virtual const char *	GetAttributeClassDescription ()
	a static string, describing the attribute class object
virtual int	InstallFields (CAttributeClass *pClass, bool bOverride)
	this class should be implemented if one wants to add new attribute. More...
virtual int	GetChildAttributeColumnCount ()
	we support multi-dimensional child object. More...
virtual int	GetChildAttributeObjectCount (int nColumnIndex=0)
	get the number of child objects (row count) in the given column. More...
virtual IAttributeFields *	GetChildAttributeObject (int nRowIndex, int nColumnIndex=0)
virtual IAttributeFields *	GetChildAttributeObject (const std::string &sName)
	get attribute by child object. More...
	ATTRIBUTE_METHOD1 (IAttributeFields, GetName_s, const char **)
	ATTRIBUTE_METHOD1 (IAttributeFields, SetName_s, const char *)
	ATTRIBUTE_METHOD (IAttributeFields, PrintObject_s)
	ATTRIBUTE_METHOD (IAttributeFields, AddRef_s)
	ATTRIBUTE_METHOD1 (IAttributeFields, GetRefCount_s, int *)
	ATTRIBUTE_METHOD1 (IAttributeFields, SetTime_s, int)
	ATTRIBUTE_METHOD1 (IAttributeFields, GetTime_s, int *)
	ATTRIBUTE_METHOD (IAttributeFields, Release_s)
virtual bool	IsModified ()
	whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary. More...
virtual void	SetModified (bool bModified)
	set whether any field has been modified. More...
virtual bool	ValidateFields ()
	validate all fields and return true if validation passed. More...
virtual string	GetValidationMessage ()
	get the recent validation message due to the most recent call to ValidateFields()
virtual bool	ResetField (int nFieldID)
	Reset the field to its initial or default value. More...
virtual bool	InvokeEditor (int nFieldID, const std::string &sParameters)
	Invoke an (external) editor for a given field. More...
virtual bool	AddChildAttributeObject (IAttributeFields *pChild, int nRowIndex=-1, int nColumnIndex=0)
	add child object. More...
virtual void *	QueryObjectByName (const std::string &sObjectType)
	convert to object of a given type. More...
virtual void *	QueryObject (int nObjectType)
	convert to object of a given type. More...
virtual int	GetTime ()
	get the current local time in case it is animated in milli seconds frames. More...
virtual void	SetTime (int nTime)
virtual CDynamicAttributeField *	GetDynamicField (const std::string &sName)
	Get a dynamic field with a given name. More...
virtual CDynamicAttributeField *	GetDynamicField (int nIndex)
	Get a dynamic field with a given index. More...
virtual const char *	GetDynamicFieldNameByIndex (int nIndex)
	get field name by index
virtual int	GetDynamicFieldCount ()
	how many dynamic field this object currently have. More...
virtual int	SetDynamicField (const std::string &sName, const CVariable &value)
	set a dynamic field with a given name. More...
virtual int	AddDynamicField (const std::string &sName, ATTRIBUTE_FIELDTYPE dwType)
	add dynamic field and return field index
virtual void	RemoveAllDynamicFields ()
	remove all dynamic fields
virtual int	SaveDynamicFieldsToString (std::string &output)
	save only text dynamic fields to fieldname = value text strings. More...
virtual int	LoadDynamicFieldsFromString (const std::string &input)
	load only text dynamic fields from string More...
CAttributeClass *	GetAttributeClass ()
	get the main attribute class object. More...
void	PrintObject ()
	print the content of this object to a text file at temp/doc/[ClassName].txt. More...
Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...
virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...
virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...
virtual const IType *	GetType () const
virtual std::string	ToString () const
WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...
virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...
Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...
bool	delref () const
	decrease reference count of the object. More...
int	GetRefCount () const
	get the reference count
virtual int	Release ()
CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...

Additional Inherited Members
Public Types inherited from ParaEngine::IAttributeFields
typedef ParaEngine::weak_ptr< IObject, IAttributeFields >	WeakPtr_type
Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type
Static Public Member Functions inherited from ParaEngine::IAttributeFields
static HRESULT	GetAttributeClassID_s (IAttributeFields *cls, int *p1)
static HRESULT	GetAttributeClassName_s (IAttributeFields *cls, const char **p1)
static bool	OpenWithDefaultEditor (const char *sFilename, bool bWaitOnReturn=false)
	Open a given file with the default registered editor in the game engine. More...
Protected Member Functions inherited from ParaEngine::IAttributeFields
virtual CAttributeClass *	CreateAttributeClass ()
	initialize fields
virtual CDynamicAttributesSet *	GetDynamicAttributes (bool bCreateIfNotExist=false)
Protected Attributes inherited from ParaEngine::IRefObject
RefList	m_references
	This is the list of active references that refer to us.
std::string	m_sIdentifer
	unit name used in the scripting language
Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference
Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount

Detailed Description

It is used for object-level view culling.

A view clipping object is an AABB (axis aligned bounding box) which could transform itself according to a local transform matrix, a global position and a facing value, so that the transformed object can be used for efficient object-level view culling in ParaEngine. Currently the MeshEntity and mesh object uses this class as their default view culling object.

Member Function Documentation

GetAABB()

void ParaEngine::CViewCullingObject::GetAABB ( CShapeAABB *  aabb )

virtual

finally we will update the OBB.

Reimplemented from ParaEngine::IViewClippingObject.

GetOBB()

void CViewCullingObject::GetOBB ( CShapeOBB *  obb )

virtual

get the oriented bounding box in world space.

One may need to shift by the rendering origin if used on that purposes.

Parameters

obb

[out]

finally we will update the OBB.

Reimplemented from ParaEngine::IViewClippingObject.

GetPosition()

DVector3 CViewCullingObject::GetPosition ( )

virtual

get object position in the world space.

The position of an object is the bottom center of the object. most scene object will return the position using the following rules project the center of the shape to the bottom plane of the shape, the projection point at the bottom is returned as the object's world position. so it is different from the center of the object.

See also

GetObjectCenter(Vector3 *pV)

this is perhaps only for root scene

Reimplemented from ParaEngine::IViewClippingObject.

GetRadius()

virtual FLOAT ParaEngine::CViewCullingObject::GetRadius ( )

inlinevirtual

See also

SetRadius(FLOAT fRadius);

Reimplemented from ParaEngine::IViewClippingObject.

GetRenderVertices()

void CViewCullingObject::GetRenderVertices ( Vector3 *  pVertices, int *  nNumber  )

virtual

this function is called by the game engine for rough object level clipped.

We assume that the view culling object is a sphere.

this will make the components of world transform matrix consistent.(i.e. of the same magnitude.) hence it will correct floating point calculation imprecisions.

Reimplemented from ParaEngine::IViewClippingObject.

SetAABB()

void CViewCullingObject::SetAABB ( const Vector3 *  vMin, const Vector3 *  vMax  )

virtual

Set AABB information.

It is possibly attained from a mesh entity.

Reimplemented from ParaEngine::IViewClippingObject.

SetRadius()

void ParaEngine::CViewCullingObject::SetRadius ( FLOAT  fRadius )

virtual

Set the object shape to Sphere and sphere parameters.

Parameters

fRadius

radius

Reimplemented from ParaEngine::IViewClippingObject.

SetTransform()

void CViewCullingObject::SetTransform ( Matrix4 *  pLocalTransform, const DVector3 &  pGlobalPos, float *  pRotation  )

virtual

Set a local transform matrix, a global position and a facing value, according to which the object will be transformed on demand, so that the transformed object can be used for efficient object-level view culling in ParaEngine.

Please note, that the input pointers must be valid until the ClearTransform is called

get world transform matrix

get global position of the center of the view object

get the radius of the view object, we assume that a uniform scale is applied in pLocalTransform.

offset the global position to the bottom of the view object.

tricky code: Make OBB invalid, so that it is recomputed next time.

Reimplemented from ParaEngine::IViewClippingObject.

---

The documentation for this class was generated from the following files:

• Client/trunk/ParaEngineClient/3dengine/ViewCullingObject.h
• Client/trunk/ParaEngineClient/3dengine/ViewCullingObject.cpp
