Pure interface for CBaseObject (3D scene object) It defines basic shapes and collision detection. More...

#include <IViewClippingObject.h>

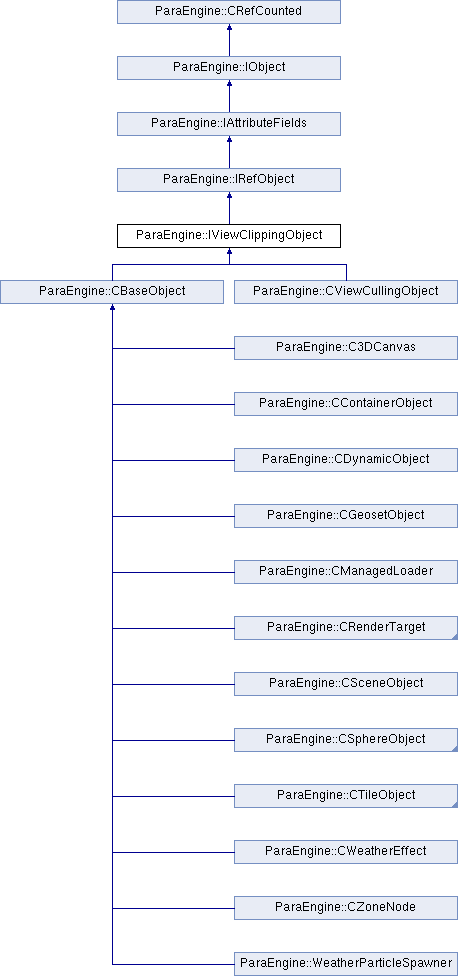

Inheritance diagram for ParaEngine::IViewClippingObject:

Public Member Functions
virtual ObjectShape	GetObjectShape ()
	get the object shape

virtual void	SetObjectShape (ObjectShape shape)
	set the object shape

virtual void	SetBoundingBox (float fOBB_X, float fOBB_Y, float fOBB_Z, float fFacing)
	Set the object shape to box and bounding box parameters if fFacing is 0, it is a axis aligned bounding box (AABB). More...

virtual void	GetBoundingBox (float fOBB_X, float fOBB_Y, float fOBB_Z, float fFacing)

virtual void	SetBoundRect (float fWidth, float fHeight, float fFacing)
	Set the object shape to rect (a plane) and rect parameters if fFacing is 0, it is a axis aligned bounding box (AABB). More...

virtual void	GetBoundRect (float fWidth, float fHeight, float *fFacing)

virtual void	SetRadius (float fRadius)
	Set the object shape to Sphere and sphere parameters. More...

virtual float	GetRadius ()

virtual void	GetVertices (Vector3 pVertices, int nNumber)
	get all the vertices which can represent the object's shape. More...

virtual void	GetRenderVertices (Vector3 pVertices, int nNumber)
	same as GetVertices(). More...

virtual void	GetVerticesWithOrigin (const Vector3 vOrigin, Vector3 pVertices, int *nNumber)

virtual DVector3	GetPosition ()
	get object position in the world space. More...

virtual void	SetPosition (const DVector3 &v)
	set the object position. More...

virtual void	Rotate (float x, float y, float z)
	Rotate the object.This only takes effects on objects having 3D orientation, such as static mesh and physics mesh. More...

virtual void	SetRotation (const Quaternion &quat)
	set rotation using a quaternion. More...

virtual void	GetRotation (Quaternion *quat)
	get rotation using a quaternion

virtual void	SetScaling (float s)
	set the scale of the object. More...

virtual float	GetScaling ()
	get the scaling. More...

virtual Vector3	GetRenderOffset ()
	get the offset(translation) of the object used for rendering. More...

virtual DVector3	GetObjectCenter ()
	get the center of the object in world space

virtual void	SetObjectCenter (const DVector3 &v)
	set the center of the object in world space

virtual void	GetFacing3D (Vector3 *pV)
	get object facing: only for object that has a facing property like biped, not bound facing

float	GetFacing ()
	same as GetYaw and SetYaw get object facing: only for object that has a facing property like biped, not bound facing The object is facing the positive x axis, if facing is 0.

void	SetFacing (float fFacing)

virtual float	GetYaw ()
	get object Yaw: is facing the positive x axis, if yaw is 0.

virtual void	SetYaw (float fFacing)

virtual float	GetPitch ()
	get object pitch: is facing the positive x axis, if yaw is 0.

virtual void	SetPitch (float fFacing)

virtual float	GetRoll ()
	get object roll: is facing the positive x axis, if yaw is 0.

virtual void	SetRoll (float fFacing)

virtual float	GetHeight ()
	get object height y axis: only for object that has a Height property, usually is height of the bounding box

virtual void	SetHeight (float fHeight)

virtual float	GetWidth ()
	get object width: x axis

virtual void	SetWidth (float fWidth)

virtual float	GetDepth ()
	get object depth: z axis

virtual void	SetDepth (float fDepth)

virtual Vector3	GetNormal ()

virtual void	SetNormal (const Vector3 &pNorm)

virtual void	GetOBB (CShapeOBB *obb)
	get the oriented bounding box in world space. More...

virtual void	GetAABB (CShapeAABB *aabb)

virtual void	SetAABB (const Vector3 vMin, const Vector3 vMax)
	Set local AABB information. More...

virtual Vector3	GetLocalAABBCenter ()

virtual void	SetTransform (Matrix4 pLocalTransform, const DVector3 &pGlobalPos, float pRotation)
	Set a local transform matrix, a global position and a facing value, according to which the object will be transformed on demand, so that the transformed object can be used for efficient object-level view culling in ParaEngine. More...

virtual void	SetTransform (Matrix4 *pWorldTransform)

virtual Matrix4 *	GetRenderMatrix (Matrix4 &out, int nRenderNumber=0)
	return the world matrix of the object for rendering More...

virtual Matrix4 *	GetWorldTransform (Matrix4 &pOut, int nRenderNumber=0)
	get world transform

virtual bool	TestCollisionSphere (const Vector3 *pvCenter, float radius, BYTE nMethod=1)
	– collision detection More...

virtual bool	TestCollisionSphere (CBaseCamera *pCamera, float fFarPlaneDistance)
	assume that the object is a sphere, it will return false if the sphere is completely out of the 6 frustum planes of the camera More...

virtual bool	TestShadowSweptSphere (CBaseCamera pCamera, const Vector3 pvDirection)
	assume that the object is a sphere, it will return false if the swept sphere along the given direction is completely out of the 6 frustum planes of the camera this function is usually used to test whether we need to render this object as shadow caster, where pvDirection is the current sun direction.

virtual bool	TestCollision (CBaseCamera *pCamera)
	check if the object's original shape can be seen via a camera. More...

virtual bool	TestCollisionObject (IViewClippingObject *pObj)
	desc: test if the object collide with this object in the world view. More...

virtual bool	TestCollisionRay (const Vector3 &vPickRayOrig, const Vector3 &vPickRayDir, float *fDistance)
	Desc: Check the ray intersection with the object input:vPickRayOrig,vPickRayDir: mouse ray params output: fDistance: the distance between the eye and the intersection point. More...

virtual float	GetSphereCollisionDepth (Vector3 *pvCenter, float radius, bool bSolveDepth=false)
	desc: this is similar to TestCollisionSphere, but does more than that. More...

virtual float	GetObjectCollisionDepth (IViewClippingObject *pObj)
	desc: test if the circle in the y=0 plane collide with this object in the world view Note: radius can be zero. More...

virtual float	GetObjectToPointDistance (const Vector3 *pPoint)
	get the distance from the object's surface to a given point. More...

virtual void	DrawBoundingBox (SceneState *sceneState, DWORD color)
	debugging only: draw bounding box

virtual void	DrawOcclusionObject (SceneState *sceneState)
	draw the occlusion object More...

virtual void	DebugDraw (IBatchedElementDraw *pDebugDraw)
	this function is called whenever debugging drawing is enabled. More...

Public Member Functions inherited from ParaEngine::IRefObject
virtual const std::string &	GetIdentifier ()
	get the name or identifier. More...

virtual void	SetIdentifier (const std::string &sID)

int	GetNameW (std::u16string &out)
	gets the unicode name

const std::string &	GetName ()
	alias name for GetIdentifier

IRefObject *	GetRefObjectByName (const char *sName)

RefListItem *	GetRefObjectByTag (int nTag)
	get the first reference object by its tag

bool	HasReferences ()

RefResult	AddReference (IRefObject *maker, int nTag=0)
	add a new reference. More...

RefResult	DeleteReference (IRefObject *ref)
	delete a reference. More...

RefResult	DeleteAllRefs ()
	Deletes all references of this object. More...

int	DeleteAllRefsByTag (int nTag=0)
	Deletes all references whose tag is nTag of this object. More...

RefList &	GetRefList ()
	get the ref list

int	GetRefObjNum ()
	get the total number of references

RefListItem *	GetRefObject (int nIndex)
	get the referenced object at the given index. More...

virtual void	OnRefAdded (IRefObject *rm, int nTag=0)
	This is called after another object added this object to its reference list. More...

virtual void	OnRefDeleted (IRefObject *rm)
	This is called after another object deleted this object from its reference list. More...

Public Member Functions inherited from ParaEngine::IAttributeFields
virtual int	GetAttributeClassID ()
	attribute class ID should be identical, unless one knows how overriding rules work. More...

virtual const char *	GetAttributeClassName ()
	a static string, describing the attribute class object's name

virtual const char *	GetAttributeClassDescription ()
	a static string, describing the attribute class object

virtual int	InstallFields (CAttributeClass *pClass, bool bOverride)
	this class should be implemented if one wants to add new attribute. More...

virtual int	GetChildAttributeColumnCount ()
	we support multi-dimensional child object. More...

virtual int	GetChildAttributeObjectCount (int nColumnIndex=0)
	get the number of child objects (row count) in the given column. More...

virtual IAttributeFields *	GetChildAttributeObject (int nRowIndex, int nColumnIndex=0)

virtual IAttributeFields *	GetChildAttributeObject (const std::string &sName)
	get attribute by child object. More...

	ATTRIBUTE_METHOD1 (IAttributeFields, GetName_s, const char **)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetName_s, const char *)

	ATTRIBUTE_METHOD (IAttributeFields, PrintObject_s)

	ATTRIBUTE_METHOD (IAttributeFields, AddRef_s)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetRefCount_s, int *)

	ATTRIBUTE_METHOD1 (IAttributeFields, SetTime_s, int)

	ATTRIBUTE_METHOD1 (IAttributeFields, GetTime_s, int *)

	ATTRIBUTE_METHOD (IAttributeFields, Release_s)

virtual bool	IsModified ()
	whether some of the fields are modified.It is up to the implementation class to provide this functionality if necessary. More...

virtual void	SetModified (bool bModified)
	set whether any field has been modified. More...

virtual bool	ValidateFields ()
	validate all fields and return true if validation passed. More...

virtual string	GetValidationMessage ()
	get the recent validation message due to the most recent call to ValidateFields()

virtual bool	ResetField (int nFieldID)
	Reset the field to its initial or default value. More...

virtual bool	InvokeEditor (int nFieldID, const std::string &sParameters)
	Invoke an (external) editor for a given field. More...

virtual bool	AddChildAttributeObject (IAttributeFields *pChild, int nRowIndex=-1, int nColumnIndex=0)
	add child object. More...

virtual void *	QueryObjectByName (const std::string &sObjectType)
	convert to object of a given type. More...

virtual void *	QueryObject (int nObjectType)
	convert to object of a given type. More...

virtual int	GetTime ()
	get the current local time in case it is animated in milli seconds frames. More...

virtual void	SetTime (int nTime)

virtual CDynamicAttributeField *	GetDynamicField (const std::string &sName)
	Get a dynamic field with a given name. More...

virtual CDynamicAttributeField *	GetDynamicField (int nIndex)
	Get a dynamic field with a given index. More...

virtual const char *	GetDynamicFieldNameByIndex (int nIndex)
	get field name by index

virtual int	GetDynamicFieldCount ()
	how many dynamic field this object currently have. More...

virtual int	SetDynamicField (const std::string &sName, const CVariable &value)
	set a dynamic field with a given name. More...

virtual int	AddDynamicField (const std::string &sName, ATTRIBUTE_FIELDTYPE dwType)
	add dynamic field and return field index

virtual void	RemoveAllDynamicFields ()
	remove all dynamic fields

virtual int	SaveDynamicFieldsToString (std::string &output)
	save only text dynamic fields to fieldname = value text strings. More...

virtual int	LoadDynamicFieldsFromString (const std::string &input)
	load only text dynamic fields from string More...

CAttributeClass *	GetAttributeClass ()
	get the main attribute class object. More...

void	PrintObject ()
	print the content of this object to a text file at temp/doc/[ClassName].txt. More...

Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...

virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...

virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...

virtual const IType *	GetType () const

virtual std::string	ToString () const

WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...

virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...

Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...

bool	delref () const
	decrease reference count of the object. More...

int	GetRefCount () const
	get the reference count

virtual int	Release ()

CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...

Additional Inherited Members
Public Types inherited from ParaEngine::IAttributeFields
typedef ParaEngine::weak_ptr< IObject, IAttributeFields >	WeakPtr_type

Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type

Static Public Member Functions inherited from ParaEngine::IAttributeFields
static HRESULT	GetAttributeClassID_s (IAttributeFields cls, int p1)

static HRESULT	GetAttributeClassName_s (IAttributeFields cls, const char *p1)

static bool	OpenWithDefaultEditor (const char *sFilename, bool bWaitOnReturn=false)
	Open a given file with the default registered editor in the game engine. More...

Protected Member Functions inherited from ParaEngine::IAttributeFields
virtual CAttributeClass *	CreateAttributeClass ()
	initialize fields

virtual CDynamicAttributesSet *	GetDynamicAttributes (bool bCreateIfNotExist=false)

Protected Attributes inherited from ParaEngine::IRefObject
RefList	m_references
	This is the list of active references that refer to us.

std::string	m_sIdentifer
	unit name used in the scripting language

Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference

Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount

Detailed Description

Pure interface for CBaseObject (3D scene object) It defines basic shapes and collision detection.

Member Function Documentation

§ DebugDraw()

void IViewClippingObject::DebugDraw ( IBatchedElementDraw * pDebugDraw )

virtual

this function is called whenever debugging drawing is enabled.

§ DrawOcclusionObject()

void IViewClippingObject::DrawOcclusionObject ( SceneState * sceneState )

virtual

draw the occlusion object

the occlusion object is defined in CBaseObject.

However, I may use more simplified model to draw the object. Currently I used the line primitive of the bounding box. Maybe Point primitive is enough(I tested it. it is not working well with point primitive even with fixed screen point size set.)

§ GetBoundingBox()

void ParaEngine::IViewClippingObject::GetBoundingBox	(	float *	fOBB_X,
		float *	fOBB_Y,
		float *	fOBB_Z,
		float *	fFacing
	)

virtual

See also: SetBoundingBox(float fOBB_X, float fOBB_Y, float fOBB_Z, float fFacing);

Reimplemented in ParaEngine::CBaseObject, and ParaEngine::CTileObject.

§ GetBoundRect()

void ParaEngine::IViewClippingObject::GetBoundRect	(	float *	fWidth,
		float *	fHeight,
		float *	fFacing
	)

virtual

See also: SetBoundRect(float fWidth ,float fHeight, float fFacing);

Reimplemented in ParaEngine::CBaseObject, and ParaEngine::CTileObject.

§ GetOBB()

void IViewClippingObject::GetOBB ( CShapeOBB * obb )

virtual

get the oriented bounding box in world space.

One may need to shift by the rendering origin if used on that purposes.

Parameters

obb [out]

Reimplemented in ParaEngine::CBipedObject, ParaEngine::CTileObject, and ParaEngine::CViewCullingObject.

§ GetObjectCollisionDepth()

FLOAT IViewClippingObject::GetObjectCollisionDepth ( IViewClippingObject * pObj )

virtual

desc: test if the circle in the y=0 plane collide with this object in the world view Note: radius can be zero.

We assume that test is done in the y=0 plane only

§ GetObjectToPointDistance()

float IViewClippingObject::GetObjectToPointDistance ( const Vector3 * pPoint )

virtual

get the distance from the object's surface to a given point.

the object is always treated as a sphere. If the point is not inside the object, a positive value is always returned. otherwise, a negative value will be returned.

§ GetPosition()

DVector3 IViewClippingObject::GetPosition ( )

virtual

get object position in the world space.

The position of an object is the bottom center of the object. most scene object will return the position using the following rules project the center of the shape to the bottom plane of the shape, the projection point at the bottom is returned as the object's world position. so it is different from the center of the object.

See also: GetObjectCenter(Vector3 *pV)

this is perhaps only for root scene

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CSkyMesh, ParaEngine::CSphereObject, ParaEngine::CViewCullingObject, ParaEngine::CZoneNode, and ParaEngine::CTileObject.

§ GetRadius()

virtual float ParaEngine::IViewClippingObject::GetRadius ( )

inlinevirtual

See also: SetRadius(float fRadius);

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CSphereObject, ParaEngine::CTileObject, and ParaEngine::CViewCullingObject.

§ GetRenderMatrix()

Matrix4 * ParaEngine::IViewClippingObject::GetRenderMatrix	(	Matrix4 &	out,
		int	nRenderNumber = `0`
	)

virtual

return the world matrix of the object for rendering

Parameters

out	the output.
nRenderNumber	if it is bigger than current calculated render number, the value will be recalculated. If 0, it will not recalculate

Returns: : same as out. or NULL if not exists.

set facing and rotate local matrix round y axis

Reimplemented in ParaEngine::CBipedObject, ParaEngine::CMeshPhysicsObject, ParaEngine::CMeshObject, ParaEngine::CLightObject, ParaEngine::BMaxObject, and ParaEngine::CadModelNode.

§ GetRenderOffset()

Vector3 IViewClippingObject::GetRenderOffset ( )

virtual

get the offset(translation) of the object used for rendering.

the rendering offset will translate the object from the world coordinate system to the scene's rendering coordinate system.This will make the components of world transform matrix consistent.(i.e. of the same magnitude.) hence it will correct floating point calculation imprecisions, due to large object coordinates, such as (20000.01). Notes: both the render function and the camera will use the render offset, instead of GetPosition() to get the position of the render object. This function will internally call the virtual function GetPosition().

Returns: : the offset returned.

See also: : GetRenderOrigin().

§ GetRenderVertices()

void IViewClippingObject::GetRenderVertices	(	Vector3 *	pVertices,
		int *	nNumber
	)

virtual

same as GetVertices().

Except that the vertices returned are for rendering, not for physics.

Reimplemented in ParaEngine::CViewCullingObject.

§ GetScaling()

float ParaEngine::IViewClippingObject::GetScaling ( )

virtual

get the scaling.

Reimplemented in ParaEngine::CBipedObject, ParaEngine::CMeshPhysicsObject, ParaEngine::BMaxObject, ParaEngine::CMeshObject, ParaEngine::CadModelNode, and ParaEngine::CVoxelMesh.

§ GetSphereCollisionDepth()

FLOAT IViewClippingObject::GetSphereCollisionDepth	(	Vector3 *	pvCenter,
		float	radius,
		bool	bSolveDepth = `false`
	)

virtual

desc: this is similar to TestCollisionSphere, but does more than that.

a depth value is returned test if the object collide with this object in the world view. Currently the pObj is regarded as a spherical/circular object. mostly it's a biped object. And this object can have shape of any type.

pvCenter[in/out]: bSolveDepth: true, the pvCenter will be changed to align to the nearest edge, if the original depth value is greater than 0. after alignment the value will be 0.

return the depth of collision, the large this value, the deeper the two object run into each other if this value is smaller than or equal to 0, then no collision is detected

§ GetVertices()

void IViewClippingObject::GetVertices	(	Vector3 *	pVertices,
		int *	nNumber
	)

virtual

get all the vertices which can represent the object's shape.

This is used for view clipping. for sphere shaped object: 8 vertices of a axis aligned bounding box of the sphere is returned for box shaped object: The eight points of the bounding box is returned. for rect shaped object: The 4 points of the bounding box is returned. for circle shaped object: The 4 points of the bounding box of the circle is returned. pVertices: out parameter for storing the vertices, must be at least Vector3[8] nNumber: out parameter storing the number of vertices returned

Reimplemented in ParaEngine::CPortalNode.

§ Rotate()

void IViewClippingObject::Rotate	(	float	x,
		float	y,
		float	z
	)

virtual

Rotate the object.This only takes effects on objects having 3D orientation, such as static mesh and physics mesh.

The orientation is computed in the following way: first rotate around x axis, then around y, finally z axis.

Parameters

x	rotation around the x axis.
y	rotation around the y axis.
z	rotation around the z axis.

Reimplemented in ParaEngine::CBipedObject, ParaEngine::CMeshPhysicsObject, ParaEngine::C3DCanvas, ParaEngine::CLightObject, ParaEngine::CCanvasCamera, ParaEngine::CMeshObject, and ParaEngine::CadModelNode.

§ SetAABB()

void ParaEngine::IViewClippingObject::SetAABB	(	const Vector3 *	vMin,
		const Vector3 *	vMax
	)

virtual

Set local AABB information.

It is possibly attained from a mesh entity.

Reimplemented in ParaEngine::CTileObject, and ParaEngine::CViewCullingObject.

§ SetBoundingBox()

void ParaEngine::IViewClippingObject::SetBoundingBox	(	float	fOBB_X,
		float	fOBB_Y,
		float	fOBB_Z,
		float	fFacing
	)

virtual

Set the object shape to box and bounding box parameters if fFacing is 0, it is a axis aligned bounding box (AABB).

The bounding sphere is set to radius of bounding box's the smallest spherical container

Parameters

fOBB_X	object bounding box.x
fOBB_Y	object bounding box.y
fOBB_Z	object bounding box.z
fFacing	rotation of the bounding box around the y axis.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CMeshPhysicsObject, and ParaEngine::CTileObject.

§ SetBoundRect()

virtual void ParaEngine::IViewClippingObject::SetBoundRect	(	float	fWidth,
		float	fHeight,
		float	fFacing
	)

inlinevirtual

Set the object shape to rect (a plane) and rect parameters if fFacing is 0, it is a axis aligned bounding box (AABB).

Parameters

fWidth	plane width or x
fHeight	plane height or y.
fFacing	rotation of the plane around the y axis.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CMeshPhysicsObject, and ParaEngine::CTileObject.

§ SetPosition()

void IViewClippingObject::SetPosition ( const DVector3 & v )

virtual

set the object position.

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CBipedObject, ParaEngine::CMeshPhysicsObject, ParaEngine::CSkyMesh, ParaEngine::CMissileObject, ParaEngine::CSphereObject, ParaEngine::CBlockDynamicObject, ParaEngine::CZoneNode, ParaEngine::CTileObject, ParaEngine::CMeshObject, and ParaEngine::CadModelNode.

§ SetRadius()

virtual void ParaEngine::IViewClippingObject::SetRadius ( float fRadius )

inlinevirtual

Set the object shape to Sphere and sphere parameters.

Parameters

fRadius radius

Reimplemented in ParaEngine::CBaseObject, ParaEngine::CMeshPhysicsObject, ParaEngine::CSphereObject, ParaEngine::CTileObject, and ParaEngine::CViewCullingObject.

§ SetRotation()

void IViewClippingObject::SetRotation ( const Quaternion & quat )

virtual

set rotation using a quaternion.

Reimplemented in ParaEngine::CMeshPhysicsObject, ParaEngine::CMeshObject, and ParaEngine::CadModelNode.

§ SetScaling()

void ParaEngine::IViewClippingObject::SetScaling ( float s )

virtual

set the scale of the object.

This function takes effects on both character object and mesh object.

Parameters

s	scaling applied to all axis.1.0 means original size.

Reimplemented in ParaEngine::CBipedObject, ParaEngine::CMeshPhysicsObject, ParaEngine::CLightObject, ParaEngine::BMaxObject, ParaEngine::CMeshObject, ParaEngine::CadModelNode, and ParaEngine::CVoxelMesh.

§ SetTransform()

void ParaEngine::IViewClippingObject::SetTransform	(	Matrix4 *	pLocalTransform,
		const DVector3 &	pGlobalPos,
		float *	pRotation
	)

virtual

Set a local transform matrix, a global position and a facing value, according to which the object will be transformed on demand, so that the transformed object can be used for efficient object-level view culling in ParaEngine.

Please note, that the input pointers must be valid until the ClearTransform is called

Reimplemented in ParaEngine::CViewCullingObject.

§ TestCollision()

bool IViewClippingObject::TestCollision ( CBaseCamera * pCamera )

virtual

check if the object's original shape can be seen via a camera.

it will return false if the object is completely out of the 6 frustum planes of the camera

Reimplemented in ParaEngine::CBlockDynamicObject, ParaEngine::CZoneNode, and ParaEngine::CPortalNode.

§ TestCollisionObject()

bool IViewClippingObject::TestCollisionObject ( IViewClippingObject * pObj )

virtual

desc: test if the object collide with this object in the world view.

Currently the pObj is regarded as a spherical/circular object. mostly it's a biped object. And this object can have shape of any type.

§ TestCollisionRay()

bool IViewClippingObject::TestCollisionRay	(	const Vector3 &	vPickRayOrig,
		const Vector3 &	vPickRayDir_,
		float *	fDistance
	)

virtual

Desc: Check the ray intersection with the object input:vPickRayOrig,vPickRayDir: mouse ray params output: fDistance: the distance between the eye and the intersection point.

this is only set when it's intersection in the first place return: true if they collide. note: TODO: currently the caller should always be the biped class

Let:a = Dx2 + Dy2 + Dz2; (for normalized rays, a=1) b = 2[ Dx(x0 �Ccx) + Dy(y0 �Ccy) + Dz(z0 �Ccz)] c = (x0 �Ccx)2 +(y0 �Ccy)2 +(z0 �Ccz)2-r2 Then: t = (-b �� sqrt(b2 �C 4ac))/2a if (b2 �C 4ac) < 0, the ray does not intersect the sphere; if (b2 �C 4ac) = 0, the ray grazes the sphere; if (b2 �C 4ac) > 0, the ray enters and passes through the sphere, exiting on the other side. Use the smallest positive t to find the closest visible ray/sphere intersection point x(t), y(t), z(t),

§ TestCollisionSphere() [1/2]

bool IViewClippingObject::TestCollisionSphere	(	const Vector3 *	pvCenter,
		float	radius,
		BYTE	nMethod = `1`
	)

virtual

– collision detection

test if the sphere collides with this object in the world coordinate. this function is called by the game engine for object level clipping. The more accurate method will be slower. We assume that the view culling object is a box transformed from the AABB with the temporary transform information.

Parameters

pvCenter	center of the sphere to test against
radius	the radius of the sphere. It can be zero.
nMethod	whether this object will be treated as a 2D cylinder, a 3D sphere or the original shape. nMethod=0: The object is treated as its original shape.This may be slow. nMethod=1: both the incoming sphere and the object are treated as 2D circles. This is the fastest method, and is useful for rough object-level culling, even for 3D scenes; nMethod=2: both the incoming sphere and the object are treated as 3D sphere. This is a all very method, and is useful for rough object-level culling for 3D scenes; nMethod=3: reserved

nMethod=0: The object is treated as its original shape.This may be slow.
nMethod=1: both the incoming sphere and the object are treated as 2D circles. This is the fastest method, and is useful for rough object-level culling, even for 3D scenes;
nMethod=2: both the incoming sphere and the object are treated as 3D sphere. This is a all very method, and is useful for rough object-level culling for 3D scenes;
nMethod=3:

only test in the y=0 plane

we will first do a sphere based rough test

Parameters

nMethod = 1

§ TestCollisionSphere() [2/2]

bool IViewClippingObject::TestCollisionSphere	(	CBaseCamera *	pCamera,
		float	fFarPlaneDistance
	)

virtual

assume that the object is a sphere, it will return false if the sphere is completely out of the 6 frustum planes of the camera

Parameters

fFarPlaneDistance this value will replace the far plane.

Reimplemented in ParaEngine::CZoneNode, and ParaEngine::CPortalNode.

The documentation for this class was generated from the following files:

Client/trunk/ParaEngineClient/3dengine/IViewClippingObject.h
Client/trunk/ParaEngineClient/3dengine/IViewClippingObject.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

§ DebugDraw()

§ DrawOcclusionObject()

§ GetBoundingBox()

§ GetBoundRect()

§ GetOBB()

§ GetObjectCollisionDepth()

§ GetObjectToPointDistance()

§ GetPosition()

§ GetRadius()

§ GetRenderMatrix()

§ GetRenderOffset()

§ GetRenderVertices()

§ GetScaling()

§ GetSphereCollisionDepth()

§ GetVertices()

§ Rotate()

§ SetAABB()

§ SetBoundingBox()

§ SetBoundRect()

§ SetPosition()

§ SetRadius()

§ SetRotation()

§ SetScaling()

§ SetTransform()

§ TestCollision()

§ TestCollisionObject()

§ TestCollisionRay()

§ TestCollisionSphere() [1/2]

§ TestCollisionSphere() [2/2]
