#include <uview.hpp>

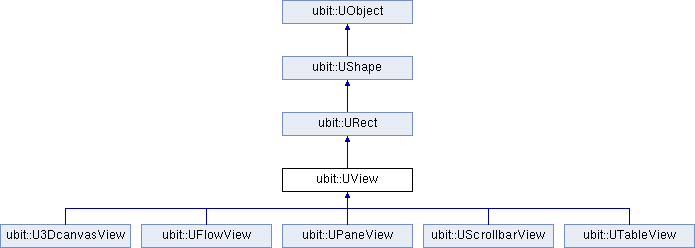

Inheritance diagram for ubit::UView:

Public Types
enum	FindMode { FIND_CLIP, FIND_VIEW_CONTEXT, FIND_PARENT_CONTEXT }

enum	VMODES { INITIALIZING = 1<<0, INITIALIZED = 1<<1, DAMAGED = 1<<2, DESTRUCTED = 1<<3, FIXED_WIDTH = 1<<4, FIXED_HEIGHT = 1<<5, REALIZED_CHILDREN = 1<<6, POS_HAS_CHANGED = 1<<9, SIZE_HAS_CHANGED = 1<<10, NO_DOUBLE_BUFFER = 1<< 11 }

typedef std::list< UViewProp * >	UViewProps

Public Types inherited from ubit::URect
enum	{ OUT_LEFT = 1, OUT_TOP = 2, OUT_RIGHT = 4, OUT_BOTTOM = 8 }

Public Types inherited from ubit::UShape
enum	ShapeType { LINE = 1, RECT = 2, ELLIPSE = 3, ARC = 4, POLYGON = 5 }

Public Types inherited from ubit::UObject
typedef unsigned char	State

typedef short	PtrCount

Public Member Functions
	UView (UBox , UView parview, UHardwinImpl *)

virtual UFlowView *	toFlowView ()

virtual UTableView *	toTableView ()

virtual UPaneView *	toPaneView ()

bool	isShown () const
	returns true if this view is currently shown.

bool	isRealized () const
	returns true if system resources have been allocated.

float	getWidth () const
	returns the width of the view.

float	getHeight () const
	returns the height of the view.

UDimension	getSize () const
	returns the size of the view.

void	setSize (const UDimension &)
	changes the size of the view (see details). More...

float	getX () const
	returns the x position of the view relatively to its parent origin.

float	getY () const
	returns the y position of the view relatively to its parent origin.

UPoint	getPos () const
	returns the position of the view relatively to its parent origin.

UPoint	getPosIn (UView &ref_view) const
	returns the position of the view relatively to the view given as an argument.

UPoint	getScreenPos () const
	returns the position of the view relatively to the screen origin.

UPoint	getGLPos () const
	returns the position of the view relatively to its hard window in GL coordinates. More...

UPoint	getHardwinPos () const
	returns the position of the view relatively to its hard window. More...

float	getScale () const
	returns the scaling factor applied to this view.

virtual bool	caretPosToXY (long caret_pos, int &xcol, int &yline) const
	convert a caret position to XY coordinates. More...

virtual bool	xyToCaretPos (int line, int col, long &caret_pos) const
	convert XY coordinates to a caret position. More...

UBox *	getBox () const
	returns the widget that controls this view.

UBox *	getBoxParent () const
	returns the closest UBox parent of getBox() (which is not necessarily a direct parent).

UView *	getParentView () const
	returns the parent view (if any, null for window views).

UDisp *	getDisp () const
	returns the Display where this view is displayed.

UWin *	getWin () const
	returns the Window where this view is displayed.

UView *	getWinView () const
	returns the view of the Window where this view is displayed.

UHardwinImpl *	getHardwin () const
	returns the hard window that contains this view.

bool	isChildOf (const std::vector< UView *> &parent_views)

virtual bool	containsWC (const UPoint &pos_in_win)
	returns true if this point (in window coordinates) in contained in this view.

virtual void	updateLayout (const UDimension *force_size, bool upd_paint_data=true)
	[Impl] updates layout coordinates.

virtual void	updatePaintData (const URect *region=null)
	[Impl] updates paint data (but does not paint). More...

virtual void	updatePaint (const URect *region=null)
	[Impl] paints this view or a part of this view. More...

virtual UView *	findSource (UViewFind &, UPoint &pos_in_src)
	[Impl].

virtual UView *	findSourceNext (UViewFind &, UPoint &pos_in_src)
	[Impl].

virtual bool	findContext (UViewContext &, FindMode)
	[Impl].

virtual UData *	findData (UDataContext &, const UPoint &pos, const UData *searched_data, int strpos1, int strpos2)
	[Impl].

void	operator delete (void *)

int	getVModes () const

bool	hasVMode (int modes) const

void	addVModes (long modes)

void	removeVModes (long modes)

virtual UViewStyle *	getViewStyle ()

UView *	getNext ()

template<typename T >
T *	getProp (T *&p)

template<typename T >
T &	obtainProp (T *&p)

void	incrHFlexCount ()

void	incrVFlexCount ()

void	setScale (float s)

virtual bool	doLayout (UUpdateContext &, UViewLayout &)

virtual void	doUpdate (UUpdateContext &, URect r, URect clip, UViewUpdate &)

Public Member Functions inherited from ubit::URect
int	getShapeType () const

	URect (float _x, float _y, float _w, float _h)

	URect (const UPoint &p1, const UPoint &p2)

URect	getBounds () const
	returns the bounding box of this shape.

bool	isEmpty () const

void	setRect (const URect &r)

void	setRect (float x, float y, float width, float height)

void	setRect (const UPoint &p1, const UPoint &p2)

void	setFrame (const URect &r)

bool	contains (const UPoint &) const
	tests if a given point is inside the boundary of this Shape.

bool	contains (const URect &) const
	tests if the interior of this Shape entirely contains the specified Rectangle

bool	intersects (const URect &) const
	tests if this Rectangle intersects the interior of a specified Rectangle.

bool	intersectsLine (const ULine &) const
	tests if the specified line segment intersects the interior of this Rectangle.

bool	doIntersection (const URect &)
	performs the intersection with the rectangle that is given as an argument. More...

void	doUnion (const URect &)
	performs the union with the rectangle that is given as an argument. More...

int	outcode (const UPoint &p) const
	determines where the specified coordinates lie with respect to this Rectangle.

virtual void	draw (const UGraph &) const

virtual void	fill (const UGraph &) const

Public Member Functions inherited from ubit::UObject
	UObject (const UObject &)

UObject &	operator= (const UObject &)

virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...

const UStr &	getClassName () const
	returns getClass().getName().

virtual void	error (const char function_name, const char format,...) const
	prints out an error message. More...

virtual void	warning (const char function_name, const char format,...) const
	prints out a warning message: More...

bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...

bool	isConst () const
	checks whether the content of this object can be modified ( More...

UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...

bool	isAutoUpdate () const
	return current update policy: More...

UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...

bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.

UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.

virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.

virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.

virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.

virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.

virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.

virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.

virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.

virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.

virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.

State	getState () const
	returns the current object state.

void	setState (State s)
	changes the object state.

PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.

bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...

bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).

bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).

virtual bool	hasSceneGraphParent () const

void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...

void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.

void	addPtr () const
	[Impl] a uptr is added to this object.

void	removePtr () const
	[Impl] a uptr is removed from this object.

Static Public Member Functions
static UPoint	convertPosTo (const UView &to, const UView &from, const UPoint &pos_in_from)
	converts position in 'from' view to position in 'to' view. More...

static UView *	createView (UBox , UView parview, UHardwinImpl *)

Static Public Member Functions inherited from ubit::UObject
static const char *	getVersion ()
	returns the version of the Ubit package.

static const UClass &	Class ()
	class method that returns the metaclass of this class. More...

static UStyle *	createStyle ()

Static Public Attributes
static UViewStyle	style

Static Public Attributes inherited from ubit::UObject
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...

Protected Member Functions
void	setParentView (UView *parent_view)

void	setNext (UView *v)

virtual void	doLayout2 (UViewLayoutImpl &, UElem &, UUpdateContext &, UViewLayout &)

virtual void	doUpdate2 (UViewUpdateImpl &, UElem &, UUpdateContext &, URect &r, URect &clip, UViewUpdate &)

virtual bool	updatePos (UViewUpdateImpl &, UElem &, UUpdateContext &curctx, URect &r, URect &clip, UViewUpdate &)

virtual void	beginUpdate3d (UViewUpdateImpl &, UElem &, UUpdateContext &curctx)

virtual void	endUpdate3d (UViewUpdateImpl &, UElem &, UUpdateContext &curctx)

virtual UView *	findInBox (UBox *, const UPoint &winpos, const UUpdateContext &, UViewFind &)

virtual UView *	findInGroup (UElem *, const UPoint &winpos, const UUpdateContext &, UViewFind &)

virtual UView *	findInChildren (UElem *, const UPoint &winpos, const UUpdateContext &, UViewFind &)

virtual bool	findDataV (UUpdateContext &, UChildIter data_iter, UChildIter end_iter, const URect &, UViewUpdate &)

virtual bool	findDataH (UUpdateContext &, UChildIter data_iter, UChildIter end_iter, const URect &, UViewUpdate &)

virtual bool	findDataPtr (UUpdateContext &, UChildIter data_iter, UChildIter end_iter, const URect &, UViewUpdate &)

Static Protected Member Functions
static void	initLayoutH (UViewUpdateImpl &vd, const UUpdateContext &curp, const URect &r)

static void	initLayoutV (UViewUpdateImpl &vd, const UUpdateContext &curp, const URect &r)

static void	initLayoutViewport (UViewUpdateImpl &vd, const UUpdateContext &curp, const URect &r)

static void	layoutH (UViewUpdateImpl &vd, const UUpdateContext &curp, UChildIter link, const UDimension &dim, UElem chgrp, UView chview)

static void	layoutV (UViewUpdateImpl &vd, const UUpdateContext &curp, UChildIter link, const UDimension &dim, UElem chgrp, UView chview)

static void	layoutViewport (UViewUpdateImpl &vd, const UUpdateContext &curp, UChildIter link, const UDimension &dim, UView *chview)

Protected Attributes
int	vmodes

float	scale

float	chwidth

float	chheight

float	edit_shift

unsigned short	hflex_count

unsigned short	vflex_count

UView *	parview

UBox *	box

UHardwinImpl *	hardwin

UView *	next

UViewProps	props

Protected Attributes inherited from ubit::UObject
PtrCount	ptr_count

Modes	omodes

State	ostate

Friends
class	UBox

class	UWin

class	UHardwinImpl

class	USubwin

class	UChild

class	UViewLayoutImpl

class	UViewUpdateImpl

class	UAppliImpl

class	UInputEvent

class	UEventFlow

class	U3DcanvasView

Additional Inherited Members
Public Attributes inherited from ubit::URect
float	x

float	y

float	width

float	height

Detailed Description

Box View.

UBox objects (and subclasses except UWin) can have several views. these views can be retrieved by methods UBox::getView(), UBox::getViews(), etc.

Note: UWin objects (and subclasses) have only onse (shared) view that is called the "window view".

Member Function Documentation

§ caretPosToXY()

bool UView::caretPosToXY	(	long	caret_pos,
		int &	xcol,
		int &	yline
	)		const

virtual

convert a caret position to XY coordinates.

returns false if the conversion did not succeeded.

Reimplemented in ubit::UFlowView.

§ convertPosTo()

UPoint UView::convertPosTo	(	const UView &	to,
		const UView &	from,
		const UPoint &	pos_in_from
	)

static

converts position in 'from' view to position in 'to' view.

both views must be on the same UDisp. returns false if the conversion failed.

§ getGLPos()

UPoint UView::getGLPos ( ) const

returns the position of the view relatively to its hard window in GL coordinates.

y is relative to the BOTTOM left corner.

See also: getHardwinPos() to obtain x,y in 'normal' coordinates

§ getHardwinPos()

UPoint UView::getHardwinPos ( ) const

returns the position of the view relatively to its hard window.

y is relative to the TOP left corner

See also
getGLPos() to obtain x,y in OpenGL coordinates
NB: coordinates are always relative to the topmost hard window (USubwin hard windows are not taken into account)

§ setSize()

void UView::setSize ( const UDimension & s )

changes the size of the view (see details).

Note that most box views are layed out automatically. Calling setSize() on such views won't have the expected effect because their size is controlled by the layout manager.

§ updatePaint()

void UView::updatePaint ( const URect * region = null )

virtual

[Impl] paints this view or a part of this view.

note that 'region', must be in window coordinates if provided.

§ updatePaintData()

void UView::updatePaintData ( const URect * region = null )

virtual

[Impl] updates paint data (but does not paint).

certain coordinates (related to scrolling etc.) are updated while painting. this function updates them without acutally painting

§ xyToCaretPos()

bool UView::xyToCaretPos	(	int	line,
		int	col,
		long &	caret_pos
	)		const

virtual

convert XY coordinates to a caret position.

returns false if the conversion did not succeeded.

Reimplemented in ubit::UFlowView.

The documentation for this class was generated from the following files:

src/ubit/uview.hpp
src/ubit/u3d.cpp
src/ubit/uview.cpp
src/ubit/uviewlayout.cpp
src/ubit/uviewupdate.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

§ caretPosToXY()

§ convertPosTo()

§ getGLPos()

§ getHardwinPos()

§ setSize()

§ updatePaint()

§ updatePaintData()

§ xyToCaretPos()
