Base class for 1D entities. More...
#include <LineBase.h>

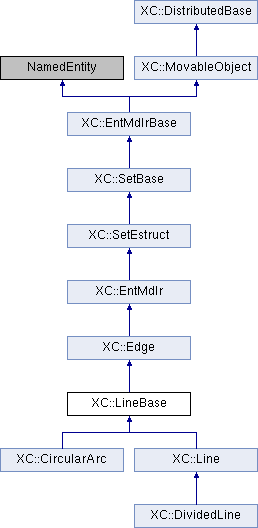

Inheritance diagram for XC::LineBase:
Public Member Functions | |
| LineBase (Preprocessor *m, const size_t &ndiv=4) | |
| Constructor. | |
| LineBase (const std::string &nombre, Preprocessor *m, const size_t &ndiv=4) | |
| Constructor. | |
| const Pnt * | P1 (void) const |
| Returns a constant pointer to start point. | |
| const Pnt * | P2 (void) const |
| Returns a constant pointer to end point. | |
| virtual double | getLambda (const Pos3d &) const =0 |
| virtual const Pnt * | getVertex (const size_t &i) const |
| Return the i-th vertex. | |
| virtual void | SetVertice (const size_t &, Pnt *) |
| Sets the i-th vertex. | |
| void | SetVertice (const size_t &, const size_t &) |
| Sets the i-th vertex. | |
| void | SetVertices (Pnt *, Pnt *) |
| Assigns line ends. | |
 Public Member Functions inherited from XC::Edge | |
| Edge (Preprocessor *m, const size_t &nd=4) | |
| Constructor. More... | |
| Edge (const std::string &nombre="", Preprocessor *m=nullptr, const size_t &nd=4) | |
| Constructor. More... | |
| virtual unsigned short int | GetDimension (void) const |
| Return the object dimension (0, 1, 2 or 3). | |
| bool | In (const GeomObj3d &, const double &tol=0.0) const |
| Returns true if the line lies inside the geometric object. More... | |
| bool | Out (const GeomObj3d &, const double &tol=0.0) const |
| Returns true if the line lies outside the geometric object. More... | |
| bool | ExtremosEn (const Pnt *, const Pnt *) const |
| Returns true if the points passed as parameters are the ends of the edge. More... | |
| virtual size_t | getNumberOfVertices (void) const =0 |
| Return the number of vertices. | |
| virtual double | getLength (void) const =0 |
| std::vector< int > | getIndicesVertices (void) const |
| Return indices of the vertices. | |
| virtual ID | getKPoints (void) const |
| Return k-points. | |
| virtual void | SetNDiv (const size_t &) |
| Assigns the number of of divisions. More... | |
| virtual size_t | NDiv (void) const |
| void | SetElemSize (const double &sz) |
| Compute the number of divisions necessary to get the element size passed as parameter. More... | |
| std::set< const XC::Edge * > | getHomologousSides (const std::set< const XC::Edge *> &) const |
| Return the homologous sides to that passed as a parameter. | |
| void | update_topology (void) |
| Update topology. | |
| const std::set< const Face * > & | getConnectedSurfaces (void) const |
| Return the surfaces that touch the line. | |
| const std::string & | getConnectedSurfacesNames (void) const |
| Return the surface names that touch the line. More... | |
| bool | isConnectedTo (const Face &s) const |
| Return true if the line touches the surface (neighbor). | |
| bool | isConnectedTo (const Body &b) const |
| Return true if the line touches the body. | |
| bool | Extremo (const Pnt &) const |
| Return true if it is an end point of the line. | |
| virtual BND3d | Bnd (void) const =0 |
| virtual void | create_nodes (void) |
| Create nodes on objects. | |
| virtual void | genMesh (meshing_dir dm) |
| Trigger mesh generation. | |
| virtual Pos3dArray | get_positions (void) const =0 |
| virtual Pos3dArray | get_nodes_pos (void) const |
| Return a matrix of positions along the line. | |
| virtual Node * | getNode (const size_t &i1, const size_t &j, const size_t &k=1) |
| Return a pointer to node whose indices are passed as parameters. More... | |
| virtual const Node * | getNode (const size_t &i, const size_t &j, const size_t &k=1) const |
| Return a pointer to node whose indices are passed as parameters. More... | |
| virtual Node * | getNode (const size_t &i) |
| Return a pointer to node whose index is passed as parameter. More... | |
| virtual const Node * | getNode (const size_t &i) const |
| Return a pointer to node whose index is passed as parameter. More... | |
| Node * | getNodeForward (const size_t &i) |
| Returns the node whose ordinal index is passed as parameter, starting from the beginning. More... | |
| const Node * | getNodeForward (const size_t &i) const |
| Return the node whose ordinal index is passed as parameter, starting from the beginning. More... | |
| Node * | getNodeReverse (const size_t &i) |
| Return the node whose ordinal index is passed as parameter, starting from the end. More... | |
| const Node * | getNodeReverse (const size_t &i) const |
| Return the node whose ordinal index is passed as parameter, starting from the end. More... | |
| Node * | getFirstNode (void) |
| Return the first node of the line. | |
| const Node * | getFirstNode (void) const |
| Return the first node of the line. | |
| Node * | getLastNode (void) |
| Return the last node of the line. | |
| const Node * | getLastNode (void) const |
| Return the last node of the line. | |
| std::vector< int > | getTagsNodesForward (void) const |
| Return the IDs of the nodes in forward order. | |
| std::vector< int > | getTagsNodesReverse (void) const |
| Return the IDs of the nodes in reverse order. | |
| Pos3dArray | getNodePosForward (void) const |
| Return the positions of the nodes in forward order. | |
| Pos3dArray | getNodePosReverse (void) const |
| Return the positions of the nodes in reverse order. | |
| std::set< SetBase * > | get_sets (void) const |
| Return the sets to wich this edge belongs. | |
| void | add_to_sets (std::set< SetBase *> &) |
| Add the «edge» to the sets passed as parameters. | |
| virtual const Vector & | getTang (const double &) const |
| Return a vector tangent to the line in point at parameter s. | |
| void | divide (void) |
| Create points along the line. | |
| Public Member Functions inherited from XC::EntMdlr | |
| EntMdlr (Preprocessor *m, const size_t &i=0) | |
| Constructor. | |
| EntMdlr (const std::string &nombre="", const size_t &i=0, Preprocessor *m=nullptr) | |
| Constructor. More... | |
| EntMdlr (const EntMdlr &) | |
| Copy constructor. | |
| EntMdlr & | operator= (const EntMdlr &) |
| Assignment operator. | |
| virtual void | set_index (const size_t &i) |
| Assigns the objects index for its use in VTK arrays(see numera in Set). More... | |
| size_t | getIdx (void) const |
| Returns the index of the object for it use in VTK arrays. | |
| bool | hasNodes (void) const |
| virtual size_t | getNumNodeLayers (void) const |
| virtual size_t | getNumNodeRows (void) const |
| virtual size_t | getNumNodeColumns (void) const |
| virtual size_t | getNumElementLayers (void) const |
| virtual size_t | getNumElementRows (void) const |
| virtual size_t | getNumElementColumns (void) const |
| Node * | getNearestNode (const Pos3d &p) |
| Return the node closest to the point being passed as parameter. | |
| const Node * | getNearestNode (const Pos3d &p) const |
| Return the node closest to the point being passed as parameter. | |
| ID | getNodeIndices (const Node *) const |
| Return the indexes of the node being passed as parameter. | |
| virtual Element * | getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) |
| Returns a pointer to the element which indexes are being passed as paremeters. More... | |
| virtual const Element * | getElement (const size_t &i=1, const size_t &j=1, const size_t &k=1) const |
| Returns a pointer to the element which indices are being passed as paremeters. More... | |
| Node * | findNode (const int &tag) |
| Returns a pointer to the node cuyo identifier is being passed as parameter. | |
| const Node * | findNode (const int &tag) const |
| Returns a pointer to the node cuyo identifier is being passed as parameter. | |
| Element * | findElement (const int &) |
| Returns a pointer to the element identified by the tag being passed as parameter. More... | |
| const Element * | findElement (const int &) const |
| Returns a pointer to the element identified by the tag being passed as parameter. More... | |
| Element * | getNearestElement (const Pos3d &p) |
| Return the element closest to the point being passed as parameter. | |
| const Element * | getNearestElement (const Pos3d &p) const |
| Return the element closest to the point being passed as parameter. | |
| NodePtrArray3d & | getTtzNodes (void) |
| const NodePtrArray3d & | getTtzNodes (void) const |
| ElemPtrArray3d & | getTtzElements (void) |
| const ElemPtrArray3d & | getTtzElements (void) const |
| IRowSet | getVarRefIRow (size_t f=1, size_t c=1, const std::string &nmb="tmp") |
| IRowSet | getVarRefIRow (const RangoIndice &layer_range, size_t f, size_t c, const std::string &nmb="tmp") |
| IRowSet | getVarRefIRow (const Array3dRange &rango, const std::string &nmb="tmp") |
| JRowSet | getVarRefJRow (size_t layer=1, size_t c=1, const std::string &nmb="tmp") |
| JRowSet | getVarRefJRow (size_t layer, const RangoIndice &row_range, size_t c, const std::string &nmb="tmp") |
| JRowSet | getVarRefJRow (const Array3dRange &rango, const std::string &nmb="tmp") |
| KRowSet | getVarRefKRow (size_t layer=1, size_t f=1, const std::string &nmb="tmp") |
| KRowSet | getVarRefKRow (size_t layer, size_t f, const RangoIndice &column_range, const std::string &nmb="tmp") |
| KRowSet | getVarRefKRow (const Array3dRange &rango, const std::string &nmb="tmp") |
| void | fix (const SFreedom_Constraint &) |
| Fixes the nodes of the set. | |
| virtual int | getVtkCellType (void) const |
| Interfaz con VTK. | |
| void | setGenMesh (bool m) |
| Returns true if the points begins or ends in the line. | |
| const bool & | getGenMesh (void) const |
| Returns true if the points begins or ends in the line. | |
| virtual double | getSquaredDistanceTo (const Pos3d &pt) const |
| Return the squared distance to the position being passed as parameter. More... | |
| virtual double | getDistanceTo (const Pos3d &pt) const |
| Return the distance to the position being passed as parameter. | |
| Vector | getSimpsonWeights (const std::string &, const std::string &, const size_t &f=1, const size_t &c=1, const size_t &n=10) const |
| Return Simpson's weights. | |
| void | BorraPtrNodElem (void) |
| Clears pointer to nodes and elements. | |
| virtual Pos3d | getCentroid (void) const |
| Return the centroid of the object. | |
| virtual | ~EntMdlr (void) |
| Destructor. | |
| Public Member Functions inherited from XC::SetEstruct | |
| SetEstruct (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| SetEstruct (const SetEstruct &) | |
| Copy constructor. | |
| SetEstruct & | operator= (const SetEstruct &) |
| Assignment operator. | |
| virtual SetEstruct * | getCopy (void) const =0 |
| size_t | getNumberOfNodes (void) const |
| size_t | getNumberOfElements (void) const |
| bool | In (const Node *) const |
| Returns true if the node belongs to the set. | |
| bool | In (const Element *) const |
| Returns true if the element belongs to the set. | |
| bool | isIRow (void) const |
| Returns true if only the I index varies. | |
| bool | isJRow (void) const |
| Returns true if only the J index varies. | |
| bool | isKRow (void) const |
| Returns true if only the K index varies. | |
| bool | isIConstantLayer (void) const |
| Returns true if only J and K indices varies. | |
| bool | isJConstantLayer (void) const |
| Returns true if only J and K indices varies. | |
| bool | isKConstantLayer (void) const |
| Returns true if only I and J indices varies. | |
| size_t | Dimension (void) const |
| Return the dimension of the range (0,1,2 or 3). More... | |
| std::string | getStrType (void) const |
| Returns the set type i_row, j_row, k_row, constantILayer,... | |
| Node * | getNodeI (const size_t &i) |
| Node * | getNodeIJ (const size_t &i, const size_t &j) |
| Node * | getNodeIJK (const size_t &i, const size_t &j, const size_t &k) |
| Element * | getElementI (const size_t &i) |
| Element * | getElementIJ (const size_t &i, const size_t &j) |
| Element * | getElementIJK (const size_t &i, const size_t &j, const size_t &k) |
| std::set< int > | getNodeTags (void) const |
| Returns the tags of the nodes. | |
| boost::python::list | getNodes (void) |
| std::set< int > | getElementTags (void) const |
| Returns the tags of the elements. | |
| boost::python::list | getElements (void) |
| ElementEdges | getElementEdges (void) |
| Returns the element edges with both end nodes belong to the nodes of the set. More... | |
| Public Member Functions inherited from XC::SetBase | |
| SetBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| void | setColorComponents (const double &, const double &, const double &) |
| Set the color of the object (red,green,blue) as integers from 0 to 255. More... | |
| void | setColor (const Vector &) |
| Set the color of the object [red,green,blue] as integers from 0 to 255. More... | |
| const Vector & | getColor (void) const |
| Return the color of the object [red,green,blue] as integers from 0 to 255. More... | |
| const ID & | getIdNodeTags (void) const |
| Returns the tags of the nodes en un vector de enteros. | |
| const ID & | getIdElementTags (void) const |
| Returns the tags of the elements en un vector de enteros. | |
| virtual bool | In (const Pnt *) const |
| Returns true if the point belongs to the set. | |
| virtual bool | In (const Edge *) const |
| Returns true if the edge belongs to the set. | |
| virtual bool | In (const Face *) const |
| Returns true if the surface belongs to the set. | |
| virtual bool | In (const Body *) const |
| Returns true if the body belongs to the set. | |
| virtual bool | In (const UniformGrid *) const |
| Returns true if the «uniform grid» belongs to the set. | |
| void | resetTributaries (void) const |
| Reset tributary areas (or lengths, or volumes) for the nodes that are connected to the set elements. More... | |
| void | computeTributaryLengths (bool initialGeometry=true) const |
| Computes the tributary lengths that correspond to each node of the element set. More... | |
| void | computeTributaryAreas (bool initialGeometry=true) const |
| Computes the tributary areas that correspond to each node of the element set. More... | |
| void | computeTributaryVolumes (bool initialGeometry=true) const |
| Computes the tributary volumes that correspond to each node of the element set. More... | |
| Public Member Functions inherited from XC::EntMdlrBase | |
| EntMdlrBase (const std::string &nmb="", Preprocessor *preprocessor=nullptr) | |
| Constructor. | |
| EntMdlrBase & | operator+= (const EntMdlrBase &) |
| += operator. | |
| EntMdlrBase & | operator-= (const EntMdlrBase &) |
| -= operator. | |
| EntMdlrBase & | operator*= (const EntMdlrBase &) |
| *= operator (intersection). | |
| const Preprocessor * | getPreprocessor (void) const |
| Return a pointer to the object preprocessor. | |
| Preprocessor * | getPreprocessor (void) |
| Return a pointer to the object preprocessor. | |
| size_t | GetTag (void) const |
| Return the object identifier in the model (tag). | |
| Pnt * | BuscaPnt (const size_t &) |
| Return a pointer to the point identified by the tag being passed as parameter. More... | |
| const Pnt * | BuscaPnt (const size_t &) const |
| Return a const pointer to the point identified by the tag being passed as parameter. More... | |
| Edge * | BuscaEdge (const size_t &) |
| Return a pointer to the edge identified by the tag being passed as parameter. More... | |
| const Edge * | BuscaEdge (const size_t &) const |
| Return a pointer to the edge identified by the tag being passed as parameter. More... | |
| Face * | BuscaFace (const size_t &) |
| Return a pointer to the face identified by the tag being passed as parameter. More... | |
| const Face * | BuscaFace (const size_t &) const |
| Returns a pointer to the face identified by the tag being passed as parameter. More... | |
| virtual int | sendSelf (CommParameters &) |
| Send objects through the channel being passed as parameter. | |
| virtual int | recvSelf (const CommParameters &) |
| Receive objects through the channel being passed as parameter. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| virtual DbTagData & | getDbTagData (void) const |
| Returns a vector to store class dbTags. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| Pnt * | P1 (void) |
| Return pointer to back end. | |
| virtual Pnt * | P2 (void) |
| Return pointer to front end. | |
| virtual bool | check_points (void) const |
| Checks that the points are defined. | |
| Protected Member Functions inherited from XC::Edge | |
| void | insert_surf (Face *s) |
| Insert a surface in contact with the line (neighbour). More... | |
| void | create_nodes_en_extremos (void) |
| Create the nodes for both end points of the edge. | |
| Protected Member Functions inherited from XC::EntMdlr | |
| void | create_nodes (const Pos3dArray3d &) |
| Creates nodes at the positions being passed as parameters. | |
| Node * | create_node (const Pos3d &pos, size_t i=1, size_t j=1, size_t k=1) |
| Creates a node at the position being passed as parameter. | |
| bool | create_elements (meshing_dir dm) |
| Creates elements on the nodes created in create_nodes. More... | |
| Pnt * | create_point (const Pos3d &) |
| Creates a point at the position being passed as parameter. | |
| void | create_points (const Pos3dArray &) |
| Creates points at the positions being passed as parameters. | |
| SetEstruct * | create_row_set (const Array3dRange &, const std::string &) |
| Creates a set that corresponds to a row of nodes and elements. | |
| void | clearAll (void) |
| Clears object contents. | |
| Protected Member Functions inherited from XC::SetEstruct | |
| void | add_elements (const ElemPtrArray3d &) |
| Adds to the model the elements being passed as parameters. | |
| NodePtrSet | getNodePtrSet (void) |
| Returns the pointers to the set nodes. | |
| Protected Member Functions inherited from XC::EntMdlrBase | |
| bool | check_preprocessor (void) const |
| Check for preprocessor. | |
| int | sendIdsEtiquetas (const int &, const int &, CommParameters &) |
| Send labels through the channel being passed as parameter. | |
| int | recvIdsEtiquetas (const int &, const int &, const CommParameters &) |
| Receive labels through the channel being passed as parameter. | |
| int | sendData (CommParameters &) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive members through the channel being passed as parameter. | |
Protected Attributes | |
| Pnt * | p1 |
| Back end. | |
| Pnt * | p2 |
| Front end. | |
| Protected Attributes inherited from XC::EntMdlr | |
| NodePtrArray3d | ttzNodes |
| ElemPtrArray3d | ttzElements |
| Protected Attributes inherited from XC::EntMdlrBase | |
| LabelContainer | labels |
| Label container. | |
Detailed Description
Base class for 1D entities.
The documentation for this class was generated from the following files:
- src/preprocessor/multi_block_topology/entities/LineBase.h
- src/preprocessor/multi_block_topology/entities/LineBase.cc
