Class to hold the type of a SegmentMesh. More...

#include <SegmentMesh.h>

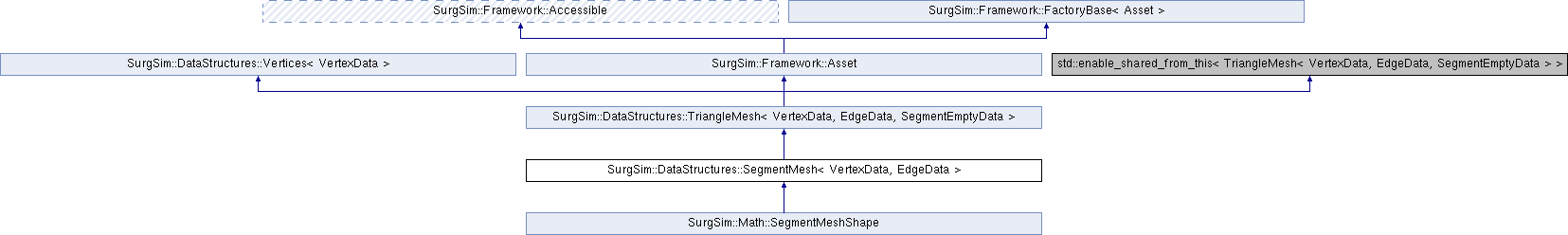

Inheritance diagram for SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >:

Public Types
typedef TriangleMesh< VertexData, EdgeData, SegmentEmptyData >	TriangleMeshType
	TriangleMesh type for convenience.

typedef TriangleMeshType::EdgeType	EdgeType
	Edge type for convenience (Ids of the 2 vertices)

typedef TriangleMeshType::TriangleType	TriangleType
	Triangle type for convenience (Ids of the 3 vertices)

Public Types inherited from SurgSim::DataStructures::TriangleMesh< VertexData, EdgeData, SegmentEmptyData >
typedef MeshElement< 2, EdgeData >	EdgeType
	Edge type for convenience (Ids of the 2 vertices)

typedef MeshElement< 3, SegmentEmptyData >	TriangleType
	Triangle type for convenience (Ids of the 3 vertices)

Public Types inherited from SurgSim::DataStructures::Vertices< VertexData >
typedef Vertex< VertexData >	VertexType
	Vertex type for convenience.

Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase< Asset >
typedef ObjectFactory< Asset >	FactoryType

Public Member Functions
	SegmentMesh ()
	Constructor. The mesh is initially empty (no vertices, no edges).

	SegmentMesh (const SegmentMesh< VertexData, EdgeData > &other)
	Copy constructor when the template data is the same type. More...

template<class V , class E >
	SegmentMesh (const SegmentMesh< V, E > &other)
	Copy constructor when the template data is a different type. More...

virtual	~SegmentMesh ()
	Destructor.

	SegmentMesh (SegmentMesh &&other)
	Move Constructor. More...

SegmentMesh< VertexData, EdgeData > &	operator= (const SegmentMesh< VertexData, EdgeData > &other)
	Copy Assignment. More...

SegmentMesh< VertexData, EdgeData > &	operator= (SegmentMesh< VertexData, EdgeData > &&other)
	Move Assignment. More...

void	createDefaultEdges ()
	Creates edges for all vertices in the mesh connecting all the points consecutively. More...

bool	save (const std::string &fileName, bool asPhysics=true, double radius=0.0001, double massDensity=900, double poissonRatio=0.45, double youngsModulus=1.75e9)
	Save the current structure to a ply file. More...


size_t	addTriangle (const TriangleType &triangle)

size_t	getNumTriangles () const

const std::vector< TriangleType > &	getTriangles () const

std::vector< TriangleType > &	getTriangles ()

const TriangleType &	getTriangle (size_t id) const

TriangleType &	getTriangle (size_t id)

void	removeTriangle (size_t id)

std::array< SurgSim::Math::Vector3d, 3 >	getTrianglePositions (size_t id) const

void	doClearTriangles () override
	Remove all triangles from the mesh.

Public Member Functions inherited from SurgSim::DataStructures::TriangleMesh< VertexData, EdgeData, SegmentEmptyData >
	TriangleMesh ()
	Constructor. The mesh is initially empty (no vertices, no edges, no triangles).

	TriangleMesh (const TriangleMesh< VertexData, EdgeData, SegmentEmptyData > &other)
	Copy constructor when the template data is the same type. More...

	TriangleMesh (const TriangleMesh< V, E, T > &other)
	Copy constructor when the template data is a different type. More...

	TriangleMesh (TriangleMesh &&other)
	Move Constructor. More...

virtual	~TriangleMesh ()
	Destructor.

TriangleMesh< VertexData, EdgeData, SegmentEmptyData > &	operator= (const TriangleMesh< VertexData, EdgeData, SegmentEmptyData > &other)
	Copy Assignment. More...

TriangleMesh< VertexData, EdgeData, SegmentEmptyData > &	operator= (TriangleMesh< VertexData, EdgeData, SegmentEmptyData > &&other)
	Move Assignment. More...

std::string	getClassName () const override
	Support serialization with a classname. More...

size_t	addEdge (const EdgeType &edge)
	Adds an edge to the mesh. More...

size_t	addTriangle (const TriangleType &triangle)
	Adds a triangle to the mesh. More...

size_t	getNumEdges () const
	Get the number of edges. More...

size_t	getNumTriangles () const
	Get the number of triangles. More...

const std::vector< EdgeType > &	getEdges () const
	Retrieve all edges. More...

std::vector< EdgeType > &	getEdges ()
	Retrieve all edges (non const version) More...

const std::vector< TriangleType > &	getTriangles () const
	Retrieve all triangles. More...

std::vector< TriangleType > &	getTriangles ()
	Retrieve all triangles (non const version) More...

const EdgeType &	getEdge (size_t id) const
	Retrieve a specific edge. More...

EdgeType &	getEdge (size_t id)
	Retrieve a specific edge (non const version) More...

std::array< SurgSim::Math::Vector3d, 2 >	getEdgePositions (size_t id) const
	Returns an array of the edge's vertices' positions. More...

const TriangleType &	getTriangle (size_t id) const
	Retrieve a specific triangle. More...

TriangleType &	getTriangle (size_t id)
	Retrieve a specific triangle (non const version) More...

void	removeTriangle (size_t id)
	Marks a triangle as invalid, the triangle cannot be accessed via getTriangle anymore. More...

std::array< SurgSim::Math::Vector3d, 3 >	getTrianglePositions (size_t id) const
	Returns an array of the triangle's vertices' positions. More...

bool	isValid () const
	Test if the TriangleMesh is valid (valid vertex Ids used in all MeshElements) More...

void	save (const std::string &fileName)
	Save the triangle mesh in the ply format. More...

Public Member Functions inherited from SurgSim::DataStructures::Vertices< VertexData >
	Vertices ()
	Constructor.

template<class V >
	Vertices (const Vertices< V > &other)
	Copy constructor when the template data is a different type In this case, no data will be copied. More...

template<class V >
Vertices< VertexData > &	operator= (const Vertices< V > &other)
	Assignment when the template data is a different type In this case, no data will be copied. More...

virtual	~Vertices ()
	Destructor.

void	clear ()
	Clear mesh to return to an empty state (no vertices).

bool	update ()
	Performs any updates that are required when the vertices are modified. More...

size_t	addVertex (const VertexType &vertex)
	Adds a vertex to the mesh. More...

size_t	getNumVertices () const
	Returns the number of vertices in this mesh.

const VertexType &	getVertex (size_t id) const
	Returns the specified vertex.

VertexType &	getVertex (size_t id)
	Returns the specified vertex (non const version).

const std::vector< VertexType > &	getVertices () const
	Returns a vector containing the position of each vertex.

std::vector< VertexType > &	getVertices ()
	Returns a vector containing the position of each vertex (non const version).

void	setVertexPosition (size_t id, const SurgSim::Math::Vector3d &position)
	Sets the position of a vertex. More...

const SurgSim::Math::Vector3d &	getVertexPosition (size_t id) const
	Returns the position of a vertex. More...

void	setVertexPositions (const std::vector< SurgSim::Math::Vector3d > &positions, bool doUpdate=true)
	Sets the position of each vertex. More...

void	transform (const Math::RigidTransform3d &pose)
	Apply a rigid transform to each vertex. More...

bool	operator== (const Vertices &mesh) const
	Compares the mesh with another one (equality) More...

bool	operator!= (const Vertices &mesh) const
	Compares the mesh with another one (inequality) More...

Public Member Functions inherited from SurgSim::Framework::Asset
	Asset ()
	Constructor.

	Asset (const Asset &rhs)
	Copy Constructor.

virtual	~Asset ()
	Destructor.

void	load (const std::string &fileName, const SurgSim::Framework::ApplicationData &data)
	Load a file with given name using 'data' as look up path(s). More...

void	load (const std::string &fileName)
	Overloaded function using SurgSim::Framework::Runtime::getApplicationData() as look up path(s). More...

std::string	getFileName () const
	Return the name of file loaded by this class. More...

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Static Public Member Functions inherited from SurgSim::Framework::FactoryBase< Asset >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::DataStructures::TriangleMesh< VertexData, EdgeData, SegmentEmptyData >
std::string	m_className

std::string	m_className

std::string	m_className

virtual void	doClearEdges ()
	Remove all edges from the mesh.

virtual bool	isEqual (const Vertices< VertexData > &mesh) const
	Internal comparison of meshes of the same type: returns true if equal, false if not equal. More...

bool	doLoad (const std::string &fileName) override
	Derived classes will overwrite this method to do actual loading. More...

Protected Member Functions inherited from SurgSim::DataStructures::Vertices< VertexData >
virtual void	doClearVertices ()
	Remove all vertices from the mesh.

Static Protected Attributes inherited from SurgSim::DataStructures::TriangleMesh< VertexData, EdgeData, SegmentEmptyData >
static std::string	m_className

Detailed Description

template<class VertexData, class EdgeData>
class SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >

Class to hold the type of a SegmentMesh.

Template Parameters

VertexData	Type of extra data stored in each vertex
EdgeData	Type of extra data stored in each edge

See also: TriangleMesh

Constructor & Destructor Documentation

§ SegmentMesh() [1/3]

template<class VertexData, class EdgeData>

SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::SegmentMesh ( const SegmentMesh< VertexData, EdgeData > & other )

Copy constructor when the template data is the same type.

Parameters

other the mesh to copy from

§ SegmentMesh() [2/3]

template<class VertexData , class EdgeData >

template<class V , class E >

SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::SegmentMesh ( const SegmentMesh< V, E > & other )

explicit

Copy constructor when the template data is a different type.

Template Parameters

V	Type of extra data stored in each vertex
E	Type of extra data stored in each edge

Parameters

other The mesh to be copied from. Vertex and edge data will not be copied

Note: : Data of the input mesh, i.e. VertexDataSource, EdgeDataSource will not be copied.

§ SegmentMesh() [3/3]

template<class VertexData, class EdgeData>

SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::SegmentMesh ( SegmentMesh< VertexData, EdgeData > && other )

Move Constructor.

Parameters

other Constructor source

Member Function Documentation

§ addTriangle()

template<class VertexData , class EdgeData >

size_t SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::addTriangle ( const TriangleType & triangle )

Functions that need to assert, because they deal with triangles.

§ createDefaultEdges()

template<class VertexData , class EdgeData >

void SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::createDefaultEdges ( )

Creates edges for all vertices in the mesh connecting all the points consecutively.

Note: This will clear all the current edges

§ operator=() [1/2]

template<class VertexData, class EdgeData>

SegmentMesh< VertexData, EdgeData > & SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::operator= ( const SegmentMesh< VertexData, EdgeData > & other )

Copy Assignment.

Parameters

other Assignment source

§ operator=() [2/2]

template<class VertexData, class EdgeData>

SegmentMesh< VertexData, EdgeData > & SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::operator= ( SegmentMesh< VertexData, EdgeData > && other )

Move Assignment.

Parameters

other Assignment source

§ save()

template<class VertexData , class EdgeData >

bool SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >::save	(	const std::string &	fileName,
		bool	asPhysics = `true`,
		double	radius = `0.0001`,
		double	massDensity = `900`,
		double	poissonRatio = `0.45`,
		double	youngsModulus = `1.75e9`
	)

Save the current structure to a ply file.

Parameters

fileName	Name of the file for writing
asPhysics	Format the file to be used as a physics file, otherwise the file will be ply format with 'edge' as the edge element
radius	if asPhysics is true, this will be used as the radius for the ply file
massDensity	if asPhysics is true, this will be used as the massDensity for the ply file
poissonRatio	if asPhysics is true, this will be used as the poissonRatio for the ply file
youngsModulus	if asPhysics is true, this will be used as the youngsModulus for the ply file

Returns: true if the file was written successfully

The documentation for this class was generated from the following files:

SurgSim/DataStructures/SegmentMesh.h
SurgSim/DataStructures/SegmentMesh-inl.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<class VertexData, class EdgeData> class SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >

Constructor & Destructor Documentation

§ SegmentMesh() [1/3]

§ SegmentMesh() [2/3]

§ SegmentMesh() [3/3]

Member Function Documentation

§ addTriangle()

§ createDefaultEdges()

§ operator=() [1/2]

§ operator=() [2/2]

§ save()

template<class VertexData, class EdgeData>
class SurgSim::DataStructures::SegmentMesh< VertexData, EdgeData >
