Base class that defines the interface for graphics programs. More...

#include <Program.h>

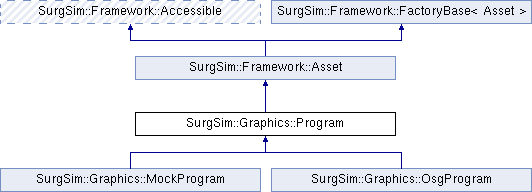

Inheritance diagram for SurgSim::Graphics::Program:

Public Member Functions
virtual	~Program ()=0
	Destructor.

virtual bool	hasVertexShader () const =0

virtual void	clearVertexShader ()=0
	Removes the vertex shader, returning that portion of the shader program to fixed-function.

virtual bool	loadVertexShader (const std::string &filePath)=0
	Loads the vertex shader source code from a file. More...

virtual void	setVertexShaderSource (const std::string &source)=0
	Set the vertex shader source code. More...

virtual bool	getVertexShaderSource (std::string *source) const =0
	Gets the vertex shader source code. More...

virtual bool	hasGeometryShader () const =0

virtual void	clearGeometryShader ()=0
	Removes the geometry shader, returning that portion of the shader program to fixed-function.

virtual bool	loadGeometryShader (const std::string &filePath)=0
	Loads the geometry shader source code from a file. More...

virtual void	setGeometryShaderSource (const std::string &source)=0
	Set the geometry shader source code. More...

virtual bool	getGeometryShaderSource (std::string *source) const =0
	Gets the geometry shader source code. More...

virtual bool	hasFragmentShader () const =0

virtual void	clearFragmentShader ()=0

virtual bool	loadFragmentShader (const std::string &filePath)=0
	Loads the fragment shader source code from a file. More...

virtual void	setFragmentShaderSource (const std::string &source)=0
	Set the fragment shader source code. More...

virtual bool	getFragmentShaderSource (std::string *source) const =0
	Gets the fragment shader source code. More...

virtual void	clear ()
	Clears the entire shader, returning to fixed-function pipeline.

virtual void	setGlobalScope (bool val)=0
	When this is set to true, this shader should be used instead of other shaders that might apply, depending on the hierarchy that is set out. More...

virtual bool	isGlobalScope () const =0
	Query if this shader is of global scope. More...

Public Member Functions inherited from SurgSim::Framework::Asset
	Asset ()
	Constructor.

	Asset (const Asset &rhs)
	Copy Constructor.

virtual	~Asset ()
	Destructor.

void	load (const std::string &fileName, const SurgSim::Framework::ApplicationData &data)
	Load a file with given name using 'data' as look up path(s). More...

void	load (const std::string &fileName)
	Overloaded function using SurgSim::Framework::Runtime::getApplicationData() as look up path(s). More...

std::string	getFileName () const
	Return the name of file loaded by this class. More...

virtual std::string	getClassName () const =0
	Support serialization with a classname. More...

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase< Asset >
typedef ObjectFactory< Asset >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase< Asset >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::Framework::Asset
virtual bool	doLoad (const std::string &filePath)=0
	Derived classes will overwrite this method to do actual loading. More...

Detailed Description

Base class that defines the interface for graphics programs.

A program in OSS is a collection of 'shaders' that are usually executed in sequence (Geometry, Vertex and Fragment). Each shader itself is software that is executed on the GPU, shaders are usually introduced as source. The concept is similar to the use of program in OpenGL see https://www.opengl.org/sdk/docs/man4/html/glCreateProgram.xhtml

Member Function Documentation

§ clearFragmentShader()

virtual void SurgSim::Graphics::Program::clearFragmentShader ( )

pure virtual

Returns: the fragment shader, returning that portion of the shader program to fixed-function.

Implemented in SurgSim::Graphics::OsgProgram.

§ getFragmentShaderSource()

virtual bool SurgSim::Graphics::Program::getFragmentShaderSource ( std::string * source ) const

pure virtual

Gets the fragment shader source code.

Returns: Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

§ getGeometryShaderSource()

virtual bool SurgSim::Graphics::Program::getGeometryShaderSource ( std::string * source ) const

pure virtual

Gets the geometry shader source code.

Returns: Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

§ getVertexShaderSource()

virtual bool SurgSim::Graphics::Program::getVertexShaderSource ( std::string * source ) const

pure virtual

Gets the vertex shader source code.

Returns: Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

§ hasFragmentShader()

virtual bool SurgSim::Graphics::Program::hasFragmentShader ( ) const

pure virtual

Returns: true if the fragment shader has been set, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ hasGeometryShader()

virtual bool SurgSim::Graphics::Program::hasGeometryShader ( ) const

pure virtual

Returns: true if the geometry shader has been set, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ hasVertexShader()

virtual bool SurgSim::Graphics::Program::hasVertexShader ( ) const

pure virtual

Returns: true if the vertex shader has been set, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ isGlobalScope()

virtual bool SurgSim::Graphics::Program::isGlobalScope ( ) const

pure virtual

Query if this shader is of global scope.

Returns: true if global scope, false if not.

Implemented in SurgSim::Graphics::OsgProgram.

§ loadFragmentShader()

virtual bool SurgSim::Graphics::Program::loadFragmentShader ( const std::string & filePath )

pure virtual

Loads the fragment shader source code from a file.

Parameters

filePath Path to file containing shader source code

Returns: True if the source is successfully loaded, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ loadGeometryShader()

virtual bool SurgSim::Graphics::Program::loadGeometryShader ( const std::string & filePath )

pure virtual

Loads the geometry shader source code from a file.

Parameters

filePath Path to file containing shader source code

Returns: True if the source is successfully loaded, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ loadVertexShader()

virtual bool SurgSim::Graphics::Program::loadVertexShader ( const std::string & filePath )

pure virtual

Loads the vertex shader source code from a file.

Parameters

filePath Path to file containing shader source code

Returns: True if the source is successfully loaded, otherwise false.

Implemented in SurgSim::Graphics::OsgProgram.

§ setFragmentShaderSource()

virtual void SurgSim::Graphics::Program::setFragmentShaderSource ( const std::string & source )

pure virtual

Set the fragment shader source code.

Parameters

source Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

§ setGeometryShaderSource()

virtual void SurgSim::Graphics::Program::setGeometryShaderSource ( const std::string & source )

pure virtual

Set the geometry shader source code.

Parameters

source Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

§ setGlobalScope()

virtual void SurgSim::Graphics::Program::setGlobalScope ( bool val )

pure virtual

When this is set to true, this shader should be used instead of other shaders that might apply, depending on the hierarchy that is set out.

E.g if this shader is on a camera, the shaders that occur in a group attached to that camera will be overridden. This will usually be used in conjunction with

See also: RenderPass.

Parameters

val	If true the shader should override shaders in lower levels.

Implemented in SurgSim::Graphics::OsgProgram.

§ setVertexShaderSource()

virtual void SurgSim::Graphics::Program::setVertexShaderSource ( const std::string & source )

pure virtual

Set the vertex shader source code.

Parameters

source Shader source code

Implemented in SurgSim::Graphics::OsgProgram.

The documentation for this class was generated from the following file:

SurgSim/Graphics/Program.h
