A class that implements some common management code on top of the DeviceInterface. More...

#include <CommonDevice.h>

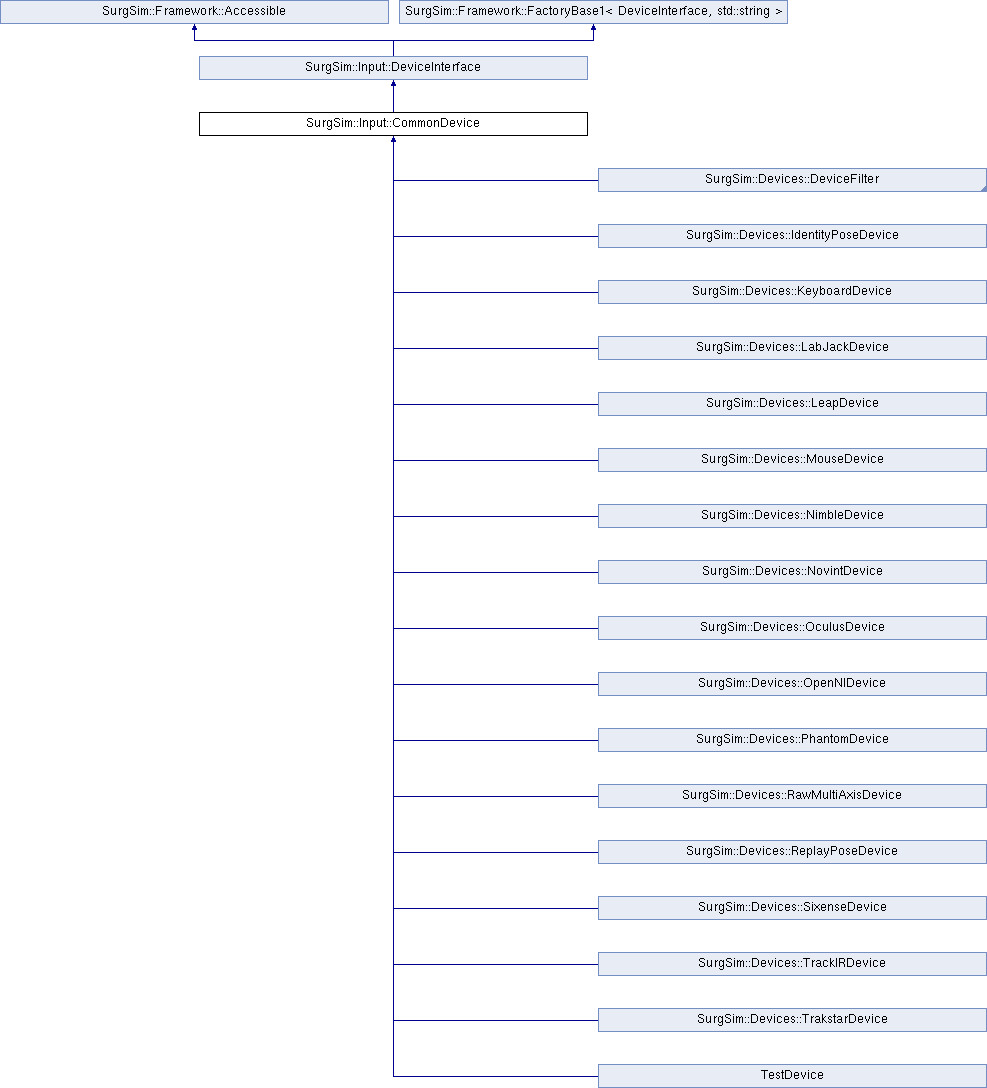

Inheritance diagram for SurgSim::Input::CommonDevice:

Public Member Functions
	CommonDevice (const std::string &name)
	Constructor. More...

	CommonDevice (const std::string &name, const DataStructures::DataGroup &inputData)
	Constructor. More...

	CommonDevice (const std::string &name, DataStructures::DataGroup &&inputData)
	Constructor. More...

virtual	~CommonDevice ()
	Destructor.

std::string	getName () const override
	Return a (hopefully unique) device name.

std::string	getClassName () const override
	The class name for this class. More...

void	setNameForCallback (const std::string &name)
	Set the name used for calling the input consumers and output producer. More...

std::string	getNameForCallback () const
	Get the name used for calling the input consumers and output producer. More...

bool	addInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Adds an input consumer that will be notified when the application input state is updated. More...

bool	removeInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Removes an input consumer previously added via addInputConsumer. More...

void	clearInputConsumers () override
	Removes all InputConsumers.

bool	setOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Sets an output producer that will be asked for application output state when the device needs it. More...

bool	removeOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Removes an output producer previously added via setOutputProducer. More...

bool	hasOutputProducer () override
	Query if this object has output producer. More...

void	clearOutputProducer () override
	Removes any OutputProducer.

Public Member Functions inherited from SurgSim::Input::DeviceInterface
virtual	~DeviceInterface ()
	Virtual destructor (empty).

virtual bool	initialize ()=0
	Fully initialize the device. More...

virtual bool	isInitialized () const =0

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
virtual void	pushInput ()
	Push application input to consumers.

virtual bool	pullOutput ()
	Pull application output from a producer.

DataStructures::DataGroup &	getInputData ()
	Getter for the input data DataGroup. More...

const DataStructures::DataGroup &	getOutputData () const
	Getter for the output data DataGroup. More...

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
typedef ObjectFactory1< DeviceInterface, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
static FactoryType &	getFactory ()

Detailed Description

A class that implements some common management code on top of the DeviceInterface.

Practically every class that implements DeviceInterface will likely want to inherit from CommonDevice.

Constructor & Destructor Documentation

§ CommonDevice() [1/3]

SurgSim::Input::CommonDevice::CommonDevice ( const std::string & name )

explicit

Constructor.

Sets the input data to an empty DataGroup.

Parameters

name	The name associated with the input device.

§ CommonDevice() [2/3]

SurgSim::Input::CommonDevice::CommonDevice	(	const std::string &	name,
		const DataStructures::DataGroup &	inputData
	)

Constructor.

Parameters

name	The name associated with the input device.
inputData	An initial value for the application's input from the device (e.g. pose etc). The concrete device implementation should pass in a DataGroup whose contents has been set up, e.g. by using a DataGroupBuilder, to that device's supported values that it will push to the application.

§ CommonDevice() [3/3]

SurgSim::Input::CommonDevice::CommonDevice	(	const std::string &	name,
		DataStructures::DataGroup &&	inputData
	)

Constructor.

Parameters

name	The name associated with the input device.
inputData	An initial value for the application's input from the device (e.g. pose etc). The concrete device implementation should pass in a DataGroup whose contents has been set up, e.g. by using a DataGroupBuilder, to that device's supported values that it will push to the application.

Member Function Documentation

§ addInputConsumer()

bool SurgSim::Input::CommonDevice::addInputConsumer ( std::shared_ptr< InputConsumerInterface > inputConsumer )

overridevirtual

Adds an input consumer that will be notified when the application input state is updated.

Parameters

inputConsumer The input consumer to be added.

Returns: true on success, false on failure.

Implements SurgSim::Input::DeviceInterface.

§ getClassName()

std::string SurgSim::Input::CommonDevice::getClassName ( ) const

overridevirtual

The class name for this class.

Note: Use the SURGSIM_CLASSNAME macro in derived classes.

Returns: The fully namespace qualified name of this class.

Implements SurgSim::Input::DeviceInterface.

§ getInputData()

DataStructures::DataGroup & SurgSim::Input::CommonDevice::getInputData ( )

protected

Getter for the input data DataGroup.

This function is typically called by friend scaffolds, to get a DataGroup they can modify then set back to the device to send to the device's input consumers.

Returns: A reference to the input data.

§ getNameForCallback()

std::string SurgSim::Input::CommonDevice::getNameForCallback ( ) const

Get the name used for calling the input consumers and output producer.

By default, this will be the same as the name of the device that was passed to the constructor.

Returns: The name being used.

§ getOutputData()

const DataStructures::DataGroup & SurgSim::Input::CommonDevice::getOutputData ( ) const

protected

Getter for the output data DataGroup.

This function is typically called by friend scaffolds, to get the data that the output producer wants to send to the device (and then send that data through the device's SDK). Note that a writable variant is not provided, an output producer registered via setOutputProducer will set the output data.

Returns: A reference to the output data.

§ hasOutputProducer()

bool SurgSim::Input::CommonDevice::hasOutputProducer ( )

overridevirtual

Query if this object has output producer.

Returns: true if there is an output producer, false if not.

Implements SurgSim::Input::DeviceInterface.

§ removeInputConsumer()

bool SurgSim::Input::CommonDevice::removeInputConsumer ( std::shared_ptr< InputConsumerInterface > inputConsumer )

overridevirtual

Removes an input consumer previously added via addInputConsumer.

Parameters

inputConsumer The input consumer to be removed.

Implements SurgSim::Input::DeviceInterface.

§ removeOutputProducer()

bool SurgSim::Input::CommonDevice::removeOutputProducer ( std::shared_ptr< OutputProducerInterface > outputProducer )

overridevirtual

Removes an output producer previously added via setOutputProducer.

Parameters

outputProducer The output producer to be removed.

Implements SurgSim::Input::DeviceInterface.

§ setNameForCallback()

void SurgSim::Input::CommonDevice::setNameForCallback ( const std::string & name )

Set the name used for calling the input consumers and output producer.

By default, this will be the same as the name of the device that was passed to the constructor.

Parameters

name	The name to be used.

§ setOutputProducer()

bool SurgSim::Input::CommonDevice::setOutputProducer ( std::shared_ptr< OutputProducerInterface > outputProducer )

overridevirtual

Sets an output producer that will be asked for application output state when the device needs it.

Any previously set output producer will be removed.

Parameters

outputProducer The output producer to be added.

Returns: true on success, false on failure.

Implements SurgSim::Input::DeviceInterface.

The documentation for this class was generated from the following files:

SurgSim/Input/CommonDevice.h
SurgSim/Input/CommonDevice.cpp
