Interface for a consumer that monitors device and signal state updates (pose, buttons, etc). More...
#include <InputConsumerInterface.h>
Public Member Functions | |
| virtual | ~InputConsumerInterface () |
| Virtual destructor (empty). | |
| virtual void | handleInput (const std::string &device, const SurgSim::DataStructures::DataGroup &inputData)=0 |
| Notifies the consumer that the application input coming from the device has been updated. More... | |
| virtual void | initializeInput (const std::string &device, const SurgSim::DataStructures::DataGroup &inputData)=0 |
| Set the initial input data group. More... | |
Detailed Description
Interface for a consumer that monitors device and signal state updates (pose, buttons, etc).
Member Function Documentation
§ handleInput()
|
pure virtual |
Notifies the consumer that the application input coming from the device has been updated.
Typical input data contents (but note that individual devices may do things differently):
| type | name | |
|---|---|---|
| pose | "pose" | Device pose (units are meters). |
| bool | "button1" | State of the first device button. |
| bool | "button2" | State of the second device button (and so on). |
Other possible contents includes:
| type | name | |
|---|---|---|
| bool | "isHomed" | Device homing status. |
| bool | "isHomedX" | Individual homing status for the X axis (and so on). |
| bool | "isHeld" | Safety sensor etc. status. |
| string | "model" | Device model description. |
| string | "serial" | Serial number string. |
| (any) | "debug:*" | Various debugging information |
- Parameters
-
device The name of the device that is producing the input. This should only be used to identify the device (e.g. if the consumer is listening to several devices at once). inputData The application input state coming from the device.

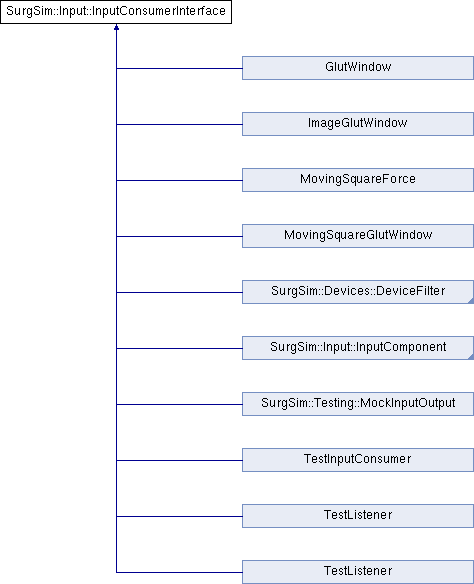

Implemented in TestInputConsumer, GlutWindow, SurgSim::Input::InputComponent, ImageGlutWindow, SurgSim::Devices::PoseIntegrator, SurgSim::Devices::DeviceFilter, TestListener, TestListener, MovingSquareGlutWindow, MovingSquareForce, and SurgSim::Testing::MockInputOutput.
§ initializeInput()
|
pure virtual |
Set the initial input data group.
- Parameters
-
device The name of the device that is producing the input. This should only be used to identify the device (e.g. if the consumer is listening to several devices at once). inputData The application input state coming from the device.
Implemented in LabJackToPoseFilter, TestInputConsumer, SurgSim::Input::InputComponent, GlutWindow, SurgSim::Devices::PoseIntegrator, ImageGlutWindow, SurgSim::Devices::DeviceFilter, SurgSim::Devices::RecordPose, SurgSim::Devices::BoolToScalar, TestListener, MovingSquareGlutWindow, TestListener, MovingSquareForce, and SurgSim::Testing::MockInputOutput.
The documentation for this class was generated from the following file:
- SurgSim/Input/InputConsumerInterface.h
