Interface used to communicate with user-interface hardware devices. More...

#include <DeviceInterface.h>

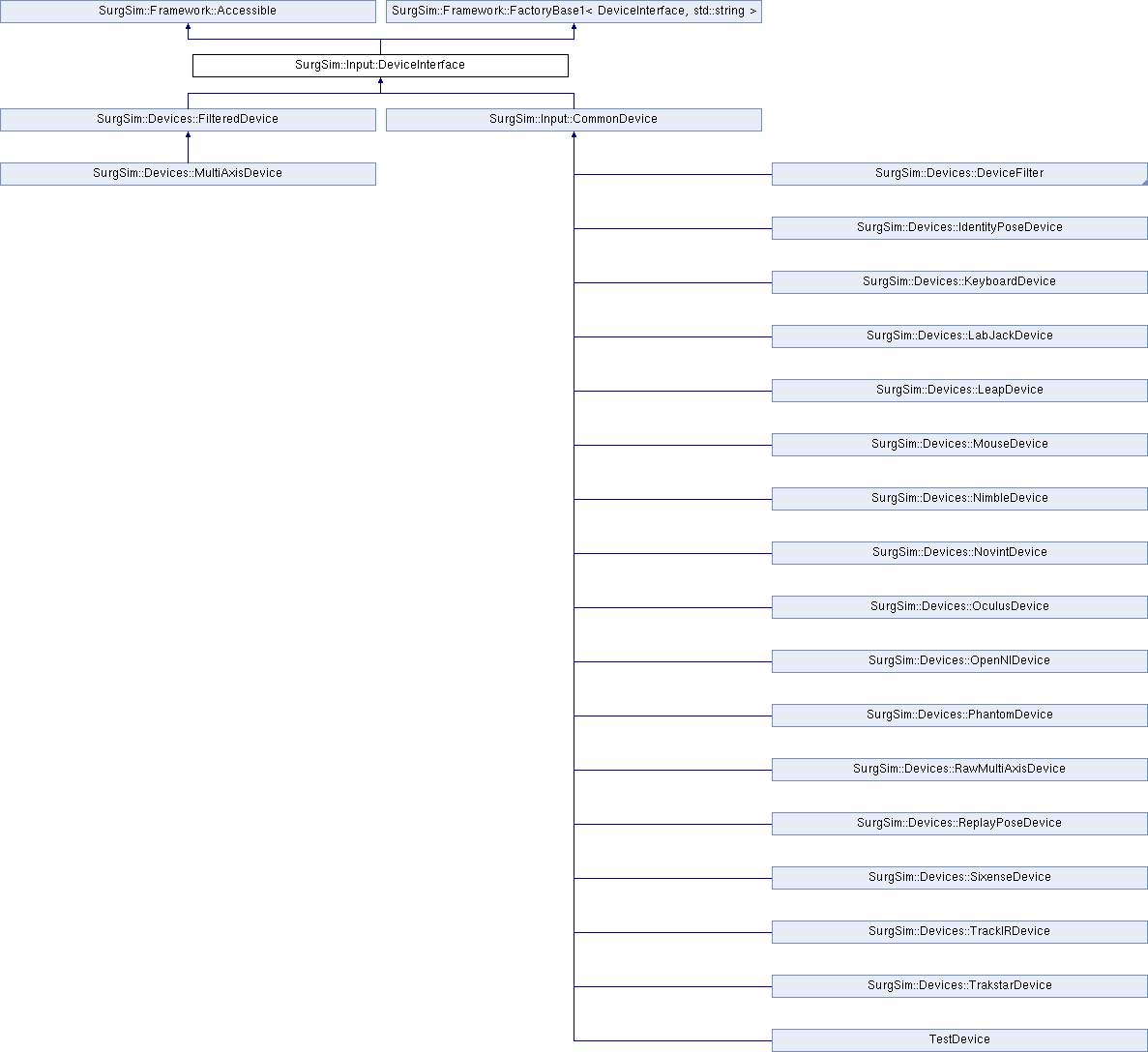

Inheritance diagram for SurgSim::Input::DeviceInterface:

Public Member Functions
virtual	~DeviceInterface ()
	Virtual destructor (empty).

virtual std::string	getName () const =0
	Return a (hopefully unique) device name.

virtual std::string	getClassName () const =0
	The class name for this class. More...

virtual bool	initialize ()=0
	Fully initialize the device. More...

virtual bool	isInitialized () const =0

virtual bool	addInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer)=0
	Adds an input consumer that will be notified when the application input state is updated. More...

virtual bool	removeInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer)=0
	Removes an input consumer previously added via addInputConsumer. More...

virtual void	clearInputConsumers ()=0
	Removes all InputConsumers.

virtual bool	setOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer)=0
	Sets an output producer that will be asked for application output state when the device needs it. More...

virtual bool	removeOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer)=0
	Removes an output producer previously added via setOutputProducer. More...

virtual bool	hasOutputProducer ()=0
	Query if this object has output producer. More...

virtual void	clearOutputProducer ()=0
	Removes any OutputProducer.

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
typedef ObjectFactory1< DeviceInterface, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
static FactoryType &	getFactory ()

Detailed Description

Interface used to communicate with user-interface hardware devices.

Classes that implement communication with a hardware device implement this interface. This includes input/output devices (haptic devices are the most obvious example, but many other devices can, for example, display visual indicators such as LEDs, etc.), as well as input-only and output-only devices.

Derived classes will likely want to hide their constructor and only allow creation through a manager object for that type of device.

Member Function Documentation

§ addInputConsumer()

virtual bool SurgSim::Input::DeviceInterface::addInputConsumer ( std::shared_ptr< InputConsumerInterface > inputConsumer )

pure virtual

Adds an input consumer that will be notified when the application input state is updated.

Parameters

inputConsumer The input consumer to be added.

Returns: true on success, false on failure.

Implemented in SurgSim::Input::CommonDevice, and SurgSim::Devices::IdentityPoseDevice.

§ getClassName()

virtual std::string SurgSim::Input::DeviceInterface::getClassName ( ) const

pure virtual

The class name for this class.

Note: Use the SURGSIM_CLASSNAME macro in derived classes.

Returns: The fully namespace qualified name of this class.

Implemented in SurgSim::Input::CommonDevice.

§ hasOutputProducer()

virtual bool SurgSim::Input::DeviceInterface::hasOutputProducer ( )

pure virtual

Query if this object has output producer.

Returns: true if there is an output producer, false if not.

Implemented in SurgSim::Input::CommonDevice, and SurgSim::Devices::FilteredDevice.

§ initialize()

virtual bool SurgSim::Input::DeviceInterface::initialize ( )

pure virtual

Fully initialize the device.

When the manager object creates the device, the internal state of the device usually isn't fully initialized yet. This method performs any needed initialization.

§ isInitialized()

virtual bool SurgSim::Input::DeviceInterface::isInitialized ( ) const

pure virtual

Returns: true if the device has been initialized and has not yet been finalized.

§ removeInputConsumer()

virtual bool SurgSim::Input::DeviceInterface::removeInputConsumer ( std::shared_ptr< InputConsumerInterface > inputConsumer )

pure virtual

Removes an input consumer previously added via addInputConsumer.

Parameters

inputConsumer The input consumer to be removed.

Implemented in SurgSim::Input::CommonDevice.

§ removeOutputProducer()

virtual bool SurgSim::Input::DeviceInterface::removeOutputProducer ( std::shared_ptr< OutputProducerInterface > outputProducer )

pure virtual

Removes an output producer previously added via setOutputProducer.

Parameters

outputProducer The output producer to be removed.

Implemented in SurgSim::Input::CommonDevice.

§ setOutputProducer()

virtual bool SurgSim::Input::DeviceInterface::setOutputProducer ( std::shared_ptr< OutputProducerInterface > outputProducer )

pure virtual

Sets an output producer that will be asked for application output state when the device needs it.

Any previously set output producer will be removed.

Parameters

outputProducer The output producer to be added.

Returns: true on success, false on failure.

Implemented in SurgSim::Input::CommonDevice.

The documentation for this class was generated from the following file:

SurgSim/Input/DeviceInterface.h
