ubit::UButton Class Reference

Button widget. More...

#include <uinteractors.hpp>

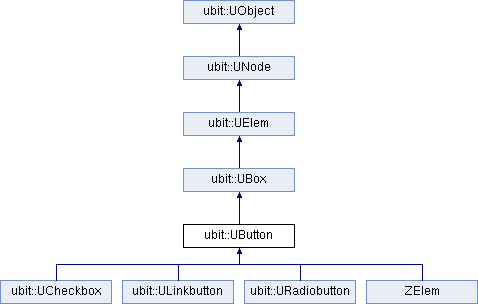

Inheritance diagram for ubit::UButton:

Public Types
enum	ButtonType {   AUTO, NORMAL, MENU, BAR,   TAB }
Public Types inherited from ubit::UElem
enum	{ REMOVE_FROM_PARENTS = -1 }
Public Types inherited from ubit::UNode
enum	NodeType {   ELEMENT_NODE = 1, ATTRIBUTE_NODE = 2, TEXT_NODE = 3, CDATA_SECTION_NODE = 4,   ENTITY_REFERENCE_NODE = 5, ENTITY_NODE = 6, PROCESSING_INSTRUCTION_NODE = 7, COMMENT_NODE = 8,   DOCUMENT_NODE = 9, DOCUMENT_TYPE_NODE = 10, DOCUMENT_FRAGMENT_NODE = 11, NOTATION_NODE = 12 }
	redefines Class() and getClass() methods ( More...
enum	DisplayType {   WINLIST =-1, UNDISPLAYBLE =0, ATTRIBUTE, DATA,   INLINE, BLOCK, BORDER, HARDWIN,   SOFTWIN }
	Ubit display types.
Public Types inherited from ubit::UObject
typedef unsigned char	State
typedef short	PtrCount

Public Member Functions
	UButton (UArgs arglist=UArgs::none)
	creates a standard push button.
	UButton (int button_style, UArgs arglist=UArgs::none)
	creates a push button wich the specified 'button_style'.
Public Member Functions inherited from ubit::UBox
	UBox (UArgs args=UArgs::none)
	creates a new UBox; The argument can either be a single object pointer or reference, or a list of object pointers or references separated by + operators, example: More...
virtual	~UBox ()
	recursive destructor. More...
virtual UBox *	toBox ()
	dynamic cast: returns this object if it derives from UBox and null otherwise.
virtual const UBox *	toBox () const
	dynamic cast: returns this object if it derives from UBox and null otherwise.
virtual int	getDisplayType () const
void	repaint ()
void	update ()
	updates object graphics.
virtual void	update (const UUpdate &update_options, UDisp *=null)
	indicates that the layout and/or the paint of this object will be updated. More...
virtual void	doUpdate (const UUpdate &, UDisp *=null)
	updates the layout and/or the paint of this object right now. More...
virtual int	getViewCount () const
	returns the number of views of this box.
virtual int	getViews (std::vector< UView *> &) const
	returns the views of this box (see DETAILS). More...
virtual UView *	getView (int n=0) const
	returns the Nth view of this box (see DETAILS). More...
virtual UView *	getView (const UInputEvent &) const
	returns the view of this box that contains the event location.
virtual UView *	getView (UWin &, const UPoint &pos_in_win, UDisp *=null) const
	returns the view of this box that contains this point in this window.
virtual UView *	getViewContaining (const UView &child_view) const
	returns the view of this box that contains 'child_view'. More...
virtual UView *	getFirstViewInside (const UView &parent_view) const
	returns the first box view that is contained in 'parent_view'. More...
virtual int	retrieveRelatedViews (std::vector< UView *> &collating_vector) const
virtual UView *	getViewInImpl (UView *parent_view)
virtual UView *	getViewInImpl (UView *parent_view, UDimension &)
void	setViewModes (int view_modes, bool)
Public Member Functions inherited from ubit::UElem
	UElem (UArgs node_arglist=UArgs::none)
	creates a new UElem; The argument can either be a single object pointer or reference, or a list of object pointers or references separated by + operators, example: More...
virtual	~UElem ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...
virtual void	destructs ()
	unlinks the object from its parents and destroys its children.
virtual UElem *	toElem ()
	dynamic cast: returns this object if it derives from UElem and null otherwise.
virtual const UElem *	toElem () const
	dynamic cast: returns this object if it derives from UElem and null otherwise.
const UStyle &	getStyle (UUpdateContext *) const
	virtual function that returns the style of this object. More...
virtual int	getNodeType () const
	returns the XML node type.
virtual const UStr &	getNodeName () const
	return the XML node name (which is the class name).
virtual void	initNode (UDoc *context)
	initialises the XML context of this node.
UElem &	setAttr (UNode &attribute)
	adds or replaces this attribute in the ATTRIBUTE list. More...
UElem &	addAttr (const UArgs &attributes)
	adds one or several attributes (deriving from UAttr) to the ATTRIBUTE list. More...
UElem &	removeAttr (UNode &attribute, bool auto_delete=true)
	removes/deletes an attribute (and its descendants) from the ATTRIBUTE list. More...
UElem &	removeAllAttrs (bool auto_delete=true)
	removes/deletes all attributes (and their descendants) in the ATTRIBUTE list. More...
bool	getAttrValue (UStr &value, const UStr &attr_name) const
	retrieves the value of the attribute which class name is 'attr_name'. More...
UAttr *	getAttr (const UStr &attr_name) const
	returns the attribute node which class name is 'attr_name'. More...
template<class ATTR >
ATTR *	getAttr () const
	retrieves the attribute node that derives from the "ATTR" C++ class. More...
template<class ATTR >
ATTR &	obtainAttr ()
	retrieves or creates the element's attribute that derives from the "ATTR" C++ class. More...
virtual bool	isParentOf (const UNode &possible_child) const
	returns true if this object a direct or indirect parent of 'child'.
UElem &	add (const UArgs &children)
	adds one or several objects to the end of the CHILD list of this element. More...
UElem &	add (const UArgs &children, int position)
	adds one or several objects in the CHILD list before this position. More...
UElem &	add (const UArgs &children, UChildIter iterator)
	adds one or several objects in the CHILD list before this iterator. More...
virtual UElem &	addImpl (const UArgs &nodes, UChildIter pos, UChildren &in_list)
virtual bool	addImpl1 (const UChild &node, UChildIter pos, UChildren &in_list)
UElem &	remove (UNode &child, bool auto_delete=true)
	removes/deletes a child (and its descendants) from the CHILD list. More...
UElem &	remove (int pos, bool auto_delete=true)
	removes/deletes a child (and its descendants) at this position in the CHILD list. More...
UElem &	remove (UChildIter pos, bool auto_delete=true)
	removes/deletes a child (and its descendants) at this position in the CHILD list. More...
UElem &	removeAll (bool auto_delete=true)
	removes/deletes all children (and their descendants) in the CHILD list. More...
virtual UElem &	removeImpl (UChildIter begin, int N, bool autodel, UChildren &in_list)
virtual bool	removeImpl1 (UChildIter pos, int auto_delete, UChildren &in_list)
UChildren &	getChildren () const
int	getChildCount () const
UChildIter	child (int pos) const
UNode *	getChild (int pos) const
	returns an iterator pointing to the child at this position. More...
UChildIter	cbegin () const
	returns the child at this position. More...
UChildIter	cend () const
	returns a forward iterator pointing to the end of the child list ( More...
UChildReverseIter	crbegin () const
	returns a reverse iterator pointing to the beginning of the child list ( More...
UChildReverseIter	crend () const
	returns a reverse iterator pionting to the end of the child list ( More...
virtual UStr	retrieveText (bool recursive=true) const
	collates and returns the text that is enclosed in this object. More...
virtual void	retrieveText (UStr &string, bool recursive=true) const
	collates and returns the text that is enclosed in this object. More...
virtual bool	isShown () const
	returns true if this object is shown. More...
bool	isShowable () const
	returns true if this object can be shown. More...
void	setShowable (bool s) const
	synonym for show(bool).
virtual void	show (bool=true)
	shows/hides this object. More...
void	repaint ()
	indicates that this object will be repainted (when the main loop becomes idle).
void	update ()
	indicates that this object will be layed out and repainted (when the main loop becomes idle).
void	doUpdate ()
UElem &	ignoreEvents (bool state=true)
	if arg is true, this element and (its children) ignore events. More...
UElem &	catchEvents (const UChild &condition_callback_expr)
	catches certain events before they reach the object's children. More...
UElem &	observeChildrenEvents (const UChild &condition_callback_expr)
	observe events that occur in children. More...
bool	isIgnoringEvents () const
	returns true if events are ignored by this object;
bool	hasCallback (long callback_id) const
	true if thie object has such a callback.
virtual bool	fire (UEvent &) const
	fires callback functions that match this event.
UElem &	enable (bool state=true)
	shortcut for setEnabled(bool state = true).
virtual UElem &	setEnabled (bool state=true, bool call_callbacks=true)
	specifies whether this object is enabled. More...
bool	isEnabled () const
	returns true if this object is currently enabled; More...
virtual UElem &	setSelected (bool state=true, bool call_callbacks=true)
	specifies whether this object is selected. More...
bool	isSelected () const
bool	isSelectable () const
UElem &	setSelectable (bool state=true)
bool	isArmed () const
bool	isArmable () const
	specifies whether this object can be armed. More...
UElem &	setArmable (bool state=true)
UElem &	setAutoRepeat (bool state=true)
bool	isAutoRepeat () const
bool	isCrossable () const
UElem &	setCrossable (bool state=true)
UElem &	setBrowsable (bool=true)
bool	isBrowsable () const
bool	isDragged () const
bool	isDraggable () const
UElem &	setDraggable (bool=true)
bool	isDroppable () const
UElem &	setDroppable (bool=true)
bool	isTextEditable () const
bool	isFloating () const
bool	isVertical () const
bool	isWidthResizable () const
bool	isHeightResizable () const
virtual bool	isSubWin () const
void	disableMenuClosing (bool s=true)
	this object and its children wont close menus when clicked if argument is true.
bool	isMenuClosingDisabled () const
	true if this object and its children do not close menus when clicked.
bool	isBrowsingGroup ()
virtual UChildren &	children () const
virtual UChildren &	attributes () const
UChildIter	abegin () const
UChildIter	aend () const
UObject::State	getInterState () const
void	setInterState (UObject::State)
virtual const UStr *	getTextSeparator () const
	returns the text separator used by retrieveText() for separating enclosed children
virtual void	highlight (bool state)
UElem &	_setArmableAndSelectable (bool state)
virtual void	keyPressBehavior (UKeyEvent &)
virtual void	keyReleaseBehavior (UKeyEvent &)
virtual void	enterBehavior (UInputEvent &, bool is_browing)
virtual void	leaveBehavior (UInputEvent &, bool is_browing)
virtual void	armBehavior (UInputEvent &, bool is_browing)
virtual void	disarmBehavior (UInputEvent &, bool is_browing)
virtual void	actionBehavior (UInputEvent &)
Public Member Functions inherited from ubit::UNode
virtual UStr	getNodeValue () const
	return the XML node value.
virtual int	isDisplayable () const
virtual UNode *	toNode ()
	dynamic cast: returns this object if it derives from UNode and null otherwise.
virtual const UNode *	toNode () const
	dynamic cast: returns this object if it derives from UNode and null otherwise.
virtual bool	isChildOf (const UElem &parent, bool indirect=true) const
	returns true if this object a child of 'parent'. More...
UParentIter	pbegin () const
	returns an iterator to the beginning of the list of direct parents. More...
UParentIter	pend () const
	returns an iterator to the end of the parent list ( More...
virtual UParents &	parents () const
	returns the list of direct parents ( More...
virtual UElem *	getParent (int pos=0) const
	returns the Nth direct parent. More...
virtual bool	hasSceneGraphParent () const
template<class CC >
CC *	findParent () const
	< this object has at least one parent in the scene graph. More...
virtual int	getBoxParents (std::vector< UBox *> &parvect) const
	retrieves direct and indirect parents that are boxes.
virtual UBox *	getParent (const UView *) const
	returns the direct or indirect parent that contains this view. More...
virtual UView *	getParentView (const UView *) const
	returns the direct or indirect parent's view that contains this view. More...
virtual UBox *	getParent (const UInputEvent &) const
virtual UView *	getParentView (const UInputEvent &) const
virtual void	removeFromParents (bool update_parents=true)
	[impl] removes this object from all direct parents. More...
bool	isAutoUpdate () const
	return current update policy: see setAutoUpdate().
UNode &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...
void	fireParents (const UCond &c, UNode *n) const
void	updateAutoParents (const UUpdate &m)
virtual void	addChangeCall (UCall &)
virtual UElem *	getSubGroup () const
void	_addAttr (const UChild &attribute)
	[impl] to be removed @.
UChildIter	_abegin () const
	[impl] to be removed @.
UChildIter	_aend () const
	[impl] to be removed @.
Public Member Functions inherited from ubit::UObject
	UObject (const UObject &)
UObject &	operator= (const UObject &)
virtual const UClass &	getClass () const
	instance method that returns the metaclass of this object. More...
const UStr &	getClassName () const
	returns getClass().getName().
virtual void	error (const char *function_name, const char *format,...) const
	prints out an error message. More...
virtual void	warning (const char *function_name, const char *format,...) const
	prints out a warning message: More...
bool	isDeletable () const
	checks if this object can be destroyed by 'delete'. More...
bool	isConst () const
	checks whether the content of this object can be modified ( More...
UObject &	setConst ()
	specifies that the content of this object cannot be modified. More...
bool	isAutoUpdate () const
	return current update policy: More...
UObject &	setAutoUpdate (bool state=true)
	changes the update policy of this object when its is modified. More...
bool	isIgnoringChangeCallbacks () const
	return true if change callbacks are fired.
UObject &	ignoreChangeCallbacks (bool state)
	change callbacks are not fired if argument is true.
virtual UAttr *	toAttr ()
	dynamic cast: returns this object if it derives from UAttr and null otherwise.
virtual const UAttr *	toAttr () const
	dynamic cast: returns this object if it derives from UAttr and null otherwise.
virtual UData *	toData ()
	dynamic cast: returns this object if it derives from UData and null otherwise.
virtual const UData *	toData () const
	dynamic cast: returns this object if it derives from UData and null otherwise.
virtual UStr *	toStr ()
	dynamic cast: returns this object if it derives from UStr and null otherwise.
virtual const UStr *	toStr () const
	dynamic cast: returns this object if it derives from UStr and null otherwise.
virtual UCall *	toCall ()
	dynamic cast: returns this object if it derives from UCall and null otherwise.
virtual const UCall *	toCall () const
	dynamic cast: returns this object if it derives from UCall and null otherwise.
virtual UWin *	toWin ()
	dynamic cast: returns this object if it derives from UWin and null otherwise.
virtual const UWin *	toWin () const
	dynamic cast: returns this object if it derives from UWin and null otherwise.
virtual UMenu *	toMenu ()
	dynamic cast: returns this object if it derives from UMenu and null otherwise.
virtual const UMenu *	toMenu () const
	dynamic cast: returns this object if it derives from UMenu and null otherwise.
State	getState () const
	returns the current object state.
void	setState (State s)
	changes the object state.
PtrCount	getPtrCount () const
	[impl] returns the number of uptr<> smart pointers that are pointing to this object.
bool	checkConst () const
	[impl] produces an error if this object is logically constant ( More...
bool	isDestructed () const
	[impl] this object has been destructed (but memory has not been freed yet).
bool	isDestructing () const
	[impl] this object is being destructed (one of its destructors has been called).
void *	operator new (size_t)
	< [impl] returns true if there is at least one scene graph parent (redefined by UNode). More...
void	operator delete (void *)
	delete operator is forbidden on instances that derive from UObject.
void	addPtr () const
	[Impl] a uptr is added to this object.
void	removePtr () const
	[Impl] a uptr is removed from this object.

Static Public Member Functions
static UStyle *	createStyle ()
Static Public Member Functions inherited from ubit::UBox
static UStyle *	createStyle ()
	static function that returns the style of this class (see details!). More...
Static Public Member Functions inherited from ubit::UElem
static UStyle *	createStyle ()
	static function that returns the style of this class. More...
static void	closeWin (UInputEvent &, int status)
	closes the first window (UDialog, UMenu...) that contains this element. More...
Static Public Member Functions inherited from ubit::UObject
static const char *	getVersion ()
	returns the version of the Ubit package.
static const UClass &	Class ()
	class method that returns the metaclass of this class. More...
static UStyle *	createStyle ()

Friends
class	UButtonStyle

Additional Inherited Members
Static Public Attributes inherited from ubit::UObject
static UConst	UCONST
	UCONST can be given as an argument to some constructors to make the object constant. More...
Protected Member Functions inherited from ubit::UBox
virtual void	addViewImpl (UView *)
virtual void	initView (UView *parent_view)
virtual void	initChildViews (UElem *)
virtual void	deleteViewsInside (const std::vector< UView *> &parent_views)
Protected Member Functions inherited from ubit::UElem
virtual int	_getTextLength (bool recursive) const
virtual char *	_getTextData (char *ptr, bool recursive) const
Protected Member Functions inherited from ubit::UNode
	UNode ()
	constructor, can anly be called by subclasses because UNode is abstract.
virtual	~UNode ()
	destructor, note that children are recursively destroyed except if pointed elsewhere ( More...
virtual void	addingTo (UChild &, UElem &parent)
	called when this object is added to a parent.
virtual void	removingFrom (UChild &, UElem &parent)
	called when this object is removed from a parent (SEE DETAILS IF YOU REDEFINE THIS METHOD). More...
Protected Attributes inherited from ubit::UBox
UView *	views
Protected Attributes inherited from ubit::UElem
Modes	emodes
long	callback_mask
UChildren	_children
Protected Attributes inherited from ubit::UNode
UParents	_parents
UChildren	_attributes
Protected Attributes inherited from ubit::UObject
PtrCount	ptr_count
Modes	omodes
State	ostate

Detailed Description

Button widget.

A UButton is similar to a UButton except that:

• it is clickable (see the "callback" section below)
• its "look" depends on parent(s): its backgound is transparent if the button is contained in a UMenu, a UMenubar or a UBar and grey otherwise.

As other widgets, a button can contain any combination of text, images and other widgets and its look can be changed by adding appropriate UAttr(s) (for specifying a specific UBackground, UAlpha, UPadding, UBorder, etc.)

CALLBACKS: Any UBox callback can be added to a textfield (see UOn and UCall). However, the most useful callback conditions for this widget are:

• UOn::action (default condition) fires callbacks the button is clicked
• UOn::arm : fires callbacks when the button is pressed
• UOn::disarm : fires callbacks when the button is released

Example:

   struct Demo {
       void saveFile();
   };

   Demo* d = new Demo();
   UBox& b = ubutton(UPix::diskette + " Save"
                     + UOn::action / ucall(d, &Demo::saveFile)
                     + utip("Saves the current file"));

ubutton(...) is a shortcut for *new UButton(...)

saveFile() is an instance methods of class Demo. It will called when the button is activated (i.e. clicked). Note that 'd' must be given as the first argument of ucall() as saveFile() instance methods of 'd'. ucall() also offers many other possibilities, such as passing arguments to instance methods or calling static or non-member functions. See UCall for details.

UOn::action can be omitted, because it is the default callback condition for this widget: ucall(...) alone is thus identical to: UOn::action / ucall(...)

saveFile() could have an optional UEvent argument (see UTextfield as an example) or some specific arguments given bu ucall (see UCall)

utip(..) adds a tool tip to this button that will show the corresponding message (utip() can in fact be added to any Ubit widget)

IMPLICIT CALLBACKS: special rules applies when a UDialog or a UMenu is a direct child of a button: these widgets are then automatically opened when the button is (respectively) clicked or pressed.

See also

also: UItem, URadiobutton, UCheckbox

---

The documentation for this class was generated from the following files:

• src/ubit/uinteractors.hpp
• src/ubit/uinteractors.cpp
