Earthquake load pattern. More...
#include <EQBasePattern.h>

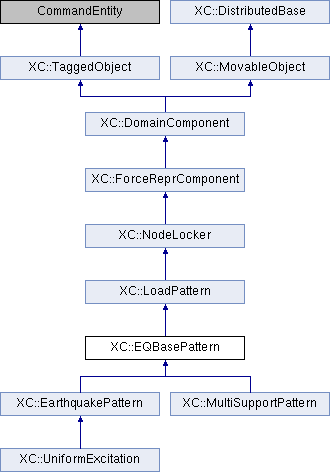

Inheritance diagram for XC::EQBasePattern:
Public Member Functions | |
| EQBasePattern (int tag, int classTag) | |
| size_t | getNumMotions (void) const |
| void | clear (void) |
| virtual void | Print (std::ostream &s, int flag=0) |
| Prints load pattern information. | |
 Public Member Functions inherited from XC::LoadPattern | |
| LoadPattern (int tag=0) | |
| Constructor. | |
| LoadPattern (int tag, int classTag) | |
| Constructor. More... | |
| virtual | ~LoadPattern (void) |
| Destructor. | |
| virtual void | setTimeSeries (TimeSeries *theSeries) |
| Set the time series for the pattern. | |
| virtual void | setDomain (Domain *theDomain) |
| Set the domain for the pattern loads. | |
| bool | addToDomain (void) |
| Apply load. | |
| void | removeFromDomain (void) |
| Removes load. | |
| virtual bool | addNodalLoad (NodalLoad *) |
| Adds the nodal load being passed as parameter. | |
| NodalLoad * | newNodalLoad (const int &, const Vector &) |
| Creates a nodal load. More... | |
| virtual bool | addElementalLoad (ElementalLoad *) |
| Adds the element load being passed as parameter. | |
| bool | newElementalLoad (ElementalLoad *) |
| Appends the elemental load being passed as parameter. | |
| ElementalLoad * | newElementalLoad (const std::string &) |
| Crea una load over elements. | |
| virtual bool | addSFreedom_Constraint (SFreedom_Constraint *theSp) |
| Adds the constraint being passed as parameter. | |
| LoadContainer & | getLoads (void) |
| Return the load container. | |
| const LoadContainer & | getLoads (void) const |
| Return the load container. | |
| int | getNumNodalLoads (void) const |
| Return the number of nodal loads. | |
| int | getNumElementalLoads (void) const |
| Return the number of elemental loads. | |
| int | getNumLoads (void) const |
| Return the number of loads. | |
| virtual void | clearAll (void) |
| Deletes all loads, constraints AND pointer to time series. | |
| virtual void | clearLoads (void) |
| Deletes all loads. | |
| virtual bool | removeNodalLoad (int tag) |
| Remove the nodal load which tag is being passed as parameter. | |
| virtual bool | removeElementalLoad (int tag) |
| Remove the load over element which tag is being passed as parameter. | |
| virtual void | applyLoad (double pseudoTime=0.0) |
| Apply the load for pseudo-time being passed as parameter. | |
| virtual void | setLoadConstant (void) |
| Marks the LoadPattern as being constant. More... | |
| void | setIsConstant (const bool &b) |
| bool | getIsConstant (void) const |
| const MapLoadPatterns * | getMapLoadPatterns (void) const |
| Returns a const pointer to the container of the load pattern. | |
| MapLoadPatterns * | getMapLoadPatterns (void) |
| Returns a pointer to the container of the load pattern. | |
| const std::string & | getName (void) const |
| Returns the name of this load pattern. | |
| const std::string & | getDescription (void) const |
| void | setDescription (const std::string &d) |
| virtual const double & | getLoadFactor (void) const |
| Returns the weighting factor obtained from the TimeSeries object. | |
| const double & | GammaF (void) const |
| Returns the weighting factor set by the load combination. | |
| double & | GammaF (void) |
| Returns the weighting factor set by the load combination. | |
| void | setGammaF (const double &) |
| Sets the weighting factor set by the load combination. | |
| LoadPattern & | operator*= (const double &fact) |
| LoadPattern & | operator/= (const double &fact) |
| virtual int | sendSelf (CommParameters &) |
| Sends object through the channel being passed as parameter. | |
| virtual int | recvSelf (const CommParameters &) |
| Receives object through the channel being passed as parameter. | |
| virtual LoadPattern * | getCopy (void) |
| Virtual constructor. | |
| virtual int | addMotion (GroundMotion &theMotion, int tag) |
| virtual GroundMotion * | getMotion (int tag) |
| virtual void | applyLoadSensitivity (double pseudoTime=0.0) |
| virtual int | setParameter (const std::vector< std::string > &argv, Parameter ¶m) |
Sets the value param to the parameter argv. | |
| virtual int | updateParameter (int parameterID, Information &info) |
Updates the parameter identified by parameterID with info. | |
| virtual int | activateParameter (int parameterID) |
Activates the parameter identified by parameterID. | |
| virtual const Vector & | getExternalForceSensitivity (int gradNumber) |
| Public Member Functions inherited from XC::NodeLocker | |
| virtual | ~NodeLocker (void) |
| Destructor. | |
| virtual SFreedom_Constraint * | addSFreedom_Constraint (const int &nodeTag, const int &dofId, const double &) |
| Adds the single freedom constraint being passed as parameter. | |
| virtual SFreedom_ConstraintIter & | getSPs (void) |
| Returns an iterator to the single freedom constraints. | |
| int | getNumSPs (void) const |
| Returns the number of single freedom constraints. | |
| SFreedom_Constraint * | newSPConstraint (const int &, const int &, const double &) |
| Creates a single freedom constraint. More... | |
| virtual bool | removeSFreedom_Constraint (int tag) |
| Erases the single freedom constraint identified by the argument. More... | |
| virtual void | applyLoad (const double &pseudoTime=0.0, const double &factor=1.0) |
| Applies the single freedom constraints. More... | |
| std::deque< int > | getTagsSPsNode (int theNode, int theDOF) const |
| Returns the constraint that affect the node and DOF being passed as parameter. More... | |
| std::deque< int > | getTagsSPsNode (int theNode) const |
| Returns the constraint that affect the node being passed as parameter. More... | |
| bool | nodeAffectedBySPs (int nodeTag) const |
| Returns true if the single freedom constraints affect the node which identifier is being passed as parameter. More... | |
| Public Member Functions inherited from XC::ForceReprComponent | |
| ForceReprComponent (int classTag) | |
| ForceReprComponent (int tag, int classTag) | |
| Public Member Functions inherited from XC::DomainComponent | |
| ~DomainComponent (void) | |
| Destructor. | |
| size_t | getIdx (void) const |
| Returns the index of the object (to be used in VTK arrays). | |
| virtual Domain * | getDomain (void) const |
| Returns a pointer to the enclosing domain. More... | |
| const Preprocessor * | getPreprocessor (void) const |
| Returns (if possible) a pointer to the preprocessor. | |
| Preprocessor * | getPreprocessor (void) |
| Return (if possible) a pointer to the preprocessor. | |
| void | set_index (const size_t &i) |
| Set the index for the object (see numera in Set). More... | |
| Public Member Functions inherited from XC::TaggedObject | |
| TaggedObject (int tag, CommandEntity *owr=nullptr) | |
| Constructor. More... | |
| virtual TaggedObject * | getCopy (void) const |
| Virtual constructor. | |
| void | assignTag (int newTag) |
| Set tag (to be called from Python interface). | |
| int | getTag (void) const |
| Returns the tag associated with the object. | |
| Public Member Functions inherited from XC::MovableObject | |
| MovableObject (int classTag, int dbTag) | |
| Constructor. More... | |
| MovableObject (int classTag) | |
| Constructor. More... | |
| MovableObject (const MovableObject &) | |
| Copy constructor. Doesn't copy the dbTag. | |
| MovableObject & | operator= (const MovableObject &) |
| Assignment operator. Doesn't copy the dbTag. | |
| int | getClassTag (void) const |
| Return the class identifier. | |
| int | getDbTag (void) const |
| Return the object identifier in the database. | |
| int | getDbTag (CommParameters &) |
| Return the object identifier in the database. | |
| void | setDbTag (int dbTag) |
| Sets the object identifier in the database. | |
| void | setDbTag (CommParameters &) |
| Sets the object identifier in the database if not already set. More... | |
| virtual int | setVariable (const std::string &variable, Information &) |
Set the value of the variable idenfified by var. | |
| virtual int | getVariable (const std::string &variable, Information &) |
Return the value of the variable idenfified by var. | |
| Public Member Functions inherited from XC::DistributedBase | |
| DistributedBase (void) | |
| Constructor. | |
| const int & | getDbTagDataPos (const int &i) const |
| Returns the data at the i-th position. | |
| void | setDbTagDataPos (const int &i, const int &v) |
| Sets the data at the i-th position. | |
| void | inicComm (const int &dataSize) const |
| Initializes communication. | |
Protected Member Functions | |
| int | addMotion (GroundMotion &theMotion) |
| int | sendData (CommParameters &) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receives members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::LoadPattern | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags of the class members. More... | |
| int | sendData (CommParameters &cp) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::NodeLocker | |
| DbTagData & | getDbTagData (void) const |
| Returns a vector to store the dbTags de los miembros of the clase. More... | |
| int | sendData (CommParameters &cp) |
| Send members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &cp) |
| Receives members through the channel being passed as parameter. | |
| NodeLocker (void) | |
| Default constructor. | |
| NodeLocker (int tag) | |
| Constructor. | |
| NodeLocker (int tag, int classTag) | |
| Constructor. | |
| Protected Member Functions inherited from XC::DomainComponent | |
| DomainComponent (int tag, int classTag) | |
| Constructor. More... | |
| int | sendData (CommParameters &) |
| Send object members through the channel being passed as parameter. | |
| int | recvData (const CommParameters &) |
| Receive object members through the channel being passed as parameter. | |
| Protected Member Functions inherited from XC::TaggedObject | |
| void | setTag (int newTag) |
| Set tag. More... | |
Protected Attributes | |
| DqGroundMotions | theMotions |
| Protected Attributes inherited from XC::LoadPattern | |
| bool | isConstant |
| to indicate whether setConstant has been called | |
| Protected Attributes inherited from XC::NodeLocker | |
| int | nextTag |
| Default tag for next node locker. | |
| int | currentGeoTag |
| int | lastGeoSendTag |
| TaggedObjectStorage * | theSPs |
| Constraint container. | |
| SingleDomSFreedom_Iter * | theSpIter |
| Constraint iterator. | |
Detailed Description
Earthquake load pattern.
The documentation for this class was generated from the following files:
- src/domain/load/pattern/load_patterns/EQBasePattern.h
- src/domain/load/pattern/load_patterns/EQBasePattern.cc
