This behavior is used to add staples. More...

#include <StaplerBehavior.h>

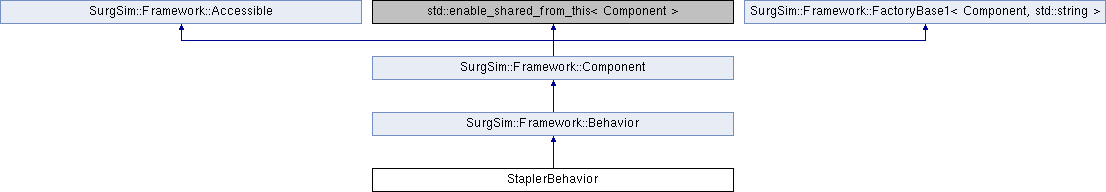

Inheritance diagram for StaplerBehavior:

Public Member Functions
	StaplerBehavior (const std::string &name)
	Constructor. More...

	SURGSIM_CLASSNAME (StaplerBehavior)

void	setInputComponent (std::shared_ptr< SurgSim::Framework::Component > inputComponent)
	Set the input component from which to get the pose. More...

std::shared_ptr< SurgSim::Input::InputComponent >	getInputComponent ()

void	setRepresentation (std::shared_ptr< SurgSim::Framework::Component > staplerRepresentation)
	Set the representation of the stapler. More...

std::shared_ptr< SurgSim::Framework::Representation >	getRepresentation ()

void	update (double dt) override
	Update the behavior. More...

int	getTargetManagerType () const override
	Return the type of manager that should be responsible for this behavior. More...

void	setVirtualTeeth (const std::array< std::shared_ptr< SurgSim::Collision::Representation >, 2 > &virtualTeeth)
	Sets the virtual teeth for the virtual staple. More...

const std::array< std::shared_ptr< SurgSim::Collision::Representation >, 2 > &	getVirtualTeeth ()

void	enableStaplingForSceneElement (const std::string &sceneElementName)
	Add a scene element (name) for which stapling is enabled within this behaviour. More...

void	setStapleEnabledSceneElements (const std::list< std::string > &stapleEnabledSceneElements)
	Sets the list of scene element names that this behaviour can staple. More...

const std::list< std::string > &	getStapleEnabledSceneElements ()

Public Member Functions inherited from SurgSim::Framework::Behavior
	Behavior (const std::string &name)

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
bool	doInitialize () override
	Initialize this behavior. More...

bool	doWakeUp () override
	Wakeup this behavior. More...

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Detailed Description

This behavior is used to add staples.

The stapler is controlled by an input device and when the user pushes a button on the device, a stapler will be deployed from the stapler.

Constructor & Destructor Documentation

§ StaplerBehavior()

StaplerBehavior::StaplerBehavior ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of the behavior

Member Function Documentation

§ doInitialize()

bool StaplerBehavior::doInitialize ( )

overrideprotectedvirtual

Initialize this behavior.

Returns: True on success, otherwise false.

Note: : In current implementation, this method always returns "true".

Implements SurgSim::Framework::Component.

§ doWakeUp()

bool StaplerBehavior::doWakeUp ( )

overrideprotectedvirtual

Wakeup this behavior.

Returns: True on success, otherwise false.

Note: : In current implementation, this method always returns "true".

Implements SurgSim::Framework::Component.

§ enableStaplingForSceneElement()

void StaplerBehavior::enableStaplingForSceneElement ( const std::string & sceneElementName )

Add a scene element (name) for which stapling is enabled within this behaviour.

Parameters

sceneElementName The name of the scene element that this behaviour can staple.

§ getInputComponent()

std::shared_ptr< SurgSim::Input::InputComponent > StaplerBehavior::getInputComponent ( )

Returns: The input component which sends the pose.

§ getRepresentation()

std::shared_ptr< SurgSim::Framework::Representation > StaplerBehavior::getRepresentation ( )

Returns: The representation of a stapler

§ getStapleEnabledSceneElements()

const std::list< std::string > & StaplerBehavior::getStapleEnabledSceneElements ( )

Returns: List of scene element names that this behaviour can staple.

§ getTargetManagerType()

int StaplerBehavior::getTargetManagerType ( ) const

overridevirtual

Return the type of manager that should be responsible for this behavior.

Returns: An integer indicating which manger should be responsible for this behavior.

Reimplemented from SurgSim::Framework::Behavior.

§ getVirtualTeeth()

const std::array< std::shared_ptr< SurgSim::Collision::Representation >, 2 > & StaplerBehavior::getVirtualTeeth ( )

Returns: Array of collision representations for the virtual stapler teeth.

§ setInputComponent()

void StaplerBehavior::setInputComponent ( std::shared_ptr< SurgSim::Framework::Component > inputComponent )

Set the input component from which to get the pose.

Parameters

inputComponent The input component which sends the pose.

§ setRepresentation()

void StaplerBehavior::setRepresentation ( std::shared_ptr< SurgSim::Framework::Component > staplerRepresentation )

Set the representation of the stapler.

Parameters

staplerRepresentation The representation of a stapler

§ setStapleEnabledSceneElements()

void StaplerBehavior::setStapleEnabledSceneElements ( const std::list< std::string > & stapleEnabledSceneElements )

Sets the list of scene element names that this behaviour can staple.

Parameters

stapleEnabledSceneElements List of scene element names that this behaviour can staple.

§ setVirtualTeeth()

void StaplerBehavior::setVirtualTeeth ( const std::array< std::shared_ptr< SurgSim::Collision::Representation >, 2 > & virtualTeeth )

Sets the virtual teeth for the virtual staple.

Parameters

virtualTeeth Array of collision representations for the virtual stapler teeth.

§ update()

void StaplerBehavior::update ( double dt )

overridevirtual

Update the behavior.

Parameters

dt	The length of time (seconds) between update calls.

Implements SurgSim::Framework::Behavior.

The documentation for this class was generated from the following files:

Examples/Stapling/StaplerBehavior.h
Examples/Stapling/StaplerBehavior.cpp
