A class implementing the communication with one hand tracked by Leap Motion camera. More...

#include <LeapDevice.h>

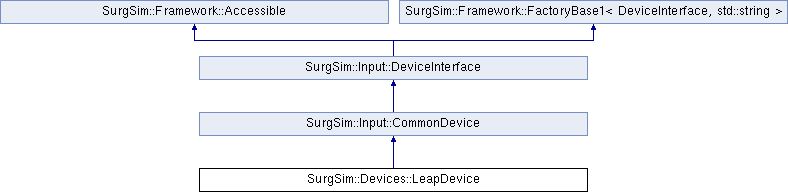

Inheritance diagram for SurgSim::Devices::LeapDevice:

Public Member Functions
	LeapDevice (const std::string &name)
	Constructor. More...

	SURGSIM_CLASSNAME (SurgSim::Devices::LeapDevice)

virtual	~LeapDevice ()
	Destructor.

void	setHandType (HandType type)
	Set the type of hand. More...

HandType	getHandType () const
	Get the type of hand. More...

void	setUseHmdTrackingMode (bool useHmdTrackingMode)
	Set the hand tracking mode to HMD This is a global setting that optimizes hand tracking based on the Leap camera placement. More...

bool	isUsingHmdTrackingMode () const
	Is Using HMD Tracking Mode. More...

void	setProvideImages (bool provideImages)
	Set if the device should provide the stereo infrared images. More...

bool	isProvidingImages () const
	Get if the device should provide the stereo infrared images. More...

bool	initialize () override
	Fully initialize the device. More...

bool	isInitialized () const override

Public Member Functions inherited from SurgSim::Input::CommonDevice
	CommonDevice (const std::string &name)
	Constructor. More...

	CommonDevice (const std::string &name, const DataStructures::DataGroup &inputData)
	Constructor. More...

	CommonDevice (const std::string &name, DataStructures::DataGroup &&inputData)
	Constructor. More...

virtual	~CommonDevice ()
	Destructor.

std::string	getName () const override
	Return a (hopefully unique) device name.

std::string	getClassName () const override
	The class name for this class. More...

void	setNameForCallback (const std::string &name)
	Set the name used for calling the input consumers and output producer. More...

std::string	getNameForCallback () const
	Get the name used for calling the input consumers and output producer. More...

bool	addInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Adds an input consumer that will be notified when the application input state is updated. More...

bool	removeInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Removes an input consumer previously added via addInputConsumer. More...

void	clearInputConsumers () override
	Removes all InputConsumers.

bool	setOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Sets an output producer that will be asked for application output state when the device needs it. More...

bool	removeOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Removes an output producer previously added via setOutputProducer. More...

bool	hasOutputProducer () override
	Query if this object has output producer. More...

void	clearOutputProducer () override
	Removes any OutputProducer.

Public Member Functions inherited from SurgSim::Input::DeviceInterface
virtual	~DeviceInterface ()
	Virtual destructor (empty).

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Friends
class	LeapScaffold

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
typedef ObjectFactory1< DeviceInterface, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::Input::CommonDevice
virtual void	pushInput ()
	Push application input to consumers.

virtual bool	pullOutput ()
	Pull application output from a producer.

DataStructures::DataGroup &	getInputData ()
	Getter for the input data DataGroup. More...

const DataStructures::DataGroup &	getOutputData () const
	Getter for the output data DataGroup. More...

Detailed Description

A class implementing the communication with one hand tracked by Leap Motion camera.

Application input provided by the device:

type	name
image	"left"	Left infrared image, each pixel value is between 0 and 1.
image	"right"	Right infrared image, each pixel value is between 0 and 1.
image	"left_distortion"	Left distortion calibration map
image	"right_distortion"	Right distortion calibration map
pose	"pose"	Hand pose
pose	"ThumbProximal"	Pose of thumb proximal joint
pose	"ThumbIntermediate"	Pose of thumb intermediate joint
pose	"ThumbDistal"	Pose of thumb distal joint
pose	"IndexFingerProximal"	Pose of index finger proximal joint
pose	"IndexFingerIntermediate"	Pose of index finger intermediate joint
pose	"IndexFingerDistal"	Pose of index finger distal joint
pose	"MiddleFingerProximal"	Pose of middle finger proximal joint
pose	"MiddleFingerIntermediate"	Pose of middle finger intermediate joint
pose	"MiddleFingerDistal"	Pose of middle finger distal joint
pose	"RingFingerProximal"	Pose of ring finger proximal joint
pose	"RingFingerIntermediate"	Pose of ring finger intermediate joint
pose	"RingFingerDistal"	Pose of ring finger distal joint
pose	"SmallFingerProximal"	Pose of small finger proximal joint
pose	"SmallFingerIntermediate"	Pose of small finger intermediate joint
pose	"SmallFingerDistal"	Pose of small finger distal joint

Application output used by the device: none.

See also: SurgSim::Devices::LeapScaffold

Constructor & Destructor Documentation

§ LeapDevice()

SurgSim::Devices::LeapDevice::LeapDevice ( const std::string & name )

explicit

Constructor.

Parameters

name	A unique name for the device that will be used by the application.

Member Function Documentation

§ getHandType()

HandType SurgSim::Devices::LeapDevice::getHandType ( ) const

Get the type of hand.

Returns: The hand type, either HANDTYPE_LEFT or HANDTYPE_RIGHT

§ initialize()

bool SurgSim::Devices::LeapDevice::initialize ( )

overridevirtual

Fully initialize the device.

When the manager object creates the device, the internal state of the device usually isn't fully initialized yet. This method performs any needed initialization.

Implements SurgSim::Input::DeviceInterface.

§ isInitialized()

bool SurgSim::Devices::LeapDevice::isInitialized ( ) const

overridevirtual

Returns: true if the device has been initialized and has not yet been finalized.

Implements SurgSim::Input::DeviceInterface.

§ isProvidingImages()

bool SurgSim::Devices::LeapDevice::isProvidingImages ( ) const

Get if the device should provide the stereo infrared images.

Returns: True if providing images

§ isUsingHmdTrackingMode()

bool SurgSim::Devices::LeapDevice::isUsingHmdTrackingMode ( ) const

Is Using HMD Tracking Mode.

Returns: True is HMD Tracking Mode is on

§ setHandType()

void SurgSim::Devices::LeapDevice::setHandType ( HandType type )

Set the type of hand.

Parameters

type	The hand type, either HANDTYPE_LEFT or HANDTYPE_RIGHT

§ setProvideImages()

void SurgSim::Devices::LeapDevice::setProvideImages ( bool provideImages )

Set if the device should provide the stereo infrared images.

Parameters

provideImages True if providing images

§ setUseHmdTrackingMode()

void SurgSim::Devices::LeapDevice::setUseHmdTrackingMode ( bool useHmdTrackingMode )

Set the hand tracking mode to HMD This is a global setting that optimizes hand tracking based on the Leap camera placement.

The default is desktop mode, where the camera is placed face up on a desktop. Use Hmd mode when the camera is attached to the front of a head mounted display.

Parameters

useHmdTrackingMode True if Hmd tracking mode is to be used

The documentation for this class was generated from the following files:

SurgSim/Devices/Leap/LeapDevice.h
SurgSim/Devices/Leap/LeapDevice.cpp
