OSG implementation of graphics uniform with a texture value. More...

#include <OsgTextureUniform.h>

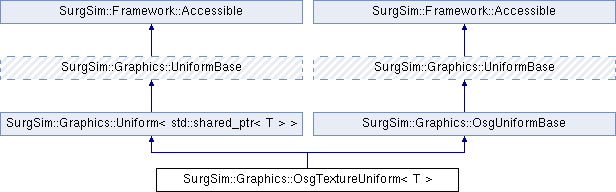

Inheritance diagram for SurgSim::Graphics::OsgTextureUniform< T >:

Public Member Functions
	OsgTextureUniform (const std::string &name)
	Constructor. More...

void	setMinimumTextureUnit (size_t unit)
	This is the texture unit from where the search for a free texture unit will start. More...

size_t	getMinimumTextureUnit () const

virtual void	set (const std::shared_ptr< T > &value)
	Sets the value of the uniform. More...

virtual void	set (const YAML::Node &node)
	Sets the value of the uniform from a YAML Node, the uniform is responsible for converting the node to its own value. More...

virtual const std::shared_ptr< T > &	get () const
	Returns the value of the uniform.

virtual void	addToStateSet (osg::StateSet *stateSet)
	Adds this uniform to the OSG state set. More...

virtual void	removeFromStateSet (osg::StateSet *stateSet)
	Removes this uniform from the OSG state set. More...

virtual const std::string	getGlslType () const

Public Member Functions inherited from SurgSim::Graphics::UniformBase
virtual	~UniformBase ()=0
	Destructor.

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Public Member Functions inherited from SurgSim::Graphics::OsgUniformBase
const std::string &	getName () const
	Returns the name used in shader code to access this uniform.

osg::ref_ptr< osg::Uniform >	getOsgUniform () const
	Returns the OSG uniform node.

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Protected Member Functions inherited from SurgSim::Graphics::OsgUniformBase
	OsgUniformBase (const std::string &name)
	Constructor. More...

Protected Attributes inherited from SurgSim::Graphics::OsgUniformBase
osg::ref_ptr< osg::Uniform >	m_uniform
	OSG uniform node.

Detailed Description

template<class T>
class SurgSim::Graphics::OsgTextureUniform< T >

OSG implementation of graphics uniform with a texture value.

Template Parameters

T	Texture type

Constructor & Destructor Documentation

§ OsgTextureUniform()

template<class T >

SurgSim::Graphics::OsgTextureUniform< T >::OsgTextureUniform ( const std::string & name )

explicit

Constructor.

Parameters

name	Name used in shader code to access this uniform

Member Function Documentation

§ addToStateSet()

template<class T >

void SurgSim::Graphics::OsgTextureUniform< T >::addToStateSet ( osg::StateSet * stateSet )

virtual

Adds this uniform to the OSG state set.

Parameters

stateSet OSG state set

Reimplemented from SurgSim::Graphics::OsgUniformBase.

§ getMinimumTextureUnit()

template<class T >

size_t SurgSim::Graphics::OsgTextureUniform< T >::getMinimumTextureUnit ( ) const

Returns: the value of the lowest texture unit to use for this uniform

§ removeFromStateSet()

template<class T >

void SurgSim::Graphics::OsgTextureUniform< T >::removeFromStateSet ( osg::StateSet * stateSet )

virtual

Removes this uniform from the OSG state set.

Parameters

stateSet OSG state set

Reimplemented from SurgSim::Graphics::OsgUniformBase.

§ set() [1/2]

template<class T>

void SurgSim::Graphics::OsgTextureUniform< T >::set ( const std::shared_ptr< T > & value )

virtual

Sets the value of the uniform.

Note: using this directly might make the state of the uniform incosistent with the texture that was used to create this uniform

Implements SurgSim::Graphics::Uniform< std::shared_ptr< T > >.

§ set() [2/2]

template<class T>

void SurgSim::Graphics::OsgTextureUniform< T >::set ( const YAML::Node & node )

virtual

Sets the value of the uniform from a YAML Node, the uniform is responsible for converting the node to its own value.

Parameters

node	YAML node for setting the uniform value

Implements SurgSim::Graphics::OsgUniformBase.

§ setMinimumTextureUnit()

template<class T >

void SurgSim::Graphics::OsgTextureUniform< T >::setMinimumTextureUnit ( size_t unit )

This is the texture unit from where the search for a free texture unit will start.

Parameters

unit	lowest texture unit to use, default is 0

The documentation for this class was generated from the following files:

SurgSim/Graphics/OsgTextureUniform.h
SurgSim/Graphics/OsgTextureUniform-inl.h
