SurgSim::Graphics::OsgUniformBase Class Reference

Base OSG implementation of graphics uniforms. More...

#include <OsgUniformBase.h>

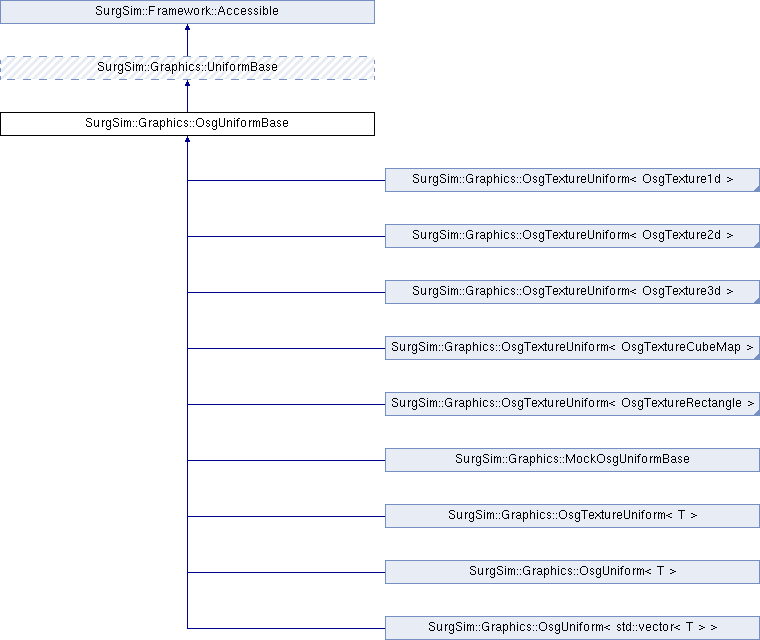

Inheritance diagram for SurgSim::Graphics::OsgUniformBase:

Public Member Functions
const std::string &	getName () const
	Returns the name used in shader code to access this uniform.
virtual void	set (const YAML::Node &node)=0
	Sets the value of the uniform from a YAML Node, the uniform is responsible for converting the node to its own value. More...
virtual void	addToStateSet (osg::StateSet *stateSet)
	Adds this uniform to the OSG state set. More...
virtual void	removeFromStateSet (osg::StateSet *stateSet)
	Removes this uniform from the OSG state set. More...
osg::ref_ptr< osg::Uniform >	getOsgUniform () const
	Returns the OSG uniform node.
virtual const std::string	getGlslType () const =0
Public Member Functions inherited from SurgSim::Graphics::UniformBase
virtual	~UniformBase ()=0
	Destructor.
Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.
	~Accessible ()
	Destructor.
template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...
boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...
template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...
void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...
bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...
bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...
void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...
void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...
void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...
void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...
void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...
void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...
void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...
YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...
void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...
std::vector< std::string >	getProperties ()
template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
	OsgUniformBase (const std::string &name)
	Constructor. More...

Protected Attributes
osg::ref_ptr< osg::Uniform >	m_uniform
	OSG uniform node.

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType
typedef std::function< void(boost::any)>	SetterType
typedef std::function< YAML::Node(void)>	EncoderType
typedef std::function< void(const YAML::Node *)>	DecoderType

Detailed Description

Base OSG implementation of graphics uniforms.

Wraps an osg::Uniform.

Note

SurgSim::Graphics::OsgUniform is templated on the type of value, so this base class allows a pointer to any type of OSG Uniform.

Constructor & Destructor Documentation

OsgUniformBase()

OsgUniformBase::OsgUniformBase ( const std::string &  name )

explicitprotected

Constructor.

Parameters

name	Name used in shader code to access this uniform

Member Function Documentation

addToStateSet()

void OsgUniformBase::addToStateSet ( osg::StateSet *  stateSet )

virtual

Adds this uniform to the OSG state set.

Parameters

stateSet

OSG state set

Reimplemented in SurgSim::Graphics::OsgTextureUniform< T >, SurgSim::Graphics::OsgTextureUniform< OsgTexture3d >, SurgSim::Graphics::OsgTextureUniform< OsgTexture2d >, SurgSim::Graphics::OsgTextureUniform< OsgTextureRectangle >, SurgSim::Graphics::OsgTextureUniform< OsgTexture1d >, and SurgSim::Graphics::OsgTextureUniform< OsgTextureCubeMap >.

removeFromStateSet()

void OsgUniformBase::removeFromStateSet ( osg::StateSet *  stateSet )

virtual

Removes this uniform from the OSG state set.

Parameters

stateSet

OSG state set

Reimplemented in SurgSim::Graphics::OsgTextureUniform< T >, SurgSim::Graphics::OsgTextureUniform< OsgTexture3d >, SurgSim::Graphics::OsgTextureUniform< OsgTexture2d >, SurgSim::Graphics::OsgTextureUniform< OsgTextureRectangle >, SurgSim::Graphics::OsgTextureUniform< OsgTexture1d >, and SurgSim::Graphics::OsgTextureUniform< OsgTextureCubeMap >.

set()

virtual void SurgSim::Graphics::OsgUniformBase::set ( const YAML::Node &  node )

pure virtual

Sets the value of the uniform from a YAML Node, the uniform is responsible for converting the node to its own value.

Parameters

node	YAML node for setting the uniform value

Implemented in SurgSim::Graphics::OsgUniform< std::vector< T > >, SurgSim::Graphics::OsgTextureUniform< T >, SurgSim::Graphics::OsgUniform< T >, SurgSim::Graphics::OsgTextureUniform< OsgTexture3d >, SurgSim::Graphics::OsgTextureUniform< OsgTexture2d >, SurgSim::Graphics::OsgTextureUniform< OsgTextureRectangle >, SurgSim::Graphics::OsgTextureUniform< OsgTexture1d >, SurgSim::Graphics::OsgTextureUniform< OsgTextureCubeMap >, and SurgSim::Graphics::MockOsgUniformBase.

---

The documentation for this class was generated from the following files:

• SurgSim/Graphics/OsgUniformBase.h
• SurgSim/Graphics/OsgUniformBase.cpp
