Maps the on and off state of two boolean values to the increase and decrease of a scalar field, this for example enables the driving on a scalar value through two buttons on a device, no change occurs when both booleans are true at the same time. More...

#include <BoolToScalar.h>

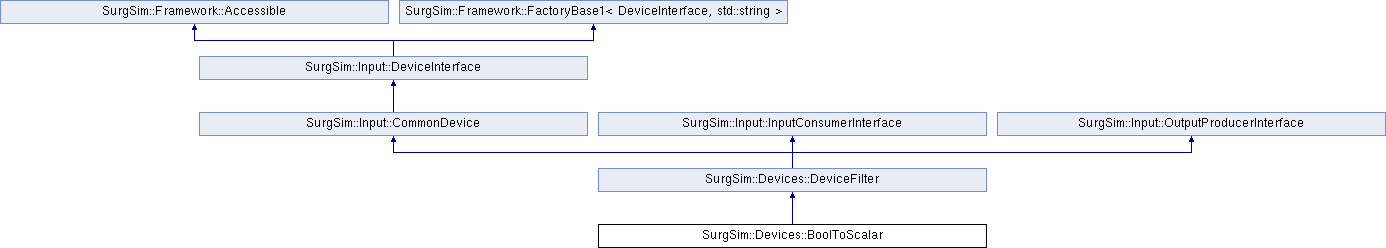

Inheritance diagram for SurgSim::Devices::BoolToScalar:

Public Member Functions
	BoolToScalar (const std::string &name)
	Constructor.

	~BoolToScalar ()
	Destructor.

	SURGSIM_CLASSNAME (SurgSim::Devices::BoolToScalar)

void	initializeInput (const std::string &device, const DataStructures::DataGroup &inputData) override
	Set the initial input data group. More...

void	filterInput (const std::string &device, const DataStructures::DataGroup &dataToFilter, DataStructures::DataGroup *result) override
	Filter the input data. More...

void	setScale (double val)
	Sets the value that gets used, the actual value to be added is scale * dt per call to filterInput. More...

double	getScale () const

void	setRange (const std::pair< double, double > &val)
	Set the range of values that should be produced by this. More...

std::pair< double, double >	getRange () const

void	setClamping (bool val)
	Enables or disables clamping on the output value (default true) More...

bool	isClamping ()

void	setIncreaseField (const std::string &val)
	Set the field that is read to increase the scalar value, needs to be a bool. More...

std::string	getIncreaseField () const

void	setDecreaseField (const std::string &val)
	Set the field this is read to decrease the scalar value, needs to be a bool. More...

std::string	getDecreaseField () const

void	setScalar (double val)
	Set the value of the mapped field, can also be used to set a starting value for the field. More...

double	getScalar () const

void	setTargetField (const std::string &val)
	Set the name of the target field that carries the scalar value, will be created in the datagroup if it doesn't exist. More...

std::string	getTargetField () const

Public Member Functions inherited from SurgSim::Devices::DeviceFilter
	DeviceFilter (const std::string &name)
	Constructor. More...

	SURGSIM_CLASSNAME (SurgSim::Devices::DeviceFilter)

bool	initialize () override
	Fully initialize the device. More...

bool	isInitialized () const override

void	initializeInput (const std::string &device, const DataStructures::DataGroup &inputData) override
	Set the initial input data group. More...

void	handleInput (const std::string &device, const DataStructures::DataGroup &inputData) override
	Notifies the consumer that the application input coming from the device has been updated. More...

bool	requestOutput (const std::string &device, DataStructures::DataGroup *outputData) override
	Asks the producer to provide output state to the device. More...

Public Member Functions inherited from SurgSim::Input::CommonDevice
	CommonDevice (const std::string &name)
	Constructor. More...

	CommonDevice (const std::string &name, const DataStructures::DataGroup &inputData)
	Constructor. More...

	CommonDevice (const std::string &name, DataStructures::DataGroup &&inputData)
	Constructor. More...

virtual	~CommonDevice ()
	Destructor.

std::string	getName () const override
	Return a (hopefully unique) device name.

std::string	getClassName () const override
	The class name for this class. More...

void	setNameForCallback (const std::string &name)
	Set the name used for calling the input consumers and output producer. More...

std::string	getNameForCallback () const
	Get the name used for calling the input consumers and output producer. More...

bool	addInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Adds an input consumer that will be notified when the application input state is updated. More...

bool	removeInputConsumer (std::shared_ptr< InputConsumerInterface > inputConsumer) override
	Removes an input consumer previously added via addInputConsumer. More...

void	clearInputConsumers () override
	Removes all InputConsumers.

bool	setOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Sets an output producer that will be asked for application output state when the device needs it. More...

bool	removeOutputProducer (std::shared_ptr< OutputProducerInterface > outputProducer) override
	Removes an output producer previously added via setOutputProducer. More...

bool	hasOutputProducer () override
	Query if this object has output producer. More...

void	clearOutputProducer () override
	Removes any OutputProducer.

Public Member Functions inherited from SurgSim::Input::DeviceInterface
virtual	~DeviceInterface ()
	Virtual destructor (empty).

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Public Member Functions inherited from SurgSim::Input::InputConsumerInterface
virtual	~InputConsumerInterface ()
	Virtual destructor (empty).

Public Member Functions inherited from SurgSim::Input::OutputProducerInterface
virtual	~OutputProducerInterface ()
	Virtual destructor (empty).

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
typedef ObjectFactory1< DeviceInterface, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< DeviceInterface, std::string >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::Devices::DeviceFilter
virtual void	filterOutput (const std::string &device, const DataStructures::DataGroup &dataToFilter, DataStructures::DataGroup *result)
	Filter the output data. More...

bool	finalize () override
	Finalize (de-initialize) the device.

Protected Member Functions inherited from SurgSim::Input::CommonDevice
virtual void	pushInput ()
	Push application input to consumers.

virtual bool	pullOutput ()
	Pull application output from a producer.

DataStructures::DataGroup &	getInputData ()
	Getter for the input data DataGroup. More...

const DataStructures::DataGroup &	getOutputData () const
	Getter for the output data DataGroup. More...

Protected Attributes inherited from SurgSim::Devices::DeviceFilter
bool	m_initialized
	true if initialized and not finalized.

Detailed Description

Maps the on and off state of two boolean values to the increase and decrease of a scalar field, this for example enables the driving on a scalar value through two buttons on a device, no change occurs when both booleans are true at the same time.

Member Function Documentation

§ filterInput()

void SurgSim::Devices::BoolToScalar::filterInput	(	const std::string &	device,
		const DataStructures::DataGroup &	dataToFilter,
		DataStructures::DataGroup *	result
	)

overridevirtual

Filter the input data.

Parameters

	device	The name of the device pushing the input data.
	dataToFilter	The data that will be filtered.
[in,out]	result	A pointer to a DataGroup object that must be assignable to by the dataToFilter object. Will contain the filtered data.

Reimplemented from SurgSim::Devices::DeviceFilter.

§ getDecreaseField()

std::string SurgSim::Devices::BoolToScalar::getDecreaseField ( ) const

Returns: the name of the field used for decreasing the value

§ getIncreaseField()

std::string SurgSim::Devices::BoolToScalar::getIncreaseField ( ) const

Returns: the name of the field used for increasing the value

§ getRange()

std::pair< double, double > SurgSim::Devices::BoolToScalar::getRange ( ) const

Returns: the range of values used

§ getScalar()

double SurgSim::Devices::BoolToScalar::getScalar ( ) const

Returns: the actual value of the mapped field

§ getScale()

double SurgSim::Devices::BoolToScalar::getScale ( ) const

Returns: the scale for addition

§ getTargetField()

std::string SurgSim::Devices::BoolToScalar::getTargetField ( ) const

Returns: the name of the target field for the scalar information

§ initializeInput()

void SurgSim::Devices::BoolToScalar::initializeInput	(	const std::string &	device,
		const DataStructures::DataGroup &	inputData
	)

overridevirtual

Set the initial input data group.

Parameters

device	The name of the device that is producing the input. This should only be used to identify the device (e.g. if the consumer is listening to several devices at once).
inputData	The application input state coming from the device.

Implements SurgSim::Input::InputConsumerInterface.

§ isClamping()

bool SurgSim::Devices::BoolToScalar::isClamping ( )

Returns: whether the output value is being clamped

§ setClamping()

void SurgSim::Devices::BoolToScalar::setClamping ( bool val )

Enables or disables clamping on the output value (default true)

Parameters

val	whether to enable or disable clamping

§ setDecreaseField()

void SurgSim::Devices::BoolToScalar::setDecreaseField ( const std::string & val )

Set the field this is read to decrease the scalar value, needs to be a bool.

Parameters

val	name of the field to be read for decrease

§ setIncreaseField()

void SurgSim::Devices::BoolToScalar::setIncreaseField ( const std::string & val )

Set the field that is read to increase the scalar value, needs to be a bool.

Parameters

val	name of the field to read for an increase

§ setRange()

void SurgSim::Devices::BoolToScalar::setRange ( const std::pair< double, double > & val )

Set the range of values that should be produced by this.

Parameters

val	(min and max for the range)

§ setScalar()

void SurgSim::Devices::BoolToScalar::setScalar ( double val )

Set the value of the mapped field, can also be used to set a starting value for the field.

Parameters

val	new Value to be used for the scalar field

§ setScale()

void SurgSim::Devices::BoolToScalar::setScale ( double val )

Sets the value that gets used, the actual value to be added is scale * dt per call to filterInput.

Parameters

val	scale to be used

§ setTargetField()

void SurgSim::Devices::BoolToScalar::setTargetField ( const std::string & val )

Set the name of the target field that carries the scalar value, will be created in the datagroup if it doesn't exist.

Parameters

val	name of the target field

The documentation for this class was generated from the following files:

SurgSim/Devices/DeviceFilters/BoolToScalar.h
SurgSim/Devices/DeviceFilters/BoolToScalar.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

§ filterInput()

§ getDecreaseField()

§ getIncreaseField()

§ getRange()

§ getScalar()

§ getScale()

§ getTargetField()

§ initializeInput()

§ isClamping()

§ setClamping()

§ setDecreaseField()

§ setIncreaseField()

§ setRange()

§ setScalar()

§ setScale()

§ setTargetField()
