Behavior to abstract the functionality of keyboard driven behaviors, can be programmed to react to a single keystroke. More...

#include <KeyBehavior.h>

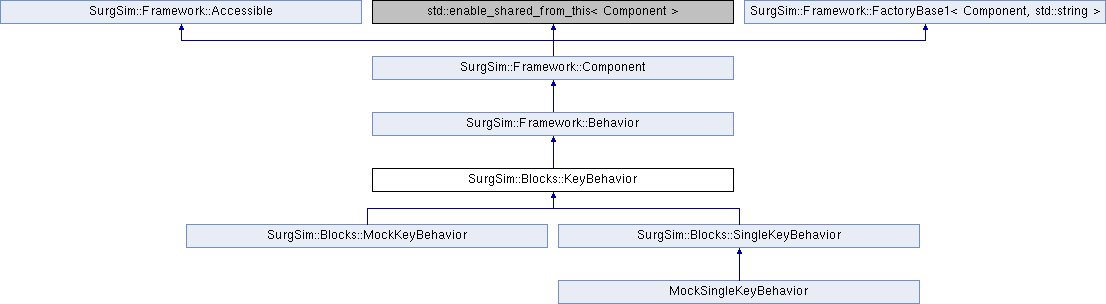

Inheritance diagram for SurgSim::Blocks::KeyBehavior:

Public Member Functions
	KeyBehavior (const std::string &name)
	Constructor.

	~KeyBehavior ()
	Destructor.

void	update (double dt) override
	Update the behavior. More...

bool	doInitialize () override
	Interface to be implemented by derived classes. More...

bool	doWakeUp () override
	Interface to be implemented by derived classes. More...

void	setInputComponent (std::shared_ptr< Framework::Component > inputComponent)
	Set the input component from which pressed key comes. More...

std::shared_ptr< Input::InputComponent >	getInputComponent () const
	Get the input component of this behavior, from which the pressed key comes. More...

Public Member Functions inherited from SurgSim::Framework::Behavior
	Behavior (const std::string &name)

virtual int	getTargetManagerType () const
	Specifies which manger will handle this behavior.

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Static Public Member Functions
static bool	registerKey (int keycode, const std::string &description)
	Register the key, this let's the system keep track of keys used in the application. More...

static bool	unregisterKey (int keycode)
	Remove a key from the registry. More...

static void	logMap ()
	Write the keymap out to the logger.

static void	clearKeyMap ()
	Clear the map as its static it will survive teardown of this object.

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Protected Member Functions
virtual void	onKeyDown (int key)=0
	Implement to execute functionality on key press. More...

virtual void	onKeyUp (int key)=0
	Implement to execute functionality on key release. More...

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Protected Attributes
std::shared_ptr< Input::InputComponent >	m_inputComponent
	Input component needs to provide key.

int	m_lastKey
	Keep track if the key was pressed the last time around.

Static Protected Attributes

static boost::mutex	m_keyMapMutex

static std::unordered_map< int, std::string >	m_keyMap

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Detailed Description

Behavior to abstract the functionality of keyboard driven behaviors, can be programmed to react to a single keystroke.

Member Function Documentation

§ doInitialize()

bool SurgSim::Blocks::KeyBehavior::doInitialize ( )

overridevirtual

Interface to be implemented by derived classes.

Returns: True if component is initialized successfully; otherwise, false.

Implements SurgSim::Framework::Component.

§ doWakeUp()

bool SurgSim::Blocks::KeyBehavior::doWakeUp ( )

overridevirtual

Interface to be implemented by derived classes.

Returns: True if component is woken up successfully; otherwise, false.

Implements SurgSim::Framework::Component.

Reimplemented in SurgSim::Blocks::SingleKeyBehavior.

§ getInputComponent()

std::shared_ptr< SurgSim::Input::InputComponent > SurgSim::Blocks::KeyBehavior::getInputComponent ( ) const

Get the input component of this behavior, from which the pressed key comes.

Returns: The input component which sends key press to this behavior.

§ onKeyDown()

virtual void SurgSim::Blocks::KeyBehavior::onKeyDown ( int key )

protectedpure virtual

Implement to execute functionality on key press.

Parameters

key	the value of the key hit

Implemented in SurgSim::Blocks::SingleKeyBehavior.

§ onKeyUp()

virtual void SurgSim::Blocks::KeyBehavior::onKeyUp ( int key )

protectedpure virtual

Implement to execute functionality on key release.

Parameters

key	the value of the key hit

Implemented in SurgSim::Blocks::SingleKeyBehavior.

§ registerKey()

bool SurgSim::Blocks::KeyBehavior::registerKey	(	int	keycode,
		const std::string &	description
	)

static

Register the key, this let's the system keep track of keys used in the application.

Parameters

keycode	the key that is being used
description	description of functionality that the key triggers

Returns: true if the key is available, false if another key has already been register

§ setInputComponent()

void SurgSim::Blocks::KeyBehavior::setInputComponent ( std::shared_ptr< Framework::Component > inputComponent )

Set the input component from which pressed key comes.

Parameters

inputComponent The input component which contains the pressed key(s).

§ unregisterKey()

bool SurgSim::Blocks::KeyBehavior::unregisterKey ( int keycode )

static

Remove a key from the registry.

Parameters

keycode the key to be removed

Returns: true if the key was actually removed

§ update()

void SurgSim::Blocks::KeyBehavior::update ( double dt )

overridevirtual

Update the behavior.

Parameters

dt	The length of time (seconds) between update calls.

Implements SurgSim::Framework::Behavior.

Member Data Documentation

§ m_keyMapMutex

boost::mutex SurgSim::Blocks::KeyBehavior::m_keyMapMutex

staticprotected

Handle the key map

The documentation for this class was generated from the following files:

SurgSim/Blocks/KeyBehavior.h
SurgSim/Blocks/KeyBehavior.cpp
