This behavior is used to control the activity of registered components. More...

#include <KeyboardTogglesComponentBehavior.h>

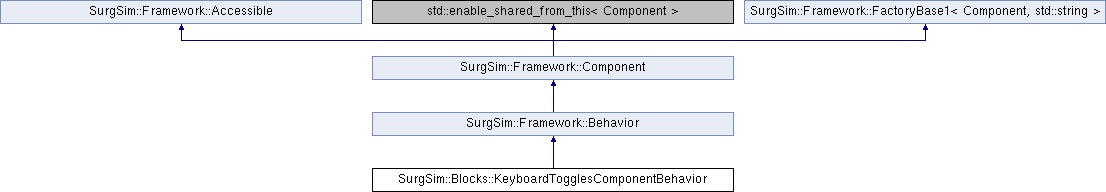

Inheritance diagram for SurgSim::Blocks::KeyboardTogglesComponentBehavior:

Public Types
typedef std::unordered_map< int, std::unordered_set< std::shared_ptr< SurgSim::Framework::Component > > >	KeyboardRegistryType

Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Public Member Functions
	KeyboardTogglesComponentBehavior (const std::string &name)
	Constructor. More...

	SURGSIM_CLASSNAME (SurgSim::Blocks::KeyboardTogglesComponentBehavior)

void	setInputComponent (std::shared_ptr< SurgSim::Framework::Component > inputComponent)
	Set the input component from which pressed keys come. More...

std::shared_ptr< SurgSim::Input::InputComponent >	getInputComponent () const
	Get the input component of this behavior. More...

void	registerKey (SurgSim::Devices::KeyCode key, std::shared_ptr< SurgSim::Framework::Component > component)
	Register a key with a component in this behavior. More...

void	setKeyboardRegistry (const KeyboardRegistryType &map)
	Set the register map of this behavior. More...

const KeyboardRegistryType &	getKeyboardRegistry () const
	Get the register map of this behavior. More...

void	update (double dt) override
	Update the behavior. More...

Public Member Functions inherited from SurgSim::Framework::Behavior
	Behavior (const std::string &name)

virtual int	getTargetManagerType () const
	Specifies which manger will handle this behavior.

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
bool	doInitialize () override
	Initialize this behavior. More...

bool	doWakeUp () override
	Wakeup this behavior. More...

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Additional Inherited Members
Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Detailed Description

This behavior is used to control the activity of registered components.

Constructor & Destructor Documentation

§ KeyboardTogglesComponentBehavior()

SurgSim::Blocks::KeyboardTogglesComponentBehavior::KeyboardTogglesComponentBehavior ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of the behavior

Member Function Documentation

§ doInitialize()

bool SurgSim::Blocks::KeyboardTogglesComponentBehavior::doInitialize ( )

overrideprotectedvirtual

Initialize this behavior.

Returns: True on success, otherwise false.

Note: In current implementation, this method always returns "true".

Implements SurgSim::Framework::Component.

§ doWakeUp()

bool SurgSim::Blocks::KeyboardTogglesComponentBehavior::doWakeUp ( )

overrideprotectedvirtual

Wakeup this behavior.

Returns: True on success, otherwise false.

Note: In current implementation, this method always returns "true".

Implements SurgSim::Framework::Component.

§ getInputComponent()

std::shared_ptr< SurgSim::Input::InputComponent > SurgSim::Blocks::KeyboardTogglesComponentBehavior::getInputComponent ( ) const

Get the input component of this behavior.

Returns: The input component which sends signals to this behavior.

§ getKeyboardRegistry()

const KeyboardTogglesComponentBehavior::KeyboardRegistryType & SurgSim::Blocks::KeyboardTogglesComponentBehavior::getKeyboardRegistry ( ) const

Get the register map of this behavior.

Returns: The register map of this behavior

§ registerKey()

void SurgSim::Blocks::KeyboardTogglesComponentBehavior::registerKey	(	SurgSim::Devices::KeyCode	key,
		std::shared_ptr< SurgSim::Framework::Component >	component
	)

Register a key with a component in this behavior.

Parameters

key	A key used to control the component.
component	The component being controlled by the key.

Note: A key can be registered several times, so can a component.

§ setInputComponent()

void SurgSim::Blocks::KeyboardTogglesComponentBehavior::setInputComponent ( std::shared_ptr< SurgSim::Framework::Component > inputComponent )

Set the input component from which pressed keys come.

Parameters

inputComponent The input component which contains the pressed key(s).

§ setKeyboardRegistry()

void SurgSim::Blocks::KeyboardTogglesComponentBehavior::setKeyboardRegistry ( const KeyboardRegistryType & map )

Set the register map of this behavior.

Parameters

map	The register map.

§ update()

void SurgSim::Blocks::KeyboardTogglesComponentBehavior::update ( double dt )

overridevirtual

Update the behavior.

Parameters

dt	The length of time (seconds) between update calls.

Implements SurgSim::Framework::Behavior.

The documentation for this class was generated from the following files:

SurgSim/Blocks/KeyboardTogglesComponentBehavior.h
SurgSim/Blocks/KeyboardTogglesComponentBehavior.cpp
