Behavior class to allow a specified scene element to receive painting effects. More...

#include <PaintBehavior.h>

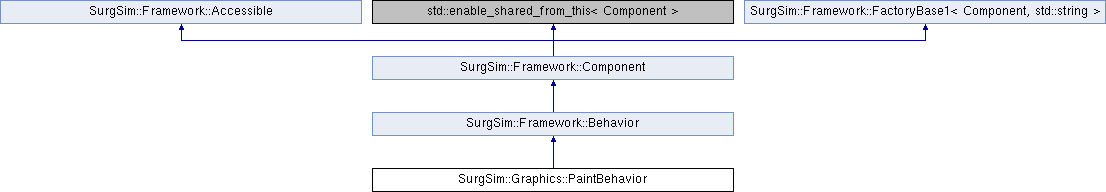

Inheritance diagram for SurgSim::Graphics::PaintBehavior:

Public Member Functions
	PaintBehavior (const std::string &name)

	SURGSIM_CLASSNAME (SurgSim::Graphics::PaintBehavior)

void	setRepresentation (std::shared_ptr< Framework::Component > representation)
	Sets graphics representation being painted on. More...

std::shared_ptr< Graphics::OsgMeshRepresentation >	getRepresentation () const
	Gets graphics representation being painted on. More...

void	setTextureSize (int width, int height)
	Sets the size of the texture layer to paint onto. More...

void	setColor (const Math::Vector4d &color)
	Sets color of the paint. More...

Math::Vector4d	getColor () const
	Gets color of the paint. More...

void	setRadius (double radius)
	Sets radius of paint splat. More...

double	getRadius () const
	Gets radius of paint splat. More...

void	setAntiAlias (bool antialias)
	Sets whether to anti-alias the brush. More...

bool	getAntiAlias () const
	Gets status of antialiased brush. More...

void	setCoordinates (const std::vector< DataStructures::IndexedLocalCoordinate > &coordinate)
	Sets collection of local triangle coordinates to paint on during next update. More...

bool	doInitialize () override
	Interface to be implemented by derived classes. More...

bool	doWakeUp () override
	Interface to be implemented by derived classes. More...

void	update (double dt) override
	Update the behavior. More...

Public Member Functions inherited from SurgSim::Framework::Behavior
	Behavior (const std::string &name)

virtual int	getTargetManagerType () const
	Specifies which manger will handle this behavior.

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Detailed Description

Behavior class to allow a specified scene element to receive painting effects.

Member Function Documentation

§ doInitialize()

bool SurgSim::Graphics::PaintBehavior::doInitialize ( )

overridevirtual

Interface to be implemented by derived classes.

Returns: True if component is initialized successfully; otherwise, false.

Implements SurgSim::Framework::Component.

§ doWakeUp()

bool SurgSim::Graphics::PaintBehavior::doWakeUp ( )

overridevirtual

Interface to be implemented by derived classes.

Returns: True if component is woken up successfully; otherwise, false.

Implements SurgSim::Framework::Component.

§ getAntiAlias()

bool SurgSim::Graphics::PaintBehavior::getAntiAlias ( ) const

Gets status of antialiased brush.

Returns: Boolean indicating if antialiasing is on

§ getColor()

Math::Vector4d SurgSim::Graphics::PaintBehavior::getColor ( ) const

Gets color of the paint.

Returns: Vector4d representation of RGBA color in [0-1] range

§ getRadius()

double SurgSim::Graphics::PaintBehavior::getRadius ( ) const

Gets radius of paint splat.

Returns: Radius in texture coordinate range [0-1]

§ getRepresentation()

std::shared_ptr< Graphics::OsgMeshRepresentation > SurgSim::Graphics::PaintBehavior::getRepresentation ( ) const

Gets graphics representation being painted on.

Returns: Shared pointer to a graphics representation

§ setAntiAlias()

void SurgSim::Graphics::PaintBehavior::setAntiAlias ( bool antialias )

Sets whether to anti-alias the brush.

Parameters

antialias True enables AA, False disables

§ setColor()

void SurgSim::Graphics::PaintBehavior::setColor ( const Math::Vector4d & color )

Sets color of the paint.

Parameters

color RGBA color in [0-1] range

§ setCoordinates()

void SurgSim::Graphics::PaintBehavior::setCoordinates ( const std::vector< DataStructures::IndexedLocalCoordinate > & coordinate )

Sets collection of local triangle coordinates to paint on during next update.

Parameters

coordinate Standard vector of IndexedLocalCoordinates

§ setRadius()

void SurgSim::Graphics::PaintBehavior::setRadius ( double radius )

Sets radius of paint splat.

Parameters

radius Radius in texture coordinate range [0-1]

§ setRepresentation()

void SurgSim::Graphics::PaintBehavior::setRepresentation ( std::shared_ptr< Framework::Component > representation )

Sets graphics representation being painted on.

Parameters

representation Graphics representation pointer

§ setTextureSize()

void SurgSim::Graphics::PaintBehavior::setTextureSize	(	int	width,
		int	height
	)

Sets the size of the texture layer to paint onto.

Parameters

width	texture width
height	texture height

§ update()

void SurgSim::Graphics::PaintBehavior::update ( double dt )

overridevirtual

Update the behavior.

Parameters

dt	The length of time (seconds) between update calls.

Implements SurgSim::Framework::Behavior.

The documentation for this class was generated from the following files:

SurgSim/Graphics/PaintBehavior.h
SurgSim/Graphics/PaintBehavior.cpp
