Used when performing a domain decomposition analysis. More...

#include <DomainDecompositionAnalysis.h>

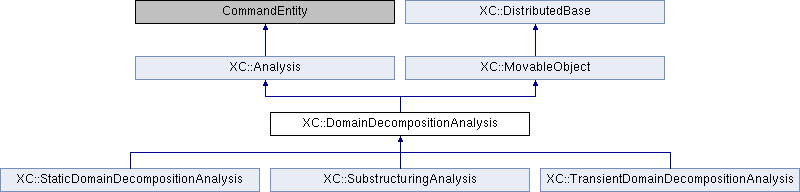

Inheritance diagram for XC::DomainDecompositionAnalysis:

Public Member Functions
virtual void	clearAll (void)
	Clears all object members (constraint handler, analysis model,...).

virtual int	initialize (void)

virtual int	domainChanged (void)
	Method used to inform the object that the domain has changed.

virtual bool	doesIndependentAnalysis (void)

virtual int	analyze (double dT)
	Performs the analysis. More...

virtual int	getNumExternalEqn (void)
	Returns the number of external equations. More...

virtual int	getNumInternalEqn (void)
	Returns the number of internal equations.

virtual int	newStep (double dT)

virtual int	computeInternalResponse (void)
	A method which invokes solveCurrentStep() on `theAlgorithm`.

virtual int	formTangent (void)
	Assembles the tangent stiffness matrix. More...

virtual int	formResidual (void)
	Assembles the residuial vector. More...

virtual int	formTangVectProduct (Vector &force)
	form the product of the condensed tangent matrix times the vector \(u\). More...

virtual const Matrix &	getTangent (void)
	Return the tangent stiffness matrix. More...

virtual const Vector &	getResidual (void)
	Returns the residual vector. More...

virtual const Vector &	getTangVectProduct (void)
	Returns the result of invoking getCondensedMatVect() on the solver. More...

virtual const DomainSolver *	getDomainSolver (void) const
	Returns a pointer to the DomainSolver associated with this object. More...

virtual DomainSolver *	getDomainSolver (void)
	Returns a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomain (void) const
	Returns a pointer to the subdomain.

virtual Subdomain *	getSubdomain (void)
	Returns a pointer to the subdomain.

virtual int	sendSelf (CommParameters &)
	Sends the object.

virtual int	recvSelf (const CommParameters &)
	Receives the object.

virtual int	setAlgorithm (EquiSolnAlgo &theAlgorithm)
	Sets the solution algorithm to use in the analysis.

virtual int	setIntegrator (IncrementalIntegrator &theIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setLinearSOE (LinearSOE &theSOE)
	Sets the system of equations to use in the analysis.

virtual int	setConvergenceTest (ConvergenceTest &theTest)
	Sets the convergence test to use in the analysis.

Public Member Functions inherited from XC::Analysis
AnalysisAggregation *	getAnalysisAggregationPtr (void)

Domain *	getDomainPtr (void)
	Returns a pointer to the domain.

const Domain *	getDomainPtr (void) const
	Returns a pointer to the domain.

ConstraintHandler *	getConstraintHandlerPtr (void)
	Returns a pointer to the constraint handler.

DOF_Numberer *	getDOF_NumbererPtr (void) const
	Returns a pointer to the DOF numberer.

AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations.

EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

Integrator *	getIntegratorPtr (void)
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator *	getIntegratorPtr (void) const
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator *	getEigenIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator *	getLinearBucklingIntegratorPtr (void)
	Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator *	getTransientIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator *	getStaticIntegratorPtr (void)
	Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm *	getSolutionAlgorithmPtr (void)

EigenAlgorithm *	getEigenSolutionAlgorithmPtr (void)
	Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr). More...

EquiSolnAlgo *	getEquiSolutionAlgorithmPtr (void)
	Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr). More...

DomainDecompAlgo *	getDomainDecompSolutionAlgorithmPtr (void)
	Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr). More...

virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test (only for suitable analysis).

virtual int	setNumberer (DOF_Numberer &theNumberer)
	Sets the renumerador to use in the analysis.

virtual int	setEigenSOE (EigenSOE &theSOE)
	Sets the sistema de eigenvalues to use in the analysis.

virtual int	setIntegrator (Integrator &theNewIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
	Set the solution algorithm to be used in the analysis.

void	brokeConstraintHandler (const CommParameters &, const ID &)

void	brokeNumberer (const CommParameters &, const ID &)

void	brokeAnalysisModel (const CommParameters &, const ID &)

void	brokeDDLinearSOE (const CommParameters &, const ID &)

void	brokeLinearSOE (const CommParameters &, const ID &)

void	brokeIncrementalIntegrator (const CommParameters &, const ID &)

void	brokeStaticIntegrator (const CommParameters &, const ID &)

void	brokeTransientIntegrator (const CommParameters &, const ID &)

void	brokeDomainDecompAlgo (const CommParameters &, const ID &)

void	brokeEquiSolnAlgo (const CommParameters &, const ID &)

int	getAnalysisResult (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Protected Member Functions
Subdomain *	getSubdomainPtr (void) const
	Returns a pointer to the subdomain.

void	set_all_links (void)
	Sets los pointers tol DomainDecompSolutionAlgorithm y al subdomain.

	DomainDecompositionAnalysis (Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s)
	Constructor. More...

Analysis *	getCopy (void) const
	Virtual constructor.

Protected Member Functions inherited from XC::Analysis
int	newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu *	getProcSolu (void)

const ProcSolu *	getProcSolu (void) const

	Analysis (AnalysisAggregation *analysis_aggregation)
	Constructor. More...

Protected Attributes
int	domainStamp

Protected Attributes inherited from XC::Analysis
int	analysis_result
	Equal to zero if success.

AnalysisAggregation *	solution_method
	Solution method.

Friends
class	ProcSolu

class	FEM_ObjectBroker

Detailed Description

Used when performing a domain decomposition analysis.

It provides methods which can be invoked by a subdomain to perform the numerical computations required.

Used when performing an analysis using the domain decomposition method to solve the equations. Its public member functions are all virtual to allow for the generalization of the class. The following are the aggregates of such an analysis type:

Subdomain: a pointer to the subdomain on wich the analysis is performed.
DomainSolver: an algorithmic class specifying the sequence of operations to be performed in performing the numerical operations.

Constructor & Destructor Documentation

§ DomainDecompositionAnalysis() [1/4]

XC::DomainDecompositionAnalysis::DomainDecompositionAnalysis	(	Subdomain &	subDomain,
		AnalysisAggregation *	s = `nullptr`
	)

protected

Constructor.

A constructor that is used when creating a DomainDecompositionObject which is to receive itself afterwards. Sets the links to the Subdomain. It is essential that this object recvSelf() before DomainDecompositionAnalysis methods are invoked as their invocation will cause segmentation faults.

Invokes {setAnalysis(this)} on the Subdomain.

Parameters

subDomain	Subdomain to deal with.
s	solution method to use.

§ DomainDecompositionAnalysis() [2/4]

XC::DomainDecompositionAnalysis::DomainDecompositionAnalysis	(	Subdomain &	subDomain,
		DomainSolver &	theSlvr,
		AnalysisAggregation *	s = `nullptr`
	)

protected

Constructor.

Parameters

subDomain	subdomain to deal with.
theSolvr	Solver to use.
s	solution method to use.

§ DomainDecompositionAnalysis() [3/4]

XC::DomainDecompositionAnalysis::DomainDecompositionAnalysis	(	int	clsTag,
		Subdomain &	subDomain,
		AnalysisAggregation *	s = `nullptr`
	)

protected

Constructor.

Parameters

clsTag	class identifier.
subDomain	subdomain to deal with.
s	solution method to use.

§ DomainDecompositionAnalysis() [4/4]

XC::DomainDecompositionAnalysis::DomainDecompositionAnalysis	(	int	clsTag,
		Subdomain &	theDomain,
		DomainSolver &	theSolver,
		AnalysisAggregation *	s
	)

protected

Constructor.

Parameters

clsTag	class identifier.
subDomain	subdomain to deal with.
theSolver	Solver to use.
s	solution method to use.

Member Function Documentation

§ analyze()

int XC::DomainDecompositionAnalysis::analyze ( double dT )

virtual

Performs the analysis.

Parameters

dT	time increment.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ formResidual()

int XC::DomainDecompositionAnalysis::formResidual ( void )

virtual

Assembles the residuial vector.

A method to form the condensed residual vector, given the current number of internal dof. A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. If the tangent has not yet been formed it invokes formTangent() on itself and sets the counter to \(-1\). To form the residual formUnbalance() is invoked on theIntegrator and {condenseRHS(numInt)} is invoked on theSolver. Returns \(0\) or the negative number that was returned if either formUnbalance()} or {condenseRHS() failed.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ formTangent()

int XC::DomainDecompositionAnalysis::formTangent ( void )

virtual

Assembles the tangent stiffness matrix.

A method to form the condensed tangent matrix, given the current number of internal dof. It first checks to see if the Subdomain has changed, by invoking hasDomainChanged() on the Subdomain; if it has invokeChangeOnAnalysis() is invoked on the {Subdomain}. It then checks to see if counter is equal to \(-1\) or not; a \(-1\) indicating the tangent has already been formed in order that the residual could be determined. If this is not the case {formTangent()} is invoked on theIntegrator, condenseA() is invoked on theSolver object, a flag is set to indicate that the tangent has been formed, and the counter is incremented. Returns a \(0\) if successfull, if either the formTangent() or {condenseA()} method returns a negative number this number is returned.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ formTangVectProduct()

int XC::DomainDecompositionAnalysis::formTangVectProduct ( Vector & u )

virtual

form the product of the condensed tangent matrix times the vector \(u\).

A method to form the product of the condensed tangent matrix times the vector \(u\). A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. If the tangent has not yet been formed it invokes formTangent() on itself and sets the counter to \(-1\). Finally the result of invoking {computeCondensedMatVect(numInt, u)} on {theSolver} is returned.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ getDomainSolver()

const XC::DomainSolver * XC::DomainDecompositionAnalysis::getDomainSolver ( void ) const

virtual

Returns a pointer to the DomainSolver associated with this object.

Reimplemented from XC::Analysis.

§ getNumExternalEqn()

int XC::DomainDecompositionAnalysis::getNumExternalEqn ( void )

virtual

Returns the number of external equations.

A method to return the number of external degrees-of-freedom on the Subdomain interface, this information is returned when handle() is invoked on theConstraintHandler.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ getResidual()

const XC::Vector & XC::DomainDecompositionAnalysis::getResidual ( void )

virtual

Returns the residual vector.

A method which returns the portion of the \(b\) corresponding to the external equation numbers. A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain and formResidual() is called. The object returns the Vector obtained from invoking getCondensedRHS() on the solver.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ getTangent()

const XC::Matrix & XC::DomainDecompositionAnalysis::getTangent ( void )

virtual

Return the tangent stiffness matrix.

A method which returns the portion of A corresponding to internal equation numbers. A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. If the tangent has not yet been formed formTangent() is invoked. The method returns the result of invoking getCondensedA()} on {theSolver().

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

§ getTangVectProduct()

const XC::Vector & XC::DomainDecompositionAnalysis::getTangVectProduct ( void )

virtual

Returns the result of invoking getCondensedMatVect() on the solver.

Returns the result of invoking getCondensedMatVect() on the solver. A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. The object returns the Vector obtained from invoking getCondensedMatVect() on theSolver.

Reimplemented in XC::StaticDomainDecompositionAnalysis, and XC::TransientDomainDecompositionAnalysis.

The documentation for this class was generated from the following files:

src/solution/analysis/analysis/DomainDecompositionAnalysis.h
src/solution/analysis/analysis/DomainDecompositionAnalysis.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

§ DomainDecompositionAnalysis() [1/4]

§ DomainDecompositionAnalysis() [2/4]

§ DomainDecompositionAnalysis() [3/4]

§ DomainDecompositionAnalysis() [4/4]

Member Function Documentation

§ analyze()

§ formResidual()

§ formTangent()

§ formTangVectProduct()

§ getDomainSolver()

§ getNumExternalEqn()

§ getResidual()

§ getTangent()

§ getTangVectProduct()
