StaticDomainDecompositionAnalysis is a subclass of DomainDecompositionAnalysis used to perform a static analysis step on a subdomain. More...

#include <StaticDomainDecompositionAnalysis.h>

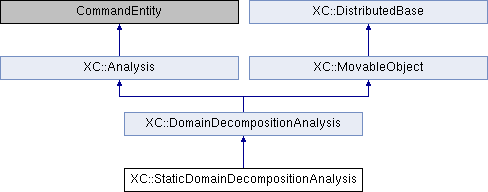

Inheritance diagram for XC::StaticDomainDecompositionAnalysis:

Public Member Functions
	~StaticDomainDecompositionAnalysis (void)
	Destructor.

void	clearAll (void)
	Clears object members (Constraint handler, analysis model,...).

int	initialize (void)

int	domainChanged (void)
	Hace los cambios que sean necesarios como consecuencia de un cambio en el domain.

int	analyze (double dT)
	Performs the analysis. More...

bool	doesIndependentAnalysis (void)

int	getNumExternalEqn (void)
	Returns the number of external equations.

int	getNumInternalEqn (void)
	Returns the number of equations internas.

int	newStep (double dT)
	??

int	computeInternalResponse (void)
	??

int	formTangent (void)
	Forma la tangent stiffness matrix.

int	formResidual (void)
	Forma el vector residuo.

int	formTangVectProduct (Vector &force)
	form the product of the condensed tangent matrix times the vector \(u\). More...

const Matrix &	getTangent (void)
	Return the tangent stiffness matrix.

const Vector &	getResidual (void)
	Returns the vector residuo.

const Vector &	getTangVectProduct (void)
	Returns the result of invoking getCondensedMatVect() on the solver. More...

int	setAlgorithm (EquiSolnAlgo &theAlgorithm)
	Sets the solution algorithm to use in the analysis.

int	setIntegrator (IncrementalIntegrator &theIntegrator)
	Sets the integrator to use in the analysis.

int	setLinearSOE (LinearSOE &theSOE)
	Sets the linear system of equations to use in the analysis.

int	sendSelf (CommParameters &)
	Sends the object.

int	recvSelf (const CommParameters &)
	Receives the object.

Public Member Functions inherited from XC::DomainDecompositionAnalysis
virtual const DomainSolver *	getDomainSolver (void) const
	Returns a pointer to the DomainSolver associated with this object. More...

virtual DomainSolver *	getDomainSolver (void)
	Returns a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomain (void) const
	Returns a pointer to the subdomain.

virtual Subdomain *	getSubdomain (void)
	Returns a pointer to the subdomain.

virtual int	setConvergenceTest (ConvergenceTest &theTest)
	Sets the convergence test to use in the analysis.

Public Member Functions inherited from XC::Analysis
AnalysisAggregation *	getAnalysisAggregationPtr (void)

Domain *	getDomainPtr (void)
	Returns a pointer to the domain.

const Domain *	getDomainPtr (void) const
	Returns a pointer to the domain.

ConstraintHandler *	getConstraintHandlerPtr (void)
	Returns a pointer to the constraint handler.

DOF_Numberer *	getDOF_NumbererPtr (void) const
	Returns a pointer to the DOF numberer.

AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations.

EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

Integrator *	getIntegratorPtr (void)
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator *	getIntegratorPtr (void) const
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator *	getEigenIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator *	getLinearBucklingIntegratorPtr (void)
	Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator *	getTransientIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator *	getStaticIntegratorPtr (void)
	Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm *	getSolutionAlgorithmPtr (void)

EigenAlgorithm *	getEigenSolutionAlgorithmPtr (void)
	Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr). More...

EquiSolnAlgo *	getEquiSolutionAlgorithmPtr (void)
	Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr). More...

DomainDecompAlgo *	getDomainDecompSolutionAlgorithmPtr (void)
	Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr). More...

virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test (only for suitable analysis).

virtual int	setNumberer (DOF_Numberer &theNumberer)
	Sets the renumerador to use in the analysis.

virtual int	setEigenSOE (EigenSOE &theSOE)
	Sets the sistema de eigenvalues to use in the analysis.

virtual int	setIntegrator (Integrator &theNewIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
	Set the solution algorithm to be used in the analysis.

void	brokeConstraintHandler (const CommParameters &, const ID &)

void	brokeNumberer (const CommParameters &, const ID &)

void	brokeAnalysisModel (const CommParameters &, const ID &)

void	brokeDDLinearSOE (const CommParameters &, const ID &)

void	brokeLinearSOE (const CommParameters &, const ID &)

void	brokeIncrementalIntegrator (const CommParameters &, const ID &)

void	brokeStaticIntegrator (const CommParameters &, const ID &)

void	brokeTransientIntegrator (const CommParameters &, const ID &)

void	brokeDomainDecompAlgo (const CommParameters &, const ID &)

void	brokeEquiSolnAlgo (const CommParameters &, const ID &)

int	getAnalysisResult (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Friends
class	ProcSolu

Additional Inherited Members
Protected Member Functions inherited from XC::DomainDecompositionAnalysis
Subdomain *	getSubdomainPtr (void) const
	Returns a pointer to the subdomain.

void	set_all_links (void)
	Sets los pointers tol DomainDecompSolutionAlgorithm y al subdomain.

	DomainDecompositionAnalysis (Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s)
	Constructor. More...

Protected Member Functions inherited from XC::Analysis
int	newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu *	getProcSolu (void)

const ProcSolu *	getProcSolu (void) const

	Analysis (AnalysisAggregation *analysis_aggregation)
	Constructor. More...

Protected Attributes inherited from XC::DomainDecompositionAnalysis
int	domainStamp

Protected Attributes inherited from XC::Analysis
int	analysis_result
	Equal to zero if success.

AnalysisAggregation *	solution_method
	Solution method.

Detailed Description

StaticDomainDecompositionAnalysis is a subclass of DomainDecompositionAnalysis used to perform a static analysis step on a subdomain.

Member Function Documentation

§ analyze()

int XC::StaticDomainDecompositionAnalysis::analyze ( double dT )

virtual

Performs the analysis.

Parameters

dT	time increment.

Reimplemented from XC::DomainDecompositionAnalysis.

§ formTangVectProduct()

int XC::StaticDomainDecompositionAnalysis::formTangVectProduct ( Vector & u )

virtual

form the product of the condensed tangent matrix times the vector \(u\).

A method to form the product of the condensed tangent matrix times the vector \(u\). A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. If the tangent has not yet been formed it invokes formTangent() on itself and sets the counter to \(-1\). Finally the result of invoking {computeCondensedMatVect(numInt, u)} on {theSolver} is returned.

Reimplemented from XC::DomainDecompositionAnalysis.

§ getTangVectProduct()

const XC::Vector & XC::StaticDomainDecompositionAnalysis::getTangVectProduct ( void )

virtual

Returns the result of invoking getCondensedMatVect() on the solver.

Returns the result of invoking getCondensedMatVect() on the solver. A check to see if the Subdomain has changed is first made, this is done by invoking hasDomainChanged() on the Subdomain; if it has been modified invokeChangeOnAnalysis() is invoked on the Subdomain. The object returns the Vector obtained from invoking getCondensedMatVect() on theSolver.

Reimplemented from XC::DomainDecompositionAnalysis.

The documentation for this class was generated from the following files:

src/solution/analysis/analysis/StaticDomainDecompositionAnalysis.h
src/solution/analysis/analysis/StaticDomainDecompositionAnalysis.cpp
