SubstructuringAnalysis is a subclass of DomainDecompositionAnalysis. More...

#include <SubstructuringAnalysis.h>

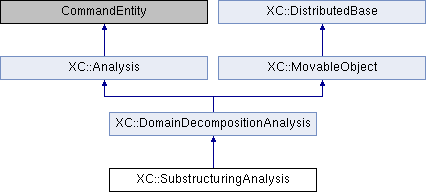

Inheritance diagram for XC::SubstructuringAnalysis:

Public Member Functions
virtual int	analyze (void)
	Performs the analysis.

Public Member Functions inherited from XC::DomainDecompositionAnalysis
virtual void	clearAll (void)
	Clears all object members (constraint handler, analysis model,...).

virtual int	initialize (void)

virtual int	domainChanged (void)
	Method used to inform the object that the domain has changed.

virtual bool	doesIndependentAnalysis (void)

virtual int	analyze (double dT)
	Performs the analysis. More...

virtual int	getNumExternalEqn (void)
	Returns the number of external equations. More...

virtual int	getNumInternalEqn (void)
	Returns the number of internal equations.

virtual int	newStep (double dT)

virtual int	computeInternalResponse (void)
	A method which invokes solveCurrentStep() on `theAlgorithm`.

virtual int	formTangent (void)
	Assembles the tangent stiffness matrix. More...

virtual int	formResidual (void)
	Assembles the residuial vector. More...

virtual int	formTangVectProduct (Vector &force)
	form the product of the condensed tangent matrix times the vector \(u\). More...

virtual const Matrix &	getTangent (void)
	Return the tangent stiffness matrix. More...

virtual const Vector &	getResidual (void)
	Returns the residual vector. More...

virtual const Vector &	getTangVectProduct (void)
	Returns the result of invoking getCondensedMatVect() on the solver. More...

virtual const DomainSolver *	getDomainSolver (void) const
	Returns a pointer to the DomainSolver associated with this object. More...

virtual DomainSolver *	getDomainSolver (void)
	Returns a pointer to the DomainSolver.

virtual const Subdomain *	getSubdomain (void) const
	Returns a pointer to the subdomain.

virtual Subdomain *	getSubdomain (void)
	Returns a pointer to the subdomain.

virtual int	sendSelf (CommParameters &)
	Sends the object.

virtual int	recvSelf (const CommParameters &)
	Receives the object.

virtual int	setAlgorithm (EquiSolnAlgo &theAlgorithm)
	Sets the solution algorithm to use in the analysis.

virtual int	setIntegrator (IncrementalIntegrator &theIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setLinearSOE (LinearSOE &theSOE)
	Sets the system of equations to use in the analysis.

virtual int	setConvergenceTest (ConvergenceTest &theTest)
	Sets the convergence test to use in the analysis.

Public Member Functions inherited from XC::Analysis
AnalysisAggregation *	getAnalysisAggregationPtr (void)

Domain *	getDomainPtr (void)
	Returns a pointer to the domain.

const Domain *	getDomainPtr (void) const
	Returns a pointer to the domain.

ConstraintHandler *	getConstraintHandlerPtr (void)
	Returns a pointer to the constraint handler.

DOF_Numberer *	getDOF_NumbererPtr (void) const
	Returns a pointer to the DOF numberer.

AnalysisModel *	getAnalysisModelPtr (void) const
	Returns a pointer to the analysis model.

LinearSOE *	getLinearSOEPtr (void) const
	Returns a pointer to the linear system of equations.

EigenSOE *	getEigenSOEPtr (void) const
	Returns a pointer to the system of equations de eigenvalues.

Integrator *	getIntegratorPtr (void)
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

const Integrator *	getIntegratorPtr (void) const
	Returns, if possible, a pointer al integrator otherwise it returns nullptr.

IncrementalIntegrator *	getIncrementalIntegratorPtr (void)
	Returns, if possible, a pointer al integrator incremental otherwise it returns nullptr.

EigenIntegrator *	getEigenIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

LinearBucklingIntegrator *	getLinearBucklingIntegratorPtr (void)
	Returns, if possible, a pointer al LinearBucklingIntegrator otherwise it returns nullptr.

TransientIntegrator *	getTransientIntegratorPtr (void)
	Returns, if possible, a pointer al EigenIntegrator otherwise it returns nullptr.

StaticIntegrator *	getStaticIntegratorPtr (void)
	Returns, if possible, a pointer al StaticIntegrator otherwise it returns nullptr.

SolutionAlgorithm *	getSolutionAlgorithmPtr (void)

EigenAlgorithm *	getEigenSolutionAlgorithmPtr (void)
	Return a pointer to the eigenproblem solution algorithm (if it's not defined it returns nullptr). More...

EquiSolnAlgo *	getEquiSolutionAlgorithmPtr (void)
	Return a pointer to the linear SOE solution algorithm (if it's not defined it returns nullptr). More...

DomainDecompAlgo *	getDomainDecompSolutionAlgorithmPtr (void)
	Return a pointer to the domain decomposition solution algorithm (if it's not defined it returns nullptr). More...

virtual ConvergenceTest *	getConvergenceTestPtr (void)
	Returns a pointer to the convergence test (only for suitable analysis).

virtual const ConvergenceTest *	getConvergenceTestPtr (void) const
	Returns a pointer to the convergence test (only for suitable analysis).

virtual int	setNumberer (DOF_Numberer &theNumberer)
	Sets the renumerador to use in the analysis.

virtual int	setEigenSOE (EigenSOE &theSOE)
	Sets the sistema de eigenvalues to use in the analysis.

virtual int	setIntegrator (Integrator &theNewIntegrator)
	Sets the integrator to use in the analysis.

virtual int	setAlgorithm (SolutionAlgorithm &theNewAlgorithm)
	Set the solution algorithm to be used in the analysis.

void	brokeConstraintHandler (const CommParameters &, const ID &)

void	brokeNumberer (const CommParameters &, const ID &)

void	brokeAnalysisModel (const CommParameters &, const ID &)

void	brokeDDLinearSOE (const CommParameters &, const ID &)

void	brokeLinearSOE (const CommParameters &, const ID &)

void	brokeIncrementalIntegrator (const CommParameters &, const ID &)

void	brokeStaticIntegrator (const CommParameters &, const ID &)

void	brokeTransientIntegrator (const CommParameters &, const ID &)

void	brokeDomainDecompAlgo (const CommParameters &, const ID &)

void	brokeEquiSolnAlgo (const CommParameters &, const ID &)

int	getAnalysisResult (void) const

Public Member Functions inherited from XC::MovableObject
	MovableObject (int classTag, int dbTag)
	Constructor. More...

	MovableObject (int classTag)
	Constructor. More...

	MovableObject (const MovableObject &)
	Copy constructor. Doesn't copy the dbTag.

MovableObject &	operator= (const MovableObject &)
	Assignment operator. Doesn't copy the dbTag.

int	getClassTag (void) const
	Return the class identifier.

int	getDbTag (void) const
	Return the object identifier in the database.

int	getDbTag (CommParameters &)
	Return the object identifier in the database.

void	setDbTag (int dbTag)
	Sets the object identifier in the database.

void	setDbTag (CommParameters &)
	Sets the object identifier in the database if not already set. More...

virtual int	setParameter (const std::vector< std::string > &argv, Parameter &param)
	Sets the value `param` to the parameter `argv`.

virtual int	updateParameter (int parameterID, Information &info)
	Updates the parameter identified by `parameterID` with `info`.

virtual int	activateParameter (int parameterID)
	Activates the parameter identified by `parameterID`.

virtual int	setVariable (const std::string &variable, Information &)
	Set the value of the variable idenfified by `var`.

virtual int	getVariable (const std::string &variable, Information &)
	Return the value of the variable idenfified by `var`.

Public Member Functions inherited from XC::DistributedBase
	DistributedBase (void)
	Constructor.

virtual DbTagData &	getDbTagData (void) const
	Returns a vector to store class dbTags.

const int &	getDbTagDataPos (const int &i) const
	Returns the data at the i-th position.

void	setDbTagDataPos (const int &i, const int &v)
	Sets the data at the i-th position.

void	inicComm (const int &dataSize) const
	Initializes communication.

Friends
class	ProcSolu

Additional Inherited Members
Protected Member Functions inherited from XC::DomainDecompositionAnalysis
Subdomain *	getSubdomainPtr (void) const
	Returns a pointer to the subdomain.

void	set_all_links (void)
	Sets los pointers tol DomainDecompSolutionAlgorithm y al subdomain.

	DomainDecompositionAnalysis (Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, AnalysisAggregation *s=nullptr)
	Constructor. More...

	DomainDecompositionAnalysis (int classTag, Subdomain &theDomain, DomainSolver &theSolver, AnalysisAggregation *s)
	Constructor. More...

Protected Member Functions inherited from XC::Analysis
int	newStepDomain (AnalysisModel *theModel, const double &dT=0.0)

ProcSolu *	getProcSolu (void)

const ProcSolu *	getProcSolu (void) const

	Analysis (AnalysisAggregation *analysis_aggregation)
	Constructor. More...

Protected Attributes inherited from XC::DomainDecompositionAnalysis
int	domainStamp

Protected Attributes inherited from XC::Analysis
int	analysis_result
	Equal to zero if success.

AnalysisAggregation *	solution_method
	Solution method.

Detailed Description

SubstructuringAnalysis is a subclass of DomainDecompositionAnalysis.

It is used when performing an analysis using the substructuring method. It differs from the DomainDecompositionAnalysis class only in that the constructor ensures that a SubstructuringSolver is given for the Solver.

The documentation for this class was generated from the following files:

src/solution/analysis/analysis/SubstructuringAnalysis.h
src/solution/analysis/analysis/SubstructuringAnalysis.cpp
