Base graphics view class, which defines the basic interface for all graphics views. More...

#include <View.h>

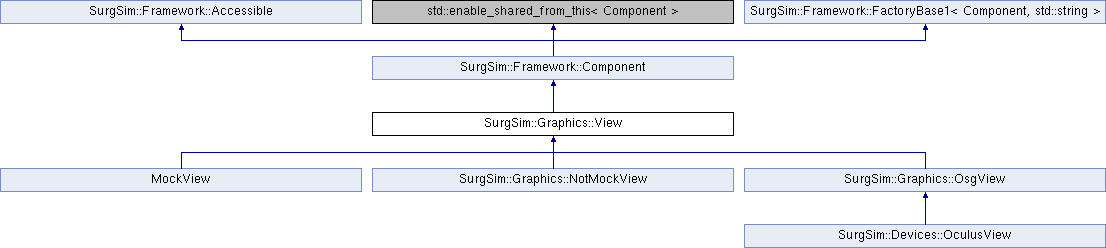

Inheritance diagram for SurgSim::Graphics::View:

Public Types
enum	StereoMode { STEREO_MODE_NONE = -1, STEREO_MODE_QUAD_BUFFER, STEREO_MODE_ANAGLYPHIC, STEREO_MODE_HORIZONTAL_SPLIT, STEREO_MODE_VERTICAL_SPLIT, STEREO_MODE_LEFT_EYE, STEREO_MODE_RIGHT_EYE, STEREO_MODE_HORIZONTAL_INTERLACE, STEREO_MODE_VERTICAL_INTERLACE, STEREO_MODE_CHECKERBOARD, STEREO_MODE_COUNT }

enum	DisplayType { DISPLAY_TYPE_MONITOR, DISPLAY_TYPE_HMD, DISPLAY_TYPE_COUNT }

Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Public Member Functions
	View (const std::string &name)
	Constructor. More...

virtual void	setPosition (const std::array< int, 2 > &position)=0
	Set the position of this view. More...

virtual std::array< int, 2 >	getPosition () const =0
	Get the position of this view. More...

virtual void	setDimensions (const std::array< int, 2 > &dimensions)=0
	Set the dimensions of this view. More...

virtual std::array< int, 2 >	getDimensions () const =0
	Get the dimensions of this view. More...

virtual void	setDimensionsDouble (const std::array< double, 2 > &dimensions)=0
	Set the dimensions of this view in doubles. More...

virtual std::array< double, 2 >	getDimensionsDouble () const =0
	Get the dimensions of this view in doubles. More...

virtual void	setWindowBorderEnabled (bool enabled)=0
	Sets whether the view window has a border. More...

virtual bool	isWindowBorderEnabled () const =0
	Returns whether the view window has a border. More...

virtual void	setCamera (std::shared_ptr< SurgSim::Framework::Component > camera)
	Sets the camera which provides the viewpoint in the scene. More...

std::shared_ptr< Camera >	getCamera () const
	Gets the camera which provides the viewpoint in the scene. More...

virtual void	update (double dt)=0
	Updates the view. More...

virtual bool	isStereo () const

virtual void	setStereoMode (int val)
	Set the mode that this view should use for stereo display, see StereMode for all the modes. More...

int	getStereoMode () const

void	setDisplayType (int type)
	Set the kind of display. More...

int	getDisplayType () const

void	setFullScreen (bool val)
	Request the display to use the whole screen. More...

bool	isFullScreen () const

void	setTargetScreen (int val)
	Request a certain screen to be used for this view. More...

int	getTargetScreen () const

void	setEyeSeparation (double val)
	Set the distance between the users eyes, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getEyeSeparation () const

void	setScreenDistance (double val)
	Set the distance of the user from the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenDistance () const

void	setScreenWidth (double val)
	Set the width of the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenWidth () const

void	setScreenHeight (double val)
	Set the height of the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenHeight () const

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual bool	doWakeUp ()=0
	Interface to be implemented by derived classes. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Detailed Description

Base graphics view class, which defines the basic interface for all graphics views.

A Graphics::View provides a visualization of the scene to the user.

A Graphics::Camera controls the viewpoint of this View.

Constructor & Destructor Documentation

§ View()

SurgSim::Graphics::View::View ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of the view

Member Function Documentation

§ getCamera()

std::shared_ptr< Camera > SurgSim::Graphics::View::getCamera ( ) const

Gets the camera which provides the viewpoint in the scene.

Returns: camera Camera whose image will be shown in this view

§ getDimensions()

virtual std::array<int, 2> SurgSim::Graphics::View::getDimensions ( ) const

pure virtual

Get the dimensions of this view.

Returns: Dimensions on the screen (in pixels)

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ getDimensionsDouble()

virtual std::array<double, 2> SurgSim::Graphics::View::getDimensionsDouble ( ) const

pure virtual

Get the dimensions of this view in doubles.

Returns: Dimensions on the screen (in pixels)

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ getDisplayType()

int SurgSim::Graphics::View::getDisplayType ( ) const

Returns: The type of display that the view is on

§ getEyeSeparation()

double SurgSim::Graphics::View::getEyeSeparation ( ) const

Returns: The current distance between the eye points in m.

§ getPosition()

virtual std::array<int, 2> SurgSim::Graphics::View::getPosition ( ) const

pure virtual

Get the position of this view.

Returns: Position on the screen (in pixels)

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ getScreenDistance()

double SurgSim::Graphics::View::getScreenDistance ( ) const

Returns: The current distance from user to screen in m.

§ getScreenHeight()

double SurgSim::Graphics::View::getScreenHeight ( ) const

Returns: The currently used height of the screen in m.

§ getScreenWidth()

double SurgSim::Graphics::View::getScreenWidth ( ) const

Returns: The currently used width of the screen in m.

§ getStereoMode()

int SurgSim::Graphics::View::getStereoMode ( ) const

Returns: What kind of stereo rendering is being used for this view.

§ getTargetScreen()

int SurgSim::Graphics::View::getTargetScreen ( ) const

Returns: The number of the screen that this view is on.

§ isFullScreen()

bool SurgSim::Graphics::View::isFullScreen ( ) const

Returns: true if the display is set to use the whole screen, or is currently using the whole screen.

§ isStereo()

bool SurgSim::Graphics::View::isStereo ( ) const

virtual

Returns: true if the display is set to render a stereo view, or is currently rendering in stereo.

§ isWindowBorderEnabled()

virtual bool SurgSim::Graphics::View::isWindowBorderEnabled ( ) const

pure virtual

Returns whether the view window has a border.

Returns: True to enable the border around the window; false for no border

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ setCamera()

void SurgSim::Graphics::View::setCamera ( std::shared_ptr< SurgSim::Framework::Component > camera )

virtual

Sets the camera which provides the viewpoint in the scene.

Parameters

camera Camera whose image will be shown in this view

Returns: True if it succeeded, false if it failed

Reimplemented in SurgSim::Graphics::OsgView.

§ setDimensions()

virtual void SurgSim::Graphics::View::setDimensions ( const std::array< int, 2 > & dimensions )

pure virtual

Set the dimensions of this view.

Parameters

dimensions Dimensions on the screen (in pixels)

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ setDimensionsDouble()

virtual void SurgSim::Graphics::View::setDimensionsDouble ( const std::array< double, 2 > & dimensions )

pure virtual

Set the dimensions of this view in doubles.

Parameters

dimensions Dimensions on the screen (in pixels)

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ setDisplayType()

void SurgSim::Graphics::View::setDisplayType ( int type )

Set the kind of display.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called

Parameters

type	The type of display

§ setEyeSeparation()

void SurgSim::Graphics::View::setEyeSeparation ( double val )

Set the distance between the users eyes, this is necessary to calculate the correct projection matrices for stereo rendering.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Note: this is only used when rendering stereo.

Parameters

val	The distance between the eyes in m.

§ setFullScreen()

void SurgSim::Graphics::View::setFullScreen ( bool val )

Request the display to use the whole screen.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Parameters

val	If true the display will use up the whole screen, ignoring the dimension and location settings

§ setPosition()

virtual void SurgSim::Graphics::View::setPosition ( const std::array< int, 2 > & position )

pure virtual

Set the position of this view.

Parameters

position Position on the screen (in pixels)

Returns: True if it succeeded, false if it failed

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ setScreenDistance()

void SurgSim::Graphics::View::setScreenDistance ( double val )

Set the distance of the user from the screen, this is necessary to calculate the correct projection matrices for stereo rendering.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Note: this is only used when rendering stereo.

Parameters

val	The distance from the user to the screen in m.

§ setScreenHeight()

void SurgSim::Graphics::View::setScreenHeight ( double val )

Set the height of the screen, this is necessary to calculate the correct projection matrices for stereo rendering.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Note: this is only used when rendering stereo.

Parameters

val	The height of the screen used, in m.

§ setScreenWidth()

void SurgSim::Graphics::View::setScreenWidth ( double val )

Set the width of the screen, this is necessary to calculate the correct projection matrices for stereo rendering.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Note: this is only used when rendering stereo.

Parameters

val	The width of the screen used, in m.

§ setStereoMode()

void SurgSim::Graphics::View::setStereoMode ( int val )

virtual

Set the mode that this view should use for stereo display, see StereMode for all the modes.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Parameters

val	The actual mode.

§ setTargetScreen()

void SurgSim::Graphics::View::setTargetScreen ( int val )

Request a certain screen to be used for this view.

Exceptions

SurgSim::Framework::AssertionFailure if used after initialize has been called.

Parameters

val	The number of the screen (base 0) that should be used for this view.

§ setWindowBorderEnabled()

virtual void SurgSim::Graphics::View::setWindowBorderEnabled ( bool enabled )

pure virtual

Sets whether the view window has a border.

Parameters

enabled True to enable the border around the window; false for no border

Implemented in MockView, and SurgSim::Graphics::OsgView.

§ update()

virtual void SurgSim::Graphics::View::update ( double dt )

pure virtual

Updates the view.

Parameters

dt	The time in seconds of the preceding timestep.

Implemented in MockView, and SurgSim::Graphics::OsgView.

The documentation for this class was generated from the following files:

SurgSim/Graphics/View.h
SurgSim/Graphics/View.cpp

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ View()

Member Function Documentation

§ getCamera()

§ getDimensions()

§ getDimensionsDouble()

§ getDisplayType()

§ getEyeSeparation()

§ getPosition()

§ getScreenDistance()

§ getScreenHeight()

§ getScreenWidth()

§ getStereoMode()

§ getTargetScreen()

§ isFullScreen()

§ isStereo()

§ isWindowBorderEnabled()

§ setCamera()

§ setDimensions()

§ setDimensionsDouble()

§ setDisplayType()

§ setEyeSeparation()

§ setFullScreen()

§ setPosition()

§ setScreenDistance()

§ setScreenHeight()

§ setScreenWidth()

§ setStereoMode()

§ setTargetScreen()

§ setWindowBorderEnabled()

§ update()
