OSG-based implementation of graphics view class. More...

#include <OsgView.h>

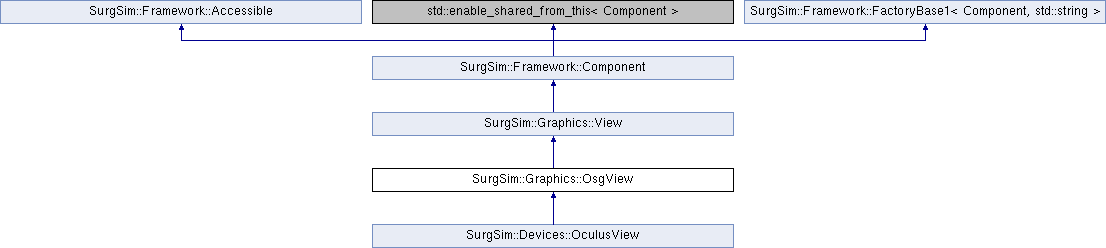

Inheritance diagram for SurgSim::Graphics::OsgView:

Public Member Functions
	OsgView (const std::string &name)
	Constructor. More...

	~OsgView ()
	Destructor.

	SURGSIM_CLASSNAME (SurgSim::Graphics::OsgView)

void	setPosition (const std::array< int, 2 > &position) override
	Set the position of this view. More...

std::array< int, 2 >	getPosition () const override
	Get the position of this view. More...

void	setDimensions (const std::array< int, 2 > &dimensions) override
	Set the dimensions of this view. More...

std::array< int, 2 >	getDimensions () const override
	Get the dimensions of this view. More...

void	setDimensionsDouble (const std::array< double, 2 > &dimensions) override
	Set the dimensions of this view in doubles. More...

std::array< double, 2 >	getDimensionsDouble () const override
	Get the dimensions of this view in doubles. More...

void	setWindowBorderEnabled (bool enabled) override
	Sets whether the view window has a border. More...

bool	isWindowBorderEnabled () const override
	Returns whether the view window has a border. More...

void	setCamera (std::shared_ptr< SurgSim::Framework::Component > camera) override
	Sets the camera which provides the viewpoint in the scene Only allows OsgCamera components, any other will not be set and it will return false. More...

void	enableManipulator (bool val)
	Enables a camera manipulator, implemented via a trackball, this is a temporary solution as it uses the OSG input events rather than reading from the OpenSurgSim input. More...

bool	isManipulatorEnabled ()

void	setManipulatorParameters (const SurgSim::Math::Vector3d &position, const SurgSim::Math::Vector3d &lookat)
	As the camera is not accessible from here and as it cannot be controlled from the outside any more we let the user set the parameters from here. More...

void	setManipulatorPosition (const SurgSim::Math::Vector3d &position)
	Set the camera manipulator position. More...

SurgSim::Math::Vector3d	getManipulatorPosition ()

void	setManipulatorLookAt (const SurgSim::Math::Vector3d &lookAt)
	Set the camera manipulator lookAt. More...

SurgSim::Math::Vector3d	getManipulatorLookAt ()

void	setOsgMapsUniforms (bool val)
	Enable osg modelview uniforms mapping, in this mode osg replaces the gl builtins with osg_* names, for uniforms and vertex attributes. More...

bool	getOsgMapsUniforms ()

std::shared_ptr< SurgSim::Input::CommonDevice >	getKeyboardDevice ()
	Return the keyboard to be used with this view. More...

void	enableKeyboardDevice (bool val)
	Turn on/off the keyboard device to be used. More...

bool	isKeyboardDeviceEnabled ()

std::shared_ptr< SurgSim::Input::CommonDevice >	getMouseDevice ()
	Return the mouse to be used with this view. More...

void	enableMouseDevice (bool val)
	Turn on/off the mouse device to be used. More...

bool	isMouseDeviceEnabled ()

void	update (double dt) override
	Updates the view. More...

osg::ref_ptr< osgViewer::View >	getOsgView () const

Public Member Functions inherited from SurgSim::Graphics::View
	View (const std::string &name)
	Constructor. More...

std::shared_ptr< Camera >	getCamera () const
	Gets the camera which provides the viewpoint in the scene. More...

virtual bool	isStereo () const

virtual void	setStereoMode (int val)
	Set the mode that this view should use for stereo display, see StereMode for all the modes. More...

int	getStereoMode () const

void	setDisplayType (int type)
	Set the kind of display. More...

int	getDisplayType () const

void	setFullScreen (bool val)
	Request the display to use the whole screen. More...

bool	isFullScreen () const

void	setTargetScreen (int val)
	Request a certain screen to be used for this view. More...

int	getTargetScreen () const

void	setEyeSeparation (double val)
	Set the distance between the users eyes, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getEyeSeparation () const

void	setScreenDistance (double val)
	Set the distance of the user from the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenDistance () const

void	setScreenWidth (double val)
	Set the width of the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenWidth () const

void	setScreenHeight (double val)
	Set the height of the screen, this is necessary to calculate the correct projection matrices for stereo rendering. More...

double	getScreenHeight () const

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Protected Member Functions
bool	doInitialize () override
	Initialize the view. More...

bool	doWakeUp () override
	Wake up the view.

int	doSetTargetScreen (int val) override
	Determine Screen Size.

virtual osg::ref_ptr< osg::DisplaySettings >	createDisplaySettings () const

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Additional Inherited Members
Public Types inherited from SurgSim::Graphics::View
enum	StereoMode { STEREO_MODE_NONE = -1, STEREO_MODE_QUAD_BUFFER, STEREO_MODE_ANAGLYPHIC, STEREO_MODE_HORIZONTAL_SPLIT, STEREO_MODE_VERTICAL_SPLIT, STEREO_MODE_LEFT_EYE, STEREO_MODE_RIGHT_EYE, STEREO_MODE_HORIZONTAL_INTERLACE, STEREO_MODE_VERTICAL_INTERLACE, STEREO_MODE_CHECKERBOARD, STEREO_MODE_COUNT }

enum	DisplayType { DISPLAY_TYPE_MONITOR, DISPLAY_TYPE_HMD, DISPLAY_TYPE_COUNT }

Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Detailed Description

OSG-based implementation of graphics view class.

A Graphics::OsgView wraps a osgViewer::View to provide a visualization of the scene to the user.

A Graphics::OsgCamera controls the viewpoint of this View.

Constructor & Destructor Documentation

§ OsgView()

SurgSim::Graphics::OsgView::OsgView ( const std::string & name )

explicit

Constructor.

Postcondition: The view has no camera.; The position of the view is (0, 0).; The dimensions of the view are 800 x 600.; The window border is enabled.

Parameters

name	Name of the view

Clear the OSG default camera, let that be handled at a higher level.

Member Function Documentation

§ createDisplaySettings()

osg::ref_ptr< osg::DisplaySettings > SurgSim::Graphics::OsgView::createDisplaySettings ( ) const

protectedvirtual

Returns: The DisplaySettings to be used in this view

Reimplemented in SurgSim::Devices::OculusView.

§ doInitialize()

bool SurgSim::Graphics::OsgView::doInitialize ( )

overrideprotectedvirtual

Initialize the view.

Postcondition: The view's window is setup.

Implements SurgSim::Framework::Component.

§ enableKeyboardDevice()

void SurgSim::Graphics::OsgView::enableKeyboardDevice ( bool val )

Turn on/off the keyboard device to be used.

Parameters

val	Indicate whether or not to use keyboard device

§ enableManipulator()

void SurgSim::Graphics::OsgView::enableManipulator ( bool val )

Enables a camera manipulator, implemented via a trackball, this is a temporary solution as it uses the OSG input events rather than reading from the OpenSurgSim input.

Parameters

val	whether to enable the manipulator or not.

§ enableMouseDevice()

void SurgSim::Graphics::OsgView::enableMouseDevice ( bool val )

Turn on/off the mouse device to be used.

Parameters

val	Indicate whether or not to use mouse device

§ getDimensions()

std::array< int, 2 > SurgSim::Graphics::OsgView::getDimensions ( ) const

overridevirtual

Get the dimensions of this view.

Returns: Dimensions on the screen (in pixels)

Implements SurgSim::Graphics::View.

§ getDimensionsDouble()

std::array< double, 2 > SurgSim::Graphics::OsgView::getDimensionsDouble ( ) const

overridevirtual

Get the dimensions of this view in doubles.

Returns: Dimensions on the screen (in pixels)

Implements SurgSim::Graphics::View.

§ getKeyboardDevice()

std::shared_ptr< SurgSim::Input::CommonDevice > SurgSim::Graphics::OsgView::getKeyboardDevice ( )

Return the keyboard to be used with this view.

Returns: A keyboard device

§ getManipulatorLookAt()

SurgSim::Math::Vector3d SurgSim::Graphics::OsgView::getManipulatorLookAt ( )

Returns: The location the camera looks at.

§ getManipulatorPosition()

SurgSim::Math::Vector3d SurgSim::Graphics::OsgView::getManipulatorPosition ( )

Returns: The position of the camera.

§ getMouseDevice()

std::shared_ptr< SurgSim::Input::CommonDevice > SurgSim::Graphics::OsgView::getMouseDevice ( )

Return the mouse to be used with this view.

Returns: A mouse device

§ getOsgMapsUniforms()

bool SurgSim::Graphics::OsgView::getOsgMapsUniforms ( )

Returns: the state of the osg modelview mapping mode.

§ getOsgView()

osg::ref_ptr< osgViewer::View > SurgSim::Graphics::OsgView::getOsgView ( ) const

Returns: the OSG view which performs the actual work involved in setting up and rendering to a window

§ getPosition()

std::array< int, 2 > SurgSim::Graphics::OsgView::getPosition ( ) const

overridevirtual

Get the position of this view.

Returns: Position on the screen (in pixels)

Implements SurgSim::Graphics::View.

§ isKeyboardDeviceEnabled()

bool SurgSim::Graphics::OsgView::isKeyboardDeviceEnabled ( )

Returns: Whether the keyboard device is enabled.

§ isManipulatorEnabled()

bool SurgSim::Graphics::OsgView::isManipulatorEnabled ( )

Returns: whether the manipulator is enabled or not.

§ isMouseDeviceEnabled()

bool SurgSim::Graphics::OsgView::isMouseDeviceEnabled ( )

Returns: Whether the mouse device is enabled.

§ isWindowBorderEnabled()

bool SurgSim::Graphics::OsgView::isWindowBorderEnabled ( ) const

overridevirtual

Returns whether the view window has a border.

Returns: True to enable the border around the window; false for no border

Implements SurgSim::Graphics::View.

§ setCamera()

void SurgSim::Graphics::OsgView::setCamera ( std::shared_ptr< SurgSim::Framework::Component > camera )

overridevirtual

Sets the camera which provides the viewpoint in the scene Only allows OsgCamera components, any other will not be set and it will return false.

Parameters

camera Camera whose image will be shown in this view

Returns: True if it succeeded, false if it failed

Reimplemented from SurgSim::Graphics::View.

§ setDimensions()

void SurgSim::Graphics::OsgView::setDimensions ( const std::array< int, 2 > & dimensions )

overridevirtual

Set the dimensions of this view.

Parameters

dimensions Dimensions on the screen (in pixels)

Implements SurgSim::Graphics::View.

§ setDimensionsDouble()

void SurgSim::Graphics::OsgView::setDimensionsDouble ( const std::array< double, 2 > & dimensions )

overridevirtual

Set the dimensions of this view in doubles.

Parameters

dimensions Dimensions on the screen (in pixels)

Implements SurgSim::Graphics::View.

§ setManipulatorLookAt()

void SurgSim::Graphics::OsgView::setManipulatorLookAt ( const SurgSim::Math::Vector3d & lookAt )

Set the camera manipulator lookAt.

Parameters

lookAt The location the camera looks at.

§ setManipulatorParameters()

void SurgSim::Graphics::OsgView::setManipulatorParameters	(	const SurgSim::Math::Vector3d &	position,
		const SurgSim::Math::Vector3d &	lookat
	)

As the camera is not accessible from here and as it cannot be controlled from the outside any more we let the user set the parameters from here.

Parameters

position	The position of the camera.
lookat	The location the camera looks at.

§ setManipulatorPosition()

void SurgSim::Graphics::OsgView::setManipulatorPosition ( const SurgSim::Math::Vector3d & position )

Set the camera manipulator position.

Parameters

position The position of the camera.

§ setOsgMapsUniforms()

void SurgSim::Graphics::OsgView::setOsgMapsUniforms ( bool val )

Enable osg modelview uniforms mapping, in this mode osg replaces the gl builtins with osg_* names, for uniforms and vertex attributes.

Parameters

val	Whether to enable osg uniform mapping, default false

§ setPosition()

void SurgSim::Graphics::OsgView::setPosition ( const std::array< int, 2 > & position )

overridevirtual

Set the position of this view.

Parameters

position Position on the screen (in pixels)

Returns: True if it succeeded, false if it failed

Implements SurgSim::Graphics::View.

§ setWindowBorderEnabled()

void SurgSim::Graphics::OsgView::setWindowBorderEnabled ( bool enabled )

overridevirtual

Sets whether the view window has a border.

Parameters

enabled True to enable the border around the window; false for no border

Implements SurgSim::Graphics::View.

§ update()

void SurgSim::Graphics::OsgView::update ( double dt )

overridevirtual

Updates the view.

Parameters

dt	The time in seconds of the preceding timestep.

Implements SurgSim::Graphics::View.

The documentation for this class was generated from the following files:

SurgSim/Graphics/OsgView.h
SurgSim/Graphics/OsgView.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

§ OsgView()

Member Function Documentation

§ createDisplaySettings()

§ doInitialize()

§ enableKeyboardDevice()

§ enableManipulator()

§ enableMouseDevice()

§ getDimensions()

§ getDimensionsDouble()

§ getKeyboardDevice()

§ getManipulatorLookAt()

§ getManipulatorPosition()

§ getMouseDevice()

§ getOsgMapsUniforms()

§ getOsgView()

§ getPosition()

§ isKeyboardDeviceEnabled()

§ isManipulatorEnabled()

§ isMouseDeviceEnabled()

§ isWindowBorderEnabled()

§ setCamera()

§ setDimensions()

§ setDimensionsDouble()

§ setManipulatorLookAt()

§ setManipulatorParameters()

§ setManipulatorPosition()

§ setOsgMapsUniforms()

§ setPosition()

§ setWindowBorderEnabled()

§ update()
