ParaEngine::CParaEngineApp Class Reference

This class demonstrate how to initialize, destroy and drive the game loop of ParaEngine through the C++ programming interface. More...

#include <ParaEngineApp.h>

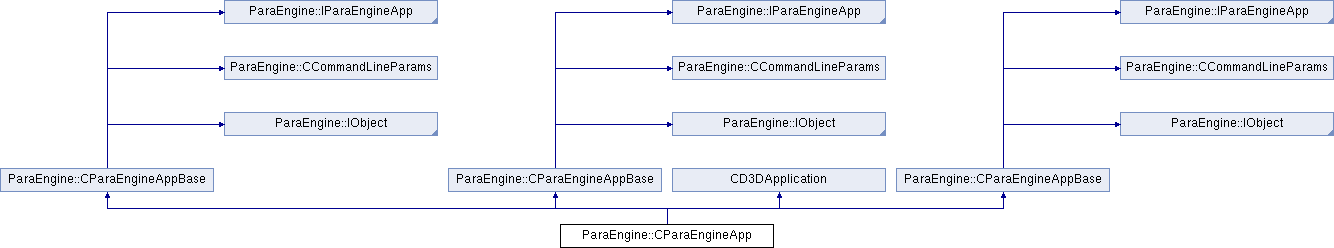

Inheritance diagram for ParaEngine::CParaEngineApp:

Public Member Functions
	CParaEngineApp (const char *lpCmdLine)
	start the application immediately, it calls StartApp with the given command line. More...
	CParaEngineApp ()
	One needs to manually start the application.
virtual int	Run (HINSTANCE hInstance)
	only call this function if one does not want to manage game loop externally. More...
bool	IsDebugBuild ()
	whether it is debug build. More...
virtual HRESULT	DoWork ()
	this function is called per frame, in most cases, it will render the 3d scene and frame move. More...
virtual void	EnablePassiveRendering (bool bEnable)
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual bool	IsPassiveRenderingEnabled ()
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual void	Enable3DRendering (bool bEnable)
	disable 3D rendering, do not present the scene. More...
virtual bool	Is3DRenderingEnabled ()
	whether 3D rendering is enabled, do not present the scene. More...
virtual void	SetFullScreenMode (bool bFullscreen)
	whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual bool	IsFullScreenMode ()
virtual void	BringWindowToTop ()
	The BringWindowToTop current window to the top of the Z order. More...
virtual void	SetAllowWindowClosing (bool bAllowClosing)
	whether the user can close the window (sending WM_CLOSE message). More...
virtual bool	IsWindowClosingAllowed ()
virtual void	ShowMenu (bool bShow)
	turn on/off menu
virtual void	GetScreenResolution (Vector2 *pOut)
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetScreenResolution (const Vector2 &vSize)
virtual void	GetResolution (float *pX, float *pY)
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetResolution (float x, float y)
virtual int	GetMultiSampleType ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleType (int nType)
virtual int	GetMultiSampleQuality ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleQuality (int nType)
virtual bool	UpdateScreenMode ()
	call this function to update changes of FullScreen Mode and Screen Resolution. More...
virtual bool	SetWindowedMode (bool bWindowed)
	switch to either windowed mode or full screen mode. More...
virtual bool	IsWindowedMode ()
	return true if it is currently under windowed mode. More...
virtual void	SetWindowText (const char *pChar)
	set the window title when at windowed mode
virtual const char *	GetWindowText ()
	get the window title when at windowed mode
virtual void	FixWindowSize (bool fixed)
virtual void	GetStats (string &output, DWORD dwFields=0)
	get the render engine stats to output. More...
bool	WriteRegStr (const string &root_key, const string &sSubKey, const string &name, const string &value)
	Write a string to the registry. More...
const char *	ReadRegStr (const string &root_key, const string &sSubKey, const string &name)
	Read string from the registry. More...
bool	WriteRegDWORD (const string &root_key, const string &sSubKey, const string &name, DWORD value)
	Write a DWORD to the registry. More...
DWORD	ReadRegDWORD (const string &root_key, const string &sSubKey, const string &name)
	Read DWORD from the registry. More...
virtual void	GetCursorPosition (int *pX, int *pY, bool bInBackbuffer=true)
	get the current mouse cursor position. More...
virtual void	GameToClient (int &inout_x, int &inout_y, bool bInBackbuffer=true)
	translate a position from game coordination system to client window position. More...
virtual void	ClientToGame (int &inout_x, int &inout_y, bool bInBackbuffer=true)
	translate a position from client window position to game coordination system. More...
virtual void	WriteConfigFile (const char *sFileName)
	write the current setting to config file. More...
virtual bool	HasNewConfig ()
	get whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	SetHasNewConfig (bool bHasNewConfig)
	set whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	SetIgnoreWindowSizeChange (bool bIgnoreSizeChange)
	switch to ignore windows size change. More...
virtual bool	GetIgnoreWindowSizeChange ()
	return true if it is currently under windowed mode. More...
virtual bool	ForceRender ()
	render the current frame and does not return until everything is presented to screen. More...
HRESULT	OnCreateWindow ()
	this function should be called when the application is created. More...
HRESULT	ConfirmDevice (LPDIRECT3D9 pD3d, D3DCAPS9 *, DWORD, D3DFORMAT, D3DFORMAT)
	Called during device initialization, this code checks the device for some minimum set of capabilities, and rejects those that don't pass by returning false. More...
HRESULT	Init (HWND *pHWND)
	init application More...
HRESULT	OneTimeSceneInit ()
	This function should be called only once when the application start, one can initialize game objects here. More...
virtual HRESULT	InitDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles. More...
virtual HRESULT	RestoreDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario. More...
virtual HRESULT	Render ()
	This callback function will be called at the end of every frame to perform all the rendering calls for the scene, and it will also be called if the window needs to be repainted. More...
void	GenerateD3DDebugString ()
	Output text information to console, for debugging only. More...
virtual HRESULT	FrameMove ()
	This callback function will be called once at the beginning of every frame. More...
virtual HRESULT	FrameMove (double fTime)
	Called once per frame, the call is the entry point for animating the scene. More...
virtual HRESULT	InvalidateDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called. More...
virtual HRESULT	DeleteDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles. More...
virtual HRESULT	FinalCleanup ()
	This function should be called only once when the application end, one can destroy game objects here. More...
void	HandleUserInput ()
	process game input. More...
virtual void	SetMainWindow (HWND hWnd, bool bIsExternalWindow=true)
	set the hWnd on to which we will render and process window messages. More...
virtual HWND	GetMainWindow ()
virtual HRESULT	StartApp (const char *sCommandLine=0)
	call this function to create the ParaEngine main rendering device based on the current window. More...
void	InitSystemModules ()
void	InitWin3DSettings ()
void	InitLogger ()
void	BootStrapAndLoadConfig ()
void	InitApp (const char *sCommandLine)
bool	CheckClientLicense ()
void	LoadAndApplySettings ()
virtual HRESULT	StopApp ()
	This is the last function that should be called. More...
virtual LRESULT	MsgProcWinThread (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, bool bCallDefProcedure=true)
	the window message processor. More...
virtual LRESULT	MsgProcWinThreadCustom (UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual LRESULT	SendMessageToApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Send a RAW win32 message the application to be processed in the next main thread update interval. More...
virtual bool	PostWinThreadMessage (UINT uMsg, WPARAM wParam, LPARAM lParam)
	post a raw win32 message from any thread to the thread on which hWnd is created. More...
virtual bool	GetMessageFromApp (CWinRawMsg *pMsg)
	get a message from the application message queue and remove it from the queue. More...
virtual LRESULT	MsgProcApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Before handling window messages, application should pass incoming windows messages to the application through this callback function. More...
virtual HRESULT	Create (HINSTANCE hInstance=0)
	create instance
virtual HRESULT	CreateFromD3D9Device (IDirect3DDevice9 *pD3dDevice, IDirect3DSwapChain9 *apSwapChain)
virtual HRESULT	Render3DEnvironment (bool bForceRender=false)
	Frame move and render a frame during idle time (no messages are waiting). More...
virtual float	GetFPS ()
void	UpdateFrameStats (double fTime)
virtual HINSTANCE	GetModuleHandle ()
	change the cursor to indicate a movie recording state More...
virtual void	SetRefreshTimer (float fTimeInterval, int nFrameRateControl=0)
	Set the frame rate timer interval. More...
virtual float	GetRefreshTimer ()
	get the refresh timer.
virtual void	GetWindowCreationSize (int *pWidth, int *pHeight)
	get the window creation size in default application config. More...
virtual PEAppState	GetAppState ()
	get application state
virtual void	SetAppState (ParaEngine::PEAppState state)
	set application state
virtual void	ActivateApp (bool bActivate)
	this function is called whenever the application is disabled or enabled. More...
virtual bool	IsAppActive ()
	whether the application is active or not. More...
virtual DWORD	GetCoreUsage ()
	Get the current ParaEngine app usage. More...
virtual void	SetCoreUsage (DWORD dwUsage)
	Set the current ParaEngine app usage. More...
virtual void	SetMinUIResolution (int nWidth, int nHeight, bool bAutoUIScaling=true)
	set the minimum UI resolution size. More...
virtual void	Exit (int nReturnCode=0)
	Send the exit message, so that the game engine will prepare to exit in the next frame. More...
virtual bool	HasFocus (HWND hWnd=0)
	this returns true if the main window or one of its child window has key focus. More...
virtual bool	IsTouchInputting ()
	whether the last mouse input is from touch or mouse. More...
virtual bool	IsSlateMode ()
virtual int32	GetTouchPointX ()
	obsoleted function:
virtual int32	GetTouchPointY ()
virtual bool	IsServerMode ()
	server mode has no user interface
void	SetAutoLowerFrameRateWhenNotFocused (bool bEnabled)
	default to false. if true, we will lower frame rate when the window is not focused.
bool	GetAutoLowerFrameRateWhenNotFocused ()
void	SetToggleSoundWhenNotFocused (bool bEnabled)
	if true, sound volume will be set to 0, when not focused.
bool	GetToggleSoundWhenNotFocused ()
bool	AppHasFocus ()
	return true if app has focus. More...
CViewportManager *	GetViewportManager ()
	managing multiple 3d views
	CParaEngineApp (const char *lpCmdLine=NULL)
virtual HRESULT	StartApp (const char *sCommandLine=0)
	This is the first function that should be called when acquiring the IParaEngineApp interface. More...
virtual void	InitSystemModules ()
void	BootStrapAndLoadConfig ()
virtual HRESULT	StopApp ()
	This is the last function that should be called. More...
virtual void	SetMainWindow (HWND hWnd, bool bIsExternalWindow=true)
	set the hWnd on to which we will render and process window messages. More...
virtual HWND	GetMainWindow ()
virtual int	Run (HINSTANCE hInstance)
	only call this function if one does not want to manage game loop externally. More...
virtual HRESULT	DoWork ()
	this function is called per frame, in most cases, it will render the 3d scene and frame move. More...
virtual HRESULT	CreateFromD3D9Device (IDirect3DDevice9 *pD3dDevice, IDirect3DSwapChain9 *apSwapChain)
	create from an existing d3d device. More...
virtual HRESULT	InitDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles. More...
virtual HRESULT	RestoreDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario. More...
virtual HRESULT	InvalidateDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called. More...
virtual HRESULT	DeleteDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles. More...
virtual HRESULT	Create (HINSTANCE hInstance=0)
	create d3d render device based on the current main window. More...
virtual HRESULT	Render3DEnvironment (bool bForceRender=false)
	Frame move and render a frame during idle time (no messages are waiting). More...
void	UpdateStats (double fTime)
virtual LRESULT	MsgProcWinThread (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, bool bCallDefProcedure=true)
	the window message processor. More...
virtual LRESULT	MsgProcWinThreadCustom (UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual LRESULT	SendMessageToApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Send a RAW win32 message the application to be processed in the next main thread update interval. More...
virtual bool	PostWinThreadMessage (UINT uMsg, WPARAM wParam, LPARAM lParam)
	post a raw win32 message from any thread to the thread on which hWnd is created. More...
virtual bool	GetMessageFromApp (CWinRawMsg *pMsg)
	get a message from the application message queue and remove it from the queue. More...
virtual LRESULT	MsgProcApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	handle a message in the main application thread.
virtual void	EnablePassiveRendering (bool bEnable)
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual bool	IsPassiveRenderingEnabled ()
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual void	BringWindowToTop ()
	The BringWindowToTop current window to the top of the Z order. More...
virtual void	SetAllowWindowClosing (bool bAllowClosing)
	whether the user can close the window (sending WM_CLOSE message). More...
virtual bool	IsWindowClosingAllowed ()
virtual void	SetFullScreenMode (bool bFullscreen)
	whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual bool	IsFullScreenMode ()
virtual void	ShowMenu (bool bShow)
	turn on/off menu
virtual Vector2	GetScreenResolution ()
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetScreenResolution (const Vector2 &vSize)
virtual int	GetMultiSampleType ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleType (int nType)
virtual int	GetMultiSampleQuality ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleQuality (int nType)
virtual bool	UpdateScreenMode ()
	call this function to update changes of FullScreen Mode and Screen Resolution. More...
virtual bool	SetWindowedMode (bool bWindowed)
	switch to either windowed mode or full screen mode. More...
virtual bool	IsWindowedMode ()
	return true if it is currently under windowed mode. More...
virtual void	SetWindowText (const char *pChar)
	set the window title when at windowed mode
virtual const char *	GetWindowText ()
	get the window title when at windowed mode
virtual void	WriteConfigFile (const char *sFileName)
	write the current setting to config file. More...
virtual bool	HasNewConfig ()
	get whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	SetHasNewConfig (bool bHasNewConfig)
	set whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	GetWindowCreationSize (int *pWidth, int *pHeight)
	get the window creation size in default application config. More...
virtual bool	IsAppActive ()
	whether the application is active or not. More...
virtual void	SetMinUIResolution (int nWidth, int nHeight, bool bAutoUIScaling=true)
	set the minimum UI resolution size. More...
virtual void	GetResolution (float *pX, float *pY)
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetResolution (float x, float y)
virtual NPL::INPLRuntime *	GetNPLRuntime ()
	get the NPL runtime system associate with the application. More...
virtual bool	IsSlateMode ()
virtual bool	IsServerMode ()
	server mode has no user interface
virtual float	GetFPS ()
HRESULT	Init (HWND *pHWND)
	init application
void	InitAudioEngine ()
HRESULT	OneTimeSceneInit (HWND *pHWND)
	This function should be called only once when the application start, one can initialize game objects here. More...
virtual HRESULT	FrameMove (double fTime)
	This callback function will be called once at the beginning of every frame. More...
HRESULT	FinalCleanup ()
	This function should be called only once when the application end, one can destroy game objects here.
void	HandleUserInput ()
	process game input. More...
virtual void	Exit (int nReturnCode=0)
	Send the exit message, so that the game engine will prepare to exit in the next frame. More...
virtual ParaEngine::PEAppState	GetAppState ()
	get application state
virtual void	SetAppState (ParaEngine::PEAppState state)
	set application state
CViewportManager *	GetViewportManager ()
	CParaEngineApp (const char *lpCmdLine=NULL)
virtual HRESULT	StartApp (const char *sCommandLine=0)
	This is the first function that should be called when acquiring the IParaEngineApp interface. More...
virtual void	InitSystemModules ()
void	LoadAndApplySettings ()
void	BootStrapAndLoadConfig ()
virtual HRESULT	StopApp ()
	This is the last function that should be called. More...
virtual void	SetMainWindow (HWND hWnd, bool bIsExternalWindow=true)
	set the hWnd on to which we will render and process window messages. More...
virtual HWND	GetMainWindow ()
virtual int	Run (HINSTANCE hInstance)
	only call this function if one does not want to manage game loop externally. More...
virtual HRESULT	DoWork ()
	this function is called per frame, in most cases, it will render the 3d scene and frame move. More...
virtual HRESULT	CreateFromD3D9Device (IDirect3DDevice9 *pD3dDevice, IDirect3DSwapChain9 *apSwapChain)
	create from an existing d3d device. More...
virtual HRESULT	InitDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles. More...
virtual HRESULT	RestoreDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario. More...
virtual HRESULT	InvalidateDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called. More...
virtual HRESULT	DeleteDeviceObjects ()
	This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles. More...
virtual HRESULT	Create (HINSTANCE hInstance=0)
	create d3d render device based on the current main window. More...
virtual HRESULT	Render3DEnvironment (bool bForceRender=false)
	Frame move and render a frame during idle time (no messages are waiting). More...
void	UpdateStats (double fTime)
virtual LRESULT	MsgProcWinThread (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, bool bCallDefProcedure=true)
	the window message processor. More...
virtual LRESULT	MsgProcWinThreadCustom (UINT uMsg, WPARAM wParam, LPARAM lParam)
virtual LRESULT	SendMessageToApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Send a RAW win32 message the application to be processed in the next main thread update interval. More...
virtual bool	PostWinThreadMessage (UINT uMsg, WPARAM wParam, LPARAM lParam)
	post a raw win32 message from any thread to the thread on which hWnd is created. More...
virtual bool	GetMessageFromApp (CWinRawMsg *pMsg)
	get a message from the application message queue and remove it from the queue. More...
virtual LRESULT	MsgProcApp (HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
	handle a message in the main application thread.
virtual void	EnablePassiveRendering (bool bEnable)
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual bool	IsPassiveRenderingEnabled ()
	passive rendering, it will not render the scene, but simulation and time remains the same. More...
virtual void	BringWindowToTop ()
	The BringWindowToTop current window to the top of the Z order. More...
virtual void	SetAllowWindowClosing (bool bAllowClosing)
	whether the user can close the window (sending WM_CLOSE message). More...
virtual bool	IsWindowClosingAllowed ()
virtual void	SetFullScreenMode (bool bFullscreen)
	whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual bool	IsFullScreenMode ()
virtual void	ShowMenu (bool bShow)
	turn on/off menu
virtual Vector2	GetScreenResolution ()
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetScreenResolution (const Vector2 &vSize)
virtual int	GetMultiSampleType ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleType (int nType)
virtual int	GetMultiSampleQuality ()
	anti-aliasing for both windowed and full screen mode. More...
virtual void	SetMultiSampleQuality (int nType)
virtual bool	UpdateScreenMode ()
	call this function to update changes of FullScreen Mode and Screen Resolution. More...
virtual bool	SetWindowedMode (bool bWindowed)
	switch to either windowed mode or full screen mode. More...
virtual bool	IsWindowedMode ()
	return true if it is currently under windowed mode. More...
virtual void	SetWindowText (const char *pChar)
	set the window title when at windowed mode
virtual const char *	GetWindowText ()
	get the window title when at windowed mode
virtual void	FixWindowSize (bool fixed)
virtual void	WriteConfigFile (const char *sFileName)
	write the current setting to config file. More...
virtual bool	HasNewConfig ()
	get whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	SetHasNewConfig (bool bHasNewConfig)
	set whether ParaEngine is loaded from config/config.new.txt. More...
virtual void	GetWindowCreationSize (int *pWidth, int *pHeight)
	get the window creation size in default application config. More...
virtual bool	IsAppActive ()
	whether the application is active or not. More...
virtual void	SetMinUIResolution (int nWidth, int nHeight, bool bAutoUIScaling=true)
	set the minimum UI resolution size. More...
virtual void	GetResolution (float *pX, float *pY)
	change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device. More...
virtual void	SetResolution (float x, float y)
virtual NPL::INPLRuntime *	GetNPLRuntime ()
	get the NPL runtime system associate with the application. More...
virtual bool	IsSlateMode ()
virtual bool	IsServerMode ()
	server mode has no user interface
virtual float	GetFPS ()
HRESULT	Init (HWND *pHWND)
	init application
void	InitAudioEngine ()
HRESULT	OneTimeSceneInit (HWND *pHWND)
	This function should be called only once when the application start, one can initialize game objects here. More...
virtual HRESULT	FrameMove (double fTime)
	This callback function will be called once at the beginning of every frame. More...
HRESULT	FinalCleanup ()
	This function should be called only once when the application end, one can destroy game objects here.
void	HandleUserInput ()
	process game input. More...
virtual void	Exit (int nReturnCode=0)
	Send the exit message, so that the game engine will prepare to exit in the next frame. More...
virtual ParaEngine::PEAppState	GetAppState ()
	get application state
virtual void	SetAppState (ParaEngine::PEAppState state)
	set application state
CViewportManager *	GetViewportManager ()
bool	IsDebugBuild ()
	whether it is debug build. More...
void	handle_mainloop_timer (const boost::system::error_code &err)
int	CalculateRenderTime (double fIdealInterval, double *pNextInterval)
	return true if this is a render tick, otherwise false. More...
bool	IsKeyPressed (DWORD nKey)
	return true if the key is being pressed at the time of calling. More...
virtual float	GetRefreshTimer ()
	get the refresh timer.
virtual void	SetRefreshTimer (float fTimeInterval, int nFrameRateControl=0)
	Set the frame rate timer interval. More...
void	InitApp (const char *sCommandLine)
bool	WriteRegStr (const string &root_key, const string &sSubKey, const string &name, const string &value)
	Write a string to the registry. More...
const char *	ReadRegStr (const string &root_key, const string &sSubKey, const string &name)
	Read string from the registry. More...
bool	WriteRegDWORD (const string &root_key, const string &sSubKey, const string &name, DWORD value)
	Write a DWORD to the registry. More...
DWORD	ReadRegDWORD (const string &root_key, const string &sSubKey, const string &name)
	Read DWORD from the registry. More...
Public Member Functions inherited from ParaEngine::CParaEngineAppBase
	CParaEngineAppBase (const char *sCmd)
virtual LifetimeType	LifetimeControl ()
virtual BaseInterface *	AcquireInterface ()
virtual void	ReleaseInterface ()
virtual void	DeleteInterface ()
virtual void	OnFrameEnded ()
	call this function at the end of the frame. More...
void	DoTestCode ()
virtual void	WriteToLog (const char *sFormat,...)
	append text to log file. More...
virtual void	AppLog (const char *sFormat)
	write app log to file with time and code location. More...
virtual bool	FindParaEngineDirectory (const char *sHint=NULL)
	set the current working directory. More...
void	AutoSetLocale ()
virtual void	SetTouchInputting (bool bTouchInputting)
	whether the last mouse input is from touch or mouse. More...
virtual void	SetReturnCode (int nReturnCode)
	Get the exit code that will be used when the standalone executable exit. More...
virtual int	GetReturnCode ()
virtual void	SystemMessageBox (const std::string &msg)
	show a system message box to the user. More...
virtual void	SetAppCommandLine (const char *pCommandLine)
	set string specifying the command line for the application, excluding the program name. More...
virtual const char *	GetAppCommandLine ()
	get string specifying the command line for the application, excluding the program name. More...
virtual const char *	GetAppCommandLineByParam (const char *pParam, const char *defaultValue)
	return a specified parameter value in the command line of the application. More...
virtual CRefCounted *	AddToSingletonReleasePool (CRefCounted *pObject)
	we will automatically release singleton object when app stops, in the verse order when object is added to the pool.
virtual bool	HasClosingRequest ()
	whether there is closing request in the message queue. More...
virtual void	SetHasClosingRequest (bool val)
virtual bool	LoadNPLPackage (const char *sFilePath, std::string *pOutMainFile=NULL)
	load NPL package from a disk folder. More...
virtual bool	FindBootStrapper ()
	check if there is bootstrapper file specified at command line, if not it will use NPL code wiki admin app.
virtual bool	InitCommandLineParams ()
	parse common command line parameters
virtual const char *	GetModuleDir ()
	get the NPL bin directory (main executable directory). More...
CViewportManager *	GetViewportManager ()
	managing multiple 3d views
virtual void	VerifyCommandLine (const char *sCommandLine, std::string &strCmd)
Public Member Functions inherited from ParaEngine::BaseInterface
BaseInterface *	GetInterface (Interface_ID id)
virtual Interface_ID	GetID ()
virtual BaseInterface *	CloneInterface (void *remapDir=NULL)
Public Member Functions inherited from ParaEngine::CCommandLineParams
	CCommandLineParams (const char *lpCmdLine)
const char *	GetAppCommandLine ()
	get string specifying the command line for the application, excluding the program name. More...
const char *	GetAppCommandLineByParam (const char *pParam, const char *defaultValue)
	return a specified parameter value in the command line of the application. More...
void	SetAppCommandLine (const char *pCommandLine)
	set string specifying the command line for the application, excluding the program name. More...
Public Member Functions inherited from ParaEngine::IObject
virtual void	Clone (IObject *obj) const
	Clone the object's contains to a pointer. More...
virtual IObject *	Clone () const
	Clone the object's contains and return a pointer to the newly created object. More...
virtual bool	Equals (const IObject *obj) const
	Compare the object with another object. More...
virtual const IType *	GetType () const
virtual std::string	ToString () const
WeakPtr_type &	GetWeakReference ()
	get weak reference object. More...
virtual int	ProcessObjectEvent (const ObjectEvent &event)
	this function is only used to backward compatibility of ParaObject:AddEvent() function. More...
Public Member Functions inherited from ParaEngine::CRefCounted
void	addref () const
	add reference count of the object. More...
bool	delref () const
	decrease reference count of the object. More...
int	GetRefCount () const
	get the reference count
virtual int	Release ()
CRefCounted *	AddToAutoReleasePool ()
	addref and releases the ownership sometime soon automatically (usually at the end of the current frame). More...
Public Member Functions inherited from CD3DApplication
virtual void	Pause (bool bPause)
virtual bool	IsPaused ()
HRESULT	PresentScene ()
	force present the scene. More...
void	EnablePassiveRendering (bool bEnable)
bool	IsPassiveRenderingEnabled ()
void	Enable3DRendering (bool bEnable)
	disable 3D rendering, do not present the scene. More...
bool	Is3DRenderingEnabled ()
	whether 3D rendering is enabled, do not present the scene. More...
void	SetRefreshTimer (float fTimeInterval, int nFrameRateControl=0)
	Set the frame rate timer interval. More...
float	GetRefreshTimer () const
	get the refresh timer.
virtual HRESULT	Create ()
ParaEngine::PEAppState	GetAppState ()
void	SetAppState (ParaEngine::PEAppState state)
bool	IsExternalD3DDevice ()
	whether the d3d device is managed externally

Protected Member Functions
ITouchInputTranslator *	LoadTouchInputPlug ()
void	UpdateMouse ()
void	UpdateKey ()
void	UpdateMouse ()
Protected Member Functions inherited from ParaEngine::CParaEngineAppBase
void	InitCommon ()
	shared init called in constructor. More...
void	DestroySingletons ()
void	LoadPackages ()
	we will load all packages that matches the following pattern in the order given by their name, such that "main_001.pkg" is always loaded before "main_002.pkg" we will skip packages *_32bits.pkg when in 64bits; and skip *_64bits.pkg in 32bits; packages without above suffix will be loaded in both version.
void	LoadPackagesInFolder (const std::string &sPkgFolder)
void	RegisterObjectClass (IAttributeFields *pObject)
	register a given class. More...
void	RegisterObjectClasses ()
	register any custom classes
Protected Member Functions inherited from CD3DApplication
HRESULT	DisplayErrorMsg (HRESULT hr, DWORD dwType)
bool	FindBestWindowedMode (bool bRequireHAL, bool bRequireREF)
bool	FindBestFullscreenMode (bool bRequireHAL, bool bRequireREF)
HRESULT	LaunchReadme ()
HRESULT	ChooseInitialD3DSettings ()
HRESULT	Initialize3DEnvironment ()
HRESULT	HandlePossibleSizeChange (bool bUpdateSizeOnly=false)
	this function is called whenever the main window size changes. More...
HRESULT	Reset3DEnvironment ()
HRESULT	ToggleFullscreen ()
HRESULT	ForceWindowed ()
HRESULT	UserSelectNewDevice ()
void	Cleanup3DEnvironment ()
HRESULT	Render3DEnvironment (bool bForceRender=false)
	frame move and render More...
virtual void	BuildPresentParamsFromSettings ()
virtual HRESULT	AdjustWindowForChange ()
virtual void	UpdateStats ()
virtual HRESULT	ConfirmDevice (D3DCAPS9 *, DWORD, D3DFORMAT, D3DFORMAT)
virtual bool	UpdateViewPort ()
	update view port by backbuffer size. More...

Protected Attributes
HINSTANCE	m_hInstance
ref_ptr< CGUIRoot >	m_pGUIRoot
	2d gui root
ref_ptr< CSceneObject >	m_pRootScene
	3d scene root object
ref_ptr< CViewportManager >	m_pViewportManager
	viewport
ref_ptr< CParaWorldAsset >	m_pParaWorldAsset
	asset manager
CDirectKeyboard *	m_pKeyboard
float	m_fAspectRatio
CAudioEngine *	m_pAudioEngine
bool	m_bDrawReflection:1
bool	m_bDisplayText:1
bool	m_bDisplayHelp:1
bool	m_bServerMode:1
bool	m_bHasNewConfig:1
bool	m_bAllowWindowClosing:1
bool	m_bAutoLowerFrameRateWhenNotFocused:1
bool	m_bToggleSoundWhenNotFocused:1
int	m_nInitialGameEffectSet
	initial game effect setting to be loaded from the config file. More...
int	m_nWindowedDesired
	1 window mode desired, 0 full screen mode desired, -1 if unknown. More...
bool	m_bIsKeyEvent
bool	m_bUpdateScreenDevice
std::string	m_cmd
CWinRawMsgQueue *	m_pWinRawMsgQueue
	The thread safe message queue target for receiving messages from window thread. More...
DWORD	m_dwWinThreadID
	the thread id of the main window thread. More...
DWORD	m_dwCoreUsage
	the Core usage. More...
bool	m_bAppHasFocus
	whether app has focus. More...
std::string	m_sTitleString
	for debugging display
HWND	m_hwndTopLevelWnd
	set foreground window
bool	m_isSlateMode
int32	m_touchPointX
int32	m_touchPointY
float	m_fFPS
ITouchInputTranslator *	m_pTouchInput
ParaEngine::PEAppState	m_nAppState
int	m_nScreenWidth
int	m_nScreenHeight
double	m_fTime
bool	m_bIsAppActive
std::string	m_sWindowTitle
ref_ptr< CParaEngineGLView >	m_pGLView
boost::asio::io_service	m_main_io_service
	the main game loop
boost::asio::steady_timer	m_main_timer
	the main timer that ticks 30 times a second
bool	m_bQuit
bool	m_bMainLoopExited
float	m_fRefreshTimerInterval
HWND	m_hWnd
bool	m_bStartFullscreen
Protected Attributes inherited from ParaEngine::CParaEngineAppBase
bool	m_bEnable3DRendering
bool	m_isTouching
bool	m_hasClosingRequest
int	m_nReturnCode
	the application exit code or return code. More...
CObjectAutoReleasePool *	m_pSingletonReleasePool
	a pool of registered singleton object. More...
std::string	m_sPackagesDir
	packages/ directory path
std::string	m_sModuleDir
	bin/ module path
std::string	m_sInitialWorkingDir
	initial working directory
PEAppState	m_nAppState
	application state
Protected Attributes inherited from ParaEngine::IObject
WeakPtr_type	m_weak_reference
Protected Attributes inherited from ParaEngine::CRefCounted
int	m_refcount
Protected Attributes inherited from CD3DApplication
CD3DEnumeration	m_d3dEnumeration
CD3DSettings	m_d3dSettings
bool	m_bWindowed
bool	m_bActive
bool	m_bDeviceLost
bool	m_bMinimized
bool	m_bMaximized
bool	m_bIgnoreSizeChange
bool	m_bDeviceObjectsInited
bool	m_bDeviceObjectsRestored
bool	m_bFrameMoving
bool	m_bSingleStep
bool	m_bDisableD3D
	if this is true, the directX is not needed to run the application. More...
bool	m_bPassiveRendering
	passive rendering, it will not render the scene, but simulation and time remains the same. Default is false
bool	m_bEnable3DRendering
	whether to render 3d scene and present to screen.
D3DPRESENT_PARAMETERS	m_d3dpp
HWND	m_hWnd
HWND	m_hWndFocus
HMENU	m_hMenu
LPDIRECT3D9	m_pD3D
LPDIRECT3DDEVICE9	m_pd3dDevice
IDirect3DSwapChain9 *	m_pd3dSwapChain
D3DCAPS9	m_d3dCaps
D3DSURFACE_DESC	m_d3dsdBackBuffer
DWORD	m_dwCreateFlags
DWORD	m_dwWindowStyle
RECT	m_rcWindowBounds
RECT	m_rcWindowClient
int	m_nClientWidth
int	m_nClientHeight
double	m_fTime
double	m_fElapsedTime
FLOAT	m_fFPS
TCHAR	m_strDeviceStats [90]
TCHAR	m_strFrameStats [90]
float	m_fRefreshTimerInterval
int	m_nFrameRateControl
TCHAR *	m_strWindowTitle
DWORD	m_dwCreationWidth
DWORD	m_dwCreationHeight
bool	m_bShowCursorWhenFullscreen
bool	m_bClipCursorWhenFullscreen
bool	m_bStartFullscreen
bool	m_bCreateMultithreadDevice
bool	m_bAllowDialogBoxMode
bool	m_bIsExternalWindow
	whether the main rendering window is an externally provided window or not. More...
bool	m_bIsExternalD3DDevice
ParaEngine::PEAppState	m_nAppState
	application state

Additional Inherited Members
Public Types inherited from ParaEngine::BaseInterface
enum	LifetimeType { noRelease, immediateRelease, wantsRelease, serverControlled }
Public Types inherited from ParaEngine::IObject
typedef ParaEngine::weak_ptr< IObject >	WeakPtr_type
Static Public Member Functions inherited from ParaEngine::CParaEngineAppBase
static CParaEngineApp *	GetInstance ()
	the singleton application. More...
static void	SetCurrentInstance (CParaEngineApp *pInstance)
Static Protected Member Functions inherited from CD3DApplication
static bool	ConfirmDeviceHelper (D3DCAPS9 *pCaps, VertexProcessingType vertexProcessingType, D3DFORMAT adapterFormat, D3DFORMAT backBufferFormat)
Static Protected Attributes inherited from ParaEngine::CParaEngineAppBase
static CParaEngineApp *	g_pCurrentApp = NULL

Detailed Description

This class demonstrate how to initialize, destroy and drive the game loop of ParaEngine through the C++ programming interface.

Users can derive their main Windows application from this class. Note: paraengine is designed to be manipulated through the NPL scripting interface Currently,its C++ programming interface is not designed to be used from outside the core code. i.e. Users' ability to program through C++ API is restricted by the amount of source code unvailed to them.

this class can be regarded as sample code for writing your own ParaEngine games logics. This class is not engine specific, but it contains basic steps to establish a running environment of any paraEngine created games. For example: SceneObject, Environment and AI simulator are created here. Message handling, Timing and I/O are also processed partly here.

See also

ParaWorld::CMyD3DApplication Note for debugging: please see the macro comments

Users can derive their main Windows application from this class. Note: ParaEngine is designed to be manipulated through the NPL scripting interface Currently,its C++ programming interface is not designed to be used from outside the core code. i.e. Users' ability to program through C++ API is restricted by the amount of source code unvailed to them.

this class can be regarded as sample code for writing your own ParaEngine games logics. This class is not engine specific, but it contains basic steps to establish a running environment of any paraEngine created games. For example: SceneObject, Environment and AI simulator are created here. Message handling, Timing and I/O are also processed partly here.

See also

ParaWorld::CMyD3DApplication Note for debugging: please see the macro comments

Constructor & Destructor Documentation

CParaEngineApp() [1/3]

ParaEngine::CParaEngineApp::CParaEngineApp

(

const char *

lpCmdLine

)

start the application immediately, it calls StartApp with the given command line.

Parameters

lpCmdLine

command line arguments. we support the following argument at the moment bootstappper="config/bootstrapper.xml"

CParaEngineApp() [2/3]

ParaEngine::CParaEngineApp::CParaEngineApp

(

const char *

lpCmdLine = NULL

)

Parameters

lpCmdLine

command line arguments. we support the following argument at the moment bootstappper="config/bootstrapper.xml"

CParaEngineApp() [3/3]

ParaEngine::CParaEngineApp::CParaEngineApp

(

const char *

lpCmdLine = NULL

)

Parameters

lpCmdLine

command line arguments. we support the following argument at the moment bootstappper="config/bootstrapper.xml"

Member Function Documentation

ActivateApp()

void CParaEngineApp::ActivateApp ( bool  bActivate )

virtual

this function is called whenever the application is disabled or enabled.

usually called when receiving the WM_ACTIVATEAPP message. [main thread only]

Reimplemented from ParaEngine::CParaEngineAppBase.

AppHasFocus()

bool CParaEngineApp::AppHasFocus

(

)

return true if app has focus.

Usually we will lower render frame move when app has lost focus in web browser mode.

BringWindowToTop() [1/3]

void CParaEngineApp::BringWindowToTop ( )

virtual

The BringWindowToTop current window to the top of the Z order.

This function only works if IsFullScreenMode() is false.

Reimplemented from ParaEngine::CParaEngineAppBase.

BringWindowToTop() [2/3]

virtual void ParaEngine::CParaEngineApp::BringWindowToTop ( )

inlinevirtual

The BringWindowToTop current window to the top of the Z order.

This function only works if IsFullScreenMode() is false.

Reimplemented from ParaEngine::CParaEngineAppBase.

BringWindowToTop() [3/3]

virtual void ParaEngine::CParaEngineApp::BringWindowToTop ( )

inlinevirtual

The BringWindowToTop current window to the top of the Z order.

This function only works if IsFullScreenMode() is false.

Reimplemented from ParaEngine::CParaEngineAppBase.

CalculateRenderTime()

int ParaEngine::CParaEngineApp::CalculateRenderTime	(	double	fIdealInterval,
		double *	pNextInterval
	)

return true if this is a render tick, otherwise false.

Parameters

fIdealInterval	the ideal interval (FPS) when this function will return true at ideal FPS.
pNextInterval	main_loop timer interval.

Returns

frameDelta. if this is bigger than 0, we will render a frame.

tricky: run the main_loop as fast as possible at least 100FPS, so that FPS is more accurate.

define to output interval to log file to change timer implementation.

ClientToGame()

void CParaEngineApp::ClientToGame ( int &  inout_x, int &  inout_y, bool  bInBackbuffer = true  )

virtual

translate a position from client window position to game coordination system.

Parameters

inout_x	in and out
inout_y	in and out
bInBackbuffer	if true, it will scale the output according to the ratio of back buffer and current window size.

Reimplemented from ParaEngine::CParaEngineAppBase.

ConfirmDevice()

HRESULT CParaEngineApp::ConfirmDevice	(	LPDIRECT3D9	pD3d,
		D3DCAPS9 *	pCaps,
		DWORD	dwBehavior,
		D3DFORMAT	adapterFormat,
		D3DFORMAT	backBufferFormat
	)

Called during device initialization, this code checks the device for some minimum set of capabilities, and rejects those that don't pass by returning false.

Called during device initialization, this code checks the device for some minimum set of capabilities.

TODO: Just for mouse picking, however, I am going to turn this out because I have managed to sidestep using GetTransform() function. GetTransform() is needed for mouse ray picking

Need to support post-pixel processing (for alpha blending)

Billboard uses alpha textures and/or straight alpha. Make sure the device supports them

Debugging vertex shaders requires either REF or software vertex processing and debugging pixel shaders requires REF.

Need to support vs 1.1 or use software vertex processing

Need to support A8R8G8B8 textures

Need to support A8 textures, if not tell the engine to use A8R8G8B8 for A8.

Create() [1/2]

virtual HRESULT ParaEngine::CParaEngineApp::Create ( HINSTANCE  hInstance = 0 )

inlinevirtual

create d3d render device based on the current main window.

Use this function to create a new render device automatically.

Reimplemented from ParaEngine::CParaEngineAppBase.

Create() [2/2]

virtual HRESULT ParaEngine::CParaEngineApp::Create ( HINSTANCE  hInstance = 0 )

virtual

create d3d render device based on the current main window.

Use this function to create a new render device automatically.

Reimplemented from ParaEngine::CParaEngineAppBase.

CreateFromD3D9Device() [1/2]

virtual HRESULT ParaEngine::CParaEngineApp::CreateFromD3D9Device ( IDirect3DDevice9 *  pD3dDevice, IDirect3DSwapChain9 *  apSwapChain  )

inlinevirtual

create from an existing d3d device.

This is an advanced function to replaced the default render device. and caller is responsible for managing device life time. The external caller must call InitDeviceObjects(), RestoreDeviceObjects(), InvalidateDeviceObjects(), DeleteDeviceObjects() at proper time

Reimplemented from CD3DApplication.

CreateFromD3D9Device() [2/2]

virtual HRESULT ParaEngine::CParaEngineApp::CreateFromD3D9Device ( IDirect3DDevice9 *  pD3dDevice, IDirect3DSwapChain9 *  apSwapChain  )

inlinevirtual

create from an existing d3d device.

This is an advanced function to replaced the default render device. and caller is responsible for managing device life time. The external caller must call InitDeviceObjects(), RestoreDeviceObjects(), InvalidateDeviceObjects(), DeleteDeviceObjects() at proper time

Reimplemented from CD3DApplication.

DeleteDeviceObjects() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::DeleteDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles.

Resources created in the OnCreateDevice callback should be released here, which generally includes all D3DPOOL_MANAGED resources.

Reimplemented from CD3DApplication.

DeleteDeviceObjects() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::DeleteDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles.

Resources created in the OnCreateDevice callback should be released here, which generally includes all D3DPOOL_MANAGED resources.

Reimplemented from CD3DApplication.

DeleteDeviceObjects() [3/3]

HRESULT ParaEngine::CParaEngineApp::DeleteDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been destroyed, which generally happens as a result of application termination or windowed/full screen toggles.

Called when the app is exiting, or the device is being changed, this function deletes any device dependent objects.

Resources created in the OnCreateDevice callback should be released here, which generally includes all D3DPOOL_MANAGED resources.

ParaEngine fixed code: must call these functions as given below

Reimplemented from CD3DApplication.

DoWork() [1/3]

HRESULT CParaEngineApp::DoWork ( )

virtual

this function is called per frame, in most cases, it will render the 3d scene and frame move.

call this as often as one like internally it will use a timer to best fit the interval.

Reimplemented from CD3DApplication.

DoWork() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::DoWork ( )

inlinevirtual

this function is called per frame, in most cases, it will render the 3d scene and frame move.

call this as often as one like internally it will use a timer to best fit the interval.

Reimplemented from CD3DApplication.

DoWork() [3/3]

virtual HRESULT ParaEngine::CParaEngineApp::DoWork ( )

inlinevirtual

this function is called per frame, in most cases, it will render the 3d scene and frame move.

call this as often as one like internally it will use a timer to best fit the interval.

Reimplemented from CD3DApplication.

Enable3DRendering()

void CParaEngineApp::Enable3DRendering ( bool  bEnable )

virtual

disable 3D rendering, do not present the scene.

This is usually called before and after we show a standard win32 window during full screen mode, such as displaying a flash window

Parameters

bEnable

true to enable.

This is usually called before and after we show a standard win32 window during full screen mode, such as displaying a flash window

Reimplemented from ParaEngine::CParaEngineAppBase.

EnablePassiveRendering() [1/3]

void CParaEngineApp::EnablePassiveRendering ( bool  bEnable )

virtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

EnablePassiveRendering() [2/3]

virtual void ParaEngine::CParaEngineApp::EnablePassiveRendering ( bool  bEnable )

inlinevirtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

EnablePassiveRendering() [3/3]

virtual void ParaEngine::CParaEngineApp::EnablePassiveRendering ( bool  bEnable )

inlinevirtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

Exit() [1/3]

virtual void ParaEngine::CParaEngineApp::Exit ( int  nReturnCode = 0 )

virtual

Send the exit message, so that the game engine will prepare to exit in the next frame.

this is the recommended way of exiting application. this is mainly used for writing test cases. Where a return value of 0 means success, any other value means failure.

Reimplemented from ParaEngine::CParaEngineAppBase.

Exit() [2/3]

virtual void ParaEngine::CParaEngineApp::Exit ( int  nReturnCode = 0 )

virtual

Send the exit message, so that the game engine will prepare to exit in the next frame.

this is the recommended way of exiting application. this is mainly used for writing test cases. Where a return value of 0 means success, any other value means failure.

Reimplemented from ParaEngine::CParaEngineAppBase.

Exit() [3/3]

void ParaEngine::CParaEngineApp::Exit ( int  nReturnCode = 0 )

virtual

Send the exit message, so that the game engine will prepare to exit in the next frame.

this is the recommended way of exiting application. this is mainly used for writing test cases. Where a return value of 0 means success, any other value means failure.

Reimplemented from ParaEngine::CParaEngineAppBase.

FinalCleanup()

HRESULT ParaEngine::CParaEngineApp::FinalCleanup ( )

virtual

This function should be called only once when the application end, one can destroy game objects here.

Called before the app exits, this function gives the app the chance to cleanup after itself.

ParaEngine fixed code: must call these functions as given below

Reimplemented from CD3DApplication.

ForceRender()

bool CParaEngineApp::ForceRender ( )

virtual

render the current frame and does not return until everything is presented to screen.

this function is usually used to draw the animated loading screen.

Reimplemented from ParaEngine::CParaEngineAppBase.

FrameMove() [1/4]

HRESULT CParaEngineApp::FrameMove ( )

virtual

This callback function will be called once at the beginning of every frame.

This is the best location for your application to handle updates to the scene, but is not intended to contain actual rendering calls, which should instead be placed in the OnFrameRender callback.

Parameters

fTime

Current time elapsed.

Reimplemented from CD3DApplication.

FrameMove() [2/4]

virtual HRESULT ParaEngine::CParaEngineApp::FrameMove ( double  fTime )

virtual

This callback function will be called once at the beginning of every frame.

This is the best location for your application to handle updates to the scene, but is not intended to contain actual rendering calls, which should instead be placed in the OnFrameRender callback.

Parameters

fTime

Current time elapsed.

Reimplemented from ParaEngine::CParaEngineAppBase.

FrameMove() [3/4]

HRESULT ParaEngine::CParaEngineApp::FrameMove ( double  fTime )

virtual

Called once per frame, the call is the entry point for animating the scene.

ParaEngine fixed code: must call these functions as given below TODO: I have no idea whether we should simulate before calling IO functions or vice versa. since, some IO actions will not be validated by the simulator before it is rendered. However, the camera IO need to get the biped position that is being rendered for the current frame. hence the current order is changed to SIM->SCRIPT->IO(camera and biped control)->RENDER the old order is IO(camera and biped control)->SIM->SCRIPT->RENDER

process all messages in the main game thread.

<<fElapsedEnvSimTime>> in worst case, it might be half of 60.f, that is only 1/30secs. Animate the environment, remote script and network module it must be called if IO is executed. Since IO may change the cognitive state of some characters The environment simulator will provide feedback (constraint) on those subjective state. e.g. An IO event might send a character to a moving state(mentally), however, if the character is blocked, this cognitive state must be prohibited, before rendering function is called. Such constraints are feedback by the physical environment

– Call AI script and remote scripts as well as some simulation in the form of triggering scripts. It is important for this script to come before m_pEnvironmentSim->Animate() because the latter may add objects which may be deleted to the visiting biped list. Hence, when m_pEnvironmentSim->Animate() is called, the scene can no longer drop objects.

– Animate the scene –: – Environment simulation is carried out by m_pEnvironmentSim always call Environment simulation before you frame move any other object in the scene since Environment simulation may change the object's cached actions.

<<fElapsedIOTime>> in worst case, it might be half of 60.f, that is only 1/30secs. handle mouse and key board I/O events Faster than the user input <= 1/30 sec

process all user key and mouse messages

Engine required: Camera control some object in the scene requires to update its parameters each frame currently only Camera control responses.

Render() will be called after this function with m_fElapsedTime as its time advances

Reimplemented from ParaEngine::CParaEngineAppBase.

FrameMove() [4/4]

virtual HRESULT ParaEngine::CParaEngineApp::FrameMove ( double  fTime )

virtual

This callback function will be called once at the beginning of every frame.

This is the best location for your application to handle updates to the scene, but is not intended to contain actual rendering calls, which should instead be placed in the OnFrameRender callback.

Parameters

fTime

Current time elapsed.

Reimplemented from ParaEngine::CParaEngineAppBase.

GameToClient()

void CParaEngineApp::GameToClient ( int &  inout_x, int &  inout_y, bool  bInBackbuffer = true  )

virtual

translate a position from game coordination system to client window position.

Parameters

inout_x	in and out
inout_y	in and out
bInBackbuffer	if true, it will scale the output according to the ratio of back buffer and current window size.

Reimplemented from ParaEngine::CParaEngineAppBase.

GenerateD3DDebugString()

void CParaEngineApp::GenerateD3DDebugString

(

)

Output text information to console, for debugging only.

GetCoreUsage()

DWORD CParaEngineApp::GetCoreUsage ( )

virtual

Get the current ParaEngine app usage.

[main thread only]

Returns

see PE_USAGE

Reimplemented from ParaEngine::CParaEngineAppBase.

GetCursorPosition()

void CParaEngineApp::GetCursorPosition ( int *  pX, int *  pY, bool  bInBackbuffer = true  )

virtual

get the current mouse cursor position.

Parameters

pX	out
pY	out
bInBackbuffer	if true, it will scale the output according to the ratio of back buffer and current window size.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetIgnoreWindowSizeChange()

bool CParaEngineApp::GetIgnoreWindowSizeChange ( )

virtual

return true if it is currently under windowed mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMessageFromApp() [1/3]

virtual bool ParaEngine::CParaEngineApp::GetMessageFromApp ( CWinRawMsg *  pMsg )

inlinevirtual

get a message from the application message queue and remove it from the queue.

This function is mostly used internally by the main thread.

Parameters

pMsg	the receiving message

Returns

true if one message is fetched. or false if there is no more messages in the queue.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMessageFromApp() [2/3]

virtual bool ParaEngine::CParaEngineApp::GetMessageFromApp ( CWinRawMsg *  pMsg )

virtual

get a message from the application message queue and remove it from the queue.

This function is mostly used internally by the main thread.

Parameters

pMsg	the receiving message

Returns

true if one message is fetched. or false if there is no more messages in the queue.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMessageFromApp() [3/3]

bool ParaEngine::CParaEngineApp::GetMessageFromApp ( CWinRawMsg *  pMsg )

virtual

get a message from the application message queue and remove it from the queue.

This function is mostly used internally by the main thread.

Parameters

pMsg	the receiving message

Returns

true if one message is fetched. or false if there is no more messages in the queue.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetModuleHandle()

HINSTANCE CParaEngineApp::GetModuleHandle ( )

virtual

change the cursor to indicate a movie recording state

get the module handle, it may be exe or the dll handle, depending on how the main host app is built.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleQuality() [1/3]

int CParaEngineApp::GetMultiSampleQuality ( )

virtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleQuality() [2/3]

virtual int ParaEngine::CParaEngineApp::GetMultiSampleQuality ( )

inlinevirtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleQuality() [3/3]

virtual int ParaEngine::CParaEngineApp::GetMultiSampleQuality ( )

inlinevirtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleType() [1/3]

int CParaEngineApp::GetMultiSampleType ( )

virtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleType() [2/3]

virtual int ParaEngine::CParaEngineApp::GetMultiSampleType ( )

inlinevirtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetMultiSampleType() [3/3]

virtual int ParaEngine::CParaEngineApp::GetMultiSampleType ( )

inlinevirtual

anti-aliasing for both windowed and full screen mode.

it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetNPLRuntime() [1/2]

NPL::INPLRuntime * ParaEngine::CParaEngineApp::GetNPLRuntime ( )

virtual

get the NPL runtime system associate with the application.

NPL provides communication framework across different language systems.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetNPLRuntime() [2/2]

virtual NPL::INPLRuntime* ParaEngine::CParaEngineApp::GetNPLRuntime ( )

virtual

get the NPL runtime system associate with the application.

NPL provides communication framework across different language systems.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetResolution() [1/3]

void ParaEngine::CParaEngineApp::GetResolution ( float *  pX, float *  pY  )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetResolution() [2/3]

virtual void ParaEngine::CParaEngineApp::GetResolution ( float *  pX, float *  pY  )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetResolution() [3/3]

virtual void ParaEngine::CParaEngineApp::GetResolution ( float *  pX, float *  pY  )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetScreenResolution() [1/3]

void CParaEngineApp::GetScreenResolution ( Vector2 *  pOut )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetScreenResolution() [2/3]

ParaEngine::Vector2 ParaEngine::CParaEngineApp::GetScreenResolution ( )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

GetScreenResolution() [3/3]

virtual Vector2 ParaEngine::CParaEngineApp::GetScreenResolution ( )

virtual

change the full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

GetStats()

void CParaEngineApp::GetStats ( string &  output, DWORD  dwFields = 0  )

virtual

get the render engine stats to output.

Parameters

output	the output buffer.
dwFields	current it is 0, which just collect graphics card settings. 1 is os information.

GetWindowCreationSize() [1/3]

virtual void ParaEngine::CParaEngineApp::GetWindowCreationSize ( int *  pWidth, int *  pHeight  )

virtual

get the window creation size in default application config.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetWindowCreationSize() [2/3]

virtual void ParaEngine::CParaEngineApp::GetWindowCreationSize ( int *  pWidth, int *  pHeight  )

virtual

get the window creation size in default application config.

Reimplemented from ParaEngine::CParaEngineAppBase.

GetWindowCreationSize() [3/3]

void ParaEngine::CParaEngineApp::GetWindowCreationSize ( int *  pWidth, int *  pHeight  )

virtual

get the window creation size in default application config.

Reimplemented from ParaEngine::CParaEngineAppBase.

HandleUserInput() [1/3]

void ParaEngine::CParaEngineApp::HandleUserInput

(

)

process game input.

HandleUserInput() [2/3]

void ParaEngine::CParaEngineApp::HandleUserInput

(

)

process game input.

HandleUserInput() [3/3]

void ParaEngine::CParaEngineApp::HandleUserInput

(

)

process game input.

handle 2D GUI input: dispatch mouse and key event for gui objects.

handle the camera user input. One can also block camera input and handle everything from script.

handle 3D scene input

handle 2D GUI input: dispatch mouse and key event for gui objects.

handle the automatic camera user input.

3D scene handler

HasFocus()

bool CParaEngineApp::HasFocus ( HWND  hWnd = 0 )

virtual

this returns true if the main window or one of its child window has key focus.

Parameters

hWnd	the current window handle from which we will compare. If 0, we will use GetFocus() to get it.

HasNewConfig() [1/3]

bool ParaEngine::CParaEngineApp::HasNewConfig ( )

virtual

get whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

HasNewConfig() [2/3]

virtual bool ParaEngine::CParaEngineApp::HasNewConfig ( )

virtual

get whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

HasNewConfig() [3/3]

virtual bool ParaEngine::CParaEngineApp::HasNewConfig ( )

virtual

get whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

Init()

HRESULT ParaEngine::CParaEngineApp::Init ( HWND *  pHWND )

virtual

init application

fixing win vista or win 7 security filters.

set up dSound

Create a blank root scene with certain dimensions units is Meter.

create the default system font, the game should also use this sys font to save resources

set up terrain engine parameters

Reimplemented from ParaEngine::CParaEngineAppBase.

InitDeviceObjects() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::InitDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles.

This is the best location to create D3DPOOL_MANAGED resources since these resources need to be reloaded whenever the device is destroyed. Resources created here should be released in the OnDestroyDevice callback.

Reimplemented from CD3DApplication.

InitDeviceObjects() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::InitDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles.

This is the best location to create D3DPOOL_MANAGED resources since these resources need to be reloaded whenever the device is destroyed. Resources created here should be released in the OnDestroyDevice callback.

Reimplemented from CD3DApplication.

InitDeviceObjects() [3/3]

HRESULT ParaEngine::CParaEngineApp::InitDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been created, which will happen during application initialization and windowed/full screen toggles.

Initialize scene objects.

This is the best location to create D3DPOOL_MANAGED resources since these resources need to be reloaded whenever the device is destroyed. Resources created here should be released in the OnDestroyDevice callback.

ParaEngine fixed code: must call these functions as given below

Asset must be the first to be initialized. Otherwise, the global device object will not be valid

Reimplemented from CD3DApplication.

InitWin3DSettings()

void CParaEngineApp::InitWin3DSettings

(

)

AppUsesDepthBuffer needed for Parallel world

AppUsesMixedVP needed for parallel world

enable stencil buffer

Just turn off Full screen cursor, we will use mine.

InvalidateDeviceObjects() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::InvalidateDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called.

Resources created in the OnResetDevice callback should be released here, which generally includes all D3DPOOL_DEFAULT resources. See the "Lost Devices" section of the documentation for information about lost devices.

Reimplemented from CD3DApplication.

InvalidateDeviceObjects() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::InvalidateDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called.

Resources created in the OnResetDevice callback should be released here, which generally includes all D3DPOOL_DEFAULT resources. See the "Lost Devices" section of the documentation for information about lost devices.

Reimplemented from CD3DApplication.

InvalidateDeviceObjects() [3/3]

HRESULT ParaEngine::CParaEngineApp::InvalidateDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has entered a lost state and before IDirect3DDevice9::Reset is called.

Called when the device-dependent objects are about to be lost.

Resources created in the OnResetDevice callback should be released here, which generally includes all D3DPOOL_DEFAULT resources. See the "Lost Devices" section of the documentation for information about lost devices.

ParaEngine fixed code: must call these functions as given below

Reimplemented from CD3DApplication.

Is3DRenderingEnabled()

bool CParaEngineApp::Is3DRenderingEnabled ( )

virtual

whether 3D rendering is enabled, do not present the scene.

This is usually called before and after we show a standard win32 window during full screen mode, such as displaying a flash window

Reimplemented from ParaEngine::CParaEngineAppBase.

IsAppActive() [1/3]

virtual bool ParaEngine::CParaEngineApp::IsAppActive ( )

virtual

whether the application is active or not.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsAppActive() [2/3]

virtual bool ParaEngine::CParaEngineApp::IsAppActive ( )

virtual

whether the application is active or not.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsAppActive() [3/3]

bool ParaEngine::CParaEngineApp::IsAppActive ( )

virtual

whether the application is active or not.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsDebugBuild() [1/2]

bool ParaEngine::CParaEngineApp::IsDebugBuild

(

)

whether it is debug build.

IsDebugBuild() [2/2]

bool ParaEngine::CParaEngineApp::IsDebugBuild

(

)

whether it is debug build.

IsKeyPressed()

bool ParaEngine::CParaEngineApp::IsKeyPressed

(

DWORD

nKey

)

return true if the key is being pressed at the time of calling.

Parameters

nKey	a direct input key, such as DIK_SPACE.

IsPassiveRenderingEnabled() [1/3]

bool CParaEngineApp::IsPassiveRenderingEnabled ( )

virtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

IsPassiveRenderingEnabled() [2/3]

virtual bool ParaEngine::CParaEngineApp::IsPassiveRenderingEnabled ( )

inlinevirtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

IsPassiveRenderingEnabled() [3/3]

virtual bool ParaEngine::CParaEngineApp::IsPassiveRenderingEnabled ( )

inlinevirtual

passive rendering, it will not render the scene, but simulation and time remains the same.

Default is false

Reimplemented from ParaEngine::CParaEngineAppBase.

IsTouchInputting()

virtual bool ParaEngine::CParaEngineApp::IsTouchInputting ( )

inlinevirtual

whether the last mouse input is from touch or mouse.

by default it is mouse mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsWindowedMode() [1/3]

bool CParaEngineApp::IsWindowedMode ( )

virtual

return true if it is currently under windowed mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsWindowedMode() [2/3]

virtual bool ParaEngine::CParaEngineApp::IsWindowedMode ( )

inlinevirtual

return true if it is currently under windowed mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

IsWindowedMode() [3/3]

virtual bool ParaEngine::CParaEngineApp::IsWindowedMode ( )

inlinevirtual

return true if it is currently under windowed mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

MsgProcApp()

LRESULT ParaEngine::CParaEngineApp::MsgProcApp ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

Before handling window messages, application should pass incoming windows messages to the application through this callback function.

menu command

application defined command

Reimplemented from ParaEngine::CParaEngineAppBase.

MsgProcWinThread() [1/3]

virtual LRESULT ParaEngine::CParaEngineApp::MsgProcWinThread ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam, bool  bCallDefProcedure = true  )

inlinevirtual

the window message processor.

One needs send all messages belonging to the main window to this function, after calling Create().

Note

: the main rendering thread can be a different thread than the window proc thread.

Parameters

bCallDefProcedure

whether we will call the ::DefWindowProdure().

Returns

: 0 if message was not processed. 1 if message is processed. -1 if message is processed by can be passed on to other processor.

Reimplemented from ParaEngine::CParaEngineAppBase.

MsgProcWinThread() [2/3]

virtual LRESULT ParaEngine::CParaEngineApp::MsgProcWinThread ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam, bool  bCallDefProcedure = true  )

inlinevirtual

the window message processor.

One needs send all messages belonging to the main window to this function, after calling Create().

Note

: the main rendering thread can be a different thread than the window proc thread.

Parameters

bCallDefProcedure

whether we will call the ::DefWindowProdure().

Returns

: 0 if message was not processed. 1 if message is processed. -1 if message is processed by can be passed on to other processor.

Reimplemented from ParaEngine::CParaEngineAppBase.

MsgProcWinThread() [3/3]

LRESULT CParaEngineApp::MsgProcWinThread ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam, bool  bCallDefProcedure = true  )

virtual

the window message processor.

One needs send all messages belonging to the main window to this function, after calling Create().

Note

: the main rendering thread can be a different thread than the window proc thread.

Parameters

bCallDefProcedure

whether we will call the ::DefWindowProdure().

Returns

: 0 if message was not processed. 1 if message is processed. -1 if message is processed by can be passed on to other processor.

Reimplemented from ParaEngine::CParaEngineAppBase.

OnCreateWindow()

HRESULT CParaEngineApp::OnCreateWindow

(

)

this function should be called when the application is created.

I.e. the windows HWND is valid.

OneTimeSceneInit() [1/3]

HRESULT CParaEngineApp::OneTimeSceneInit ( )

virtual

This function should be called only once when the application start, one can initialize game objects here.

Called during initial app startup, this function performs all the permanent initialization.

Parameters

pHWND:a

pointer to the handle of the current application window.

ParaEngine modules are setup here. ParaEngine fixed code: must call these functions as given below

Reimplemented from CD3DApplication.

OneTimeSceneInit() [2/3]

HRESULT ParaEngine::CParaEngineApp::OneTimeSceneInit

(

HWND *

pHWND

)

This function should be called only once when the application start, one can initialize game objects here.

Parameters

pHWND:a

pointer to the handle of the current application window.

load frame rate controller

OneTimeSceneInit() [3/3]

HRESULT ParaEngine::CParaEngineApp::OneTimeSceneInit

(

HWND *

pHWND

)

This function should be called only once when the application start, one can initialize game objects here.

Parameters

pHWND:a

pointer to the handle of the current application window.

PostWinThreadMessage() [1/3]

virtual bool ParaEngine::CParaEngineApp::PostWinThreadMessage ( UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

inlinevirtual

post a raw win32 message from any thread to the thread on which hWnd is created.

Reimplemented from ParaEngine::CParaEngineAppBase.

PostWinThreadMessage() [2/3]

virtual bool ParaEngine::CParaEngineApp::PostWinThreadMessage ( UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

post a raw win32 message from any thread to the thread on which hWnd is created.

Reimplemented from ParaEngine::CParaEngineAppBase.

PostWinThreadMessage() [3/3]

bool ParaEngine::CParaEngineApp::PostWinThreadMessage ( UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

post a raw win32 message from any thread to the thread on which hWnd is created.

Reimplemented from ParaEngine::CParaEngineAppBase.

ReadRegDWORD() [1/2]

DWORD ParaEngine::CParaEngineApp::ReadRegDWORD	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name
	)

Read DWORD from the registry.

Valid values for root_key are listed under WriteRegStr. NULL will be returned if the DWORD is not present or type is a string.

ReadRegDWORD() [2/2]

DWORD ParaEngine::CParaEngineApp::ReadRegDWORD	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name
	)

Read DWORD from the registry.

Valid values for root_key are listed under WriteRegStr. NULL will be returned if the DWORD is not present or type is a string.

ReadRegStr() [1/2]

const char * ParaEngine::CParaEngineApp::ReadRegStr	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name
	)

Read string from the registry.

Valid values for root_key are listed under WriteRegStr. NULL will be returned if the string is not present. If the value is present, but is of type REG_DWORD, it will be read and converted to a string.

ReadRegStr() [2/2]

const char* ParaEngine::CParaEngineApp::ReadRegStr	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name
	)

Read string from the registry.

Valid values for root_key are listed under WriteRegStr. NULL will be returned if the string is not present. If the value is present, but is of type REG_DWORD, it will be read and converted to a string.

Render()

HRESULT CParaEngineApp::Render ( )

virtual

This callback function will be called at the end of every frame to perform all the rendering calls for the scene, and it will also be called if the window needs to be repainted.

Called once per frame, the call is the entry point for 3d rendering.

After this function has returned, application should call IDirect3DDevice9::Present to display the contents of the next buffer in the swap chain

Parameters

fTime

Current time elapsed.

This function sets up render states, clears the viewport, and renders the scene. ParaEngine fixed code: must call these functions as given below

clear all render targets

force using less equal

Reimplemented from CD3DApplication.

Render3DEnvironment() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::Render3DEnvironment ( bool  bForceRender = false )

virtual

Frame move and render a frame during idle time (no messages are waiting).

Call this function during CPU idle time. internally it uses a timer to control frame rates, so it is safe to call this as often as one like.

Parameters

bForceRender

if true, it will force frame move and render the scene. if not, it will internally use a frame rate controller that maintain the frame rate at 30 fps, no matter who often this function is called.

Reimplemented from ParaEngine::CParaEngineAppBase.

Render3DEnvironment() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::Render3DEnvironment ( bool  bForceRender = false )

virtual

Frame move and render a frame during idle time (no messages are waiting).

Call this function during CPU idle time. internally it uses a timer to control frame rates, so it is safe to call this as often as one like.

Parameters

bForceRender

if true, it will force frame move and render the scene. if not, it will internally use a frame rate controller that maintain the frame rate at 30 fps, no matter who often this function is called.

Reimplemented from ParaEngine::CParaEngineAppBase.

Render3DEnvironment() [3/3]

HRESULT ParaEngine::CParaEngineApp::Render3DEnvironment ( bool  bForceRender = false )

virtual

Frame move and render a frame during idle time (no messages are waiting).

Call this function during CPU idle time. internally it uses a timer to control frame rates, so it is safe to call this as often as one like.

Parameters

bForceRender

if true, it will force frame move and render the scene. if not, it will internally use a frame rate controller that maintain the frame rate at 30 fps, no matter who often this function is called.

Reimplemented from ParaEngine::CParaEngineAppBase.

RestoreDeviceObjects() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::RestoreDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario.

This is the best location to create D3DPOOL_DEFAULT resources since these resources need to be reloaded whenever the device is lost. Resources created here should be released in the OnLostDevice callback.

Reimplemented from CD3DApplication.

RestoreDeviceObjects() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::RestoreDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario.

This is the best location to create D3DPOOL_DEFAULT resources since these resources need to be reloaded whenever the device is lost. Resources created here should be released in the OnLostDevice callback.

Reimplemented from CD3DApplication.

RestoreDeviceObjects() [3/3]

HRESULT ParaEngine::CParaEngineApp::RestoreDeviceObjects ( )

virtual

This callback function will be called immediately after the Direct3D device has been reset, which will happen after a lost device scenario.

Initialize scene objects.

This is the best location to create D3DPOOL_DEFAULT resources since these resources need to be reloaded whenever the device is lost. Resources created here should be released in the OnLostDevice callback.

ParaEngine fixed code: must call these functions as given below

Set up the camera's projection matrix

these render state is preferred.

these render state is just for point occlusion testing. See also CBaseObject::DrawOcclusionObject()

Reimplemented from CD3DApplication.

Run() [1/3]

int ParaEngine::CParaEngineApp::Run ( HINSTANCE  hInstance )

virtual

only call this function if one does not want to manage game loop externally.

Reimplemented from CD3DApplication.

Run() [2/3]

virtual int ParaEngine::CParaEngineApp::Run ( HINSTANCE  hInstance )

virtual

only call this function if one does not want to manage game loop externally.

Reimplemented from CD3DApplication.

Run() [3/3]

virtual int ParaEngine::CParaEngineApp::Run ( HINSTANCE  hInstance )

virtual

only call this function if one does not want to manage game loop externally.

Reimplemented from CD3DApplication.

SendMessageToApp() [1/3]

virtual LRESULT ParaEngine::CParaEngineApp::SendMessageToApp ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

inlinevirtual

Send a RAW win32 message the application to be processed in the next main thread update interval.

This function can be called from any thread. It is also used by the windows procedure thread to dispatch messages to the main processing thread.

Reimplemented from ParaEngine::CParaEngineAppBase.

SendMessageToApp() [2/3]

virtual LRESULT ParaEngine::CParaEngineApp::SendMessageToApp ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

Send a RAW win32 message the application to be processed in the next main thread update interval.

This function can be called from any thread. It is also used by the windows procedure thread to dispatch messages to the main processing thread.

Reimplemented from ParaEngine::CParaEngineAppBase.

SendMessageToApp() [3/3]

LRESULT ParaEngine::CParaEngineApp::SendMessageToApp ( HWND  hWnd, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

Send a RAW win32 message the application to be processed in the next main thread update interval.

This function can be called from any thread. It is also used by the windows procedure thread to dispatch messages to the main processing thread.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetAllowWindowClosing() [1/3]

void CParaEngineApp::SetAllowWindowClosing ( bool  bAllowClosing )

virtual

whether the user can close the window (sending WM_CLOSE message).

Default to true. When set to false, the scripting interface will receive WM_CLOSE message via system event. And can use ParaEngine.Exit() to quit the application after user confirmation, etc.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetAllowWindowClosing() [2/3]

virtual void ParaEngine::CParaEngineApp::SetAllowWindowClosing ( bool  bAllowClosing )

inlinevirtual

whether the user can close the window (sending WM_CLOSE message).

Default to true. When set to false, the scripting interface will receive WM_CLOSE message via system event. And can use ParaEngine.Exit() to quit the application after user confirmation, etc.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetAllowWindowClosing() [3/3]

virtual void ParaEngine::CParaEngineApp::SetAllowWindowClosing ( bool  bAllowClosing )

inlinevirtual

whether the user can close the window (sending WM_CLOSE message).

Default to true. When set to false, the scripting interface will receive WM_CLOSE message via system event. And can use ParaEngine.Exit() to quit the application after user confirmation, etc.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetCoreUsage()

void CParaEngineApp::SetCoreUsage ( DWORD  dwUsage )

virtual

Set the current ParaEngine app usage.

[main thread only]

Parameters

dwUsage

bitwise of PE_USAGE

Reimplemented from ParaEngine::CParaEngineAppBase.

SetFullScreenMode() [1/3]

void CParaEngineApp::SetFullScreenMode ( bool  bFullscreen )

virtual

whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetFullScreenMode() [2/3]

virtual void ParaEngine::CParaEngineApp::SetFullScreenMode ( bool  bFullscreen )

inlinevirtual

whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetFullScreenMode() [3/3]

virtual void ParaEngine::CParaEngineApp::SetFullScreenMode ( bool  bFullscreen )

inlinevirtual

whether to use full screen mode, it does not immediately change the device, call UpdateScreenMode() to update the device.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetHasNewConfig() [1/3]

void ParaEngine::CParaEngineApp::SetHasNewConfig ( bool  bHasNewConfig )

virtual

set whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetHasNewConfig() [2/3]

virtual void ParaEngine::CParaEngineApp::SetHasNewConfig ( bool  bHasNewConfig )

virtual

set whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetHasNewConfig() [3/3]

virtual void ParaEngine::CParaEngineApp::SetHasNewConfig ( bool  bHasNewConfig )

virtual

set whether ParaEngine is loaded from config/config.new.txt.

if this is true, we need to ask the user to save to config/config.txt. This is usually done at start up.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetIgnoreWindowSizeChange()

void CParaEngineApp::SetIgnoreWindowSizeChange ( bool  bIgnoreSizeChange )

virtual

switch to ignore windows size change.

default to false. if false, the user is allowed to adjust window size in windowed mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMainWindow() [1/3]

virtual void ParaEngine::CParaEngineApp::SetMainWindow ( HWND  hWnd, bool  bIsExternalWindow = true  )

inlinevirtual

set the hWnd on to which we will render and process window messages.

this function should be called prior to Create().

Note

: the rendering device size will use the client area of the input window

Parameters

hWnd	the Window on to which we will render.
bIsExternalWindow	this is always true, unless for the default window used by ParaEngine when no window is created by the user.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMainWindow() [2/3]

virtual void ParaEngine::CParaEngineApp::SetMainWindow ( HWND  hWnd, bool  bIsExternalWindow = true  )

virtual

set the hWnd on to which we will render and process window messages.

this function should be called prior to Create().

Note

: the rendering device size will use the client area of the input window

Parameters

hWnd	the Window on to which we will render.
bIsExternalWindow	this is always true, unless for the default window used by ParaEngine when no window is created by the user.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMainWindow() [3/3]

void ParaEngine::CParaEngineApp::SetMainWindow ( HWND  hWnd, bool  bIsExternalWindow = true  )

virtual

set the hWnd on to which we will render and process window messages.

this function should be called prior to Create().

Note

: the rendering device size will use the client area of the input window

Parameters

hWnd	the Window on to which we will render.
bIsExternalWindow	this is always true, unless for the default window used by ParaEngine when no window is created by the user.

let us find the top-level window which should be the foreground window.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMinUIResolution() [1/3]

virtual void ParaEngine::CParaEngineApp::SetMinUIResolution ( int  nWidth, int  nHeight, bool  bAutoUIScaling = true  )

inlinevirtual

set the minimum UI resolution size.

if the backbuffer is smaller than this, we will use automatically use UI scaling for example, if minimum width is 1024, and backbuffer it 800, then m_fUIScalingX will be automatically set to 1024/800. calling this function will cause OnSize() and UpdateBackbufferSize() to be called. Actually it calls SetUIScale() [main thread only]

Parameters

nWidth	the new width.
nHeight	the new height.
bAutoUIScaling	default to true. whether we will automatically recalculate the UI scaling accordingly with regard to current backbuffer size.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMinUIResolution() [2/3]

virtual void ParaEngine::CParaEngineApp::SetMinUIResolution ( int  nWidth, int  nHeight, bool  bAutoUIScaling = true  )

inlinevirtual

set the minimum UI resolution size.

if the backbuffer is smaller than this, we will use automatically use UI scaling for example, if minimum width is 1024, and backbuffer it 800, then m_fUIScalingX will be automatically set to 1024/800. calling this function will cause OnSize() and UpdateBackbufferSize() to be called. Actually it calls SetUIScale() [main thread only]

Parameters

nWidth	the new width.
nHeight	the new height.
bAutoUIScaling	default to true. whether we will automatically recalculate the UI scaling accordingly with regard to current backbuffer size.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetMinUIResolution() [3/3]

void CParaEngineApp::SetMinUIResolution ( int  nWidth, int  nHeight, bool  bAutoUIScaling = true  )

virtual

set the minimum UI resolution size.

if the backbuffer is smaller than this, we will use automatically use UI scaling for example, if minimum width is 1024, and backbuffer it 800, then m_fUIScalingX will be automatically set to 1024/800. calling this function will cause OnSize() and UpdateBackbufferSize() to be called. Actually it calls SetUIScale() [main thread only]

Parameters

nWidth	the new width.
nHeight	the new height.
bAutoUIScaling	default to true. whether we will automatically recalculate the UI scaling accordingly with regard to current backbuffer size.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetRefreshTimer() [1/2]

virtual void ParaEngine::CParaEngineApp::SetRefreshTimer ( float  fTimeInterval, int  nFrameRateControl = 0  )

virtual

Set the frame rate timer interval.

Parameters

fTimeInterval	value in seconds. such as 0.033f or 0.01667f Passing a value <= 0 to render in idle time.
nFrameRateControl	0 for real time, 1 for ideal frame rate at 30 FPS no matter whatever time interval is set.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetRefreshTimer() [2/2]

void ParaEngine::CParaEngineApp::SetRefreshTimer ( float  fTimeInterval, int  nFrameRateControl = 0  )

virtual

Set the frame rate timer interval.

Parameters

fTimeInterval	value in seconds. such as 0.033f or 0.01667f Passing a value <= 0 to render in idle time.
nFrameRateControl	0 for real time, 1 for ideal frame rate at 30 FPS no matter whatever time interval is set.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetWindowedMode() [1/3]

bool CParaEngineApp::SetWindowedMode ( bool  bWindowed )

virtual

switch to either windowed mode or full screen mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetWindowedMode() [2/3]

virtual bool ParaEngine::CParaEngineApp::SetWindowedMode ( bool  bWindowed )

inlinevirtual

switch to either windowed mode or full screen mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

SetWindowedMode() [3/3]

virtual bool ParaEngine::CParaEngineApp::SetWindowedMode ( bool  bWindowed )

inlinevirtual

switch to either windowed mode or full screen mode.

Reimplemented from ParaEngine::CParaEngineAppBase.

StartApp() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::StartApp ( const char *  sCommandLine = 0 )

virtual

This is the first function that should be called when acquiring the IParaEngineApp interface.

call this function to start the application. Rendering window and devices are not created, one need to call Create() instead.

Parameters

sCommandLine

the command line parameter

Reimplemented from ParaEngine::CParaEngineAppBase.

StartApp() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::StartApp ( const char *  sCommandLine = 0 )

virtual

This is the first function that should be called when acquiring the IParaEngineApp interface.

call this function to start the application. Rendering window and devices are not created, one need to call Create() instead.

Parameters

sCommandLine

the command line parameter

Reimplemented from ParaEngine::CParaEngineAppBase.

StartApp() [3/3]

HRESULT ParaEngine::CParaEngineApp::StartApp ( const char *  sCommandLine = 0 )

virtual

call this function to create the ParaEngine main rendering device based on the current window.

If no window is specified using SetMainWindow(), it will create a default window using the default config settings.

Parameters

sCommandLine

the command line parameter

Reimplemented from ParaEngine::CParaEngineAppBase.

StopApp() [1/3]

virtual HRESULT ParaEngine::CParaEngineApp::StopApp ( )

virtual

This is the last function that should be called.

It is usually called just before process exit.

Reimplemented from ParaEngine::CParaEngineAppBase.

StopApp() [2/3]

virtual HRESULT ParaEngine::CParaEngineApp::StopApp ( )

virtual

This is the last function that should be called.

It is usually called just before process exit.

Reimplemented from ParaEngine::CParaEngineAppBase.

StopApp() [3/3]

HRESULT ParaEngine::CParaEngineApp::StopApp ( )

virtual

This is the last function that should be called.

It is usually called just before process exit.

Reimplemented from ParaEngine::CParaEngineAppBase.

UpdateScreenMode() [1/3]

bool CParaEngineApp::UpdateScreenMode ( )

virtual

call this function to update changes of FullScreen Mode and Screen Resolution.

Reimplemented from ParaEngine::CParaEngineAppBase.

UpdateScreenMode() [2/3]

virtual bool ParaEngine::CParaEngineApp::UpdateScreenMode ( )

inlinevirtual

call this function to update changes of FullScreen Mode and Screen Resolution.

Reimplemented from ParaEngine::CParaEngineAppBase.

UpdateScreenMode() [3/3]

virtual bool ParaEngine::CParaEngineApp::UpdateScreenMode ( )

inlinevirtual

call this function to update changes of FullScreen Mode and Screen Resolution.

Reimplemented from ParaEngine::CParaEngineAppBase.

WriteConfigFile() [1/3]

void ParaEngine::CParaEngineApp::WriteConfigFile ( const char *  sFileName )

virtual

write the current setting to config file.

Such as graphics mode and whether full screen, etc. config file at ./config.txt will be automatically loaded when the game engine starts.

Parameters

sFileName

if this is "", it will be the default config file at ./config.txt

Reimplemented from ParaEngine::CParaEngineAppBase.

WriteConfigFile() [2/3]

virtual void ParaEngine::CParaEngineApp::WriteConfigFile ( const char *  sFileName )

virtual

write the current setting to config file.

Such as graphics mode and whether full screen, etc. config file at ./config.txt will be automatically loaded when the game engine starts.

Parameters

sFileName

if this is "", it will be the default config file at ./config.txt

Reimplemented from ParaEngine::CParaEngineAppBase.

WriteConfigFile() [3/3]

virtual void ParaEngine::CParaEngineApp::WriteConfigFile ( const char *  sFileName )

virtual

write the current setting to config file.

Such as graphics mode and whether full screen, etc. config file at ./config.txt will be automatically loaded when the game engine starts.

Parameters

sFileName

if this is "", it will be the default config file at ./config.txt

Reimplemented from ParaEngine::CParaEngineAppBase.

WriteRegDWORD() [1/2]

bool ParaEngine::CParaEngineApp::WriteRegDWORD	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name,
		DWORD	value
	)

Write a DWORD to the registry.

see WriteRegStr() for more info

WriteRegDWORD() [2/2]

bool ParaEngine::CParaEngineApp::WriteRegDWORD	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name,
		DWORD	value
	)

Write a DWORD to the registry.

see WriteRegStr() for more info

WriteRegStr() [1/2]

bool ParaEngine::CParaEngineApp::WriteRegStr	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name,
		const string &	value
	)

Write a string to the registry.

e.g. WriteRegStr("HKLM", "Software\My Company\My Software", "string Value", "string Name");

Parameters

root_key

must be HKCR or HKEY_CLASSES_ROOT HKLM or HKEY_LOCAL_MACHINE HKCU or HKEY_CURRENT_USER HKU or HKEY_USERS

WriteRegStr() [2/2]

bool ParaEngine::CParaEngineApp::WriteRegStr	(	const string &	root_key,
		const string &	sSubKey,
		const string &	name,
		const string &	value
	)

Write a string to the registry.

e.g. WriteRegStr("HKLM", "Software\My Company\My Software", "string Value", "string Name");

Parameters

root_key

must be HKCR or HKEY_CLASSES_ROOT HKLM or HKEY_LOCAL_MACHINE HKCU or HKEY_CURRENT_USER HKU or HKEY_USERS

Member Data Documentation

m_bAppHasFocus

bool ParaEngine::CParaEngineApp::m_bAppHasFocus

protected

whether app has focus.

m_dwCoreUsage

DWORD ParaEngine::CParaEngineApp::m_dwCoreUsage

protected

the Core usage.

See also

PE_USAGE

m_dwWinThreadID

DWORD ParaEngine::CParaEngineApp::m_dwWinThreadID

protected

the thread id of the main window thread.

It is used when doing the PostWinThreadMessage().

m_nInitialGameEffectSet

int ParaEngine::CParaEngineApp::m_nInitialGameEffectSet

protected

initial game effect setting to be loaded from the config file.

default value it 0

m_nWindowedDesired

int ParaEngine::CParaEngineApp::m_nWindowedDesired

protected

1 window mode desired, 0 full screen mode desired, -1 if unknown.

m_pWinRawMsgQueue

CWinRawMsgQueue * ParaEngine::CParaEngineApp::m_pWinRawMsgQueue

protected

The thread safe message queue target for receiving messages from window thread.

They are processed in the main game thread though.

---

The documentation for this class was generated from the following files:

• Client/trunk/ParaEngineClient/Engine/ParaEngineApp.h
• Client/trunk/ParaEngineClient/Engine/ParaEngineApp.cpp
