Basic SceneElement that wraps a View so that it can be added to the Scene. More...

#include <ViewElement.h>

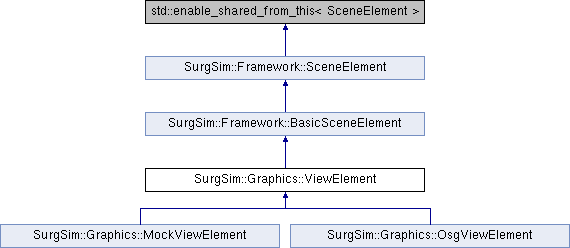

Inheritance diagram for SurgSim::Graphics::ViewElement:

Public Member Functions
	ViewElement (const std::string &name)
	Constructor. More...

virtual	~ViewElement ()
	Destructor.

virtual bool	setView (std::shared_ptr< View > view)
	Sets the view component that provides the visualization of the graphics representations. More...

std::shared_ptr< View >	getView ()
	Returns the view component that provides the visualization of the graphics representations. More...

void	setCamera (std::shared_ptr< Camera > camera)
	Sets the camera for the view in this sceneelement. More...

std::shared_ptr< Camera >	getCamera ()
	Get the camera for the view in this sceneelement. More...

virtual std::shared_ptr< SurgSim::Input::CommonDevice >	getKeyboardDevice ()=0
	Return the keyboard to be used with this view. More...

virtual void	enableKeyboardDevice (bool val)=0
	Turn on/off the keyboard device to be used. More...

virtual std::shared_ptr< SurgSim::Input::CommonDevice >	getMouseDevice ()=0
	Return the mouse to be used with this view. More...

virtual void	enableMouseDevice (bool val)=0
	Turn on/off the mouse device to be used. More...

Public Member Functions inherited from SurgSim::Framework::BasicSceneElement
	BasicSceneElement (const std::string &name)

virtual	~BasicSceneElement ()
	Destructor.

	SURGSIM_CLASSNAME (SurgSim::Framework::BasicSceneElement)

Public Member Functions inherited from SurgSim::Framework::SceneElement
	SceneElement (const std::string &name)
	Constructor. More...

virtual	~SceneElement ()
	Destructor.

virtual std::string	getClassName () const

bool	addComponent (std::shared_ptr< Component > component)
	Adds a component, calls initialize() on the component, if SceneElement::isInitialized() is true. More...

bool	removeComponent (std::shared_ptr< Component > component)
	Removes a given component. More...

bool	removeComponent (const std::string &name)
	Removes the component described by name. More...

void	removeComponents ()
	Removes all components.

std::shared_ptr< Component >	getComponent (const std::string &name) const
	Gets the component identified by name. More...

std::vector< std::shared_ptr< Component > >	getComponents () const
	Gets all the components of this SceneElement. More...

template<class T >
std::vector< std::shared_ptr< T > >	getComponents () const
	Template version of getComponents method to get all the components with type T. More...

template<class T >
T	getValue (const std::string &component, const std::string &property) const
	Retrieves the property value from a component. More...

boost::any	getValue (const std::string &component, const std::string &property) const
	Retrieves the property value from a component. More...

template<class T >
bool	getValue (const std::string &component, const std::string &property, T *value) const
	Retrieves the property value from a component, and convertis it to the type of the output parameter. More...

void	setValue (const std::string &component, const std::string &property, const boost::any &value)
	Sets the property value of a component. More...

void	addToGroup (const std::string &group)
	Add this scene element to the given group. More...

void	removeFromGroup (const std::string &group)
	Remove this scene element from the given group. More...

void	setGroups (const std::vector< std::string > &groups)
	Set the groups of this scene element. More...

std::vector< std::string >	getGroups () const

bool	inGroup (const std::string &name)
	Test whether this SceneElement is in a specific group. More...

bool	initialize ()
	Executes the initialize operation. More...

std::string	getName () const
	Return the name of this SceneElement. More...

void	setPose (const SurgSim::Math::RigidTransform3d &pose)
	Set the pose of this SceneElement. More...

const SurgSim::Math::RigidTransform3d &	getPose () const
	Get the pose of this SceneElement. More...

std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent that controls the pose all Representations in this SceneElement. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the Scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the Scene. More...

void	setRuntime (std::weak_ptr< Runtime > runtime)
	Sets the Runtime. More...

std::shared_ptr< Runtime >	getRuntime ()
	Gets the runtime. More...

bool	isInitialized () const
	Return if this SceneElement is initialized. More...

void	setActive (bool val)
	Set this SceneElement's status (active/inactive) More...

bool	isActive () const

std::shared_ptr< SceneElement >	getSharedPtr ()
	Gets a shared pointer to this SceneElement. More...

virtual YAML::Node	encode (bool standalone) const
	Convert to a YAML::Node. More...

virtual bool	decode (const YAML::Node &node)
	Pull data from a YAML::Node. More...

Protected Member Functions
bool	doInitialize () override
	Initializes the scene element. More...

Protected Member Functions inherited from SurgSim::Framework::BasicSceneElement

Detailed Description

Basic SceneElement that wraps a View so that it can be added to the Scene.

A Scene needs at least one Graphics::View component for any visualization of Graphics:Representation objects to be shown. A view needs a camera to do its' rendering, this component can connect all the pieces correctly.

Constructor & Destructor Documentation

§ ViewElement()

SurgSim::Graphics::ViewElement::ViewElement ( const std::string & name )

explicit

Constructor.

Parameters

name	Name of the scene element

Member Function Documentation

§ doInitialize()

bool SurgSim::Graphics::ViewElement::doInitialize ( )

overrideprotectedvirtual

Initializes the scene element.

Returns: True if it succeeds, false if it fails

Reimplemented from SurgSim::Framework::BasicSceneElement.

§ enableKeyboardDevice()

virtual void SurgSim::Graphics::ViewElement::enableKeyboardDevice ( bool val )

pure virtual

Turn on/off the keyboard device to be used.

Parameters

val	Indicate whether or not to use keyboard device

Implemented in SurgSim::Graphics::OsgViewElement, and SurgSim::Graphics::MockViewElement.

§ enableMouseDevice()

virtual void SurgSim::Graphics::ViewElement::enableMouseDevice ( bool val )

pure virtual

Turn on/off the mouse device to be used.

Parameters

val	Indicate whether or not to use mouse device

Implemented in SurgSim::Graphics::OsgViewElement, and SurgSim::Graphics::MockViewElement.

§ getCamera()

std::shared_ptr< Camera > SurgSim::Graphics::ViewElement::getCamera ( )

Get the camera for the view in this sceneelement.

Returns: The camera used in the view of this sceneelement.

§ getKeyboardDevice()

virtual std::shared_ptr<SurgSim::Input::CommonDevice> SurgSim::Graphics::ViewElement::getKeyboardDevice ( )

pure virtual

Return the keyboard to be used with this view.

Returns: A keyboard device

Implemented in SurgSim::Graphics::OsgViewElement, and SurgSim::Graphics::MockViewElement.

§ getMouseDevice()

virtual std::shared_ptr<SurgSim::Input::CommonDevice> SurgSim::Graphics::ViewElement::getMouseDevice ( )

pure virtual

Return the mouse to be used with this view.

Returns: A mouse device

Implemented in SurgSim::Graphics::OsgViewElement, and SurgSim::Graphics::MockViewElement.

§ getView()

std::shared_ptr< View > SurgSim::Graphics::ViewElement::getView ( )

Returns the view component that provides the visualization of the graphics representations.

Returns: A shared_ptr pointing to the View component

§ setCamera()

void SurgSim::Graphics::ViewElement::setCamera ( std::shared_ptr< Camera > camera )

Sets the camera for the view in this sceneelement.

Parameters

camera The camera to be used with the view

§ setView()

bool SurgSim::Graphics::ViewElement::setView ( std::shared_ptr< View > view )

virtual

Sets the view component that provides the visualization of the graphics representations.

Returns: True if setView() succeeds; Otherwise, false.

Reimplemented in SurgSim::Graphics::OsgViewElement.

The documentation for this class was generated from the following files:

SurgSim/Graphics/ViewElement.h
SurgSim/Graphics/ViewElement.cpp
