Abstract interface for a light, a light needs to be assigned to a group to be active, only the members of this group will be considered to be lit by this light. More...

#include <Light.h>

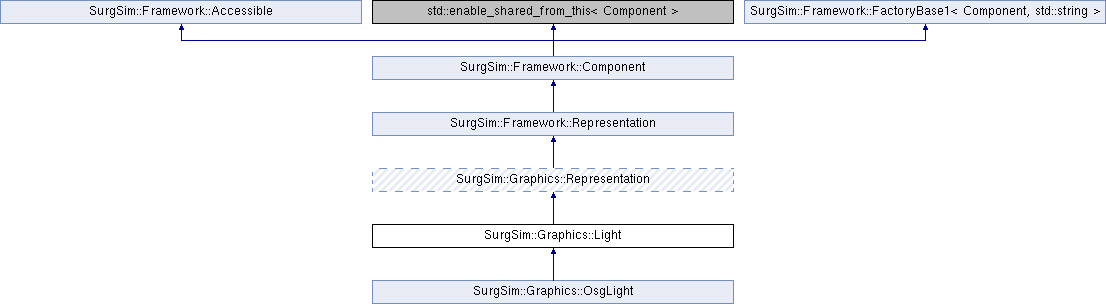

Inheritance diagram for SurgSim::Graphics::Light:

Public Member Functions
	Light (const std::string &name)
	Constructor.

virtual bool	setGroup (std::shared_ptr< SurgSim::Graphics::Group > group)=0
	Sets the group for this light, setting nullptr here will remove the light from its current group. More...

virtual std::shared_ptr< SurgSim::Graphics::Group >	getGroup ()=0
	Gets the group that this light has been assigned to. More...

virtual void	setDiffuseColor (const SurgSim::Math::Vector4d &color)=0
	Sets diffuse color of this light. More...

virtual SurgSim::Math::Vector4d	getDiffuseColor ()=0
	Gets diffuse color. More...

virtual void	setSpecularColor (const SurgSim::Math::Vector4d &color)=0
	Sets specular color of this light. More...

virtual SurgSim::Math::Vector4d	getSpecularColor ()=0
	Gets specular color. More...

virtual void	setConstantAttenuation (double val)=0
	Sets constant attenuation. More...

virtual double	getConstantAttenuation ()=0
	Gets constant attenuation. More...

virtual void	setLinearAttenuation (double val)=0
	Sets linear attenuation. More...

virtual double	getLinearAttenuation ()=0
	Gets linear attenuation. More...

virtual void	setQuadraticAttenuation (double val)=0
	Sets quadratic attenuation. More...

virtual double	getQuadraticAttenuation ()=0
	Gets quadratic attenuation. More...

virtual void	setLightGroupReference (const std::string &name)=0
	Sets the name of the group that this light should work on. More...

virtual std::string	getLightGroupReference ()=0
	Gets the name of the group this light should operate on. More...

Public Member Functions inherited from SurgSim::Graphics::Representation
	Representation (const std::string &name)
	Constructor. More...

virtual	~Representation ()
	Destructor.

virtual bool	setMaterial (std::shared_ptr< SurgSim::Framework::Component > material)=0
	Sets the material that defines the visual appearance of the representation. More...

virtual std::shared_ptr< Material >	getMaterial () const =0
	Gets the material that defines the visual appearance of the representation. More...

void	setMaterialReference (const std::string &materialName)

std::string	getMaterialReference () const

virtual void	clearMaterial ()=0
	Removes the material from the representation.

virtual void	setDrawAsWireFrame (bool val)=0
	Sets the representation to render as a wire frame. More...

virtual bool	getDrawAsWireFrame () const =0
	Return if the representation is rendered as a wire frame. More...

virtual void	setGenerateTangents (bool value)=0
	Enable or disable the generation of tangents. More...

virtual bool	isGeneratingTangents () const =0

virtual void	update (double dt)=0
	Updates the representation. More...

virtual bool	addGroupReference (const std::string &name)
	Add a reference to a group, this will eventual add this representation to the group with the the same name. More...

void	addGroupReferences (const std::vector< std::string > &groups)
	Adds a list of group references. More...

void	setGroupReferences (const std::vector< std::string > &groups)
	Sets the list of group references. More...

void	setGroupReference (const std::string &group)
	Helper functions, this clears all the references and sets, only the reference given in the parameter. More...

std::vector< std::string >	getGroupReferences () const
	Gets group references. More...

bool	removeGroupReference (const std::string &group)
	Function to remove an unwanted reference. More...

void	clearGroupReferences ()
	Clear all the Group references.

virtual void	addUniform (std::shared_ptr< UniformBase > uniform)=0
	Adds a uniform to this representation. More...

virtual void	addUniform (const std::string &type, const std::string &name, const boost::any &value)=0
	Adds and a uniform to this representation and set its value. More...

virtual void	setUniforms (const std::vector< std::shared_ptr< UniformBase >> &uniforms)=0
	Sets a set of uniforms for this representation. More...

virtual std::vector< std::shared_ptr< UniformBase > >	getUniforms () const =0

bool	doWakeUp () override
	Interface to be implemented by derived classes. More...

Public Member Functions inherited from SurgSim::Framework::Representation
	Representation (const std::string &name)
	Constructor. More...

virtual void	setLocalPose (const SurgSim::Math::RigidTransform3d &pose)
	Set the pose of the representation with respect to the Scene Element. More...

virtual SurgSim::Math::RigidTransform3d	getLocalPose () const
	Get the pose of the representation with respect to the Scene Element. More...

virtual SurgSim::Math::RigidTransform3d	getPose () const
	Get the pose of the representation in world coordinates. More...

Public Member Functions inherited from SurgSim::Framework::Component
	Component (const std::string &name)
	Constructor. More...

virtual	~Component ()
	Destructor.

std::string	getName () const
	Gets component name. More...

std::string	getFullName () const
	Gets a string containing the name of the Component and (if it has one) its SceneElement. More...

void	setName (const std::string &name)
	Sets the name of component. More...

boost::uuids::uuid	getUuid () const
	Gets the id of the component.

bool	isInitialized () const

bool	initialize (const std::weak_ptr< Runtime > &runtime)
	Initialize this component, this needs to be called before wakeUp() can be called. More...

bool	isAwake () const

bool	wakeUp ()
	Wakeup this component, this will be called when the component is inserted into the ComponentManager that is responsible for handling this component. More...

void	retire ()
	Retire this component, this will be called when the component is removed from the ComponentManager that is responsible for handling this component. More...

void	setScene (std::weak_ptr< Scene > scene)
	Sets the scene. More...

std::shared_ptr< Scene >	getScene ()
	Gets the scene. More...

void	setSceneElement (std::weak_ptr< SceneElement > sceneElement)
	Sets the scene element. More...

std::shared_ptr< SceneElement >	getSceneElement ()
	Gets the scene element. More...

std::shared_ptr< const SceneElement >	getSceneElement () const
	Gets the scene element, constant version. More...

std::shared_ptr< Runtime >	getRuntime () const
	Get the runtime which contains this component. More...

virtual std::string	getClassName () const
	The class name for this class, this being the base class it should return SurgSim::Framework::Component but this would make missing implemenentations of this hard to catch, therefore this calls SURGSIM_FAILURE. More...

std::shared_ptr< Component >	getSharedPtr ()
	Gets a shared pointer to this component. More...

virtual void	doRetire ()
	Interface to be implemented by derived classes Has a default implementation, does nothing.

bool	isActive () const

virtual void	setLocalActive (bool val)
	Set the component's active state. More...

bool	isLocalActive () const

Public Member Functions inherited from SurgSim::Framework::Accessible
	Accessible ()
	Default Constructor.

	~Accessible ()
	Destructor.

template<class T >
T	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found and tries to convert it to the given type. More...

boost::any	getValue (const std::string &name) const
	Retrieves the value with the name by executing the getter if it is found. More...

template<class T >
bool	getValue (const std::string &name, T *value) const
	Retrieves the value with the name by executing the getter if it is found, and converts it to the type of the output parameter. More...

void	setValue (const std::string &name, const boost::any &value)
	Sets a value of a property that has setter. More...

bool	isReadable (const std::string &name) const
	Check whether a property is readable. More...

bool	isWriteable (const std::string &name) const
	Check whether a property is writable. More...

void	setGetter (const std::string &name, GetterType func)
	Sets a getter for a given property. More...

void	setSetter (const std::string &name, SetterType func)
	Sets a setter for a given property. More...

void	setAccessors (const std::string &name, GetterType getter, SetterType setter)
	Sets the accessors getter and setter in one function. More...

void	removeAccessors (const std::string &name)
	Removes all the accessors (getter and setter) for a given property. More...

void	forwardProperty (const std::string &name, const Accessible &target, const std::string &targetProperty)
	Adds a property with the given name that uses the targets accessors, in effect forwarding the value to the target. More...

void	setSerializable (const std::string &name, EncoderType encoder, DecoderType decoder)
	Sets the functions used to convert data from and to a YAML::Node. More...

void	setDecoder (const std::string &name, DecoderType decoder)
	Sets the functions used to convert data from a YAML::Node. More...

YAML::Node	encode () const
	Encode this Accessible to a YAML::Node. More...

void	decode (const YAML::Node &node, const std::vector< std::string > &ignoredProperties=std::vector< std::string >())
	Decode this Accessible from a YAML::Node, will throw an exception if the data type cannot be converted. More...

std::vector< std::string >	getProperties ()

template<>
boost::any	getValue (const std::string &name) const

Additional Inherited Members
Public Types inherited from SurgSim::Framework::Accessible
typedef std::function< boost::any(void)>	GetterType

typedef std::function< void(boost::any)>	SetterType

typedef std::function< YAML::Node(void)>	EncoderType

typedef std::function< void(const YAML::Node *)>	DecoderType

Public Types inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
typedef ObjectFactory1< Component, std::string >	FactoryType

Static Public Member Functions inherited from SurgSim::Framework::FactoryBase1< Component, std::string >
static FactoryType &	getFactory ()

Static Public Attributes inherited from SurgSim::Graphics::Representation
static const std::string	DefaultGroupName = "__OssDefault__"

static const std::string	DefaultHudGroupName = "__OssDefaultHud__"

Protected Member Functions inherited from SurgSim::Framework::Component
virtual std::shared_ptr< PoseComponent >	getPoseComponent ()
	Get the PoseComponent for this component. More...

virtual std::shared_ptr< const PoseComponent >	getPoseComponent () const
	Get the PoseComponent for this component, constant access. More...

Detailed Description

Abstract interface for a light, a light needs to be assigned to a group to be active, only the members of this group will be considered to be lit by this light.

Currently this light implements a pointlight. It will have to be extended for a directional and spot lights. The class should provide the following uniform values. The position is set by using the representations setPose() call.

struct LightSource {
    vec4 ambient;
    vec4 diffuse;
    vec4 specular;
    vec4 position;
    float constantAttenuation;
    float linearAttenuation;
    float quadraticAttenuation;
};
uniform LightSource lightSource;

Member Function Documentation

§ getConstantAttenuation()

virtual double SurgSim::Graphics::Light::getConstantAttenuation ( )

pure virtual

Gets constant attenuation.

Returns: The constant attenuation.

Implemented in SurgSim::Graphics::OsgLight.

§ getDiffuseColor()

virtual SurgSim::Math::Vector4d SurgSim::Graphics::Light::getDiffuseColor ( )

pure virtual

Gets diffuse color.

Returns: The diffuse color.

Implemented in SurgSim::Graphics::OsgLight.

§ getGroup()

virtual std::shared_ptr<SurgSim::Graphics::Group> SurgSim::Graphics::Light::getGroup ( )

pure virtual

Gets the group that this light has been assigned to.

Returns: The group or nullptr if no group has been set.

Implemented in SurgSim::Graphics::OsgLight.

§ getLightGroupReference()

virtual std::string SurgSim::Graphics::Light::getLightGroupReference ( )

pure virtual

Gets the name of the group this light should operate on.

Returns: the name of the group for this light

Implemented in SurgSim::Graphics::OsgLight.

§ getLinearAttenuation()

virtual double SurgSim::Graphics::Light::getLinearAttenuation ( )

pure virtual

Gets linear attenuation.

Returns: The linear attenuation.

Implemented in SurgSim::Graphics::OsgLight.

§ getQuadraticAttenuation()

virtual double SurgSim::Graphics::Light::getQuadraticAttenuation ( )

pure virtual

Gets quadratic attenuation.

Returns: The quadratic attenuation.

Implemented in SurgSim::Graphics::OsgLight.

§ getSpecularColor()

virtual SurgSim::Math::Vector4d SurgSim::Graphics::Light::getSpecularColor ( )

pure virtual

Gets specular color.

Returns: The specular color.

Implemented in SurgSim::Graphics::OsgLight.

§ setConstantAttenuation()

virtual void SurgSim::Graphics::Light::setConstantAttenuation ( double val )

pure virtual

Sets constant attenuation.

Parameters

val	The value.

Implemented in SurgSim::Graphics::OsgLight.

§ setDiffuseColor()

virtual void SurgSim::Graphics::Light::setDiffuseColor ( const SurgSim::Math::Vector4d & color )

pure virtual

Sets diffuse color of this light.

Parameters

color The color.

Implemented in SurgSim::Graphics::OsgLight.

§ setGroup()

virtual bool SurgSim::Graphics::Light::setGroup ( std::shared_ptr< SurgSim::Graphics::Group > group )

pure virtual

Sets the group for this light, setting nullptr here will remove the light from its current group.

Parameters

group The group.

Returns: true if it succeeds, false if the group is not an OsgGroup.

Implemented in SurgSim::Graphics::OsgLight.

§ setLightGroupReference()

virtual void SurgSim::Graphics::Light::setLightGroupReference ( const std::string & name )

pure virtual

Sets the name of the group that this light should work on.

Parameters

name	The name of the group to light

Implemented in SurgSim::Graphics::OsgLight.

§ setLinearAttenuation()

virtual void SurgSim::Graphics::Light::setLinearAttenuation ( double val )

pure virtual

Sets linear attenuation.

Parameters

val	The value.

Implemented in SurgSim::Graphics::OsgLight.

§ setQuadraticAttenuation()

virtual void SurgSim::Graphics::Light::setQuadraticAttenuation ( double val )

pure virtual

Sets quadratic attenuation.

Parameters

val	The value.

Implemented in SurgSim::Graphics::OsgLight.

§ setSpecularColor()

virtual void SurgSim::Graphics::Light::setSpecularColor ( const SurgSim::Math::Vector4d & color )

pure virtual

Sets specular color of this light.

Parameters

color The color.

Implemented in SurgSim::Graphics::OsgLight.

The documentation for this class was generated from the following file:

SurgSim/Graphics/Light.h

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

§ getConstantAttenuation()

§ getDiffuseColor()

§ getGroup()

§ getLightGroupReference()

§ getLinearAttenuation()

§ getQuadraticAttenuation()

§ getSpecularColor()

§ setConstantAttenuation()

§ setDiffuseColor()

§ setGroup()

§ setLightGroupReference()

§ setLinearAttenuation()

§ setQuadraticAttenuation()

§ setSpecularColor()
